SPECjbb

SPECjbb2000		SPECjbb2000 = 73319 ops/s
IBM Corporation xSeries 360
IBM Corporation J2RE 1.4.0 IBM Windows 32 build cn140-20020902 (JIT enabled: jitc))

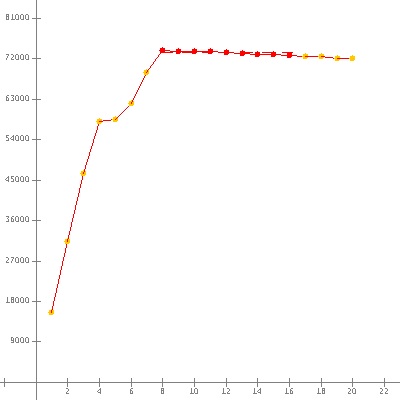

Warehouses	Ops/s	Incl. in metric
1	15580
2	31324
3	46393
4	57942
5	58381
6	61939
7	69024
8	73879	*
9	73617	*
10	73541	*
11	73506	*
12	73475	*
13	73085	*
14	72971	*
15	73046	*
16	72751	*
17	72401
18	72569
19	72135
20	72076
SPECjbb2000	(from 8 to 16)	73319 ops/s

SPEC license # 11 Tested by: IBM Corporation Test date: October 25, 2002

Hardware

Hardware Vendor IBM Corporation

Vendor URL http://www.ibm.com

Model xSeries 360

Processor Intel Xeon MP

MHz 2000

# of Procs 4 cores, 4 chips, 1 core/chip (Hyper-Threading Technology enabled)

Memory (MB) 8192

Primary cache 12KBI+8KBD

Secondary cache 256KB(I+D) on chip

Other cache 2MB

Filesystem NTFS

Disks 1 x 9.1GB SCSI

Other hardware

Software

Software Vendor IBM Corporation

Vendor URL http://www.ibm.com

Java Precompiler Version

Java Precompiler Command Line

Java Precompiler Way Of Excluding Classes

JVM Version J2RE 1.4.0 IBM Windows 32 build cn140-20020902 (JIT enabled: jitc))

JVM Command Line c:\java14\jre\bin\java -Xms1638m -Xmx1638m -Xrs -spec.jbb.JBBmain -propfile Test1

JVM Initial Heap Memory (MB) 1638

JVM Maximum Heap Memory (MB) 1638

JVM CLASSPATH .\jbb.jar;
.\jbb_no_precompile.jar;
.\check.jar;
.\reporter.jar;

JVM BOOTCLASSPATH c:\java14\jre\lib\core.jar;
c:\java14\jre\lib\graphics.jar;
c:\java14\jre\lib\security.jar;
c:\java14\jre\lib\server.jar;
c:\java14\jre\lib\xml.jar;
c:\java14\jre\lib\charsets.jar

OS Version Microsoft Windows 2000 Advanced Server

System state normal

Other software

Test Information

Tested by IBM Corporation

SPEC license # 11

Test location RTP, NC

Test date October 25, 2002

H/w available Oct-2002

JVM available Dec-2002

OS available Dec-2000

Other s/w available

Tuning

Notes

Details of Runs

Warehouses	Thrput	Total heap (MB)		Thread spread %	% > 120s	transaction type	Count	Time (in seconds)
Warehouses	Thrput	Size	Used	Thread spread %	% > 120s	transaction type	Count	total	max
1	15580	1638	30.8	<0.01%	<0.01	new_order	812844	73.3	.062
						payment	812844	20.3	.016
						order_status	81285	2.42	.016
						delivery	81284	6.40	.016
						stock_level	81284	13.1	.016
2	31324	1638	50.4	.271%	<0.01	new_order	1634272	141	.063
						payment	1634275	42.1	.079
						order_status	163428	5.24	.016
						delivery	163428	13.5	.079
						stock_level	163428	25.7	.063
3	46393	1638	70.0	2.21%	<0.01	new_order	2420527	212	.079
						payment	2420525	62.7	.078
						order_status	242052	7.36	.016
						delivery	242051	22.0	.078
						stock_level	242052	40.3	.079
4	57942	1638	89.8	12.9%	<0.01	new_order	3023076	283	.094
						payment	3023081	85.8	.093
						order_status	302308	10.7	.016
						delivery	302305	28.2	.016
						stock_level	302309	52.3	.093
5	58381	1638	107	23.7%	.013	new_order	3046373	350	.109
						payment	3046362	114	.094
						order_status	304636	12.6	.016
						delivery	304635	35.1	.109
						stock_level	304636	64.1	.094
6	61939	1638	126	9.47%	<0.01	new_order	3231588	413	.110
						payment	3231577	141	.110
						order_status	323158	16.3	.094
						delivery	323157	43.5	.109
						stock_level	323156	77.0	.110
7	69024	1638	144	5.08%	<0.01	new_order	3601268	485	.125
						payment	3601262	164	.125
						order_status	360125	18.6	.094
						delivery	360128	50.5	.109
						stock_level	360125	88.3	.125
8	73879	1638	159	2.36%	.013	new_order	3855015	556	.125
						payment	3855014	187	.125
						order_status	385503	20.5	.125
						delivery	385504	58.2	.125
						stock_level	385503	102	.125
9	73617	1638	177	6.20%	.039	new_order	3842400	626	.219
						payment	3842401	206	.188
						order_status	384237	23.0	.188
						delivery	384239	63.7	.157
						stock_level	384243	118	.250
10	73541	1638	196	8.00%	<0.01	new_order	3836938	697	.266
						payment	3836950	233	.203
						order_status	383696	28.2	.203
						delivery	383695	68.0	.203
						stock_level	383696	127	.218
11	73506	1638	212	10.3%	<0.01	new_order	3835109	756	.297
						payment	3835121	262	.390
						order_status	383514	28.8	.204
						delivery	383513	80.0	.235
						stock_level	383512	140	.250
12	73475	1638	228	6.70%	<0.01	new_order	3833481	835	.297
						payment	3833493	280	.266
						order_status	383348	34.8	.203
						delivery	383351	84.9	.250
						stock_level	383349	149	.266
13	73085	1638	244	3.74%	<0.01	new_order	3813132	901	.375
						payment	3813131	309	.282
						order_status	381314	37.3	.250
						delivery	381309	90.2	.234
						stock_level	381314	162	.344
14	72971	1638	262	7.70%	<0.01	new_order	3807191	970	.343
						payment	3807192	329	.313
						order_status	380719	37.6	.312
						delivery	380720	97.1	.296
						stock_level	380718	183	.297
15	73046	1638	279	3.27%	<0.01	new_order	3811109	1032	.547
						payment	3811089	367	.344
						order_status	381110	42.1	.204
						delivery	381110	104	.297
						stock_level	381112	186	.344
16	72751	1638	295	3.20%	<0.01	new_order	3795708	1103	.406
						payment	3795713	382	.390
						order_status	379569	43.0	.234
						delivery	379568	110	.359
						stock_level	379569	207	.532
17	72401	1638	312	3.57%	<0.01	new_order	3777472	1161	.468
						payment	3777465	402	.563
						order_status	377746	50.4	.469
						delivery	377747	118	.375
						stock_level	377742	233	.500
18	72569	1638	326	5.53%	<0.01	new_order	3786211	1247	.579
						payment	3786219	419	.547
						order_status	378621	48.1	.390
						delivery	378623	126	.406
						stock_level	378623	228	.406
19	72135	1638	343	3.88%	<0.01	new_order	3763579	1298	.563
						payment	3763559	454	.531
						order_status	376361	45.5	.422
						delivery	376355	129	.422
						stock_level	376356	260	.500
20	72076	1638	359	4.58%	<0.01	new_order	3760518	1378	.578
						payment	3760507	477	.563
						order_status	376045	51.6	.516
						delivery	376055	128	.438
						stock_level	376048	276	.937
