SPECjbb

SPECjbb2000		SPECjbb2000 = 161904 ops/s
IBM Corporation IBM eServer pSeries 670 (1100 MHz)
IBM Corporation J2RE 1.3.1 IBM AIX 5L for PowerPC (64 bit JVM) build caix641311p-20020302

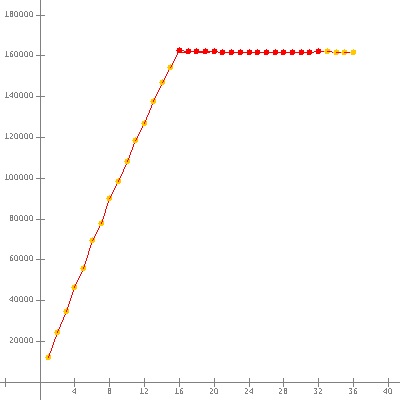

Warehouses	Ops/s	Incl. in metric
1	12231
2	24485
3	34703
4	46467
5	55857
6	69346
7	78047
8	89886
9	98503
10	108204
11	118518
12	126683
13	137545
14	146766
15	154484
16	162767	*
17	162144	*
18	161992	*
19	162240	*
20	161965	*
21	161633	*
22	161590	*
23	161484	*
24	161658	*
25	161698	*
26	161688	*
27	161820	*
28	161926	*
29	161924	*
30	161903	*
31	161818	*
32	162117	*
33	162145
34	161829
35	161848
36	161749
SPECjbb2000	(from 16 to 32)	161904 ops/s

SPEC license # 11 Tested by: IBM Corporation Test date: Mar 25, 2002

Hardware

Hardware Vendor IBM Corporation

Vendor URL http://www.ibm.com

Model IBM eServer pSeries 670 (1100 MHz)

Processor POWER4

MHz 1100

# of Procs 16 cores, 8 chips, 2 cores/chip, 4 chips/MCM

Memory (MB) 65536

Primary cache 64KBI+32KBD on chip

Secondary cache 1440KB unified on chip

Other cache 128MB/MCM, system contains 2 MCMs

Filesystem JFS

Disks 1 x 18.2GB SCSI

Other hardware

Software

Software Vendor IBM Corporation

Vendor URL http://www.ibm.com

Java Precompiler Version

Java Precompiler Command Line

Java Precompiler Way Of Excluding Classes

JVM Version J2RE 1.3.1 IBM AIX 5L for PowerPC (64 bit JVM) build caix641311p-20020302

JVM Command Line java -ms24576m -mx24576m -spec.jbb.JBBmain -propfile SPECjbb.props

JVM Initial Heap Memory (MB) 24576

JVM Maximum Heap Memory (MB) 24576

JVM CLASSPATH ./jbb.jar:
./jbb_no_precompile.jar:
./check.jar:
./reporter.jar

JVM BOOTCLASSPATH /java/caix641311p-20020302/jre/lib/rt.jar:
/java/caix641311p-20020302/jre/lib/i18n.jar:
/java/caix641311p-20020302/jre/classes

OS Version AIX 5L V5.1 plus APAR IY28102

System state normal

Other software

Test Information

Tested by IBM Corporation

SPEC license # 11

Test location Austin, TX

Test date Mar 25, 2002

H/w available Apr-2002

JVM available Mar-2002

OS available Apr-2002

Other s/w available

Tuning

Operating system tunings
SPINLOOPTIME=1000
vmtune -S 1 -L 2688 -g 16777216
setsched -S rr -P 40 -p $$
schedtune -t 300 -F 1

Notes

Details of Runs

Warehouses	Thrput	Total heap (MB)		Thread spread %	% > 120s	transaction type	Count	Time (in seconds)
Warehouses	Thrput	Size	Used	Thread spread %	% > 120s	transaction type	Count	total	max
1	12231	24580	86.2	<0.01%	<0.01	new_order	638130	66.6	<0.01
						payment	638130	21.5	<0.01
						order_status	63813	3.38	<0.01
						delivery	63813	8.48	<0.01
						stock_level	63814	15.3	<0.01
2	24485	24580	134	.863%	<0.01	new_order	1277586	135	<0.01
						payment	1277587	43.1	<0.01
						order_status	127759	6.54	<0.01
						delivery	127759	16.5	<0.01
						stock_level	127757	29.1	<0.01
3	34703	24580	182	3.62%	.098	new_order	1812345	201	<0.01
						payment	1812348	63.4	<0.01
						order_status	181235	9.66	<0.01
						delivery	181235	26.3	<0.01
						stock_level	181233	45.9	<0.01
4	46467	24580	229	5.91%	.015	new_order	2424726	268	<0.01
						payment	2424729	85.0	<0.01
						order_status	242474	13.3	<0.01
						delivery	242472	35.0	<0.01
						stock_level	242472	60.6	<0.01
5	55857	24580	136	7.16%	<0.01	new_order	2914275	334	.141
						payment	2914286	105	<0.01
						order_status	291428	16.3	<0.01
						delivery	291428	45.5	<0.01
						stock_level	291431	76.3	.142
6	69346	24580	161	6.58%	<0.01	new_order	3618229	396	.143
						payment	3618219	128	<0.01
						order_status	361820	19.9	<0.01
						delivery	361822	56.3	<0.01
						stock_level	361824	91.5	<0.01
7	78047	24580	184	8.09%	<0.01	new_order	4072309	463	.146
						payment	4072301	146	<0.01
						order_status	407231	23.1	<0.01
						delivery	407231	68.0	<0.01
						stock_level	407229	108	.147
8	89886	24580	206	6.00%	<0.01	new_order	4689773	527	.148
						payment	4689754	168	.148
						order_status	468973	26.8	<0.01
						delivery	468977	76.9	<0.01
						stock_level	468974	124	.148
9	98503	24580	227	5.08%	<0.01	new_order	5139476	595	.151
						payment	5139469	186	.151
						order_status	513948	29.6	<0.01
						delivery	513947	90.0	<0.01
						stock_level	513944	140	.152
10	108204	24580	250	8.79%	<0.01	new_order	5645602	663	.162
						payment	5645583	206	.161
						order_status	564557	32.7	<0.01
						delivery	564559	99.1	<0.01
						stock_level	564559	155	.162
11	118518	24580	270	6.49%	<0.01	new_order	6184048	727	.165
						payment	6184033	226	.160
						order_status	618402	35.8	<0.01
						delivery	618404	111	<0.01
						stock_level	618403	171	.166
12	126683	24580	297	5.90%	<0.01	new_order	6609774	794	.170
						payment	6609770	247	.164
						order_status	660976	39.4	<0.01
						delivery	660977	121	.170
						stock_level	660977	186	.170
13	137545	24580	316	6.33%	<0.01	new_order	7176547	860	.174
						payment	7176563	268	.174
						order_status	717654	41.9	<0.01
						delivery	717656	131	.174
						stock_level	717653	202	.174
14	146766	24580	341	5.31%	<0.01	new_order	7657931	927	.176
						payment	7657933	286	.176
						order_status	765797	46.1	<0.01
						delivery	765793	142	<0.01
						stock_level	765795	218	.177
15	154484	24580	361	6.00%	<0.01	new_order	8060383	991	.188
						payment	8060386	305	.188
						order_status	806036	49.0	<0.01
						delivery	806038	154	<0.01
						stock_level	806038	235	.188
16	162767	24580	388	4.37%	.659	new_order	8548155	1063	.193
						payment	8548138	327	.193
						order_status	854818	52.7	.186
						delivery	854812	168	.178
						stock_level	854816	253	.193
17	162144	24580	407	6.92%	.529	new_order	8504455	1129	2.99
						payment	8504459	347	2.21
						order_status	850444	58.0	2.21
						delivery	850446	177	2.21
						stock_level	850452	269	1.62
18	161992	24580	429	5.05%	.628	new_order	8504818	1189	2.39
						payment	8504807	385	2.14
						order_status	850480	59.2	2.14
						delivery	850483	179	2.11
						stock_level	850481	285	2.11
19	162240	24580	448	9.57%	.819	new_order	8534015	1266	3.00
						payment	8534026	374	2.67
						order_status	853401	65.4	3.00
						delivery	853402	204	2.68
						stock_level	853403	308	3.00
20	161965	24580	470	6.06%	.266	new_order	8472797	1323	1.95
						payment	8472782	414	2.25
						order_status	847283	66.3	1.14
						delivery	847280	208	1.66
						stock_level	847281	310	1.86
21	161633	24580	490	5.30%	.398	new_order	8466608	1424	2.42
						payment	8466596	426	2.42
						order_status	846658	64.8	2.23
						delivery	846661	205	2.23
						stock_level	846657	331	2.36
22	161590	24580	506	8.30%	.511	new_order	8473836	1445	2.33
						payment	8473838	482	2.33
						order_status	847376	70.0	1.64
						delivery	847377	219	2.33
						stock_level	847387	340	2.06
23	161484	24580	531	6.14%	.910	new_order	8501921	1522	2.20
						payment	8501913	472	2.04
						order_status	850193	78.6	1.94
						delivery	850188	239	2.31
						stock_level	850193	381	2.01
24	161658	24580	552	6.49%	1.07	new_order	8524864	1575	3.00
						payment	8524847	541	3.00
						order_status	852483	85.2	3.00
						delivery	852482	235	3.00
						stock_level	852481	371	3.00
25	161698	24580	567	8.25%	1.26	new_order	8542651	1622	3.20
						payment	8542663	563	3.00
						order_status	854264	89.8	3.00
						delivery	854265	237	2.95
						stock_level	854271	408	3.00
26	161688	24580	591	12.5%	.792	new_order	8502651	1726	3.00
						payment	8502656	590	3.00
						order_status	850264	78.7	2.73
						delivery	850268	245	2.92
						stock_level	850269	387	2.86
27	161820	24580	606	9.57%	.923	new_order	8520659	1789	3.69
						payment	8520669	587	3.00
						order_status	852064	84.6	2.80
						delivery	852062	252	2.83
						stock_level	852068	450	3.04
28	161926	24580	629	7.60%	1.37	new_order	8563625	1896	3.01
						payment	8563617	587	2.78
						order_status	856363	101	2.70
						delivery	856360	282	3.01
						stock_level	856360	448	2.70
29	161924	24580	648	11.5%	1.24	new_order	8552780	1932	3.99
						payment	8552773	632	3.01
						order_status	855280	129	4.99
						delivery	855278	264	3.78
						stock_level	855280	451	4.34
30	161903	24580	670	9.65%	1.70	new_order	8590669	2089	3.23
						payment	8590642	622	4.64
						order_status	859065	105	3.01
						delivery	859065	285	5.53
						stock_level	859066	440	3.01
31	161818	24580	691	9.32%	2.42	new_order	8647291	2096	3.25
						payment	8647269	676	3.25
						order_status	864724	90.2	3.01
						delivery	864729	333	3.01
						stock_level	864725	496	3.01
32	162117	24580	707	12.3%	2.73	new_order	8689412	2133	5.59
						payment	8689382	730	3.08
						order_status	868935	90.8	3.01
						delivery	868938	310	3.05
						stock_level	868942	515	3.01
33	162145	24580	730	13.1%	2.75	new_order	8691989	2119	4.37
						payment	8692016	794	3.68
						order_status	869199	118	3.54
						delivery	869202	366	5.65
						stock_level	869203	542	5.66
34	161829	24580	748	14.1%	3.13	new_order	8707369	2217	6.86
						payment	8707376	774	5.65
						order_status	870733	102	3.62
						delivery	870742	353	4.49
						stock_level	870741	577	4.42
35	161848	24580	775	14.3%	3.41	new_order	8731971	2365	6.01
						payment	8731968	746	6.00
						order_status	873200	120	5.32
						delivery	873196	373	4.74
						stock_level	873198	596	6.01
36	161749	24580	786	13.7%	3.57	new_order	8740616	2388	5.80
						payment	8740628	838	5.69
						order_status	874058	111	4.61
						delivery	874063	339	7.14
						stock_level	874066	646	5.80
