SPECjbb

SPECjbb2000		SPECjbb2000 = 25087 ops/s
IBM Corporation IBM eServer pSeries 620 Model 6F1 (600 MHz)
IBM Corporation J2RE 1.3.0 IBM build (JIT enabled: jitc)

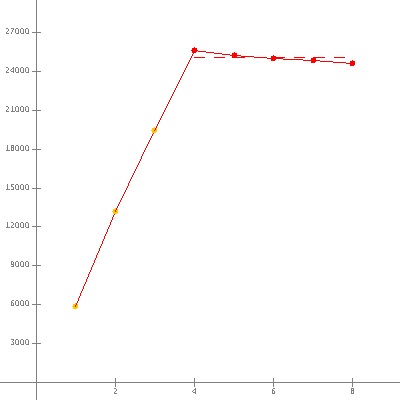

Warehouses	Ops/s	Incl. in metric
1	5825
2	13163
3	19485
4	25640	*
5	25264	*
6	25036	*
7	24844	*
8	24653	*
SPECjbb2000	(from 4 to 8)	25087 ops/s

SPEC license # 11 Tested by: IBM Corporation Test date: May 12, 2001

Hardware

Hardware Vendor IBM Corporation

Vendor URL http://www.ibm.com

Model IBM eServer pSeries 620 Model 6F1 (600 MHz)

Processor RS64 IV

MHz 600

# of Procs 4 cores, 4 chips, 1 core/chip

Memory (MB) 16384

Primary cache 128KB(I)+128KB(D) on chip

Secondary cache 4MB(I+D) off chip

Other cache none

Filesystem JFS

Disks 1 x 18.2 SSA Disk (fast-write enabled)

Other hardware none

Software

Software Vendor IBM Corporation

Vendor URL http://www.ibm.com

Java Precompiler Version

Java Precompiler Command Line

Java Precompiler Way Of Excluding Classes

JVM Version J2RE 1.3.0 IBM build (JIT enabled: jitc)

JVM Command Line java -ms2558m -mx2558m -spec.jbb.JBBmain -propfile SPECjbb.props

JVM Initial Heap Memory (MB) 2558

JVM Maximum Heap Memory (MB) 2558

JVM CLASSPATH ./jbb.jar:
./jbb_no_precompile.jar:
./check.jar:
./reporter.jar

JVM BOOTCLASSPATH /ca130-20010330/jre/lib/rt.jar:
/ca130-20010330/jre/lib/i18n.jar:
/ca130-20010330/jre/classes

OS Version AIX 4.3.3

System state normal

Other software None

Test Information

Tested by IBM Corporation

SPEC license # 11

Test location Austin, TX

Test date May 12, 2001

H/w available Apr-2001

JVM available Jul-2001

OS available Apr-2001

Other s/w available None

Tuning

Operating system tunings
SPINLOOPTIME=550
LDR_CNTRL=MAXDATA=0

Notes

"APAR IY16465 was applied to AIX 4.3.3 to enable new hardware support"

Details of Runs

Warehouses	Thrput	Total heap (MB)		Thread spread %	% > 120s	transaction type	Count	Time (in seconds)
Warehouses	Thrput	Size	Used	Thread spread %	% > 120s	transaction type	Count	total	max
1	5825	2558	27.9	<0.01%	<0.01	new_order	303941	71.2	<0.01
						payment	303943	22.7	.462
						order_status	30395	2.23	<0.01
						delivery	30394	5.63	<0.01
						stock_level	30394	11.4	<0.01
2	13163	2558	45.7	2.38%	<0.01	new_order	686804	146	.509
						payment	686801	46.2	.504
						order_status	68681	4.67	<0.01
						delivery	68680	12.4	<0.01
						stock_level	68681	20.4	<0.01
3	19485	2558	65.5	2.38%	<0.01	new_order	1016635	218	.546
						payment	1016639	68.8	.535
						order_status	101665	7.05	<0.01
						delivery	101664	18.4	<0.01
						stock_level	101664	32.6	.547
4	25640	2558	83.0	4.02%	<0.01	new_order	1337847	293	.570
						payment	1337845	91.7	.570
						order_status	133782	9.30	<0.01
						delivery	133782	25.1	.563
						stock_level	133782	39.7	.563
5	25264	2558	99.3	17.4%	<0.01	new_order	1318210	362	.725
						payment	1318216	115	.583
						order_status	131820	12.5	.590
						delivery	131823	30.8	.593
						stock_level	131823	55.3	.593
6	25036	2558	116	11.8%	<0.01	new_order	1306338	432	.624
						payment	1306339	143	.717
						order_status	130635	14.5	.716
						delivery	130634	35.4	.621
						stock_level	130635	66.2	.599
7	24844	2558	132	8.90%	<0.01	new_order	1296308	501	.900
						payment	1296305	164	.639
						order_status	129630	17.0	.625
						delivery	129633	41.6	.292
						stock_level	129629	83.2	.723
8	24653	2558	148	5.02%	<0.01	new_order	1286367	570	.812
						payment	1286374	193	.688
						order_status	128640	19.0	.138
						delivery	128637	47.5	.304
						stock_level	128636	92.4	.657
