SPEC Seal of Reviewal SPECjEnterprise®2018 Web Profile Result
Copyright © 2009-2019 Standard Performance Evaluation Corporation
WebSphere Liberty Core 19.0.0.3 on IBM Power S924 24-core POWER9 and DB2 11.1 on IBM Power S924 16-core POWER9
34,517.63 SPECjEnterprise2018 WebjOPS
Submitter:
IBM Corporation		 SPEC license # 11 Test date:
May-2019
Software Products
WebSphere Liberty Core 19.0.0.3
IBM SDK, Java Technology Edition, Version 8, Service Refresh 5, Fixpack 30
IBM DB2 Universal JDBC Drivers (4.25.13)
DB2 11.1 Mod 4 Fix Pack 4 		Software Configurations
Insurance Java EE Configuration
Insurance Provider Java EE Configuration
Vehicle Java EE Configuration
Database SW Configuration
Driver Configuration 		Hardware Systems
Java EE Web Profile Application Server HW
Database Server HW
Load Driver HW

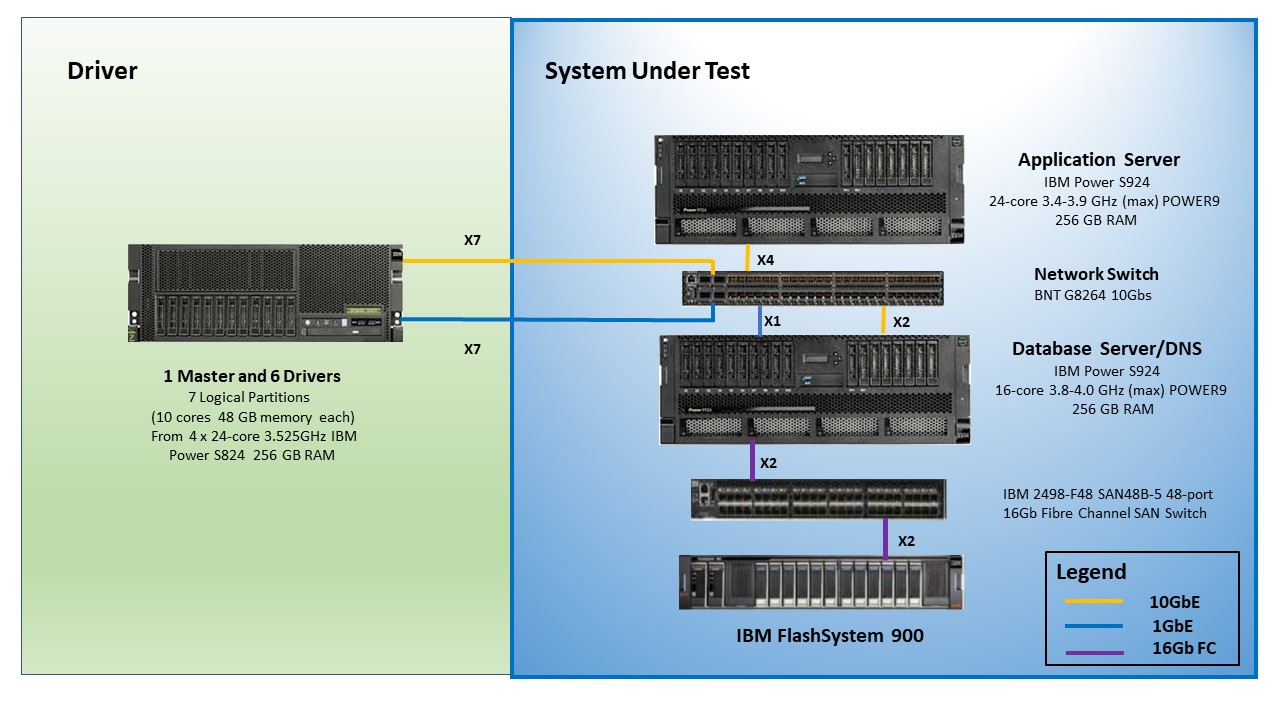

System Configuration Diagram

Benchmark
Modifications
Configuration
Bill of Materials
Other Info
General Notes
Full Disclosure Archive

SUT Configuration
Java EE Server Nodes: 1   DB Server Nodes: 1
Java EE Server CPUs: 24 cores, 2 chips   DB Server CPUs: 16 cores, 2 chips
Java EE Instances: 8   DB Instances: 1
Other SUT Components:
   DNS round robin load balancing was used and hosted on the DB SUT system
   Load balancing network connectivity was 1Gbps all other connections were 10Gbps

Benchmark Settings
Injection Rate: 34,300   Ramp Up Time: 600 seconds
DB Load Injection Rate: 40,000   Steady State Time: 3,600 seconds
  Ramp Down Time: 300 seconds
# of Insurance Agents: 30
InsuranceUsers (threads): 343,000
Total Concurrent Users (threads): 343,000

Detailed Results
Insurance Transactions Mix Count Tx. Mix Failure Count
JSF-AcceptQuote 1,077,011 0.87% 0
JSF-AcceptQuote+WebSocket 269,367 0.22% 0
JSF-AddVehicle 1,361,117 1.10% 0
JSF-DeleteVehicle 535,776 0.43% 0
JSF-Login 4,857,854 3.91% 0
JSF-Logout 4,585,495 3.69% 0
JSF-Register 438,765 0.35% 0
JSF-RegisterInvalid 109,960 0.09% 0
JSF-Unregister 272,689 0.22% 0
JSF-UpdateUser 545,261 0.44% 0
JSF-ViewInsurance 524,839 0.42% 0
JSF-ViewQuote 1,361,235 1.10% 0
JSF-ViewUser 817,074 0.66% 0
JSF-ViewVehicle 1,871,261 1.51% 0
REST-AcceptQuote 6,106,264 4.91% 0
REST-AcceptQuote+WebSocket 1,523,978 1.23% 0
REST-AddVehicle 7,719,969 6.21% 0
REST-DeleteVehicle 3,053,041 2.46% 0
REST-Login 27,553,374 22.17% 0
REST-Logout 26,007,554 20.93% 0
REST-Register 2,488,783 2.00% 0
REST-RegisterInvalid 621,685 0.50% 0
REST-Unregister 1,546,013 1.24% 0
REST-UpdateUser 3,089,367 2.49% 0
REST-ViewInsurance 2,970,937 2.39% 0
REST-ViewQuote 7,720,337 6.21% 0
REST-ViewUser 4,632,233 3.73% 0
REST-ViewVehicle 10,602,214 8.53% 0
Total # transactions 124,263,453
Response Times Average Standard Deviation Maximum 90th% Reqd
JSF-AcceptQuote 0.205 0.23 2.752 0.490 2.000
JSF-AcceptQuote+WebSocket 0.271 0.32 3.682 0.610 2.000
JSF-AddVehicle 0.235 0.21 2.584 0.450 2.000
JSF-DeleteVehicle 0.107 0.14 1.687 0.250 2.000
JSF-Login 0.149 0.25 3.404 0.400 2.000
JSF-Logout 0.038 0.07 1.199 0.110 2.000
JSF-Register 0.370 0.72 7.822 1.030 2.000
JSF-RegisterInvalid 0.472 0.93 9.733 1.300 2.000
JSF-Unregister 0.094 0.15 1.641 0.240 2.000
JSF-UpdateUser 0.187 0.27 3.056 0.450 2.000
JSF-ViewInsurance 0.089 0.14 1.627 0.220 2.000
JSF-ViewQuote 0.175 0.26 3.067 0.430 2.000
JSF-ViewUser 0.099 0.14 1.668 0.240 2.000
JSF-ViewVehicle 0.094 0.13 1.677 0.230 2.000
REST-AcceptQuote 0.183 0.23 3.895 0.470 2.000
REST-AcceptQuote+WebSocket 0.248 0.29 4.333 0.590 2.000
REST-AddVehicle 0.113 0.14 2.449 0.250 2.000
REST-DeleteVehicle 0.094 0.14 3.010 0.240 2.000
REST-Login 0.037 0.07 1.804 0.110 2.000
REST-Logout 0.000 0.00 0.168 0.010 2.000
REST-Register 0.042 0.07 1.781 0.120 2.000
REST-RegisterInvalid 0.138 0.27 4.217 0.390 2.000
REST-Unregister 0.053 0.08 1.680 0.140 2.000
REST-UpdateUser 0.088 0.13 2.374 0.230 2.000
REST-ViewInsurance 0.040 0.07 1.751 0.110 2.000
REST-ViewQuote 0.085 0.13 2.391 0.220 2.000
REST-ViewUser 0.044 0.07 1.768 0.120 2.000
REST-ViewVehicle 0.040 0.07 1.773 0.110 2.000
Reproducibility Run (SPECjEnterprise2018 WebjOPS) 34,524.96

WebSphere Liberty Core 19.0.0.3
Vendor: IBM Corporation Availability: Apr-2019
CTS Version: 8.0 Date Passed CTS: Jun-2018
OS Name: SUSE Linux Enterprise Server 12 SP4
Product Version: 19.0.0.3

IBM SDK, Java Technology Edition, Version 8, Service Refresh 5, Fixpack 30
Vendor: IBM Corporation Availability: Mar-2019
OS Name: SUSE Linux Enterprise Server 12 SP4
Bitness: ppc64le
Product Version: 8.0.5.30

IBM DB2 Universal JDBC Drivers (4.25.13)
Vendor: IBM Corporation Availability: Nov-2018
OS Name: SUSE Linux Enterprise Server 12 SP4
Product Version: 4.25.13

DB2 11.1 Mod 4 Fix Pack 4
Vendor: IBM Corporation Availability: Nov-2018
OS Name: SUSE Linux Enterprise Server 12 SP4
Product Version: 11.1.4.4

Insurance Java EE Configuration
Java EE Product: WebSphere Liberty Core 19.0.0.3
JVM Product: IBM SDK, Java Technology Edition, Version 8, Service Refresh 5, Fixpack 30
Database Driver Product: IBM DB2 Universal JDBC Drivers (4.25.13)
Hardware: Java EE Web Profile Application Server HW
# of Instances: 6
Interfaces:
Web (JSF and REST) Interface for the Insurance service
Notes / Tuning Information
Java Version:
  Java(TM) SE Runtime Environment (build 8.0.5.30 - pxl6480sr5fp30-20190207_01(SR5 FP30))

JVM Parameters (refer to file insurance/jvm.options):
  -Xlp -Xms8g -Xmx8g -Dhttp.keepAlive=true -Dhttp.maxConnections=2000 -Xgcthreads24 -Xconcurrentlevel0
  -Xaggressive -Xss128k -Xtrace:none -Xshareclasses:none
  -Dcom.ibm.websphere.ejbcontainer.poolSize=insurance#insurance.war#InsuranceAgentsService=H60,1000:insurance#insurance.war#PolicyVehicleService=H60,1000:
  insurance#insurance.war#PolicyHolderRegistration=H60,1000:insurance#insurance.war#PolicyHolderService=H60,1000
  -Xdisableexplicitgc -Xmn6g -Xgc:tlhMaximumSize=524288,tlhIncrementSize=16384
  -Dcom.ibm.crypto.plus.provider.DISABLEHMAC=true -XlockReservation

Refer to file insurance/server.xml
for all server configuration and resource configuration information
The IBMJCEPlus crypto provider is enabled in the /jre/lib/security/java.security file (see config/jre/lib/security), adding it in as the number 1 in the
security.provider list:  security.provider.1=com.ibm.crypto.plus.provider.IBMJCEPlus

Insurance Provider Java EE Configuration
Java EE Product: WebSphere Liberty Core 19.0.0.3
JVM Product: IBM SDK, Java Technology Edition, Version 8, Service Refresh 5, Fixpack 30
Database Driver Product: IBM DB2 Universal JDBC Drivers (4.25.13)
Hardware: Java EE Web Profile Application Server HW
# of Instances: 1
Interfaces:
REST Interface for the Insurance provider service
Notes / Tuning Information
Java Version:
  Java(TM) SE Runtime Environment (build 8.0.5.30 - pxl6480sr5fp30-20190207_01(SR5 FP30))

JVM Parameters (refer to file insurance-provider/jvm.options):
  -Xlp -Xms2250m -Xmx2250m -Dhttp.keepAlive=true
  -Dhttp.maxConnections=2000 -Xgcthreads24 -Xaggressive -Xss128k -Xtrace:none -Xshareclasses:none
  -Dcom.ibm.websphere.ejbcontainer.poolSize=insurance-provider#insurance-provider.war#VehicleService=H60,1000:
  insurance-provider#insurance-provider.war#ActuarialService=H60,1000:insurance-provider#insurance-provider.war#AgentManager=H60,1000
  -Xdisableexplicitgc -Xmn1365m -Xgc:tlhMaximumSize=524288,tlhIncrementSize=16384
  -Dcom.ibm.crypto.plus.provider.DISABLEHMAC=true -XlockReservation

Refer to file insurance-provider/server.xml
for all server configuration and resource configuration information
The IBMJCEPlus crypto provider is enabled in the /jre/lib/security/java.security file (see config/jre/lib/security), adding it in as the number 1 in the
security.provider list:  security.provider.1=com.ibm.crypto.plus.provider.IBMJCEPlus

Vehicle Java EE Configuration
Java EE Product: WebSphere Liberty Core 19.0.0.3
JVM Product: IBM SDK, Java Technology Edition, Version 8, Service Refresh 5, Fixpack 30
Database Driver Product: IBM DB2 Universal JDBC Drivers (4.25.13)
Hardware: Java EE Web Profile Application Server HW
# of Instances: 1
Interfaces:
REST Interface for the Vehicle service
Notes / Tuning Information
Java Version:
  Java(TM) SE Runtime Environment (build 8.0.5.30 - pxl6480sr5fp30-20190207_01(SR5 FP30))

JVM Parameters (refer to file vehicle/jvm.options):
  -Xlp -Xms2250m -Xmx2250m
  -Xgcthreads24 -Xaggressive -Xss128k -Xtrace:none -Xshareclasses:none
  -Dcom.ibm.websphere.ejbcontainer.poolSize=vehicle#vehicle.war#VehicleService=H60,1000
  -Xdisableexplicitgc -Xmn1365m -Xgc:tlhMaximumSize=524288,tlhIncrementSize=16384
  -Dcom.ibm.crypto.plus.provider.DISABLEHMAC=true -XlockReservation

Refer to file vehicle/server.xml
for all server configuration and resource configuration information
The IBMJCEPlus crypto provider is enabled in the /jre/lib/security/java.security file (see config/jre/lib/security), adding it in as the number 1 in the
security.provider list:  security.provider.1=com.ibm.crypto.plus.provider.IBMJCEPlus

Database SW Configuration
DB Product: DB2 11.1 Mod 4 Fix Pack 4
Hardware: Database Server HW
# of Instances: 1
Character Set: UTF16
Notes / Tuning Information
DB2 Registry Variables:
  DB2FCMCOMM=TCPIP4
  DB2TCP_CLIENT_CONTIMEOUT=0
  DB2TCP_CLIENT_RCVTIMEOUT=0
  DB2_USE_ALTERNATE_PAGE_CLEANING=ON
  DB2_MINIMIZE_LISTPREFETCH=YES
  DB2_KEEPTABLELOCK=CONNECTION
  DB2_APM_PERFORMANCE=ON
  DB2TCPCONNMGRS=8
  DB2_COLLECT_TS_REC_INFO=FALSE
  DB2SOSNDBUF=131072
  DB2SORCVBUF=131072
  DB2COMM=TCPIP
  DB2AUTOSTART=NO

Database Manager Configuration:
  DIAGLEVEL=3
  DFT_MON_BUFPOOL=on
  DFT_MON_LOCK=off
  DFT_MON_SORT=off
  DFT_MON_STMT=off
  DFT_MON_TIMESTAMP=on
  DFT_MON_UOW=off
  DFT_MON_TABLE=off
  CPUSPEED=1.889377e-07
  MAX_COORDAGENTS=AUTOMATIC(10000)
  HEALTH_MON=off
  SHEAPTHRES=2000000

Database Configuration:
  LOGBUFSZ=4096
  LOGSECOND=0
  LOGPRIMARY=256
  SOFTMAX=8080
  CHNGPGS_THRESH=99
  LOGFILSIZ=65535
  AUTO_MAINT=off
  AUTO_RUNSTATS=off
  AUTO_TBL_MAINT=off
  SHEAPTHRES_SHR=183205
  SORTHEAP=50000
  NUM_IOCLEANERS=32
  MAXAPPLS=2246
  MAXLOCKS=100

Driver Configuration
JVM Product: IBM SDK, Java Technology Edition, Version 8, Service Refresh 5, Fixpack 30
Hardware: Load Driver HW
# of Instances: 6
Notes / Tuning Information
Java Version:
  Java(TM) SE Runtime Environment (build 8.0.5.30 - pxl6480sr5fp30-20190207_01(SR5 FP30))
JVM Parameters:
  -Xms4G -Xmx4G
  -Dsun.net.inetaddr.ttl=0 -Dnetworkaddress.cache.ttl=0 -Djava.net.preferIPv4Stack=true

Java EE Web Profile Application Server HW (SUT hardware)
Hardware Vendor: IBM Corporation OS Vendor: SUSE
Model Name: IBM Power S924 OS Name: SUSE Linux Enterprise Server 12 SP4
Processor: POWER9 Filesystem: BTRFS
MHz: 3400 Disks: 1x 400 GB NVMe
# of CPUs: 24 cores, 2 chips, 12 cores/chip (96 HW threads/chip) Network Interface: 4x 10GBit network ports
Memory (MB): 262144 Other Hardware:
L1 Cache: 64 KB I + 64 KB D on chip per core # of Systems: 1
L2 Cache: 512 KB I+D on chip per core H/W Available: Mar-2018
Other Cache: 120 MB I+D on chip per chip shared NUCA / 12 cores OS Available: Dec-2018
Notes / Tuning Information
  /etc/sysctl.conf:
  fs.file-max = 1048576
  fs.inotify.max_user_watches = 65536
  kernel.sched_compat_yield = 1
  kernel.sem = 250 32000 100 128
  kernel.shmall = 4294967296
  kernel.shmmax = 68719476736
  net.core.netdev_max_backlog = 250000
  net.core.optmem_max = 30000000
  net.core.rmem_default = 30000000
  net.core.rmem_max = 32554432
  net.core.somaxconn = 32767
  net.core.wmem_default = 30000000
  net.core.wmem_max = 32554432
  net.ipv4.conf.all.arp_announce = 2
  net.ipv4.conf.all.arp_ignore = 1
  net.ipv4.conf.all.promote_secondaries = 1
  net.ipv4.conf.all.rp_filter = 1
  net.ipv4.conf.default.accept_source_route = 0
  net.ipv4.conf.default.promote_secondaries = 1
  net.ipv4.conf.default.rp_filter = 1
  net.ipv4.icmp_echo_ignore_broadcasts = 1
  net.ipv4.ip_forward = 0
  net.ipv4.ip_local_port_range = 1024 65000
  net.ipv4.tcp_fin_timeout = 30
  net.ipv4.tcp_keepalive_intvl = 15
  net.ipv4.tcp_keepalive_probes = 5
  net.ipv4.tcp_max_syn_backlog = 30000
  net.ipv4.tcp_max_tw_buckets = 2000000
  net.ipv4.tcp_mem = 30000000 30000000 30000000
  net.ipv4.tcp_no_metrics_save = 1
  net.ipv4.tcp_rmem = 20480 174760 32554432
  net.ipv4.tcp_sack = 1
  net.ipv4.tcp_timestamps = 1
  net.ipv4.tcp_window_scaling = 1
  net.ipv4.tcp_wmem = 20480 174760 32554432
  vm.max_map_count = 262144
  ulimit -n 1048576 -v unlimited -u 4134075
  default_hugepagesz=16M
  echo 4096 >  /proc/sys/vm/nr_hugepages
  Network Tuning (see config/appserver/network_adapter_tuning.sh):
  set txqueuelen 60000
  Stop irqbalance
  Network interrupts Tuning (see config/appserver/network_interrupts_tuning.sh):
  On each interface used for driver and database communication set:
    arp_ignore 1
    arp_announce 2
    rx-usecs 100
    mtu 1500
Server instances were started using numactl, binding 4 instances per NUMA node (see config/appserver/start_server.sh).
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.

Database Server HW (SUT hardware)
Hardware Vendor: IBM Corporation OS Vendor: SUSE
Model Name: IBM Power S924 OS Name: SUSE Linux Enterprise Server 12 SP4
Processor: POWER9 Filesystem: BTRFS
MHz: 3400 Disks: 1x 1000 GB RAID5 SSD
# of CPUs: 16 cores, 2 chips, 8 cores/chip (64 HW threads/chip) Network Interface: 2x 10GBit and 1x 1GBit network ports
Memory (MB): 262144 Other Hardware: 2x 16Gb fibre channel ports; 1x IBM FlashSystem 900
L1 Cache: 64 KB I + 64 KB D on chip per core # of Systems: 1
L2 Cache: 512 KB I+D on chip per core H/W Available: Mar-2018
Other Cache: 80 MB I+D on chip per chip shared NUCA / 8 cores OS Available: Dec-2018
Notes / Tuning Information
  /etc/sysctl.conf:
  net.ipv4.ip_forward = 0
  net.ipv6.conf.all.forwarding = 0
  net.ipv4.icmp_echo_ignore_broadcasts = 1
  net.ipv4.conf.all.rp_filter = 1
  fs.inotify.max_user_watches = 65536
  net.ipv4.conf.default.promote_secondaries = 1
  net.ipv4.conf.all.promote_secondaries = 1
  net.ipv4.conf.all.arp_filter = 1
  kernel.sem = 250        256000  100      129280
  fs.aio-max-nr = 1048576
  fs.file-max = 6815744
  kernel.shmall = 10737418240
  net.core.netdev_max_backlog = 400000
  net.core.optmem_max = 30000000
  net.core.rmem_default = 30000000
  net.core.rmem_max = 30000000
  net.core.somaxconn = 40000
  net.core.wmem_default = 30000000
  net.core.wmem_max = 30000000
  net.ipv4.ip_local_port_range = 1024 65535
  net.ipv4.tcp_fin_timeout = 10
  net.ipv4.tcp_max_syn_backlog = 30000
  net.ipv4.tcp_max_tw_buckets = 2000000
  net.ipv4.tcp_mem = 30000000 30000000 30000000
  net.ipv4.tcp_rmem = 30000000 30000000 30000000
  net.ipv4.tcp_timestamps = 0
  net.ipv4.tcp_wmem = 30000000 30000000 30000000
  vm.zone_reclaim_mode = 1
  vm.swappiness = 5
  ulimit -n 1048576 -v unlimited -u 4134075
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.

Load Driver HW (non-SUT hardware)
Hardware Vendor: IBM Corporation OS Vendor: Red Hat
Model Name: IBM Power S824 OS Name: Red Hat Enterprise Linux 7.6
Processor: POWER8 Filesystem: XFS
MHz: 3525 Disks: 2x 120GB SSD
# of CPUs: 24 cores, 2 chips, 12 cores/chip (96 HW threads/chip) Network Interface: 2x 10 GBit and 2x 1GBit network ports
Memory (MB): 262144 Other Hardware:
L1 Cache: 32 KB I + 64 KB D on chip per core # of Systems: 4
L2 Cache: 512 KB I+D on chip per core H/W Available: Jun-2014
Other Cache: L3 Cache: 8 MB I+D on chip per core; L4 Cache: 128 MB per chip OS Available: Oct-2018
Notes / Tuning Information
  /etc/sysctl.conf:
  net.ipv4.icmp_echo_ignore_broadcasts = 1
  net.ipv4.conf.all.rp_filter = 1
  fs.inotify.max_user_watches = 65536
  net.ipv4.conf.default.promote_secondaries = 1
  net.ipv4.conf.all.promote_secondaries = 1
  fs.file-max = 1048576
  kernel.sem = 250 32000 100 128
  kernel.shmall = 4294967296
  kernel.shmmax = 68719476736
  net.core.optmem_max = 30000000
  net.core.rmem_default = 30000000
  net.core.wmem_default = 30000000
  net.ipv4.conf.all.arp_announce = 2
  net.ipv4.conf.all.arp_ignore = 1
  net.ipv4.conf.default.rp_filter = 1
  net.ipv4.conf.default.accept_source_route = 0
  net.ipv4.ip_forward = 0
  net.ipv4.ip_local_port_range = 1024 65000
  net.ipv4.tcp_max_syn_backlog = 30000
  net.ipv4.tcp_max_tw_buckets = 2000000
  net.ipv4.tcp_mem  = 30000000 30000000 30000000
  kernel.sched_compat_yield = 1
  net.core.somaxconn = 32767
  net.core.netdev_max_backlog = 250000
  net.ipv4.tcp_fin_timeout = 30
  net.ipv4.tcp_keepalive_intvl = 15
  net.ipv4.tcp_keepalive_probes = 5
  net.core.rmem_max = 32554432
  net.core.wmem_max = 32554432
  net.ipv4.tcp_rmem = 20480 174760 32554432
  net.ipv4.tcp_wmem = 20480 174760 32554432
  net.ipv4.tcp_window_scaling = 1
  net.ipv4.tcp_timestamps = 1
  net.ipv4.tcp_sack = 1
  net.ipv4.tcp_no_metrics_save = 1
  kernel.pid_max = 229376
  ulimit -n 1048576 -v unlimited -u 4134075

Benchmark Modifications
Schema Modifications:
  SQL files to load the database are included in the FDA.
Load Program Modifications:
  No modifications to the load programs were made.

Benchmark Configuration Information
Isolation Requirement Info:
  The READ_COMMITTED isolation level was used for all JPA entities.
  The vehicle service entity and queries were cached for 20 minute intervals. The Object Cache mechanism was set in the vehicle_orm.xml as follows:
  <cache>
      <expiry>1200000</expiry>
  </cache>
  The Query Cache mechanism was set in the vehicle_orm.xml for each of the queries with the property:
  <hint name="eclipselink.query-results-cache.expiry" value="1200000"/>
  The insurance provider service entities and queries were cached for 120 minute intervals. The Object Cache mechanism was set in the provider_orm.xml for each entity as follows:
  <cache>
      <expiry>7200000</expiry>
  </cache>
  The Query Cache mechanism was set in the provider_orm.xml for each of the queries with the property:
  <hint name="eclipselink.query-results-cache.expiry" value="7200000"/>
Durability Requirement Info:
  To ensure database durability, the database and the database logs were each maintained on one 1000 GB RAID5 SSD from IBM FlashSystem 900.
  The RAID controller is configured with a write-through policy.
Storage Requirement Info:
  Over the course of a 75 minute run at an injection rate of 34300, the database storage increased by 6.5 GB
  Given a linear scale, a 24 hour run at the same injection rate would increase storage by 124.8 GB.
  The database was configured with one 1000 GB RAID5 drive for logs and storage.

Bill of Materials
----------------------------Application Server SUT----------------------------
Supplier  Description                                   Product #          Qty
--------  -------------------------------------------   ----------------   ---
IBM       IBM Power S924 Model 42A                      9009-42A             1
IBM       AC Power Supply - 1400W for Server            EB2M                 4
(200-240 VAC)
IBM       Rack Indicator, Rack #1                       4651                 1
IBM       Power Cord 4.3m (14-ft), Drawer to IBM PDU    6458                 4
(250V/10A)
IBM       Language Group Specify - US English           9300                 1
IBM       Primary OS - Linux                            2147                 1
IBM       Linux Partition Specify                       0266                 1
IBM       PowerVM Enterprise Edition                    5228                24
IBM       Expanded Function Storage Backplane           EJ1D                 1
18 SFF-3 Bays/Dual IOA with
Write Cache/Opt Ext SAS port
IBM       Front IBM Bezel for 18-Bay BackPlane          EJUG                 1
IBM       12-core Typical 3.4 to 3.9 Ghz (max)          EP1G                 2
POWER9 Processor
IBM       One Processor Core Activation for #EP1G       EP4G                24
IBM       16 GB DDR4 Memory                             EM62                16
IBM       PCIe2 4-port 1GbE Adapter                     5899                 1
IBM       PCIe2 4-Port (10Gb+1GbE) SR+RJ45 Adapter      EN0S                 2
IBM       PCIe3 NVMe carrier card w/2 M.2 module slots  EC59                 1
IBM       Mainstream 400GB SSD NVMe M.2 module          ES14                 1


------------------------------------DB SUT------------------------------------
Supplier  Description                                   Product #          Qty
--------  -------------------------------------------   ----------------   ---
IBM       IBM Power S924 Model 42A                      9009-42A             1
IBM         AC Power Supply - 1400W for Server          EB2M                 4
(200-240 VAC)
IBM         Rack Indicator, Rack #1                     4651                 1
IBM         Power Cord 4.3m (14-ft), Drawer to IBM PDU  6458                 4
(250V/10A)
IBM         Language Group Specify - US English         9300                 1
IBM         Primary OS - Linux                          2147                 1
IBM         Linux Partition Specify                     0266                 1
IBM         PowerVM Enterprise Edition                  5228                16
IBM         Expanded Function Storage Backplane         EJ1D                 1
18 SFF-3 Bays/Dual IOA with
Write Cache/Opt Ext SAS port
IBM         Front IBM Bezel for 18-Bay BackPlane        EJUG                 1
IBM         8-core Typical 3.8 to 4.0 Ghz (max)         EP1E                 2
POWER9 Processor
IBM         One Processor Core Activation for #EP1E     EP4E                16
IBM         16 GB DDR4 Memory                           EM62                16
IBM         PCIe2 4-port 1GbE Adapter                   5899                 1
IBM         PCIe2 4-Port (10Gb+1GbE) SR+RJ45 Adapter    EN0S                 1
IBM         PCIe3 16 Gb 2-port Fibre Channel adapter    EN0A                 1
IBM         SAN Load Source Specify                     0837                 1

----------------------------------Storage HW----------------------------------
Supplier  Description                                   Product #          Qty
--------  -------------------------------------------   ----------------   ---
IBM         FlashSystem 900                                                  1
IBM         FC Host Interface Card                      AF15                 2
IBM         16Gb FC 4 Port Host Optics                  AF19                 2
IBM         2.9TB IBM MicroLatency Module               AF24                12

-------------------------------SAN Switch-------------------------------------
Supplier  Description                                   Product #          Qty
--------  -------------------------------------------   ----------------   ---
IBM         IBM 2498-F48 SAN48B-5 48-PORT                                    1
16Gb Fibre Channel SAN Switch
IBM         16Gb SW SFP & switch bundle                 2648                 1
IBM         16Gbps SW SFP single                        2602                24

------------------------------Network Switch----------------------------------
Supplier  Description                                   Product #          Qty
--------  -------------------------------------------   ----------------   ---
IBM         System Networking RackSwitch G8264          A1AC                 1
IBM         10A/250V C13 to NEMA 6-15P 2.8m line cord   A1RF                 2
IBM         SFP+ SR Transceiver                         5053                48
...
Software:
IBM       WebSphere Application Server Liberty Core     D0ZDZLL             24*
19.0.0.3 Lic+SW Maint 12 Months
IBM       WebSphere Application Server Liberty Core     E0HGKLL             48
19.0.0.3 SW Maint Rnwl 1 Anniv
IBM       DB2 Advanced Enterprise Server Edition        D0GB4LL             16*
11.1.4.4 Lic+SW Maint 12 Months
IBM       DB2 Advanced Enterprise Server Edition        E0AJ4LL             32
11.1.4.4 SW Maint Rnwl 1 Anniv
* Note:  Pricing is based on Processor Value Units (PVU)
Each AppServer and Database core is 70 PVU.

Other Benchmark Information
    DNS round robin load balancing was used and hosted on the database machine
    Load balancing network connectivity was 1Gbps all other connections were 10Gbps

General Notes
The IBM DB2 Universal JDBC Drivers is a type 4 driver.

DB2 uses "Soft" checkpoint to ensure that no updates remain unflushed for
longer than the allowed time.

When DB2 UDB Server changes a database table with an update, insert, or delete
operation, the change is initially made in memory, not on disk. When there is
not enough space in the memory buffer to read in or write additional data pages,
DB2 UDB Server will make space by flushing some modified pages to disk.
Modified pages are also written to disk as part of the "Soft" checkpoint to
ensure that no updates remain unflushed for longer than the allowed time.
Before a change is made to the database, it is first recorded in the
transaction log. This ensures that the database can be recovered completely
in the event of a failure. Using the transaction log, transactions that
started but did not complete prior to a failure can be undone, and
transactions recorded as complete in the transaction log but not yet written
to disk can be redone.

DB2 UDB uses a write-ahead-logging protocol to guarantee recovery. This
protocol uses "Soft" checkpoint to write least-recently-used database pages
to disk independent of transaction commit. However, enough log information to
redo/undo the change to a database pages is committed to disk before the
database page itself is written. This protocol therefore renders checkpoint
unnecessary for DB2 UDB. For a more detailed description of the general
principles of the write-ahead-logging protocol, see the IBM research paper,
ARIES: A Transaction Recovery Method Supporting Fine Granularity Locking and
Partial Rollbacks Using Write-Ahead Logging," by C. Mohan, Database Technology
Institute, IBM Almaden Research Center. (http:// portal.acm.org/citation.cfm
?id=128770&coll=portal&dl=ACM&CFID=10343790&CFTOKEN=42047146)

For questions about this result, please contact the submitter: IBM Corporation

For other inquiries, please contact webmaster@spec.org

Copyright © 2009-2019 Standard Performance Evaluation Corporation
