SPEC Seal of Reviewal SPECjAppServer®2004 Result
Copyright © 2004 Standard Performance Evaluation Corporation
Oracle WebLogic Server Standard Edition Release 10.3 on HP-UX Integrity BL870c Server Blade Cluster
26,655.32 SPECjAppServer2004 JOPS@Standard
Submitter:
HP		 SPEC license # 3 Test date:
Mar-2009
Software Products
Oracle WebLogic Server Standard Edition Release 10.3 with patch for CR383871
Java(TM) 2 Runtime Environment, Standard Edition (build 1.6.0.03) 32 bit
Java HotSpot(TM) 64-Bit Server VM on Linux, version 1.6.0_06
Oracle JDBC Driver 11.1.0.7 (Thin)
Oracle Database 11g Enterprise Edition Release 11.1.0.7 		Software Configurations
J2EE Application Servers
Emulator SW Config
Database SW Config
Driver SW Config Primary and Satellites 		Hardware Systems
J2EE AppServer HW
Database Server HW
Primary Load Driver, Satellite Drivers #1-#15
Emulator Hardware
DNS Load Balancer Hardware

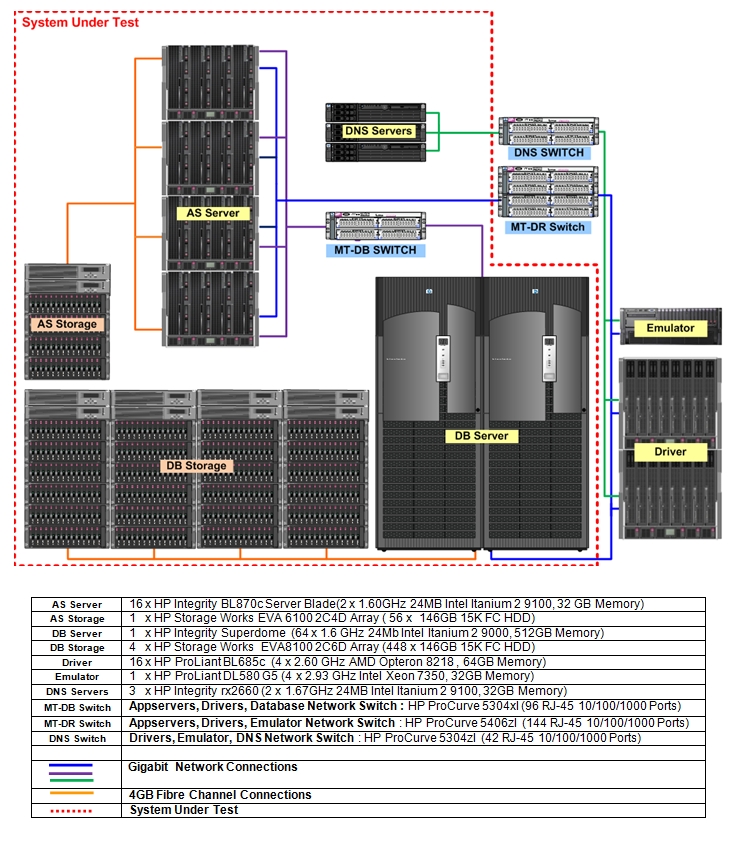

System Configuration Diagram

Benchmark
Modifications
Configuration
Bill of Materials
Other Info
General Notes
Full Disclosure Archive

SUT Configuration
J2EE Server Nodes: 16   DB Server Nodes: 1
J2EE Server CPUs: 128 cores, 64 chips, 2 cores/chip   DB Server CPUs: 128 cores, 64 chips, 2 cores/chip
J2EE Instances: 64   DB Instances: 1
Other SUT Components:
   3 x HP Integrity rx2660 as DNS server for load balancing
   HP ProCurve 5304xl (96 RJ-45 10/100/1000 Ports)

Benchmark Settings
Dealer Injection Rate: 16,000   Ramp Up Time: 600 seconds
# of Dealer Agents: 75   Ramp Down Time: 300 seconds
# of Manufacturing Agents: 53   Steady State Time: 3,600 seconds
DB Load Injection Rate: 20,000   Trigger Time: 4,200 seconds

Detailed Results
Dealer Transaction Mix Count Tx. Mix
Purchase 14,422,652 24.99%
Manage 14,433,619 25.01%
Browse 28,856,025 50.00%
Total # Dealer Transactions 57,712,296
Total # Manufacturing Transactions 38,246,848
Response Times Average Maximum 90th% Reqd
Purchase 0.26 32.14 0.50 2.00
Manage 0.30 34.33 0.60 2.00
Browse 0.29 33.67 0.60 2.00
Manufacturing 1.71 24.94 3.00 5.00
Reproducibility Run (SPECjAppServer2004 JOPS) 26,674.87

Oracle WebLogic Server Standard Edition Release 10.3 with patch for CR383871
Vendor: Oracle Corporation Availability: Mar-2009
CTS Version: 5.0 Date Passed CTS: Feb-2007
OS Name: HP-UX 11i v3 September 2008
EJB Protocol: RMI/T3

Java(TM) 2 Runtime Environment, Standard Edition (build 1.6.0.03) 32 bit
Vendor: HP Availability: Mar-2009
OS Name: HP-UX 11i v3 September 2008

Java HotSpot(TM) 64-Bit Server VM on Linux, version 1.6.0_06
Vendor: Sun Microsystems Availability: May-2008
OS Name: Red Hat Enterprise Linux 5 EM64T

Oracle JDBC Driver 11.1.0.7 (Thin)
Vendor: Oracle Corporation Availability: Oct-2008
OS Name: HP-UX 11i v3 September 2008

Oracle Database 11g Enterprise Edition Release 11.1.0.7
Vendor: Oracle Corporation Availability: Oct-2008
OS Name: HP-UX 11i v3 September 2008

J2EE Application Servers
J2EE Product: Oracle WebLogic Server Standard Edition Release 10.3 with patch for CR383871
JVM Product: Java(TM) 2 Runtime Environment, Standard Edition (build 1.6.0.03) 32 bit
JDBC Product: Oracle JDBC Driver 11.1.0.7 (Thin)
Hardware: J2EE AppServer HW
# of Instances: 64
Interfaces:
Web Interface for the Dealer Domain
Web Interface for the Supplier Domain
EJB Interface for the Dealer Domain
EJB Interface for the Manufacturing Domain
EJB Interface for the Supplier Domain
Notes / Tuning Information
-XX:+AggressiveHeap  -Xmx3300m -Xms3300m -Xmn1600m -XX:PermSize=96m -XX:SurvivorRatio=14 -XX:+ForceMmapReserved
-XX:-UseHighResolutionTimer -Xverbosegc:file=stdout -XX:SchedulerPriorityRange=SCHED_NOAGE
-XX:AllocatePrefetchStyle=1 -XX:AllocatePrefetchDistance=256 -XX:-ZeroTLAB -XX:+ResizeTLAB
-XX:-UseBiasedLocking -XX:+UseDepthFirstScavengeOrder -XX:+UseAggressivePrefetching
-Xss208k -XX:InlineFrequencyCount=500 -XX:FreqInlineSize=325 -XX:InlineSmallCode=2000
-Dweblogic.management.discover=false -Dweblogic.diagnostics.debug.DebugLogger.DISABLED=true -Dweblogic.SocketReaders=3
-Djavax.xml.parsers.DocumentBuilderFactory=com.sun.org.apache.xerces.internal.jaxp.DocumentBuilderFactoryImpl
-Djava.rmi.server.logCalls=false -Dweblogic.MuxerClass=weblogic.socket.NIOSocketMuxer
-Djava.nio.channels.spi.SelectorProvider=sun.nio.ch.DevPollSelectorProvider -Doracle.jdbc.defaultRowPrefetch=200

Emulator SW Config
JVM Product: Java HotSpot(TM) 64-Bit Server VM on Linux, version 1.6.0_06
Web Product: Oracle WebLogic Server Standard Edition Release 10.3 with patch for CR383871
Hardware: Emulator Hardware
# of Instances: 1
Notes / Tuning Information
-server -Xmx22g -Xms22g -Xmn7g -Xss272k -XX:PermSize=95m -XX:+UseLargePages -XX:+AggressiveOpts
-XX:+DisableExplicitGC -verbosegc -Xloggc:emugc.log -XX:+PrintGCDetails -XX:+PrintGCTimeStamps
-XX:+PrintCommandLineFlags -Dsun.net.inetaddr.ttl=1 -Dnetworkaddress.cache.ttl=1
-Dweblogic.management.discover=false -Dweblogic.SocketReaders=3
-Djavax.xml.parsers.DocumentBuilderFactory=com.sun.org.apache.xerces.internal.jaxp.DocumentBuilderFactoryImpl

Database SW Config
DB Product: Oracle Database 11g Enterprise Edition Release 11.1.0.7
Hardware: Database Server HW
# of Instances: 1
Notes / Tuning Information
Oracle tuning in init.ora:
db_name = spec
control_files           = ?/dbs/cntrl_spec
compatible=10.1.0.0.0
aq_tm_processes          = 0
cpu_count                = 256
db_4k_cache_size         = 48G
db_8k_cache_size         = 30G
db_block_checking        = FALSE
db_block_checksum        = FALSE
db_block_size            = 2048
db_cache_advice          = OFF
db_cache_size            = 200G
db_file_multiblock_read_count = 128
db_files                 = 256
db_keep_cache_size       = 2G
db_recycle_cache_size    = 10G
disk_asynch_io           = TRUE
dml_locks                = 1000
hpux_sched_noage         = 180
java_pool_size           = 0
job_queue_processes      = 0
lock_sga                 = TRUE
log_buffer               = 201326592
log_checkpoint_interval  = 0
log_checkpoints_to_alert = TRUE
log_checkpoint_timeout   = 1500
open_cursors             = 3000
parallel_max_servers     = 128
pga_aggregate_target     = 0
processes                = 10000
query_rewrite_enabled    = FALSE
recovery_parallelism     = 0
replication_dependency_tracking = FALSE
session_cached_cursors   = 2000
sessions                 = 20000
shared_pool_size         = 17G
sort_area_size           = 52428800
statistics_level         = basic
timed_statistics         = FALSE
trace_enabled            = FALSE
transactions             = 50000
transactions_per_rollback_segment = 1
undo_management          = AUTO
undo_retention           = 600
undo_tablespace          = undo_ts3

Log writer put into realtime class with /usr/bin/rtprio 127 -PID
and put in its own processor set with /usr/sbin/psrset -b

Listener was started with Round robin policy to distribute the Oracle client processes to different cells.

Driver SW Config Primary and Satellites
JVM Product: Java HotSpot(TM) 64-Bit Server VM on Linux, version 1.6.0_06
Hardware: Primary Load Driver, Satellite Drivers #1-#15
# of Instances: 16
Notes / Tuning Information
-server -Xms2000M -Xmx2000M -Xverify:none -Xloggc:gc.log -XX:+PrintGCDetails -XX:+PrintGCTimeStamps
-XX:+DisableExplicitGC -XX:+UseParallelGC -Dsun.net.inetaddr.ttl=0 -Dnetworkaddress.cache.ttl=0
-Dweblogic.ThreadPoolSize=60 -Dweblogic.ThreadPoolPercentSocketReaders=80 -Dorg.omg.CORBA.ORBInitialHost=main.specj.com
-Djava.naming.factory.initial=weblogic.jndi.WLInitialContextFactory -Djava.naming.provider.url=t3://main.specj.com:7001

J2EE AppServer HW (SUT hardware)
Hardware Vendor: HP OS Vendor: HP
Model Name: HP BL870c OS Name: HP-UX 11i v3 September 2008
Processor: Dual-core Intel Itanium 9100 Filesystem: vxfs
MHz: 1600 Disks: see notes
# of CPUs: 8 cores, 4 chips, 2 cores/chip Network Interface: (2) HP PCI-X 1000Mbps Dual-port Built-in
Memory (MB): 32736 Other Hardware: (1) HP 4Gb Dual Port PCIe Fibre Channel Mezzanine
L1 Cache: 16KB(I)+16KB(D) # of Systems: 16
L2 Cache: 1024KB(I)+256KB(D) H/W Available: Jan-2008
Other Cache: 2 x 12MB (L3 Cache) OS Available: Sep-2008
Notes / Tuning Information
Kernel Tunable Entries:

TRMSGSZ                             65535
create_fastlinks                        1
default_disk_ir                         1
fs_async                                1
hires_timeout_enable                    0
lcpu_attr                               1
max_async_ports                      4096
max_thread_proc                      2048
maxdsiz                        3565158400
maxfiles                             2048
maxfiles_lim                        32768
maxssiz                         100610048
maxssiz_64bit                  1073741824
maxtsiz                        1073741824
maxtsiz_64bit                  4294967296
maxuprc                              2040
msgmnb                              65536
msgtql                               5120
ninode                             150000
nkthread                            20000
nproc                                5000
npty                                  200
nstrpty                               200
nswapdev                               25
semmni                               4096
semmns                               8192
semmnu                               4092
semume                                512
shmmax                        15000000000
shmmni                                520
shmseg                                512
swchunk                              8192
tcphashsz                           32768
vps_ceiling                            64

Disk Configuration:
Each server has 2 x HP 146GB 10K SAS HDD
All Application Server systems are connected to a single
EVA 6100 Storage Array, for server and JMS logging.

Database Server HW (SUT hardware)
Hardware Vendor: HP OS Vendor: HP
Model Name: Superdome OS Name: HP-UX 11i v3 September 2008
Processor: Dual-core Intel Itanium 9000 Filesystem: vxfs
MHz: 1600 Disks: 4x36Gb 15K RPM U320
# of CPUs: 128 cores, 64 chips, 2 cores/chip Network Interface: (7) HP PCI/PCI-X 1000Base-T Dual-port Adapter
Memory (MB): 523246 Other Hardware: See notes
L1 Cache: 16KB(I)+16KB(D) # of Systems: 1
L2 Cache: 1024KB(I)+256KB(D) H/W Available: Sep-2006
Other Cache: 2x12MB (L3 Cache) OS Available: Sep-2008
Notes / Tuning Information
Kernel tunable entries:
STRMSGSZ                             65535
create_fastlinks                         1
default_disk_ir                          1
fs_async                                 1
ksi_alloc_max                        32768
lcpu_attr                                1
max_async_ports                      16384
max_thread_proc                      32768
maxdsiz                         1073741824
maxdsiz_64bit                   2147483648
maxfiles                            130000
maxfiles_lim                        130000
maxssiz                          134217728
maxssiz_64bit                   1073741824
maxtsiz                         1073741824
maxuprc                              16384
msgmnb                               65536
msgmni                                4096
msgtql                                4096
ncsize                               34816
nflocks                              16384
ninode                               34816
nkthread                            130000
nproc                                60000
npty                                   200
nstrpty                                200
nswapdev                                25
semmni                                8192
semmns                               32767
semmnu                                8192
semmsl                                8192
semume                                1024
semvmx                               32767
shmmax                       4398046511104
shmmni                                 512
shmseg                                 512
swchunk                               8192
tcphashsz                            32768
vps_ceiling                             64

Network Tuning:
Used default ndd parms

(4) HP StorageWorks EVA8100 2C6D Array
    Each with 112 x 146GB 15K FC HDD and HP StorageWorks SAN Switch

(8) HP 4Gb Dual Port PCI/PCI-X Fibre Channel Adapter

Primary Load Driver, Satellite Drivers #1-#15 (non-SUT hardware)
Hardware Vendor: HP OS Vendor: Red Hat
Model Name: BL685c OS Name: Red Hat Enterprise Linux 5 EM64T
Processor: Dual-Core AMD Opteron(tm) Processor 8218 Filesystem: ext3
MHz: 2600 Disks: 1x73Gb 15K RPM U320
# of CPUs: 8 cores, 4 chips, 2 cores/chip Network Interface: (2) HP PCI-X 1000Mbps Dual-port Built-in , (1) HP PCI-X 1000Mbps Quad-Port
Memory (MB): 65536 Other Hardware: None
L1 Cache: 64KB(I)+64KB(D) # of Systems: 16
L2 Cache: 1024KB H/W Available: Feb-2008
Other Cache: None OS Available: Feb-2008
Notes / Tuning Information
Added to /etc/sysctl.conf:
fs.file-max = 262144
kernel.sem = 250 32000 100 128
net.core.netdev_max_backlog = 400000
net.core.optmem_max = 30000000
net.core.rmem_default = 30000000
net.core.rmem_max = 30000000
net.core.somaxconn = 40000
net.core.wmem_default = 30000000
net.core.wmem_max = 30000000
net.ipv4.ip_local_port_range = 1024 65000
net.ipv4.tcp_fin_timeout = 10
net.ipv4.tcp_max_syn_backlog = 30000
net.ipv4.tcp_max_tw_buckets = 2000000
net.ipv4.tcp_mem = 30000000 30000000 30000000
net.ipv4.tcp_rmem = 30000000 30000000 30000000
net.ipv4.tcp_timestamps = 0
net.ipv4.tcp_wmem = 30000000 30000000 30000000

For each of the NICs:
set arp_announce = 2
set arp_ignore = 1
set txqueuelen 60000
enable tso and gso

Stop iptables.

Emulator Hardware (non-SUT hardware)
Hardware Vendor: HP OS Vendor: Red Hat
Model Name: Proliant DL580 G5 OS Name: Enterprise Linux Enterprise Linux Server release 5.3
Processor: Quad-Core Intel(R) Xeon(R) CPU X7350 Filesystem: ext3
MHz: 2933 Disks: 1x36Gb 15K RPM U320
# of CPUs: 16 cores, 4 chips, 4 cores/chip Network Interface: (2) HP PCI-X 1000Mbps Dual-port Built-in , (1) HP PCI-X 1000Mbps Quad-Port
Memory (MB): 32768 Other Hardware: None
L1 Cache: 64KB(I)+64KB(D) # of Systems: 1
L2 Cache: 2x4MB per chip H/W Available: Sep-2007
Other Cache: None OS Available: Jan-2009
Notes / Tuning Information
Added to /etc/sysctl.conf:
fs.file-max = 262144
kernel.sem = 250 32000 100 128
net.core.netdev_max_backlog = 400000
net.core.optmem_max = 30000000
net.core.rmem_default = 30000000
net.core.rmem_max = 30000000
net.core.somaxconn = 40000
net.core.wmem_default = 30000000
net.core.wmem_max = 30000000
net.ipv4.ip_local_port_range = 1024 65000
net.ipv4.tcp_fin_timeout = 10
net.ipv4.tcp_max_syn_backlog = 30000
net.ipv4.tcp_max_tw_buckets = 2000000
net.ipv4.tcp_mem = 30000000 30000000 30000000
net.ipv4.tcp_rmem = 30000000 30000000 30000000
net.ipv4.tcp_timestamps = 0
net.ipv4.tcp_wmem = 30000000 30000000 30000000

For each of the NICs:
set arp_announce = 2
set arp_ignore = 1
set txqueuelen 60000
enable tso and gso

Configure 12200 hugepages.

DNS Load Balancer Hardware (SUT hardware)
Hardware Vendor: HP OS Vendor: HP
Model Name: rx2660 OS Name: HP-UX 11i v3 September 2008
Processor: Intel Itanium 9100 Filesystem: vxfs
MHz: 1667 Disks: 1x73Gb 15K RPM U320
# of CPUs: 4 cores, 2 chips, 2 cores/chip Network Interface: (2) HP PCI/PCI-X 1000Base-T Dual-port Adapter
Memory (MB): 32746 Other Hardware: null
L1 Cache: 16KB(I)+16KB(D) # of Systems: 3
L2 Cache: 256KB H/W Available: Sep-2006
Other Cache: 2 x 9MB (L3 Cache) OS Available: Sep-2008
Notes / Tuning Information
Started named -n 16 and put into realtime class with /usr/bin/rtprio 127 -PID

Benchmark Modifications
Schema Modifications:
  Tablespace sizes were increased to support the Injection rate.
  Scripts to create the DB are included in the FDA.
  Table and index initrans were modified.
  The C_CUSTOMER, C_CUSTOMERINVENTORY, M_LARGEORDER, M_WORKORDER, O_ORDERLINE,
  O_ORDERS, S_COMPONENT, S_PURCHASEORDER and S_PURCHASEORDERLINE tables were
  horizontally partitioned. M_PARTS, M_BOM, M_INVENTORY, and O_ITEM were hash clustered.
  Automatic segment space management was used for all tablespaces.
  System managed undo was used.
  Table locks were disabled during the run using disable_lock.sql
Load Program Modifications:
  The load program was not modified.

Benchmark Configuration Information
Isolation Requirement Info:
  The following Beans were deployed in READ_COMMITTED mode as per the
  benchmark requirement:
  Mfg      - AssemblyEnt, BomEnt, ComponentEnt, LargeOrderEnt, PartEnt
  Orders   - ItemEnt
  Supplier - SupplierCompEnt, SupplierEnt

  All other beans were deployed using pessimistic locking mode such that all
  selects including finders are issued with a FOR UPDATE clause in select
  statement:
  Corp     - CustomerEnt, CustomerInventoryEnt
  Mfg      - InventoryEnt, WorkOrderEnt
  Orders   - OrderEnt, OrderLineEnt
  Supplier - POEnt, POLineEnt, SComponentEnt
  Util     - SequenceEnt

  The ItemEnt bean was cached for 20 minute intervals by setting
  the following in bea-orders.xml deployment descriptor:
  concurrency-strategy to ReadOnly
  read-timeout-seconds to 1200
Durability Requirement Info:
  To ensure database durability, RAID 1 (mirroring) was used for the
  database Redo logs and datafiles.

  The application server was using mirrored disks to
  provide durability for server logs and JMS persistence filestore.

  The RAID controller on the database and application server machines were
  configured with Write-Back cache policy supported with battery backed up unit
  on the controller.
Storage Requirement Info:
  An 75 minute run at an injection rate of 16,000 increased storage by 46 GB
  This extrapolates to 874GB of storage for a 24 hour run.
  The database is configured with 16TB of durable storage.
Argument Passing Semantics:
  Oracle WebLogic Server Standard Edition uses pass-by-value as required by
  the EJB specification.

Bill of Materials

Supplier  Description                                   Product #          Qty
--------  -------------------------------------------   ----------------   ---
HP        Integrity BL870c Blade Server                 AH232A              16
HP        1.60GHz 24MB Itanium Processors               AH320A              64
HP        4GB (2 x 2GB) PC2-4200 DDR2 SDRAM DIMMs       AD344A             128
HP        146GB SAS 10,000rpm disk drive                418367-B21          32
HP        QLogic QMH2462 4Gb FC HBA                     403619-B21          16
HP        C7000 Enclosure                               AD361B               4
HP        4Gb Fibre Channel Pass-thru Module            403626-B21           4
HP        1Gb Ethernet Pass-Thru Module                 406740-B21           8
HP        BladeSystem c7000 Active Cool Fan             412140-B21          40
HP        BladeSystem c7000 Power Module                413379-B21          24
HP        HP-UX FOE                                     BA531AC             64
HP        3 year 24x7 hardware and software support     HA110A3


HP        HP Superdome Server Solution                  A5200A               2
HP        32 processor Superdome Enterprise Server      A9834A-429           2
HP        200-240VAC 3 phase, 4 wires, 8 gage cord      A9834A-006           2
HP        Superdome sx2000 Cell Board for Montecito     A9837A-0D1          16
HP        1.6GHz 24MB Itanium 2 9000                    A9840A-0D1          64
          Itanium dual-core module
HP        Memory - 16GB high performance DDR2           A9846A-0D1          32
          (8x2GB DIMM)
HP        HP 12 Slot PCI-X Chassis for sx2000           A9836A-0D1           6
HP        4Gb PCI-X DC 64 bit FC HBA                    A6826A-0D1          16
HP        PCI-X 2 port 1000Base-T Gigabit Adptr         A7012A-0D1           7
HP        HP-UX OE LTU                                  B9429CA-UMG,0D1,AJR 64
HP        HP rx2620 1.0G 1.5MB CPU server Solution      AB332A               1
	      Admin console
HP        3y 24x7 HW SW Support                         HA110A3

HP        EVA8100 2C6D Array                            AG701A               4
HP        StorageWorks 4/16 Full SAN Switch             AG757A               4
HP        CV EVA 8k Series Unlimited Lic                T5183A               4
HP        M5314C FC Drive Enclosure                     AD542C               8
HP        StorageWorks 146GB 15K FC HDD                 364621-B23         448
HP        4GB SW Single Pack SFP Transceiver            A7446B              64
HP        Storage Works LC/LC 2m Cable                  221692-B21          54
HP        24A High Voltage US/JP Modular PDU            252663-D72           8
HP        Universal Rack 10642 G2 Shock Rack            AF002A               4
HP        10K G2 600W Stabilizer Kit                    AF062A               4
HP        10642 G2 Sidepanel Kit                        AF054A               4
HP        CV EVA 7.0 Rep Sol Mgr 3.0 Media Kit          T3724E               1
HP        Stor Essen Std Ed SRM Media Kit               T5314AA              1
HP        Stor Essen Std Ed SRM LTU                     T5315AA              1
HP        3y Proactive 24 Service                       HA111A               4

HP        EVA 6100 - Model 2C4D Base                    AD556C               1
          2 x HSV200-B controllers
          4 x M5314C  Disk Enclosures
HP        StorageWorks 146GB 15K FC HDD                 364621-B23          56

HP        HP rx2660 1.6GHz/18MB 4-core                  AD245A-003           3
HP        rx2660 PCI-X 3 slot cage option               AD246A               3
HP        4GB DDR2 memory pair (2 x 2GB DIMMs)          AD275A              12
HP        36GB 10K RPM drives                           AD140A               3
HP        Dual port 1000BaseT LAN adapter card          A7012A               3
HP        HP-UX Integrity FOE w/Sys 2 Proc PCL LTU      B9430AC             12
HP        3 year 24x7 hardware and software support     HA110A3

HP        HP ProCurve 5304xl  Switch 24 Port Module     J8702-61001          4

Oracle    Oracle Database 11g Enterprise Edition,                           64*
          Per Processor, Unlimited Users for 3 years
Oracle    Partitioning, Per Processor, Unlimited Users for 3 years          64*
Oracle    Oracle Premium Support for 3 years                                 2

Oracle    Oracle WebLogic Server Standard Edition Release 10.3,
          Per Processor for 3 years                                         64*
Oracle    Oracle Premium Support for 3 years                                 1


(* 64 = 0.50 * 128) & (64= 0.50*128).  Explanation:  For the purposes
of counting the number of processors which require licensing, an Intel
multicore chip with "n" cores shall be determined by multiplying "n" cores
by a factor of 0.50).

Other Benchmark Information
  The xerces implementation version 2.6.2 from xml.apache.org was used as it comes
  packaged with Oracle Weblogic Server Standard Edition.

  Requests were sent to different Appservers using DNS round robin,
  with DNS servers running on the DNS load balancer hardware.

General Notes
The only errors in the driver error logs are the application errors
generated by this benchmark.

For questions about this result, please contact the submitter: HP
For other inquiries, please contact webmaster@spec.org

Copyright © 2004 Standard Performance Evaluation Corporation

First published at SPEC.org on 08-Apr-2009
