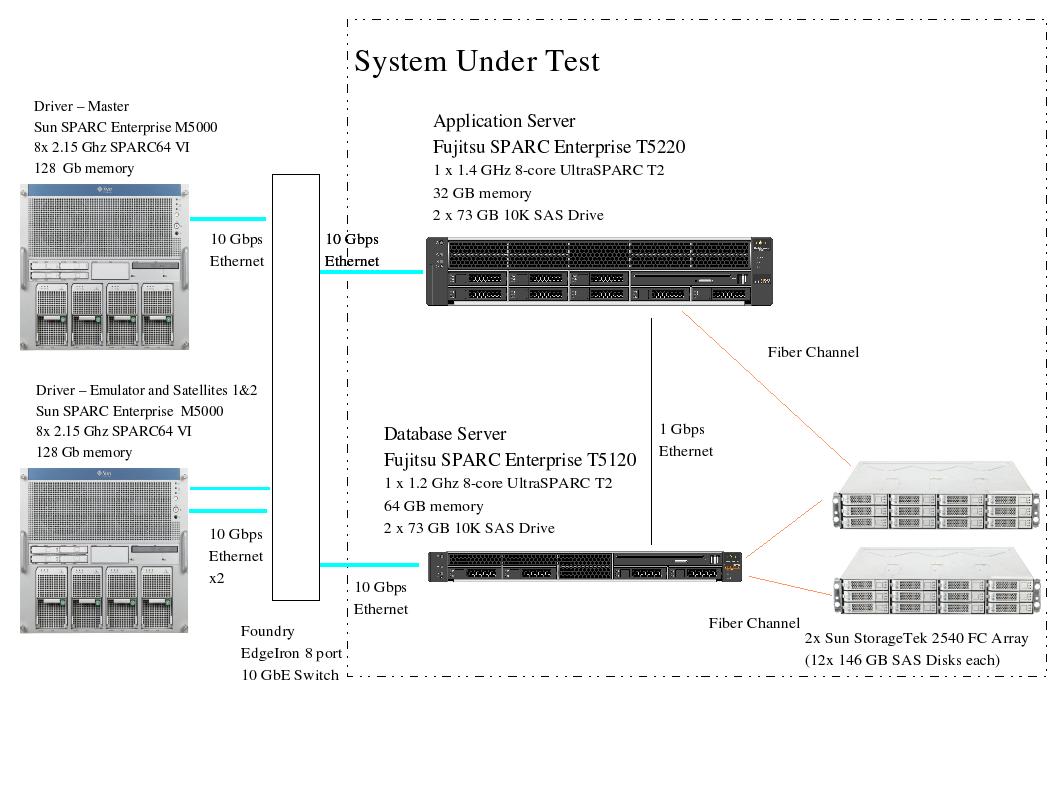

System Configuration Diagram

  Tablespace sizes were increased to support the Injection rate.
  Scripts to create the DB are included in the FDA.
  Table and index initrans were modified.
  The M_INVENTORY and M_WORKORDER tables were horizontally partitioned.
  Automatic segment space management was used for all tablespaces.
  System managed undo was used.
  Table locks were disabled during the run using disable_locks.sh script.


  The load program was not modified

  The following Beans were deployed in READ_COMMITTED mode as per the
  benchmark requirement:
  Mfg      - AssemblyEnt, BomEnt, ComponentEnt, LargeOrderEnt, PartEnt
  Orders   - ItemEnt
  Supplier - SupplierCompEnt, SupplierEnt

  All other beans were deployed using pessimistic locking mode such that all
  selects including finders are issued with a FOR UPDATE clause in select
  statement:
  Corp     - CustomerEnt, CustomerInventoryEnt
  Mfg      - InventoryEnt, WorkOrderEnt
  Orders   - OrderEnt, OrderLineEnt
  Supplier - POEnt, POLineEnt, SComponentEnt
  Util     - SequenceEnt

  The ItemEnt bean was cached for 20 minute intervals by setting:
  read-only to true, and
  time-to-live to 1200000 (ms)
  in orders-toplink-ejb-jar.xml deployment descriptor


  To ensure database durability, RAID 1 (mirror disks)
  was used for the database files and logs maintained
  on the two Sun StorageTek 2540 Arrays.

  Each application server used a pair of mirrored disks in
  the Sun StorageTek 2540 array to provide durability for all
  the server logs and filestore for JMS persistence.

  An 80 minute run at an injection rate of 1200 increased storage by 2190 MB
  This extrapolates to 39.42 GB storage for a 24 hour run.
  The database is configured with 3504 GB of storage.

  One Sun StorageTek 2540 FC Array was configured as a single RAID 1
  logical drive to store the database files.
  The other Sun StorageTek 2540 FC Array was configure as two
  RAID 1 logical drives - one logical drive for the database logs
  and the other logical drive used for the application
  server JMS persistence logs

  Oracle Application Server 10g uses pass-by-value as required by the EJB Specification

Supplier  Description                                  Product No.          Qty
--------  ------------------------------------------   ------------------   ---
Fujitsu   SPARC Enterprise T5220, 1.4GHz, 8-core       SEDAF121F*	     1
Fujitsu   4GB Memory Expansion (2x2GB)                 SESY2B1F*             8
Fujitsu   73GB 10K RPM 2.5" SAS Disk                   SESY3A11F*            2
Fujitsu   10 GbE XAUI card - Fiber                     SESY7XA1F*            1
Fujitsu   Transceiver for XAUI - 10GbE SR XFP          SESY7XT1F*            1
Fujitsu   4 Gb PCI-E Dual Port FC/AL card              SG-XPCIE1FC-EM4       1
Fujitsu   DVD, 8X, RW                                  SESY9DV1F*            1
Fujitsu   SE T5220 AC Power Supply                     SEDY9PS31F*           1
Fujitsu   Solaris 10 8/07 Preinstalled                 SESY9SA1F*            1

Fujitsu   SPARC Enterprise T5120, 1.2GHz, 8-core       SECAC111F*	     1
Fujitsu   8GB Memory Expansion (2x4GB)                 SESY2C1F*             8
Fujitsu   73GB 10K RPM 2.5" SAS Disk                   SESY3A11F*            2
Fujitsu   10 GbE XAUI card - Fiber                     SESY7XA1F*            1
Fujitsu   Transceiver for XAUI - 10GbE SR XFP          SESY7XT1F*            1
Fujitsu   4 Gb PCI-E Dual Port FC/AL card              SG-XPCIE1FC-EM4       1
Fujitsu   DVD, 8X, RW                                  SESY9DV1F*            1
Fujitsu   SE T5120 AC Power Supply                     SECY9PS11F*           1
Fujitsu   Solaris 10 8/07 Preinstalled                 SESY9SA1F*            1

Sun	  Sun StorageTek 2540, 12 x 146GB, 2 RAID      XTA2540R01D2E1752     2
Sun	  SunSpectum Upgrade: 3Y GOLD, 24x7	       W9D-SE2540-24-3G	     2
Sun       17" Entry Color Monitor                      X7204A                1
Sun       XVR-200 Graphics Accelerator                 X3777                 2
Sun       USB Keyboard & Mouse                         320-1366              1

Oracle    Oracle Database 10g Release 2 Enterprise Edition, Per Processor    6**
          (v10.2)
Oracle    Partitioning, Per Processor,  Unlimited users for 3 years          6**
Oracle    Oracle Database Server Support Package for 3 years                 1
          (Incident Server Support) 24x7x4

Oracle    Oracle Application Server 10g Release 10.1.3.3,                    6**
          Java Edition, Per Processor
          (v10.1)
Oracle    Oracle Application Server Support Package for 3 years              1
          (Incident Server Support) 24x7x4

(F*). :  Explanation:  For Materials supplied by Fujitsu, the last letter
of Product Number is different by region and 'F' is for Japan. For other
contries and regions, please consult with the local supplier.

(**  6 = 0.75 * 8).  Explanation:  For the purposes of counting the number of
processors which require licensing, a multicore chip with "n" cores shall be
determined by multiplying "n" cores by a factor of .75).

  The xerces implementation version 2.6.2 from xml.apache.org was used as
  it comes packaged with Oracle Application Server 10g.

  Requests were sent to the Appservers using DNS round robin,
  with the database node acting as the DNS server.

  The driver used the following jndi.properties:
   java.naming.factory.initial=com.evermind.server.rmi.RMIInitialContextFactory
   java.naming.provider.url=ormi://ecapps:23791/SPECjAppServer
   java.naming.security.principal=oc4jadmin
   java.naming.security.credentials=welcome
   oracle.j2ee.rmi.loadBalance=lookup

The only errors in the driver log files were those that are normally
generated by this benchmark.

On the database, incremental checkpointing ensured that no buffer will
remain dirty (in the cache) for more than the allowed time.

Oracle Application Server 10g Release 10.1.3.3 implements Recoverable Last
Resource Commit (RLRC) optimization where one and only one SinglePhaseResource
participates in a global transaction with one or more XAResources. This is
accomplished by emulating an XAResource to represent the 1PC resource. The
transaction manager takes the following steps when it receives a request to commit
a global transaction that includes one emulated XAResource:
1. It invokes a prepare call on each of the 2PC resources.
2. If all of the 2PC resources are successfully prepared, then commit (one-phase)
   is called and the commit record is written to the commit-log, on the emulated
   XA resource (database) as part of the local transaction.
3. If the 1PC on the emulated XA resource completes successfully, then the
transaction manager calls commit on each of the 2PC resources.
or:
If the 1PC on the emulated XA resource fails, then the transaction manager queries
the commit-log for transaction outcome. If the record exists, 2PC resources are
committed, otherwise 2PC Resources are aborted.
Transaction outcome after a single point of failure is guaranteed by the presence of
the commit-record in the commit log, indicating a successful transaction completion;
while a missing commit-record signifies abort. The commit record is deleted lazily
after the global transaction has committed.

In conjunction with the RLRC implementation, the log-file location specified in the
transaction-manager.xml identifies the location where  the participating resource
managers are recorded. The commit record table name associated with an instance is
specified in the commit-record-table-name attribute, in the Connection-Factory
element of data-sources.xml.

10 GbE Switch Details:
Foundry EdgeIron 8-port 10GbE Switch - Product No. EIF8X10G
5x 10GbE XFP Transceivers - Product No. 10G-XFP-SR

This result was measured on the Sun SPARC Enterprise T5220 and T5120.
The Fujitsu SPARC Enterprise T5220 and Sun SPARC Enterprise T5220 are
electronically equivalent.
The Fujitsu SPARC Enterprise T5120 and Sun SPARC Enterprise T5120 are
electronically equivalent.
