BEA WebLogic Server 9.0 on Sun Fire X4100 Cluster

1,781.47 SPECjAppServer2004 JOPS@Standard

Submitter:
Sun Microsystems Inc.

SPEC license # 6

Test date:
Sep-2005

Software Products
BEA WebLogic Server 9.0, Advantage Edition
Java (TM) 2 Platform Standard Edition Development Kit 5.0 Update 6 32-bit
Oracle JDBC Driver 10.1.0.3 (Thin)
Oracle Database 10g Enterprise Edition Release 10.1.0.4.0

Software Configurations
J2EE Application Servers
Emulator SW Config
Database SW Config
Driver SW Config Primary
Driver SW Config Satellite #1
Driver SW Config Satellite #2
Driver SW Config Satellite #3
Driver SW Config (Emulator)

Hardware Systems
J2EE AppServer HW
Database Server HW
Load Driver HW Emulator
Load Driver HW Primary
Load Driver HW Satellite #1
Load Driver HW Satellite #2
Load Driver HW Satellite #3

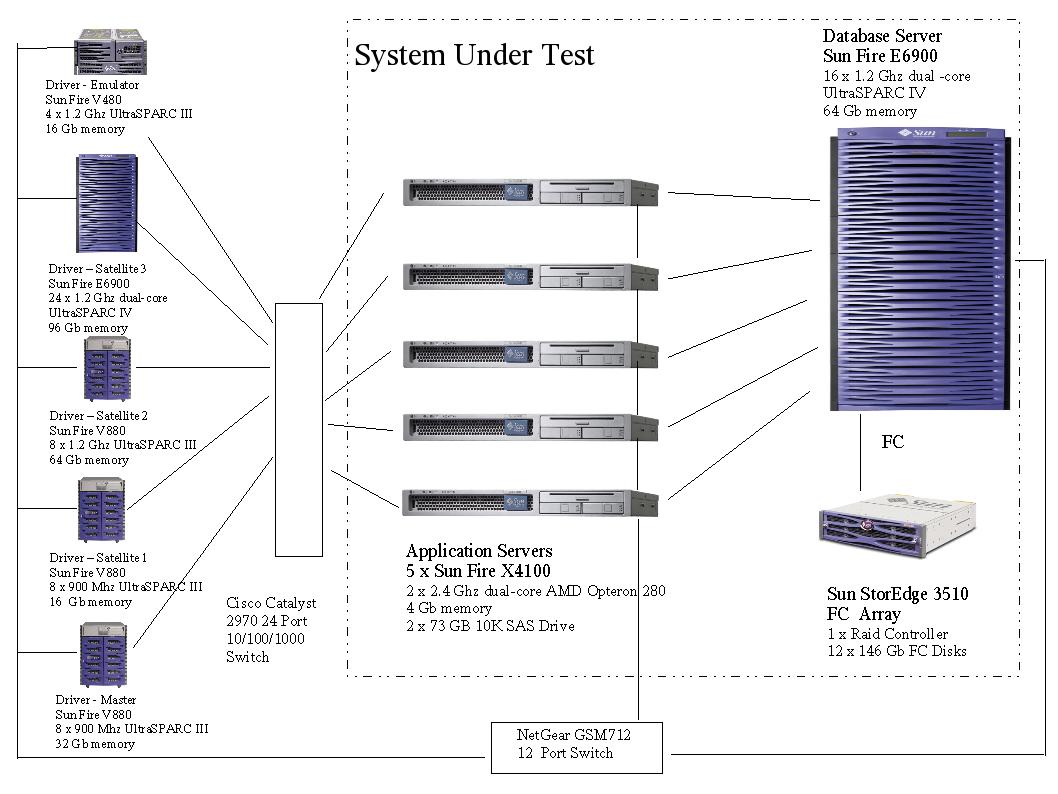

System Configuration Diagram

Benchmark
Modifications
Configuration
Bill of Materials
Other Info
General Notes
Full Disclosure Archive

SUT Configuration

J2EE Server Nodes:	5	DB Server Nodes:	1
J2EE Server CPUs:	20 cores, 10 chips (2 cores/chip)	DB Server CPUs:	32 cores, 16 chips (2 cores/chip)
J2EE Instances:	5	DB Instances:	1

Other SUT Components:

Benchmark Settings

Dealer Injection Rate:	1,065	Ramp Up Time:	600 seconds
# of Dealer Agents:	9	Ramp Down Time:	300 seconds
# of Manufacturing Agents:	15	Steady State Time:	3,600 seconds
DB Load Injection Rate:	2,000	Trigger Time:	1,005 seconds

Detailed Results

Dealer Transaction Mix	Count	Tx. Mix
Purchase	963,879	25.00%
Manage	964,291	25.01%
Browse	1,927,517	49.99%
Total # Dealer Transactions	3,855,687

Total # Manufacturing Transactions	2,557,596

Response Times	Average	Maximum	90th%	Reqd
Purchase	0.13	14.00	0.20	2.00
Manage	0.18	12.92	0.40	2.00
Browse	0.14	11.52	0.30	2.00
Manufacturing	2.04	12.09	3.00	5.00

Reproducibility Run (SPECjAppServer2004 JOPS)	1,781.49

BEA WebLogic Server 9.0, Advantage Edition

Vendor:	BEA Systems, Inc.	Availability:	Nov-2005
CTS Version:	1.4	Date Passed CTS:	Jun-2005
OS Name:	Solaris 10 64-bit
EJB Protocol:	RMI/T3

Java (TM) 2 Platform Standard Edition Development Kit 5.0 Update 6 32-bit

Vendor:	Sun Microsystems, Inc.	Availability:	Nov-2005
OS Name:	Solaris 10 (64-bit)

Oracle JDBC Driver 10.1.0.3 (Thin)

Vendor:	Oracle Corporation	Availability:	Aug-2004
OS Name:	Solaris 10 (64-bit)

Oracle Database 10g Enterprise Edition Release 10.1.0.4.0

Vendor:	Oracle Corporation	Availability:	May-2005
OS Name:	Solaris 10 (64-bit)

J2EE Application Servers

J2EE Product:	BEA WebLogic Server 9.0, Advantage Edition
JVM Product:	Java (TM) 2 Platform Standard Edition Development Kit 5.0 Update 6 32-bit
JDBC Product:	Oracle JDBC Driver 10.1.0.3 (Thin)
Hardware:	J2EE AppServer HW
# of Instances:	5
Interfaces:
	Web Interface for the Dealer Domain
	Web Interface for the Supplier Domain
	EJB Interface for the Dealer Domain
	EJB Interface for the Manufacturing Domain
	EJB Interface for the Supplier Domain

Notes / Tuning Information

JVM Options: -server -Xms3g -Xmx3g -Xmn800m -Xss128k -XX:+AggressiveHeap
-XX:+UseParallelGC -XX:ParallelGCThreads=4 -XX:PermSize=128m
-XX:MaxTenuringThreshold=3 -XX:LargePageSizeInBytes=2m -XX:SurvivorRatio=20
-verbose:gc -XX:+PrintGCDetails -XX:+PrintGCTimeStamps -XX:-TraceClassUnloading

Emulator SW Config

J2EE Product:	BEA WebLogic Server 9.0, Advantage Edition
JVM Product:	Java (TM) 2 Platform Standard Edition Development Kit 5.0 Update 6 32-bit
Hardware:	Load Driver HW Emulator
# of Instances:	1

Notes / Tuning Information

JVM Options: -server -Xms3g -Xmx3g -Xmn800m -Xss128k
-XX:+AggressiveHeap -XX:+UseParallelGC -XX:ParallelGCThreads=4
-XX:PermSize=128m -XX:MaxTenuringThreshold=3 -XX:LargePageSizeInBytes=2m
-XX:SurvivorRatio=20 -verbose:gc -XX:+PrintGCDetails
-XX:+PrintGCTimeStamps -XX:-TraceClassUnloading

Database SW Config

DB Product:	Oracle Database 10g Enterprise Edition Release 10.1.0.4.0
Hardware:	Database Server HW
# of Instances:	1

Notes / Tuning Information

Oracle tuning in init.ora:
compatible=10.1.0.2.0
_array_update_vector_read_enabled = TRUE
_check_block_after_checksum   = FALSE
_collect_undo_stats           = FALSE
_cursor_cache_frame_bind_memory = TRUE
_db_cache_pre_warm            = FALSE
_in_memory_undo               = TRUE
_lgwr_async_io                = FALSE
_smm_advice_enabled           = FALSE
_undo_autotune                = FALSE
aq_tm_processes        = 0
cursor_space_for_time  = TRUE
db_block_checksum      = FALSE
db_block_size          = 2048
db_file_multiblock_read_count = 128
db_files               = 256
dml_locks              = 6000
disk_asynch_io         = TRUE
enqueue_resources      = 20000
fast_start_mttr_target = 0
filesystemio_options   = asynch
log_checkpoint_interval= 0
log_checkpoint_timeout = 0
log_checkpoints_to_alert= TRUE
processes              = 5200
open_cursors           = 3200
shared_pool_size       = 4096M
sessions               = 3200
transactions           = 3200
transactions_per_rollback_segment = 1
timed_statistics       = FALSE
trace_enabled          = FALSE
db_cache_size          = 24G
db_8k_cache_size       = 6G
undo_management        = AUTO
undo_retention         = 30
undo_tablespace        = undo_ts
log_buffer             = 113246208
_db_block_hash_latches = 262144
sort_area_size 	 = 54525952
statistics_level       = basic
Log writer put into realtime class with /usr/bin/priocntl -s -c RT -p 1 -i pid PID

Driver SW Config Primary

JVM Product:	Java (TM) 2 Platform Standard Edition Development Kit 5.0 Update 6 32-bit
Hardware:	Load Driver HW Primary
# of Instances:	1

Notes / Tuning Information

JVM Options: -server -XX:+AggressiveHeap -XX:+UseParallelGC
-XX:LargePageSizeInBytes=4m -XX:-TraceClassUnloading
-Xms2g -Xmx2g -Xmn600m -XX:+DisableExplicitGC -Xbatch -Xss128k
-Dorg.omg.CORBA.ORBInitialHost=$JAS_MULTI_HOST Djava.naming.factory.initial=$JNDI_CLASS
-Djava.naming.provider.url=$NAMING_PROVIDER -Dsun.net.inetaddr.ttl=0 -Dnetworkaddress.cache.ttl=0

Driver SW Config Satellite #1

JVM Product:	Java (TM) 2 Platform Standard Edition Development Kit 5.0 Update 6 32-bit
Hardware:	Load Driver HW Satellite #1
# of Instances:	1

Notes / Tuning Information

JVM Options: -server -XX:+AggressiveHeap -XX:+UseParallelGC
-XX:LargePageSizeInBytes=4m -XX:-TraceClassUnloading
-Xms2g -Xmx2g -Xmn600m -XX:+DisableExplicitGC -Xbatch -Xss128k
-Dorg.omg.CORBA.ORBInitialHost=$JAS_MULTI_HOST -Djava.naming.factory.initial=$JNDI_CLASS
-Djava.naming.provider.url=$NAMING_PROVIDER -Dsun.net.inetaddr.ttl=0 -Dnetworkaddress.cache.ttl=0

Driver SW Config Satellite #2

JVM Product:	Java (TM) 2 Platform Standard Edition Development Kit 5.0 Update 6 32-bit
Hardware:	Load Driver HW Satellite #2
# of Instances:	1

Notes / Tuning Information

JVM Options: -server -XX:+AggressiveHeap -XX:+UseParallelGC
-XX:LargePageSizeInBytes=4m -XX:-TraceClassUnloading
-Xms2g -Xmx2g -Xmn600m -XX:+DisableExplicitGC -Xbatch -Xss128k
-Dorg.omg.CORBA.ORBInitialHost=$JAS_MULTI_HOST -Djava.naming.factory.initial=$JNDI_CLASS
-Djava.naming.provider.url=$NAMING_PROVIDER -Dsun.net.inetaddr.ttl=0 -Dnetworkaddress.cache.ttl=0

Driver SW Config Satellite #3

JVM Product:	Java (TM) 2 Platform Standard Edition Development Kit 5.0 Update 6 32-bit
Hardware:	Load Driver HW Satellite #3
# of Instances:	1

Notes / Tuning Information

JVM Options: -server -XX:+AggressiveHeap -XX:+UseParallelGC
-XX:LargePageSizeInBytes=4m -XX:-TraceClassUnloading
-Xms2g -Xmx2g -Xmn600m -XX:+DisableExplicitGC -Xbatch -Xss128k
-Dorg.omg.CORBA.ORBInitialHost=$JAS_MULTI_HOST -Djava.naming.factory.initial=$JNDI_CLASS
-Djava.naming.provider.url=$NAMING_PROVIDER -Dsun.net.inetaddr.ttl=0 -Dnetworkaddress.cache.ttl=0

Driver SW Config (Emulator)

JVM Product:	Java (TM) 2 Platform Standard Edition Development Kit 5.0 Update 6 32-bit
Hardware:	Load Driver HW Emulator
# of Instances:	1

Notes / Tuning Information

JVM Options: -server -XX:+AggressiveHeap -XX:+UseParallelGC
-XX:LargePageSizeInBytes=4m -XX:-TraceClassUnloading
-Xms2g -Xmx2g -Xmn600m -XX:+DisableExplicitGC -Xbatch -Xss128k
-Dorg.omg.CORBA.ORBInitialHost=$JAS_MULTI_HOST -Djava.naming.factory.initial=$JNDI_CLASS
-Djava.naming.provider.url=$NAMING_PROVIDER -Dsun.net.inetaddr.ttl=0 -Dnetworkaddress.cache.ttl=0

J2EE AppServer HW (SUT hardware)

Hardware Vendor:	Sun Microsystems, Inc.	OS Vendor:	Sun Microsystems, Inc.
Model Name:	Sun Fire X4100	OS Name:	Solaris 10 HW1 (64-bit)
Processor:	AMD Opteron 280	Filesystem:	UFS
MHz:	2400	Disks:	2x73Gb 10K RPM SAS
# of CPUs:	4 cores, 2 chips, 2 cores/chip	Network Interface:	(4) 1000BaseT Ethernet
Memory (MB):	4096	Other Hardware:
L1 Cache:	64KB(I)+64KB(D) per core	# of Systems:	5
L2 Cache:	1MB per chip	H/W Available:	Oct-2005
Other Cache:		OS Available:	Oct-2005

Notes / Tuning Information

System tuning:
ndd -set /dev/tcp tcp_conn_req_max_q 16384
ndd -set /dev/tcp tcp_conn_req_max_q0 16384
ndd -set /dev/tcp tcp_ip_abort_interval 60000
ndd -set /dev/tcp tcp_rexmit_interval_initial 4000
ndd -set /dev/tcp tcp_rexmit_interval_max 10000
ndd -set /dev/tcp tcp_rexmit_interval_min 3000
ndd -set /dev/tcp tcp_xmit_hiwat 131072
ndd -set /dev/tcp tcp_recv_hiwat 131072

Database Server HW (SUT hardware)

Hardware Vendor:	Sun Microsystems, Inc.	OS Vendor:	Sun Microsystems, Inc.
Model Name:	Sun Fire E6900	OS Name:	Solaris 10 (64-bit)
Processor:	UltraSPARC IV	Filesystem:	UFS
MHz:	1200	Disks:	2x73Gb 10K RPM Ultra320 SCSI
# of CPUs:	32 cores, 16 chips, 2 cores/chip	Network Interface:	(2) Onboard 1000BaseT Ethernet & (4) Sun GigaSwift 1000BaseT Ethernet
Memory (MB):	65536	Other Hardware:	Sun StorEdge SE3510 Array (12 x 146GB 10K RPM Fibre Disk Array)
L1 Cache:	64KB(I)+128KB(D)	# of Systems:	1
L2 Cache:	16MB	H/W Available:	Feb-2005
Other Cache:		OS Available:	Mar-2005

Notes / Tuning Information

System Tuning in /etc/system:
set shmsys:shminfo_shmmax=0xfffffffff
set ce:ce_bcopy_thresh=256
set ce:ce_dvma_thresh=256
set ce:ce_taskq_disable=1
set ce:ce_ring_size=256
set ce:ce_comp_ring_size=1024
set ce:ce_tx_ring_size=4096

Load Driver HW Emulator (non-SUT hardware)

Hardware Vendor:	Sun Microsystems, Inc.	OS Vendor:	Sun Microsystems, Inc.
Model Name:	Sun Fire V480	OS Name:	Solaris 10 (64-bit)
Processor:	UltraSPARC III Cu	Filesystem:	UFS
MHz:	1200	Disks:	2 x 18Gb FC
# of CPUs:	4 cores, 4 chips, 1 core/chip	Network Interface:	(2) Onboard 1000BaseT Ethernet
Memory (MB):	16384	Other Hardware:
L1 Cache:	32KB(I)+64KB(D)	# of Systems:	1
L2 Cache:	8MB	H/W Available:	Oct-2003
Other Cache:		OS Available:	Mar-2005

Notes / Tuning Information
System Tuning in /etc/system: set ce:ce_bcopy_thresh=256 set ce:ce_dvma_thresh=256 set ce:ce_taskq_disable=1 set ce:ce_ring_size=256 set ce:ce_comp_ring_size=1024 set ce:ce_tx_ring_size=4096

Load Driver HW Primary (non-SUT hardware)

Hardware Vendor:	Sun Microsystems, Inc.	OS Vendor:	Sun Microsystems, Inc.
Model Name:	Sun Fire V880	OS Name:	Solaris 10 (64-bit)
Processor:	UltraSPARC III Cu	Filesystem:	UFS
MHz:	900	Disks:	6 x 36GB Internal FC
# of CPUs:	8 cores, 8 chips, 1 core/chip	Network Interface:	(2) Onboard 1000BaseT Ethernet
Memory (MB):	32768	Other Hardware:
L1 Cache:	32KB(I)+64KB(D)	# of Systems:	1
L2 Cache:	8MB	H/W Available:	Jun-2002
Other Cache:		OS Available:	Mar-2005

Notes / Tuning Information
System Tuning in /etc/system: set ce:ce_bcopy_thresh=256 set ce:ce_dvma_thresh=256 set ce:ce_taskq_disable=1 set ce:ce_ring_size=256 set ce:ce_comp_ring_size=1024 set ce:ce_tx_ring_size=4096

Load Driver HW Satellite #1 (non-SUT hardware)

Hardware Vendor:	Sun Microsystems, Inc.	OS Vendor:	Sun Microsystems, Inc.
Model Name:	Sun Fire V880	OS Name:	Solaris 10 (64-bit)
Processor:	UltraSPARC III Cu	Filesystem:	UFS
MHz:	900	Disks:	6 x 18Gb FC
# of CPUs:	8 cores, 8 chips, 1 core/chip	Network Interface:	(2) Onboard 1000BaseT Ethernet & (1) GigaSwift 1000BaseT Ethernet
Memory (MB):	16384	Other Hardware:
L1 Cache:	32KB(I)+64KB(D)	# of Systems:	1
L2 Cache:	8MB	H/W Available:	Jun-2002
Other Cache:		OS Available:	Mar-2005

Notes / Tuning Information
System Tuning in /etc/system: set ce:ce_bcopy_thresh=256 set ce:ce_dvma_thresh=256 set ce:ce_taskq_disable=1 set ce:ce_ring_size=256 set ce:ce_comp_ring_size=1024 set ce:ce_tx_ring_size=4096

Load Driver HW Satellite #2 (non-SUT hardware)

Hardware Vendor:	Sun Microsystems, Inc.	OS Vendor:	Sun Microsystems, Inc.
Model Name:	Sun Fire V880	OS Name:	Solaris 10 (64-bit)
Processor:	UltraSPARC III Cu	Filesystem:	UFS
MHz:	1200	Disks:	12 x 36Gb FC
# of CPUs:	8 cores, 8 chips, 1 core/chip	Network Interface:	(2) Onboard 1000BaseT Ethernet & (1) GigaSwift 1000BaseT Ethernet
Memory (MB):	65536	Other Hardware:
L1 Cache:	32KB(I)+64KB(D)	# of Systems:	1
L2 Cache:	8MB	H/W Available:	Sep-2003
Other Cache:		OS Available:	Mar-2005

Notes / Tuning Information
System Tuning in /etc/system: set ce:ce_bcopy_thresh=256 set ce:ce_dvma_thresh=256 set ce:ce_taskq_disable=1 set ce:ce_ring_size=256 set ce:ce_comp_ring_size=1024 set ce:ce_tx_ring_size=4096

Load Driver HW Satellite #3 (non-SUT hardware)

Hardware Vendor:	Sun Microsystems, Inc.	OS Vendor:	Sun Microsystems, Inc.
Model Name:	Sun Fire E6900	OS Name:	Solaris 10 (64-bit)
Processor:	UltraSPARC IV	Filesystem:	UFS
MHz:	1200	Disks:	2x73Gb 10K RPM Ultra320 SCSI
# of CPUs:	48 cores, 24 chips, 2 cores/chip	Network Interface:	(2) Onboard 1000BaseT Ethernet
Memory (MB):	98304	Other Hardware:
L1 Cache:	64KB(I)+128KB(D)	# of Systems:	1
L2 Cache:	16MB	H/W Available:	Feb-2005
Other Cache:		OS Available:	Mar-2005

Notes / Tuning Information
System Tuning in /etc/system: set ce:ce_bcopy_thresh=256 set ce:ce_dvma_thresh=256 set ce:ce_taskq_disable=1 set ce:ce_ring_size=256 set ce:ce_comp_ring_size=1024 set ce:ce_tx_ring_size=4096

Benchmark Modifications

Schema Modifications:

  Tablespace sizes were increased to support the Injection rate.
  Scripts to create the DB are included in the FDA.
  Table and index initrans were modified
  Automatic segment space management was used for all tablespaces.
  The M_INVENTORY table was horizontally partitioned.
  System managed undo was used.

Load Program Modifications:

  The load program was not modified

Benchmark Configuration Information
Isolation Requirement Info: BEAN SPEC_REQUIREMENT Deployment Corp.CustomerEnt Repeatable Read Sel-4-Upd Corp.CustomerInventoryEnt Repeatable Read Sel-4-Upd Mfg.InventoryEnt Repeatable Read Sel-4-Upd Mfg.WorkOrderEnt Repeatable Read Sel-4-Upd Orders.OrderEnt Repeatable Read Sel-4-Upd Orders.OrderLineEnt Repeatable Read Sel-4-Upd Supplier.POEnt Repeatable Read Sel-4-Upd Supplier.POLineEnt Repeatable Read Sel-4-Upd Supplier.SComponentEnt Repeatable Read Sel-4-Upd Util.SequenceEnt Repeatable Read Sel-4-Upd Mfg.AssemblyEnt Read Committed RC Mfg.BomEnt Read Committed RC Mfg.ComponentEnt Read Committed RC Mfg.LargeOrderEnt Read Committed RC Mfg.PartEnt Read Committed RC Orders.ItemEnt Read Committed RC Supplier.SupplierCompEnt Read Committed RC Supplier.SupplierEnt Read Committed RC The ItemEnt bean was cached for 20 minute intervals by setting concurrency-strategy to ReadOnly read-timeout-seconds to 1200 in bea-orders.xml deployment descriptor.
Durability Requirement Info: To ensure database durability, RAID 1 (mirror disks) was used for the database files and logs maintained on the Sun StorEdge 3510 Array. Each application server has a pair of mirrored disks (using the onboard controller) to provide durability for all the server logs and filestore for JMS persistence.
Storage Requirement Info: An 75 minute run at an injection rate of 1065 increased storage by 2400 MB This extrapolates to 46 GB of storage for a 24 hour run. The database is configured with 1752 GB of storage. The Sun StorEdge 3510 FC Array was configured with a single RAID 1 logical drive.
Argument Passing Semantics: BEA WebLogic 9.0 uses pass-by-value as required by the EJB Specification.

Bill of Materials



Supplier  Description                                Product No.          Qty
--------  ----------------------------------------   ------------------   ---
Sun       Sun Fire X4100, 2x2.2 GHz(275), 4 GB       A64-PFB2-2H-4G-CB7    5
Sun       AMD Opteron Model 280 (2.4Ghz/1MB)         8038A                10
Sun       Solaris 10 3/05 HW1 Media KIT              SOLZ9-10BC9A7M        1
Sun       SunSpectrum Upgrade: 3YGOLD, 24x7          W9D-A64-24-2G         5

Sun	  Sun Fire E6900 Base Cabinet                E6900-BASE  	   1
Sun	  Unibrd: 4 USIV @ 1.2 GHz w/16GB            US4BRD-482-1200       4
Sun       PCI I/O Assembly SF Midrange Servers       4050A                 1
Sun	  Sun GigaSwift Network Adapter		     X4150A		   4
Sun	  Sun StorEdge 2 GB Fibre Channel Adaptor    SG-XPCI1FC-JF2	   1
Sun       Solaris 10 Media KIT                       SOLZ9-100C9A7M        1
Sun	  SF E6900 O/S Upgrade: 3YGOLD, 24x7	     W9D-E69-24-3G	   1
Sun       US4 BD SF E49-E25K O/S 3Y Gold             W9D-S4BD-24-3G        4

Sun	  Sun StorEdge 3510, 12 x 146GB, 1 RAID	     XTA3510R01A1R1752	   1
Sun	  SunSpectum Upgrade: 3Y GOLD, 24x7	     W9D-SE3510-24-3G	   1
Sun	  17" Entry Color Monitor		     X7147A		   1
Sun	  PS/2 Keyboard & Mouse			     320-1261	           1

BEA       BEA WebLogic Server 9.0 License (per CPU)                       10
BEA       3-year 24x7x4 Support for WebLogic Server                       10

Oracle	  Oracle10g Database Release Enterprise Edition			  32
	   v10.1.0.4
Oracle	  Partitioning, Per Processor, Unlimited Users			  32
	    for 3 years
Oracle	  Oracle Database Server Support Package			   1
	    for 3 years

Other Benchmark Information

  The submission used round-robin DNS for load-balance of
  all HTTP network requests. The DNS server was hosted
  on the database server.

  This submission used the xerces implementation 2.6.2 provided with WebLogic 9.0.

General Notes

The only errors in the driver log files were those that are normally generated by this benchmark.

Database checkpoints during the Measurement Interval were done by
using the Oracle SQLPlus command: alter system checkpoint

For questions about this result, please contact the submitter: Sun Microsystems Inc.
For other inquiries, please contact webmaster@spec.org

Benchmark run on Tue Sep 27 22:40:34 EDT 2005 by SPECjAppServer2004 v1.05
Result submitted on Wed Sep 28 03:03:00 EDT 2005
Report generated by SPECjAppServer2004 Reporter v1.03

First published at SPEC.org on 13-Oct-2005
