SPEC Seal of Reviewal SPECjAppServer®2004 Result
Copyright © 2004 Standard Performance Evaluation Corporation
Sun Java System Application Server Platform Edition 8.1 2005Q1 UR1 on V20z Cluster NON-COMPLIANT (NC) RESULT
Submitter:
Sun Microsystems Inc.		 SPEC license # 6 Test date:
Jul-2005
Software Products
Sun Java System Application Server Platform Edition 8.1 2005Q1 UR1
Jakarta Tomcat 4.1.31
Java (TM) 2 Platform Standard Edition Development Kit 5.0 Update 5 32-bit
Java (TM) 2 Platform Standard Edition Development Kit 5.0 Update 3 32-bit
MySQL Connector/J 3.1.9
MySQL 5.0.4 64-bit 		Software Configurations
J2EE Application Servers
Emulator SW Config
Database SW Config
Driver SW Config Primary 		Hardware Systems
J2EE AppServer HW
Database Server HW
Load Driver HW

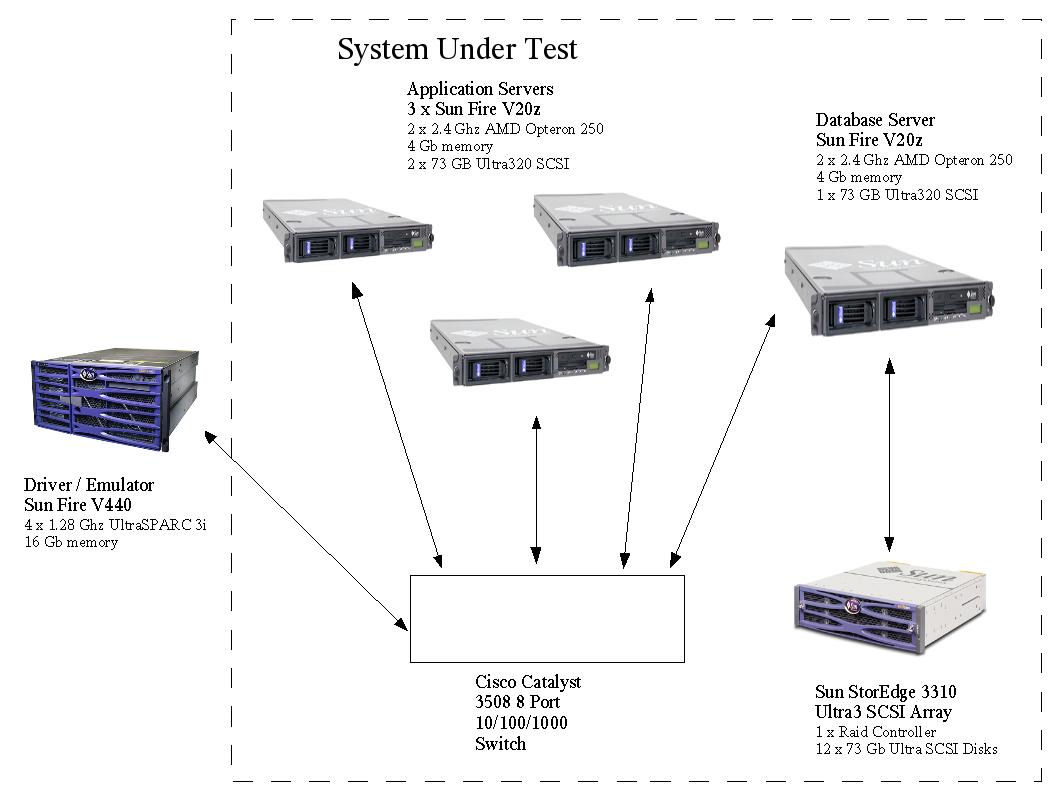

System Configuration Diagram

Benchmark
Modifications
Configuration
Bill of Materials
Other Info
General Notes
Full Disclosure Archive

SPEC has determined that this result was not in compliance with the SPECjAppServer2004 run and reporting rules. Specifically, this result used a configuration which SPEC has determined is not in compliance with section 2.10.1 of the benchmark run rules and hence violates SPECjAppServer2004's atomicity requirements.

SUT Configuration
J2EE Server Nodes: 3   DB Server Nodes: 1
J2EE Server CPUs: 6 cores, 6 chips (1 core/chip)   DB Server CPUs: 2 cores, 2 chips (1 core/chip)
J2EE Instances: 3   DB Instances: 1
Other SUT Components:
   (1) Cisco Catalyst 3500 Series XL 8 Port 10/100/1000 Switch

Benchmark Settings
Dealer Injection Rate: 160   Ramp Up Time: 600 seconds
# of Dealer Agents: 2   Ramp Down Time: 300 seconds
# of Manufacturing Agents: 2   Steady State Time: 3,600 seconds
DB Load Injection Rate: 160   Trigger Time: 90 seconds

Detailed Results
Dealer Transaction Mix Count Tx. Mix
Purchase 144,246 24.98%
Manage 144,143 24.96%
Browse 289,073 50.06%
Total # Dealer Transactions 577,462
Total # Manufacturing Transactions 380,167
Response Times Average Maximum 90th% Reqd
Purchase 0.23 35.57 0.50 2.00
Manage 0.41 32.18 0.90 2.00
Browse 0.24 45.83 0.30 2.00
Manufacturing 2.09 23.34 4.00 5.00
Reproducibility Run (SPECjAppServer2004 JOPS) 266.31

Sun Java System Application Server Platform Edition 8.1 2005Q1 UR1
Vendor: Sun Microsystems, Inc. Availability: Mar-2005
CTS Version: 1.4 Date Passed CTS: Feb-2005
OS Name: Solaris 10 64-bit
EJB Protocol: RMI/IIOP

Jakarta Tomcat 4.1.31
Vendor: Apache Software Foundation Availability: Oct-2004

Java (TM) 2 Platform Standard Edition Development Kit 5.0 Update 5 32-bit
Vendor: Sun Microsystems, Inc. Availability: Sep-2005
OS Name: Solaris 10 64-bit

Java (TM) 2 Platform Standard Edition Development Kit 5.0 Update 3 32-bit
Vendor: Sun Microsystems, Inc. Availability: Apr-2005
OS Name: Solaris 10 64-bit

MySQL Connector/J 3.1.9
Vendor: MySQL Corporation Availability: Jun-2005
OS Name: Solaris 10 64-bit

MySQL 5.0.4 64-bit
Vendor: MySQL Corporation Availability: Sep-2005
OS Name: Solaris 10 64-bit

J2EE Application Servers
J2EE Product: Sun Java System Application Server Platform Edition 8.1 2005Q1 UR1
JVM Product: Java (TM) 2 Platform Standard Edition Development Kit 5.0 Update 5 32-bit
JDBC Product: MySQL Connector/J 3.1.9
Hardware: J2EE AppServer HW
# of Instances: 3
Interfaces:
Web Interface for the Dealer Domain
Web Interface for the Supplier Domain
EJB Interface for the Dealer Domain
EJB Interface for the Manufacturing Domain
EJB Interface for the Supplier Domain
Notes / Tuning Information
Tunings in domain.xml:
JVM Options: -server -Xmx1300m -Xms1300m
-XX:NewRatio=2 -XX:+AggressiveHeap
-XX:LargePageSizeInBytes=2m -Xss128k
-Dcom.sun.enterprise.web.connector.grizzly.socketSoTimeout=7200000
-Dcom.sun.enterprise.web.connector.grizzly.singlethread=false
-Dcom.sun.enterprise.web.connector.grizzly.maxReadWorkerThread=15
-Dcom.sun.enterprise.web.connector.grizzly.keepAlive=7200
-Dcom.sun.enterprise.web.connector.grizzly.pools.size=500
-Dcom.sun.enterprise.web.connector.grizzly.maxAcceptWorkerThread=10
-XX:+DisableExplicitGC
Disable security manager by remove reference to the server.policy file.
JDBC Pool: max-pool-size=80, steady-pool-size=80
JDBC: cachePrepStmts=true prepStmtCacheSize=512
JDBC: useServerPrepStmts=false alwaysSendSetIsolation=false
JDBC: useLocalSessionState=true elideSetAutoCommit=true
JDBC: useUsageAdvisor=false useReadAheadInput=false
JDBC: useUnbufferedInput=false
HTTP Listener: acceptor-threads=700
HTTP: accessLoggingEnabled=false
ORB: ThreadPool: max-thread-pool-size=60, min-thread-pool-size=60
JMS: ConnectionPool: max-pool-size=250
MDB Container: max-pool-size=256, steady-pool-size=25
Tunings in default-web.xml:
development=false, genStrAsCharArray=true
General Tunings:
All application servers run in FX class via priocntl command

Emulator SW Config
JVM Product: Java (TM) 2 Platform Standard Edition Development Kit 5.0 Update 3 32-bit
Web Product: Jakarta Tomcat 4.1.31
Hardware: Load Driver HW
# of Instances: 1
Notes / Tuning Information
JVM Options: -server -Xmx2048m -Xms2048m -Xss128k
-Dsun.net.inetaddr.ttl=0 -Dnetworkaddress.cache.ttl=0
server.xml: maxProcessors=1600

Database SW Config
DB Product: MySQL 5.0.4 64-bit
Hardware: Database Server HW
# of Instances: 1
Notes / Tuning Information
MySQL 5.0 Tuning in /etc/my.cnf
[mysqld]
sql-mode = IGNORE_SPACE
transaction-isolation = READ-COMMITTED
datadir=/SPECDB/mysql5-64/var
port = 3306
skip-locking
max_allowed_packet = 1M
max_connections=500
table_cache = 512
sort_buffer_size = 2M
read_buffer_size = 2M
myisam_sort_buffer_size = 64M
thread_cache = 8
query_cache_type = 0
thread_concurrency = 4
server-id       = 1
innodb_data_home_dir = /SPECDB/mysql5-64/var
innodb_data_file_path = ibdata1:5000M:autoextend
innodb_log_group_home_dir = /SPECDB/mysql5-64/var/
innodb_log_arch_dir = /SPECDB/mysql5-64/var/
innodb_checksums = 0
innodb_buffer_pool_size = 1800m
innodb_additional_mem_pool_size = 20M
innodb_log_file_size = 700M
innodb_log_buffer_size = 64M
innodb_flush_log_at_trx_commit = 1
innodb_lock_wait_timeout = 300
innodb_thread_concurrency = 1000
innodb_locks_unsafe_for_binlog = 1
[mysqldump]
quick
max_allowed_packet = 16M
[mysql]
no-auto-rehash
[isamchk]
key_buffer = 256M
sort_buffer_size = 256M
read_buffer = 2M
write_buffer = 2M
[myisamchk]
key_buffer = 256M
sort_buffer_size = 256M
read_buffer = 2M
write_buffer = 2M
[mysqlhotcopy]
interactive-timeout

Driver SW Config Primary
JVM Product: Java (TM) 2 Platform Standard Edition Development Kit 5.0 Update 3 32-bit
Hardware: Load Driver HW
# of Instances: 1
Notes / Tuning Information
JVM Options: -server -XX:+DisableExplicitGC -Xmx2048m -Xss128k
-Dnetworkaddress.cache.ttl=0 -Dsun.net.inetaddr.ttl=0

J2EE AppServer HW (SUT hardware)
Hardware Vendor: Sun Microsystems, Inc. OS Vendor: Sun Microsystems, Inc.
Model Name: Sun Fire V20z OS Name: Solaris 10 64-bit
Processor: AMD Opteron 250 Filesystem: UFS
MHz: 2400 Disks: 2x73Gb 10K RPM Ultra320 SCSI
# of CPUs: 2 cores, 2 chips, 1 core/chip Network Interface: (2) 1000BaseT Ethernet
Memory (MB): 4096 Other Hardware:
L1 Cache: 64KB(I)+64KB(D) # of Systems: 3
L2 Cache: 1MB per chip H/W Available: Mar-2005
Other Cache: OS Available: Mar-2005
Notes / Tuning Information


















Database Server HW (SUT hardware)








Hardware Vendor:
Sun Microsystems, Inc.
OS Vendor:
Sun Microsystems, Inc.




Model Name:
Sun Fire V20z
OS Name:
Solaris 10 64-bit




Processor:
AMD Opteron 250
Filesystem:
UFS




MHz:
2400
Disks:
1x73Gb 10K RPM Ultra320 SCSI




# of CPUs:
2 cores, 2 chips, 1 core/chip
Network Interface:
(2) Onboard 1000BaseT Ethernet




Memory (MB):
4096
Other Hardware:
Sun StorEdge SE3310 Array (12 x 73GB UltraSCSI Disk Array)




L1 Cache:
64KB(I)+64KB(D)
# of Systems:
1




L2 Cache:
1MB
H/W Available:
Mar-2005




Other Cache:

OS Available:
Mar-2005












Notes / Tuning Information






System Tuning in /etc/system:
set shmsys:shminfo_shmmax=0x1ffffffff
UFS options for /SPECDB: noatime
Solaris Patch 119375-02 was applied.



















Load Driver HW (non-SUT hardware)








Hardware Vendor:
Sun Microsystems, Inc.
OS Vendor:
Sun Microsystems, Inc.




Model Name:
Sun Fire V440
OS Name:
Solaris 10 64-bit




Processor:
UltraSPARC IIIi
Filesystem:
UFS




MHz:
1280
Disks:
4 x 36GB




# of CPUs:
4 cores, 4 chips, 1 core/chip
Network Interface:
(2) Onboard 1000BaseT Ethernet




Memory (MB):
16384
Other Hardware:





L1 Cache:
32KB(I)+64KB(D)
# of Systems:
1




L2 Cache:
1MB
H/W Available:
Aug-2003




Other Cache:

OS Available:
Mar-2005












Notes / Tuning Information


























Benchmark Modifications




Schema Modifications:

  Tablespace sizes were increased to support the Injection rate.
  Scripts to create the DB are included in the FDA.
  Two indexes were created on the M_largeorder table:
  CREATE UNIQUE INDEX M_lo_idx ON M_largeorder  (lo_id)
  CREATE UNIQUE INDEX M_OL_O_idx ON M_largeorder (lo_o_id, lo_ol_id)






Load Program Modifications:

  The load program was not modified














Benchmark Configuration Information




Isolation Requirement Info:

  BEAN				SPEC_REQUIREMENT	Deployment
  Corp.CustomerEnt		Repeatable Read		Sel-4-Upd
  Corp.CustomerInventoryEnt	Repeatable Read		Sel-4-Upd
  Mfg.InventoryEnt		Repeatable Read		Sel-4-Upd
  Mfg.WorkOrderEnt		Repeatable Read		Sel-4-Upd
  Orders.OrderEnt		Repeatable Read		Sel-4-Upd
  Orders.OrderLineEnt		Repeatable Read		Sel-4-Upd
  Supplier.POEnt		Repeatable Read		Sel-4-Upd
  Supplier.POLineEnt		Repeatable Read		Sel-4-Upd
  Supplier.SComponentEnt	Repeatable Read		Sel-4-Upd
  Util.SequenceEnt		Repeatable Read		Sel-4-Upd
  Mfg.AssemblyEnt		Read Committed		RC
  Mfg.BomEnt			Read Committed		RC
  Mfg.ComponentEnt		Read Committed		RC
  Mfg.LargeOrderEnt		Read Committed		RC
  Mfg.PartEnt			Read Committed		RC
  Orders.ItemEnt		Read Committed		RC
  Supplier.SupplierCompEnt	Read Committed		RC
  Supplier.SupplierEnt		Read Committed		RC

  The ItemEnt bean was cached for 20 minute intervals by setting
  is-read-only-bean=true and refresh-period-in-seconds=1200 in the
  sun-orders.xml deployment descriptor.
  Only the data inside the bean was cached.






Durability Requirement Info:

  To ensure database durability, RAID 1 (mirror disks)
  was used for the database files and logs maintained
  on the Sun StorEdge 3310 Array.

  Each application server has a pair of mirrored disks
  (using Solaris raidctl utility) to provide
  durability for the XA transaction logs, message queues, and message logs.






Storage Requirement Info:

  A 75 minute run at an injection rate of 160 increased storage by 118.34 MB
  This extrapolates to 2.21 GB of storage for a 24 hour run.
  The Sun StorEdge 3310 Array utilized 10 drives in a
  RAID 1 logical drive for a total of 340 GB of available storage.






Argument Passing Semantics:

  Sun Java System Application Server 8.1 uses pass-by-value semantics by default.














Bill of Materials







Supplier  Description                                Product #            Qty
--------  ----------------------------------------   ------------------   ---
Sun	  Sun Fire V20z, 2x2.4 GHz, 4 GB mem	     A55-NZB2-1-4GRA5L     3
Sun 	  73 GB Ultra320 SCSI Disk		     9256A		   3
Sun	  Solaris 10 Media KIT			     SOLZ9-100C9A7M	   1
Sun 	  SunSpectrum Upgrade: 3YGOLD, 24x7	     W9D-A55-24-3G	   3

Sun	  Sun Fire V20z, 2x2.4 GHz, 4 GB mem	     A55-NZB2-1-4GRA5L	   1
Sun	  Ultra320 SCSI Dual Channel Adapter	     X9265A		   1
Sun 	  SunSpectrum Upgrade: 3YGOLD, 24x7	     W9D-A55-24-3G	   1

Sun	  Sun StorEdge 3310, 12 x 73 GB, 1 RAID	     XTA3310R01A1V876	   1
Sun	  SunSpectum Upgrade: 3Y GOLD, 24x7	     W9D-SE3310-24-3G	   1
Sun	  17" Entry Color Monitor		     X7147A		   1
Sun	  PS/2 Keyboard & Mouse			     #320-1261	           1

CDW	  Cisco Catalyst 3508G XL 10/100/1000        184837		   1
CDW       1 Year Service Warranty (24x7x4)	     150984		   3

Sun	  Sun Java System Application Server	     SJSAS-LCO-PE8F	   6
	    Platform Edition 8.1 2005Q1 UR1
	    License per CPU
Sun	  Sun Java System Application Server	     SAPNS-JAM9-1PR	  18
	    Platform Edition 8.1 2005Q1 UR1
	    Premium Support per CPU for 1 year

MySQL	  MySQL Database 5.0						   1
MySQL	  MySQL Network Gold Support				   	   3
	    for 1 year

















Other Benchmark Information





  The submission used round-robin DNS for load-balance of
  all HTTP network requests. The DNS server was hosted
  on one of the application servers.
  The submission used multiple URLs to establish connections
  to the EJB tier using RMI/IIOP.

  This submission used the xerces implementation 2.6.2 provided
  with the Sun Java System Application Server 8.1. The emulator
  used xerces implementation 2.5.0 provided with the Jakarta
  Tomcat 4.1.31.















General Notes





The only errors in the driver log files were those that are normally generated by this benchmark.

The MySQL Connector/J JDBC Driver is a type 4 driver.

XA 2-phase transactions were used to coordinate the interaction between
the database server and JMS server.

Database checkpoints during the Measurement Interval were done by
using continuous checkpoints, where MySQL database engine InnoDB
flushes modified database pages from the buffer pool in small batches.

The Cisco Catalyst 3508 switch used default settings.










For questions about this result, please contact the submitter: Sun Microsystems Inc.

For other inquiries, please contact
webmaster@spec.org



Copyright © 2004 Standard Performance Evaluation Corporation



First published at SPEC.org on 20-Jul-2005
