SPECjAppServer2004 Result: Sun Java System Application Server Platform Edition 8.1 2005Q1 UR1 on V20z Cluster

SPECjAppServer®2004 Result
Copyright © 2004 Standard Performance Evaluation Corporation

Sun Java System Application Server Platform Edition 8.1 2005Q1 UR1 on V20z Cluster

NON-COMPLIANT (NC) RESULT

Submitter:
Sun Microsystems Inc.

SPEC license # 6

Test date:
Apr-2005

Software Products
Sun Java System Application Server Platform Edition 8.1 2005Q1 UR1
Jakarta Tomcat 4.1.31
Java (TM) 2 Platform Standard Edition Development Kit 5.0 Update 4 32-bit
Java (TM) 2 Platform Standard Edition Development Kit 5.0 Update 3 32-bit
Oracle JDBC Driver 10.1.0.3 (Thin)
Oracle Database 10g Standard Edition One Release 10.1.0.3.0

Software Configurations
J2EE Application Servers
Emulator SW Config
Database SW Config
Driver SW Config Primary
Driver SW Config Satellite #1

Hardware Systems
J2EE AppServer HW
Database Server HW
Load Driver HW Primary (Emulator)
Load Driver HW Satellite

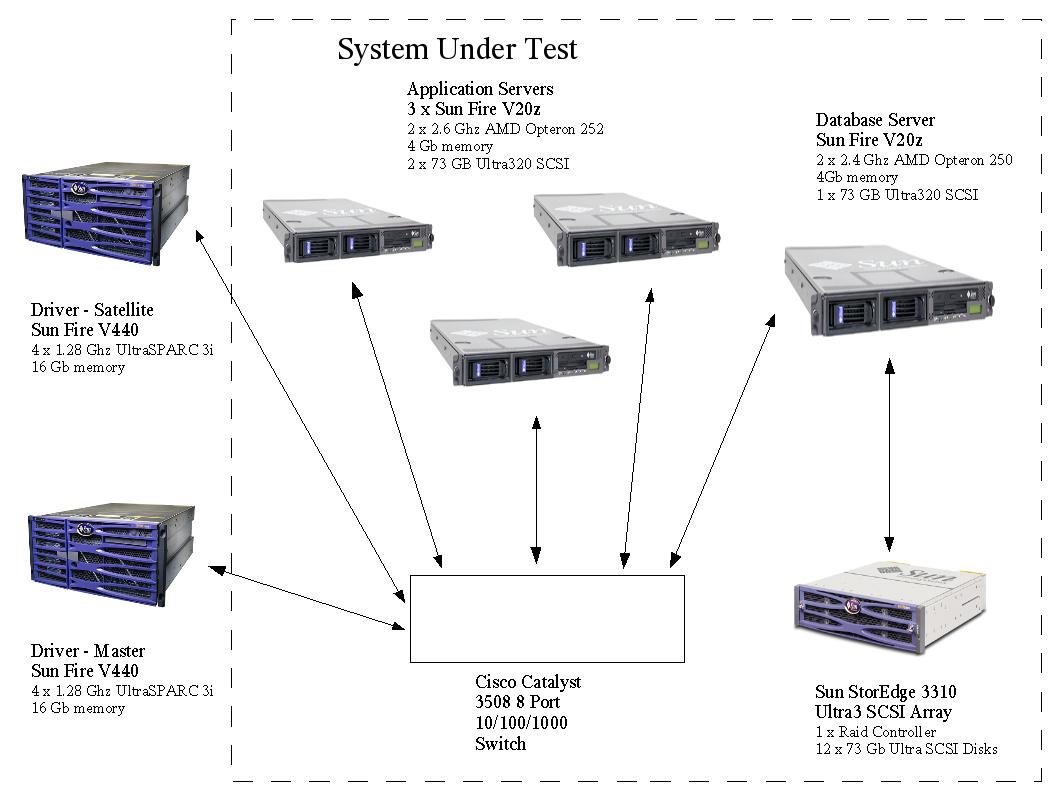

System Configuration Diagram

Benchmark
Modifications
Configuration
Bill of Materials
Other Info
General Notes
Full Disclosure Archive

SPEC has determined that this result was not in compliance with the SPECjAppServer2004 run and reporting rules. Specifically, this result used a configuration which SPEC has determined is not in compliance with section 2.10.1 of the benchmark run rules and hence violates SPECjAppServer2004's atomicity requirements.

SUT Configuration

J2EE Server Nodes:	3	DB Server Nodes:	1
J2EE Server CPUs:	6 cores, 6 chips (1 core/chip)	DB Server CPUs:	2 cores, 2 chips (1 core/chip)
J2EE Instances:	3	DB Instances:	1

Other SUT Components:
(1) Cisco Catalyst 3500 Series XL 8 Port 10/100/1000 Switch

Benchmark Settings

Dealer Injection Rate:	180	Ramp Up Time:	600 seconds
# of Dealer Agents:	4	Ramp Down Time:	300 seconds
# of Manufacturing Agents:	4	Steady State Time:	3,600 seconds
DB Load Injection Rate:	180	Trigger Time:	90 seconds

Detailed Results

Dealer Transaction Mix	Count	Tx. Mix
Purchase	163,107	25.02%
Manage	163,122	25.03%
Browse	325,596	49.95%
Total # Dealer Transactions	651,825

Total # Manufacturing Transactions	422,827

Response Times	Average	Maximum	90th%	Reqd
Purchase	0.17	23.32	0.40	2.00
Manage	0.28	25.64	0.60	2.00
Browse	0.15	23.89	0.20	2.00
Manufacturing	2.22	21.26	5.00	5.00

Reproducibility Run (SPECjAppServer2004 JOPS)	299.55

Sun Java System Application Server Platform Edition 8.1 2005Q1 UR1

Vendor:	Sun Microsystems, Inc.	Availability:	Mar-2005
CTS Version:	1.4	Date Passed CTS:	Feb-2005
OS Name:	Solaris 10 64-bit
EJB Protocol:	RMI/IIOP

Jakarta Tomcat 4.1.31

Vendor:	Apache Software Foundation	Availability:	Oct-2004

Java (TM) 2 Platform Standard Edition Development Kit 5.0 Update 4 32-bit

Vendor:	Sun Microsystems, Inc.	Availability:	Jun-2005
OS Name:	Solaris 10

Java (TM) 2 Platform Standard Edition Development Kit 5.0 Update 3 32-bit

Vendor:	Sun Microsystems, Inc.	Availability:	Apr-2005
OS Name:	Solaris 10

Oracle JDBC Driver 10.1.0.3 (Thin)

Vendor:	Oracle Corporation	Availability:	Aug-2004
OS Name:	Solaris 10

Oracle Database 10g Standard Edition One Release 10.1.0.3.0

Vendor:	Oracle Corporation	Availability:	Jan-2005
OS Name:	Solaris 10

J2EE Application Servers

J2EE Product:	Sun Java System Application Server Platform Edition 8.1 2005Q1 UR1
JVM Product:	Java (TM) 2 Platform Standard Edition Development Kit 5.0 Update 4 32-bit
JDBC Product:	Oracle JDBC Driver 10.1.0.3 (Thin)
Hardware:	J2EE AppServer HW
# of Instances:	3
Interfaces:
	Web Interface for the Dealer Domain
	Web Interface for the Supplier Domain
	EJB Interface for the Dealer Domain
	EJB Interface for the Manufacturing Domain
	EJB Interface for the Supplier Domain

Notes / Tuning Information

Tunings in domain.xml:
JVM Options: -server -Xmx1300m -Xms1300m -Xss128k
-verbosegc -XX:+DisableExplicitGC
-Dcom.sun.enterprise.web.connector.grizzly.socketSoTimeout=7200000
-Dcom.sun.enterprise.web.connector.grizzly.singlethread=false
-Dcom.sun.enterprise.web.connector.grizzly.maxReadWorkerThread=15
-Dcom.sun.enterprise.web.connector.grizzly.keepAlive=7200
-Dcom.sun.enterprise.web.connector.grizzly.pools.size=500
-Dcom.sun.enterprise.web.connector.grizzly.maxAcceptWorkerThread=10
Disable security manager by remove reference to the server.policy file.
JDBC Pool: max-pool-size=300, steady-pool-size=300
JDBC: MaxStatements=200, ImplicitCachingEnabled=true
HTTP Listener: acceptor-threads=1000
HTTP: accessLoggingEnabled=false
ORB: ThreadPool: max-thread-pool-size=35, min-thread-pool-size=35
JMS: ConnectionPool: max-pool-size=250
MDB Container: max-pool-size=256, steady-pool-size=25
Tunings in default-web.xml:
development=false, genStrAsCharArray=true
General Tunings:
All application servers run in FX class via priocntl command

Emulator SW Config

JVM Product:	Java (TM) 2 Platform Standard Edition Development Kit 5.0 Update 3 32-bit
Web Product:	Jakarta Tomcat 4.1.31
Hardware:	Load Driver HW Primary (Emulator)
# of Instances:	1

Notes / Tuning Information
JVM Options: -server -Xmx2048m -Xms2048m -Xss128k -Dsun.net.inetaddr.ttl=0 -Dnetworkaddress.cache.ttl=0 server.xml: maxProcessors=1000

Database SW Config

DB Product:	Oracle Database 10g Standard Edition One Release 10.1.0.3.0
Hardware:	Database Server HW
# of Instances:	1

Notes / Tuning Information

Oracle tuning in init.ora:
_undo_autotune=false
_in_memory_undo=false
_optimizer_cost_based_transformation=off
log_checkpoints_to_alert=true
log_checkpoint_timeout=1500
cursor_space_for_time=true
compatible=10.1.0.2
db_cache_size=1800M
db_block_size=2048
db_file_multiblock_read_count=128
db_files=256
db_block_checksum=false
db_block_checking=false
dml_locks=600
enqueue_resources=2000
log_buffer=8388608
log_checkpoint_interval=2147483647
processes=2000
open_cursors=1000
shared_pool_size=500M
sessions=3000
transactions=4000
transactions_per_rollback_segment=1
parallel_max_servers=50
undo_management=AUTO
undo_retention=50
undo_tablespace=undotbs

Oracle Patch 4186426 was applied

Driver SW Config Primary

JVM Product:	Java (TM) 2 Platform Standard Edition Development Kit 5.0 Update 3 32-bit
Hardware:	Load Driver HW Primary (Emulator)
# of Instances:	1

Notes / Tuning Information
JVM Options: -server -XX:+DisableExplicitGC -Xmx2048m -Xss128k -Dnetworkaddress.cache.ttl=0 -Dsun.net.inetaddr.ttl=0

Driver SW Config Satellite #1

JVM Product:	Java (TM) 2 Platform Standard Edition Development Kit 5.0 Update 3 32-bit
Hardware:	Load Driver HW Satellite
# of Instances:	1

Notes / Tuning Information
JVM Options: -server -XX:+DisableExplicitGC -Xmx2048m -Xss128k -Dnetworkaddress.cache.ttl=0 -Dsun.net.inetaddr.ttl=0

J2EE AppServer HW (SUT hardware)

Hardware Vendor:	Sun Microsystems, Inc.	OS Vendor:	Sun Microsystems, Inc.
Model Name:	Sun Fire V20z	OS Name:	Solaris 10
Processor:	AMD Opteron 252	Filesystem:	UFS
MHz:	2600	Disks:	2x73Gb 10K RPM Ultra320 SCSI
# of CPUs:	2 cores, 2 chips, 1 core/chip	Network Interface:	(2) 1000BaseT Ethernet
Memory (MB):	4096	Other Hardware:
L1 Cache:	64KB(I)+64KB(D) per core	# of Systems:	3
L2 Cache:	1MB per chip	H/W Available:	Apr-2004
Other Cache:		OS Available:	Mar-2005

Notes / Tuning Information

Database Server HW (SUT hardware)

Hardware Vendor:	Sun Microsystems, Inc.	OS Vendor:	Sun Microsystems, Inc.
Model Name:	Sun Fire V20z	OS Name:	Solaris 10
Processor:	AMD Opteron 250	Filesystem:	UFS
MHz:	2400	Disks:	1x73Gb 10K RPM Ultra320 SCSI
# of CPUs:	2 cores, 2 chips, 1 core/chip	Network Interface:	(2) Onboard 1000BaseT Ethernet
Memory (MB):	4096	Other Hardware:	Sun StorEdge SE3310 Array (12 x 73GB UltraSCSI Disk Array)
L1 Cache:	64KB(I)+64KB(D)	# of Systems:	1
L2 Cache:	1MB	H/W Available:	Mar-2005
Other Cache:		OS Available:	Mar-2005

Notes / Tuning Information
System Tuning in /etc/system: set shmsys:shminfo_shmmax=0x1ffffffff UFS options for /SPECDB: noatime,forcedirectio

Load Driver HW Primary (Emulator) (non-SUT hardware)

Hardware Vendor:	Sun Microsystems, Inc.	OS Vendor:	Sun Microsystems, Inc.
Model Name:	Sun Fire V440	OS Name:	Solaris 10
Processor:	UltraSPARC IIIi	Filesystem:	UFS
MHz:	1280	Disks:	4 x 36GB
# of CPUs:	4 cores, 4 chips, 1 core/chip	Network Interface:	(2) Onboard 1000BaseT Ethernet
Memory (MB):	16384	Other Hardware:
L1 Cache:	32KB(I)+64KB(D)	# of Systems:	1
L2 Cache:	1MB	H/W Available:	Aug-2003
Other Cache:		OS Available:	Mar-2005

Notes / Tuning Information

Load Driver HW Satellite (non-SUT hardware)

Hardware Vendor:	Sun Microsystems, Inc.	OS Vendor:	Sun Microsystems, Inc.
Model Name:	Sun Fire V440	OS Name:	Solaris 10
Processor:	UltraSPARC IIIi	Filesystem:	UFS
MHz:	1280	Disks:	4 x 36GB
# of CPUs:	4 cores, 4 chips, 1 core/chip	Network Interface:	(2) Onboard 1000BaseT Ethernet
Memory (MB):	16384	Other Hardware:
L1 Cache:	32KB(I)+64KB(D)	# of Systems:	1
L2 Cache:	1MB	H/W Available:	Aug-2003
Other Cache:		OS Available:	Mar-2005

Notes / Tuning Information

Benchmark Modifications

Schema Modifications:

  Tablespace sizes were increased to support the Injection rate.
  Scripts to create the DB are included in the FDA.
  Table and index initrans were modified
  Automatic segment space management was used for all tablespaces.
  System managed undo was used.

Load Program Modifications:

  The load program was not modified

Benchmark Configuration Information
Isolation Requirement Info: BEAN SPEC_REQUIREMENT Deployment Corp.CustomerEnt Repeatable Read Sel-4-Upd Corp.CustomerInventoryEnt Repeatable Read Sel-4-Upd Mfg.InventoryEnt Repeatable Read Sel-4-Upd Mfg.WorkOrderEnt Repeatable Read Sel-4-Upd Orders.OrderEnt Repeatable Read Sel-4-Upd Orders.OrderLineEnt Repeatable Read Sel-4-Upd Supplier.POEnt Repeatable Read Sel-4-Upd Supplier.POLineEnt Repeatable Read Sel-4-Upd Supplier.SComponentEnt Repeatable Read Sel-4-Upd Util.SequenceEnt Repeatable Read Sel-4-Upd Mfg.AssemblyEnt Read Committed RC Mfg.BomEnt Read Committed RC Mfg.ComponentEnt Read Committed RC Mfg.LargeOrderEnt Read Committed RC Mfg.PartEnt Read Committed RC Orders.ItemEnt Read Committed RC Supplier.SupplierCompEnt Read Committed RC Supplier.SupplierEnt Read Committed RC The ItemEnt bean was cached for 20 minute intervals by setting is-read-only-bean=true and refresh-period-in-seconds=1200 in the sun-orders.xml deployment descriptor. Only the data inside the bean was cached.
Durability Requirement Info: To ensure database durability, RAID 1 (mirror disks) was used for the database logs maintained on the Sun StorEdge 3310 Array. Each application server has a pair of mirrored disks (using Solaris raidctl utility) to provide durability for the XA transaction logs, message queues, and message logs.
Storage Requirement Info: A 75 minute run at an injection rate of 180 increased storage by 223 MB This extrapolates to 4.18 GB of storage for an 24 hour run. The database is configured with 876 GB of storage.
Argument Passing Semantics: Sun Java System Application Server 8.1 uses pass-by-value semantics by default.

Bill of Materials



Supplier  Description                                Product #            Qty
--------  ----------------------------------------   ------------------   ---
Sun	  Sun Fire V20z, 2x2.6 GHz, 4 GB mem	     A55-NGB20104GRA5M     3
Sun 	  73 GB Ultra320 SCSI Disk		     9256A		   3
Sun	  Solaris 10 Media KIT			     SOLZ9-100C9A7M	   1
Sun 	  SunSpectrum Upgrade: 3YGOLD, 24x7	     W9D-A55-24-3G	   3

Sun	  Sun Fire V20z, 2x2.4 GHz, 4 GB mem	     A55-NZB2-1-4GRA5L	   1
Sun	  Ultra320 SCSI Dual Channel Adapter	     X9265A		   1
Sun 	  SunSpectrum Upgrade: 3YGOLD, 24x7	     W9D-A55-24-3G	   1

Sun	  Sun StorEdge 3310, 12 x 73 GB, 1 RAID	     XTA3310R01A1R876	   1
Sun	  SunSpectum Upgrade: 3Y GOLD, 24x7	     W9D-SE3310-24-3G	   1
Sun	  17" Entry Color Monitor		     X7147A		   1
Sun	  PS/2 Keyboard & Mouse			     #320-1261	           1

CDW	  Cisco Catalyst 3508G XL 10/100/1000        184837		   1
CDW       1 Year Service Warranty (24x7x4)	     150984		   3

Sun	  Sun Java System Application Server	     SJSAS-LCO-PE8F	   6
	    Platform Edition 8.1 2005Q1 UR1
	    License per CPU
Sun	  Sun Java System Application Server	     SAPNS-JAM9-1PR	  18
	    Platform Edition 8.1 2005Q1 UR1
	    Premium Support per CPU for 1 year

Oracle	  Oracle Database 10g Standard Edition One			   2
	    Per Processor, Unlimited Users for 3 years
Oracle	  Oracle Database Server Support Package			   1
	    for 3 years

Other Benchmark Information

  The submission used round-robin DNS for load-balance of
  all HTTP network requests. The DNS server was hosted
  on one of the application servers.
  The submission used multiple URLs to establish connections
  to the EJB tier using RMI/IIOP.

  This submission used the xerces implementation 2.6.2 provided
  with the Sun Java System Application Server 8.1. The emulator
  used xerces implementation 2.5.0 provided with the Jakarta
  Tomcat 4.1.31.

General Notes

The only errors in the driver log files were those that are normally generated by this benchmark.

XA 2-phase transactions were used to coordinate the interaction between
the database server and JMS server.

Database checkpoints during the Measurement Interval were done by
using the Oracle SQLPlus command: alter system checkpoint

The Cisco Catalyst 3508 switch used default settings.

For questions about this result, please contact the submitter: Sun Microsystems Inc.
For other inquiries, please contact webmaster@spec.org

Benchmark run on Tue Apr 12 10:48:08 EDT 2005 by SPECjAppServer2004 v1.03
Result submitted on Wed Apr 13 03:03:00 EDT 2005
Report generated by SPECjAppServer2004 Reporter v1.03

First published at SPEC.org on 28-Apr-2005
