SPEC Seal of Reviewal SPECjAppServer2002 Result
Copyright © 2002 Standard Performance Evaluation Corporation
Oracle Application Server 10g Java Edition v9.0.4.0.1 on Sun Fire V20z
690.13 TOPS@DualNode
101.10 US$/TOPS@DualNode
Submitter:
Sun Microsystems Inc.		 SPEC license # 6 Test date:
Mar-2004		 EJB Container Avail: Nov-2003
EJB Container JVM Avail: Mar-2004
Software
EJB Container
Supplier Domain Container
Emulator Container
Database
JDBC
Other Software 		Hardware
J2EE Application Server
Database Server
Load Driver 		Benchmark
Modifications
Configuration
Other Info
General Notes 		Links

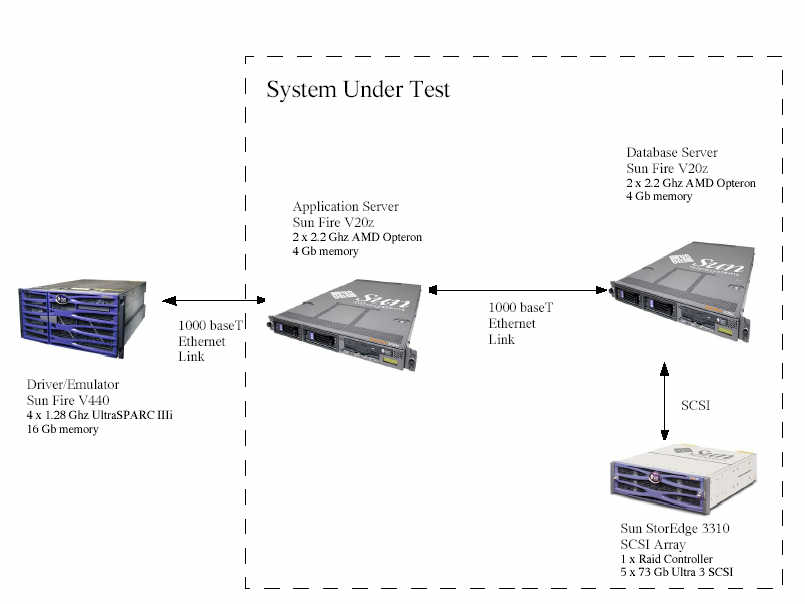

System Configuration Diagram

Full Disclosure Archive


Benchmark Settings
Orders Injection Rate: 401 Ramp Up Time: 600 seconds
# of Order Agents: 2 Ramp Down Time: 300 seconds
# of Manufacturing Agents: 2 Steady State Time: 1800 seconds
DB Load Injection Rate: 401 Trigger Time: 401 seconds
Total System Cost: US$69,766

Detailed Results
Order Transaction Mix Count Tx. Mix
New Order 356,940 49.82%
Change Order 143,477 20.03%
Order Status 144,228 20.13%
Customer Status 71,793 10.02%
Total # Order Transactions 716,438
Total # Manufacturing Transactions 525,794
Response Times Average Maximum 90th% Reqd
New Order 0.79 6.28 2.00 2.00
Change Order 0.42 2.52 1.00 2.00
Order Status 0.23 1.75 0.60 2.00
Customer Status 0.23 1.76 0.60 2.00
Manufacturing 1.92 5.90 3.00 5.00
Reproducibility Run (TOPS) 692.00

EJB Container
Name: Oracle Application Server 10g Java Edition v9.0.4.0.1 JVM Name: Java(TM) 2 Runtime Environment, Standard Edition, Version 1.4.2_04 32-bit
Vendor: Oracle Corporation JVM Vendor: Sun Microsystems, Inc.
Available: Nov-2003 Available: Mar-2004
Instances: 1
Passed CTS: Nov-2003
Protocol: ORMI
Tuning Information
server.xml: global-thread-pool min="40" max="40" queue="100" keepAlive="-1" debug="false
server.xml: taskmanager-granularity="1000000" transaction-config timeout="500000
data-sources.xml: stmt-cache-size="200" inactivity-timeout="30000
System properties: -DassociateUsingThirdTable=false -Doracle.dms.sensors=none
-Doracle.ias.cache=0 -DdefaultBatchSize=15 -DoneToOneJoin=true -DKeepWrapperCode=true
JVM Tuning Information
-server -XX:+UseSpinning -XX:PreBlockSpin=100
-Xms1800m -Xmx1800m -Xmn768m-XX:+UseParallelGC
-XX:+UseTLAB -XX:-UseAdaptiveSizePolicy -XX:SurvivorRatio=2
-XX:+DisableExplicitGC  -verbose:gc

Supplier Domain Container
Name: Oracle Application Server 10g Java Edition v9.0.4.0.1 JVM Name: Java(TM) 2 Runtime Environment, Standard Edition, Version 1.4.2_04 32-bit
Vendor: Oracle Corporation JVM Vendor: Sun Microsystems, Inc
Available: Nov-2003 Available: Mar-2004
Tuning Information
server.xml: global-thread-pool min="25" max="25" queue="100" keepAlive="-1" debug="false
server.xml: taskmanager-granularity="1000000" transaction-config timeout="500000
data-sources.xml: stmt-cache-size="200" inactivity-timeout="30000
System properties: -DassociateUsingThirdTable=false -Doracle.dms.sensors=none
-Doracle.ias.cache=0 -DdefaultBatchSize=15 -DoneToOneJoin=true -DKeepWrapperCode=true
JVM Tuning Information
-server -XX:+UseSpinning -XX:PreBlockSpin=100 -Xms1800m -Xmx1800m -Xmn768m
-XX:+UseParallelGC -XX:+UseTLAB -XX:-UseAdaptiveSizePolicy
-XX:SurvivorRatio=2 -XX:+DisableExplicitGC -verbose:gc

Emulator Container
Name: Jakarta Tomcat 4.0.3 JVM Name: Java(TM) 2 Runtime Environment, Standard Edition, Version 1.4.2 32-bit
Vendor: Apache JVM Vendor: Sun Microsystems, Inc
Available: Nov-2003 Available: Jul-2003
Tuning Information
JVM Tuning Information
-server -Xmx1024m -Xms1024m

Database
Name: Oracle9i Database Release 2, Standard Edition v9.2.0.4
Vendor: Oracle Corporation
Available: Aug-2003
Tuning Information
db_name=specdb
control_files           = /specdb/9i/cntrlspecdb
compatible=9.0.0.0.0
cursor_space_for_time = TRUE
db_cache_size = 1280M
db_file_multiblock_read_count = 128
db_files = 256
dml_locks = 600
enqueue_resources = 2000
log_buffer = 4194304
log_checkpoint_interval = 2147483647
processes = 1000
open_cursors = 2000
shared_pool_size = 200M
sessions = 800
transactions = 800
transactions_per_rollback_segment = 1
parallel_max_servers = 100
undo_management               = AUTO
undo_retention                = 5
undo_suppress_errors          = TRUE
statistics_level = BASIC
trace_enabled = FALSE

JDBC
Name: Oracle JDBC Driver 10.1.0.1.1 (Thin)
Vendor: Oracle Corporation
Available: Nov-2003
Tuning Information
stmt-cache-size="200

Other Software
Name:
Vendor:
Available:
Tuning Information

J2EE Application Server (1 system)
Hardware Vendor: Sun Microsystems, Inc. OS Vendor: Red Hat, Inc.
Model Name: Sun Fire V20z OS Name: Red Hat Enterprise Linux AS Release 3 (Taroon) 32-bit
Processor: AMD Opteron 248 Filesystem: Linux ext3
MHz: 2200 Disks: 1x36Gb 10K RPM Ultra-3
# of CPUs: 2 cores, 2 chips, 1 core/chip Network Interface: (2) 10/100/1000 BaseT Ethernet
Memory (MB): 4096 Other Hardware:
L1 Cache: 64KB(I)+64KB(D) per chip # of Systems: 1
L2 Cache: 1MB per chip H/W Available: Mar-2004
Other Cache: OS Available: Mar-2004
Notes / Tuning Information


















Database Server (1 system)








Hardware Vendor:
Sun Microsystems, Inc.
OS Vendor:
Red Hat, Inc.




Model Name:
Sun Fire V20z
OS Name:
Red Hat Enterprise Linux AS Release 3 (Taroon) 32-bit




Processor:
AMD Opteron 248
Filesystem:
Linux ext3




MHz:
2200
Disks:
1x36Gb 10K RPM Ultra-3




# of CPUs:
2 cores, 2 chips, 1 core/chip
Network Interface:
(2) onboard 10/100/1000 BaseT Ethernet




Memory (MB):
4096
Other Hardware:
(1) Sun StorEdge 3310 SCSI Array (5 x 73GB 10K RPM Ultra160 SCSI)




L1 Cache:
64KB(I)+64KB(D) per chip
# of Systems:
1




L2 Cache:
1MB per chip
H/W Available:
Mar-2004




Other Cache:

OS Available:
Mar-2004












Notes / Tuning Information






Parameters added to /etc/sysctl.conf:
kernel.shmmax = 2147483648
kernel.semopm = 100



















Load Driver (1 system)








Hardware Vendor:
Sun Microsystems, Inc.
OS Vendor:
Sun Microsystems, Inc.




Model Name:
Sun Fire V440
OS Name:
Solaris 9 4/04




Processor:
UltraSPARC IIIi
Filesystem:
UFS




MHz:
1280 MHz
Disks:
4x36GB




# of CPUs:
4 cores, 4 chips, 1 core/chip
Network Interface:
10/100/1000 BaseT Ethernet




Memory (MB):
16384
Other Hardware:





L1 Cache:
32KB(I)+64KB(D) per chip
# of Systems:
1




L2 Cache:
1MB per chip
H/W Available:
Aug-2003




Other Cache:

OS Available:
Apr-2004












Notes / Tuning Information


























Benchmark Modifications




Schema Modifications:

  Tablespace sizes were increased to support the Injection rate
  Scripts to create the DB are included in the FDA
  Two indexes were created on the M_largeorder table:
  CREATE UNIQUE INDEX M_lo_idx ON M_largeorder  (lo_id)
  CREATE UNIQUE INDEX M_OL_O_idx ON M_largeorder (lo_o_id, lo_ol_id)
  Table and index initrans parameters were modified.






Load Program Modifications:

  The load program was not modified






Reference Bean Modifications:

  No changes were made to the reference beans














Benchmark Configuration Information




Persistence Mode Used:

  CMP mode was used for all beans






Isolation Requirement Info:

  Beans with a READ_COMMITTED requirement
  were deployed using locking-mode="optimistic" in their deployment descriptors
  All other beans were deployed using locking-mode="pessimistic
  Pessimistic locking mode means that all selects (including during finders)
  are issued with a FOR UPDATE clause in the select statement






Durability Requirement Info:

  The Redo log disks are mirrored (RAID 0+1).
  The database commits all changes to the redo log when each transaction is completed.






Storage Requirement Info:

  A 45 minute run at an injection rate of 401 increased storage by 9.87 GB.
  This extrapolates to 105.28 GB of storage for an 8-hour run.
  The database system is configured with 365 GB of storage.






Argument Passing Semantics:

  Oracle Application Server 10g uses pass-by-value
  as required by the EJB specification














Other Benchmark Information





  This submission used the xerces.jar from the SPECjAppServer2002 kit.
  No hardware or software was used to alter basic network routing.














General Notes





No errors were reported during the final or reproducability run.










For questions about this result, please contact the submitter: Sun Microsystems Inc.

For other inquiries, please contact
webmaster@spec.org


Benchmark run on Sun Mar 28 09:16:12 EST 2004 by SPECjAppServer2002 v1.14

Result submitted on Wed Mar 31 03:03:01 EST 2004

Report generated by SPECjAppServer2002 Reporter v1.01


Copyright © 2002 Standard Performance Evaluation Corporation



First published at SPEC.org on 20-Apr-2004
