Siemens NX (snx-01)

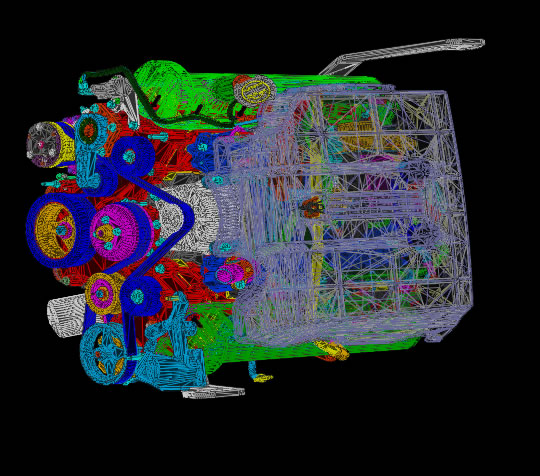

The snx-01 viewset is based on traces of the Siemens NX 7 application. The traces represent very large models containing between 11- and 62-million vertices, which are rendered in modes available in Siemens NX 7.

State changes such as those executed by the application -- including matrix, material, light and line-stipple changes -- are included throughout the rendering of the model. All state changes are derived from a trace of the running application.

The following tests are included in the viewset:

  • test1 - BPLshaded
    • 14M vertices
    • display lists
  • test2 - BPLshadedEdges
    • 25M vertices
    • display lists
    • half lines/half shaded
  • test3 - BPLwireframe
    • 18M vertices
    • display lists
  • test4 - BPLwireframeAA
    • 18M vertices
    • display lists
    • AA lines enabled
  • test5 - BPLwireframe dim edges
    • 62M vertices
    • display lists
    • multipass stencil based algorithm
  • test6 - TLECTWshaded
    • 17M vertices
    • display lists
  • test7 - TLECTWshaded edges AA
    • 29M vertices
    • display lists
    • AA lines enabled
  • test8 - TLECTWwireframe dim edges
    • 74M vertices
    • display lists
    • AA lines
    • multipass stencil based algorithm
  • test9 - TLECTWwireframe hidden edges
    • 46M vertices
    • display lists
    • AA lines
    • multipass stencil based algorithm
  • test10 - TLMEshaded
    • 11M vertices
    • display lists
  • test11- TLMEshaded edges
    • 20M vertices
    • display lists
  • test12 - TLMEwireframe dim edges
    • 25M vertices
    • display lists
    • multipass stencil based algorithm
  • test13 - TLMEwireframe hidden edges
    • 16M vertices
    • display lists
    • multipass stencil-based algorithm
