Unigraphics Viewset (ugs-04)

The ugs-04 viewset was created from traces of the graphics workload generated by Unigraphics V17.

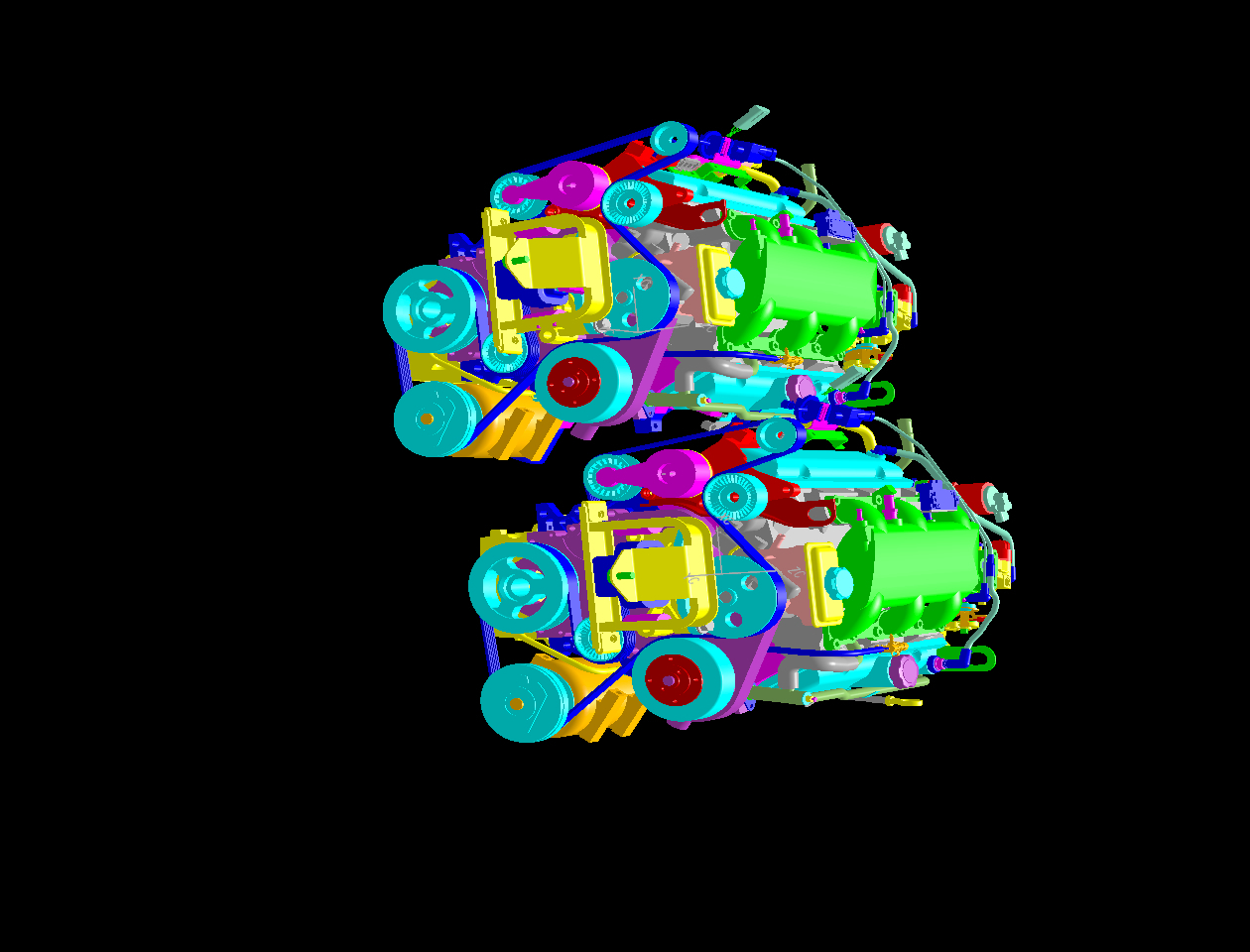

The engine model used was taken from the SPECapc for Unigraphics V17 application benchmark. Three rendering modes are measured -- shaded, shaded with transparency, and wireframe. The wireframe workloads are measured both in normal and anti-alised mode. All tests are repeated twice, rotating once in the center of the screen and then moving about the frame to measure clipping performance.

The viewset is based on a trace of the running application and includes all the state changes found during normal Unigraphics operation. As with the application, OpenGL display lists are used to transfer data to the graphics subsystem. Thousands of display lists of varying sizes go into generating each frame of the model.

To increase model size and complexity, SPECviewperf 8.0 replicates the model two times more than the previous ugs-03 test.

Tests are weighted 1/3 wireframe and 2/3 shaded.

Test

Weight

Description

16.5

Shaded engine

16.5

Shaded engine, clipped

16.5

Transparent engine

16.5

Transparent engine, clipped

8.5

Wireframe engine

8.5

Wireframe engine, clipped

8.5

Wireframe engine anti-aliased

8.5

Wireframe engine anti-aliased, clipped
