SolidWorks Viewset (sw-02)

The sw-02 viewset was created from traces of the graphics workload generated by the Solidworks 2004 application from Dassault Systemes.

The model and workloads used were contributed by Solidworks as part of the SPECapc for SolidWorks 2004 benchmark.

State changes as made by the application are included throughout the rendering of the model, including matrix, material, light and line-stipple changes. All state changes are derived from a trace of the running application. The state changes put considerably more stress on graphics subsystems than the simple geometry dumps found in older viewsets.

Mirroring the application, draw arrays are used for some tests and immediate mode used for others. See notes on specific tests for more information.

Test

Weight

Description

12.5

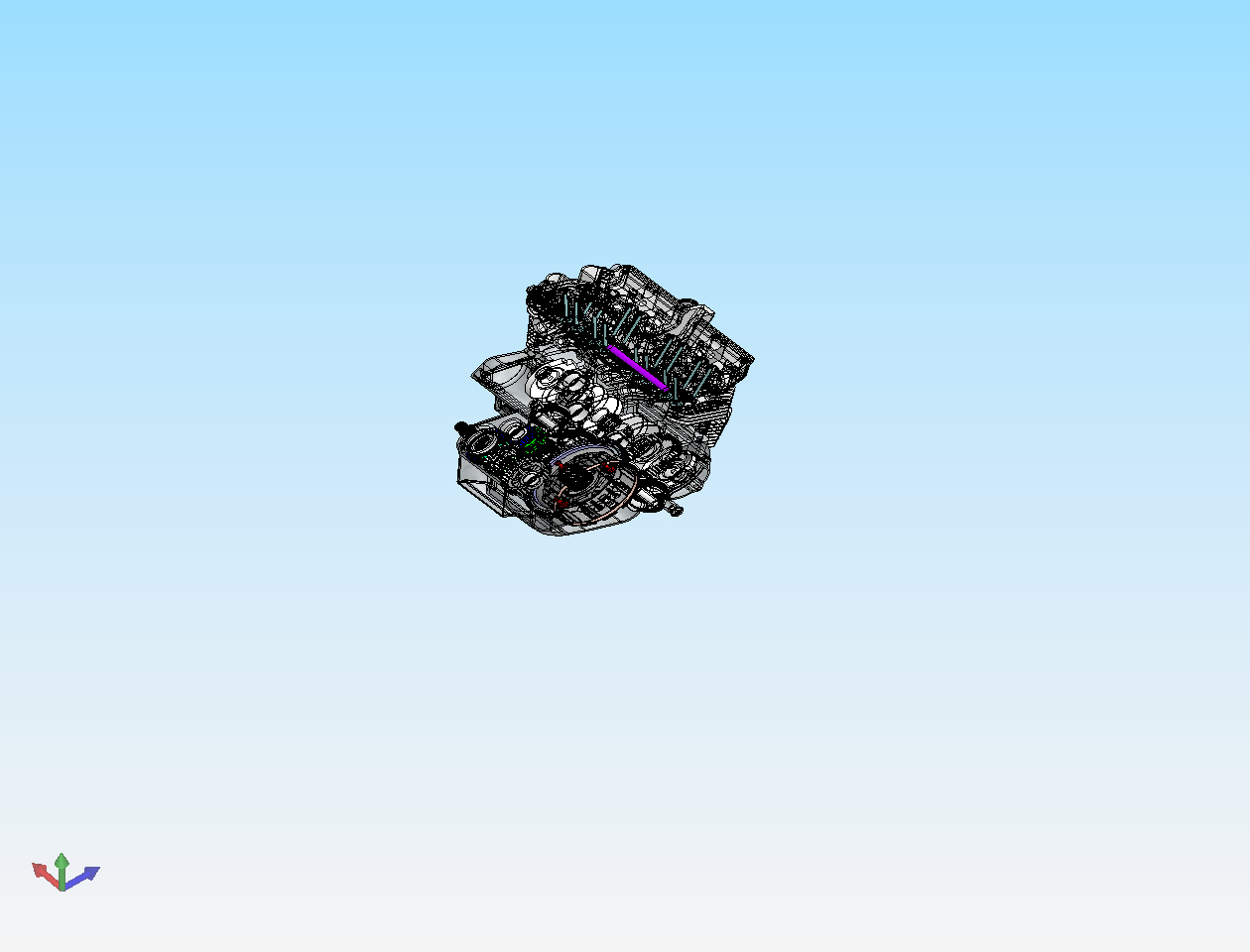

Suzuki engine, wireframe, immediate mode

12.5

Suzuki engine, wireframe with edges, vertex array

12.5

Suzuki engine, shaded with edges, vertex array

12.5

Suzuki engine, shaded, vertex array

12.5

GTX car, shaded, vertex array

12.5

GTX car, shaded with edges, vertex array

12.5

GTX car, wireframe, immediate mode

12.5

GTX car, wireframe, visible edges, vertex array
