Composite Scores
SPECapc for Solidworks measures how long it takes for your system to render and manipulate a variety of scenes. Each test represents a usage model, and each composite score below is based on a weighted geometric mean of all scenes and rendering modes.
Composites
| Composite | Resolution | Score - FSAA |
|---|---|---|
| CPU Composite Score | 1920x1080 | 1.90 |
| GPU Composite Score | 1920x1080 | 3.98 |
| SubTests | Resolution | Score - FSAA |
| GPU Shaded | 1920x1080 | 2.75 |
| GPU Shaded With Edges | 1920x1080 | 3.81 |
| GPU Shaded RealView | 1920x1080 | 5.36 |
| GPU Shaded RealView With Edges | 1920x1080 | 5.55 |
| GPU Drawing | 1920x1080 | 2.40 |
| CPU Raytrace | 1920x1080 | 2.57 |
| CPU Rebuild | 1920x1080 | 1.80 |
| CPU Convert | 1920x1080 | 1.74 |
| CPU Simulate | 1920x1080 | 1.79 |
| CPU Mass Properties | 1920x1080 | 1.62 |
| CPU Boolean | 1920x1080 | 1.44 |
Benchmark Information
| Benchmark | ||
|---|---|---|
| Name | SPECapc for Solidworks 2022 Benchmark | |
| Version | 2022.0.91 | |
| Application Name | SOLIDWORKS 2022 | |
| Application Version | SP3.1 | |
| Submission | ||
| Test Date | Thu Jul 28 2022 10:13:13 GMT-0500 (Central Daylight Time) | |
| Submission Candidate | Yes | |
| Submitting Company | Dell, Inc. | |
| Comments | Best Performance setting; VSYNC disabled; graphics driver: https://dl.dell.com/FOLDER08624285M/1/nVIDIA-Quadro-Series-Graphics-Driver_WY7NX_WIN_30.0.15.1236_A01.EXE | |
System Configuration
| Workstation | ||
|---|---|---|
| Manufacturer | Dell Inc. | |
| Model | Precision 7770 | |
| BIOS Name | 1.2.1 | |
| Manufacturer | Dell Inc. | |
| Serial Number | BQF5NN3 | |
| Version | DELL - 2 | |
| SMBIOS Version | 1.2.1 | |
| OS Name | Microsoft Windows 11 Pro | |
| Build Number | 22000 | |
| Graphics | ||
| Name | NVIDIA RTX A5500 Laptop GPU | |
| Driver Version | 30.0.15.1236 | |
| Screen Resolution | 3840 x 2160 | |
| Name | Intel(R) UHD Graphics | |
| Driver Version | 30.0.101.1298 | |
| Screen Resolution | 3840 x 2160 | |
| Screen Scaling | 100% | |
| Processor | ||
| Name | 12th Gen Intel(R) Core(TM) i9-12900HX | |
| Address Width | 64-bit | |
| Nominal Clock Speed | 2300 MHz | |
| Number Of Cores | 16 | |
| Number Of Logical Processors | 24 | |
| Memory | ||
| DIMM Name | Physical Memory | |
| Memory Speed | 4800 MHz | |
| Memory Capacity | 32 GB | |
| Disk Drives | ||
| Drive Model | NVMe PM9A1 NVMe Samsung 1024GB | |
| Drive Capacity | 953.86 GB | |
| Drive Model | NVMe PM9A1 NVMe Samsung 1024GB | |
| Drive Capacity | 953.86 GB | |
| Drive Model | Intel Raid 1 Volume | |
| Drive Capacity | 953.86 GB | |
| Display | ||
| Default Monitor | 1920 x 1080 | |
| Default Monitor | 1920 x 1080 | |
Test List
The table below lists the subtests used to compute the composite results shown under the SCORES tab. The TestType column indicates which composite the test contribues to.
Tests
| TestType | Name | Time | Weight |
|---|---|---|---|
| Shaded |  Voiture assomblee | 1.08 | 1 |
| Shaded |  Audi R8 S | 1 | 1 |
| Shaded |  Digger | 0.94 | 1 |
| Shaded |  Montagem1 | 0.97 | 1 |
| Shaded |  tower Assembly 02 | 0.98 | 1 |
| Shaded |  GrCadBlack_Owl_S2 | 1.36 | 1 |
| Shaded |  main | 1.02 | 1 |
| Shaded |  menjac sklop | 1 | 1 |
| Shaded |  Supercar | 1.17 | 1 |
| Shaded |  CT_TA | 2.12 | 1 |
| ShadedWithEdges |  Voiture assomblee | 1.09 | 1 |

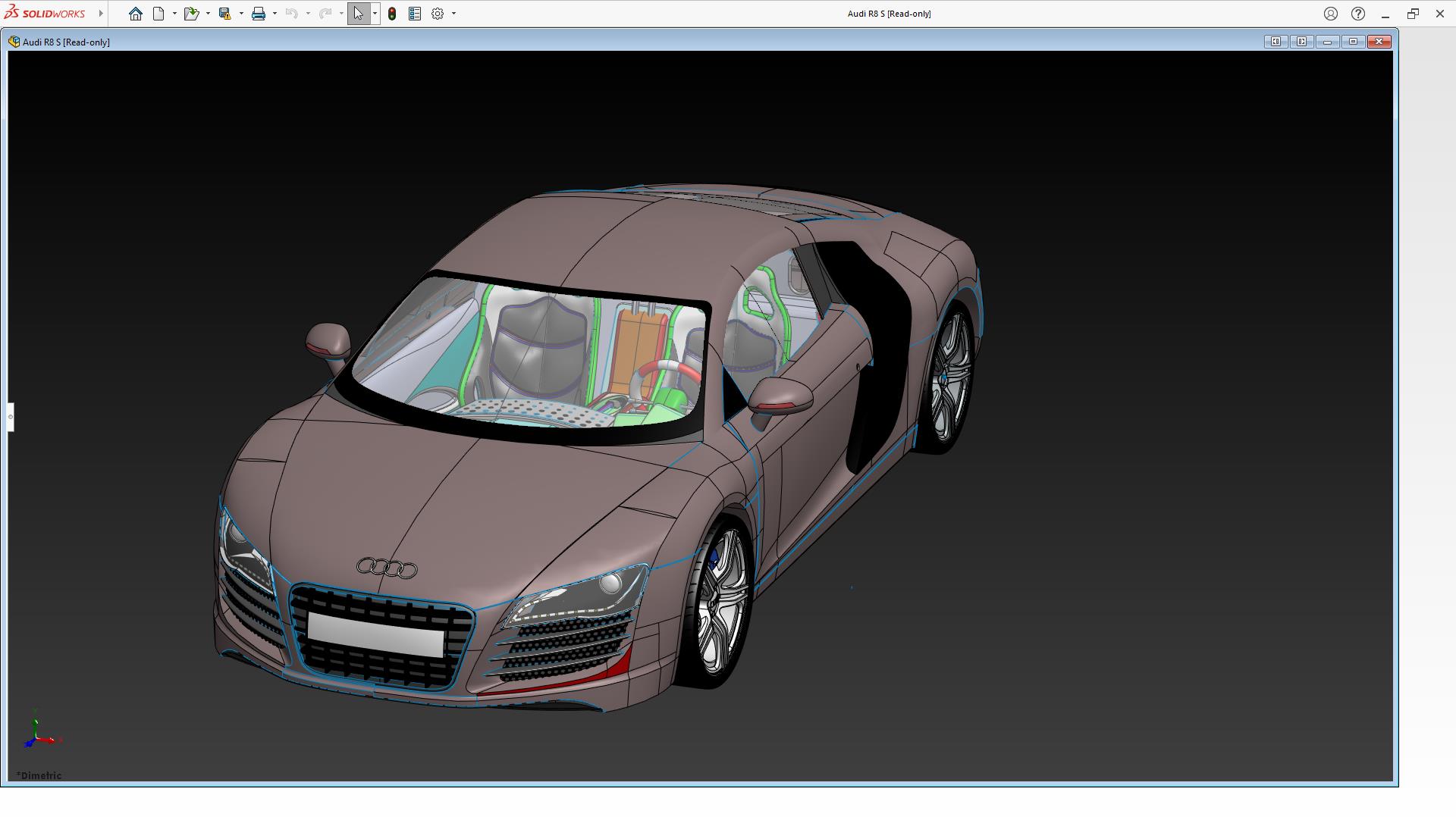

| ShadedWithEdges |  Audi R8 S | 1.03 | 1 |
| ShadedWithEdges |  Digger | 0.94 | 1 |
| ShadedWithEdges |  Montagem1 | 0.99 | 1 |
| ShadedWithEdges |  tower Assembly 02 | 1.01 | 1 |
| ShadedWithEdges |  GrCadBlack_Owl_S2 | 1.53 | 1 |
| ShadedWithEdges |  main | 1.65 | 1 |
| ShadedWithEdges |  menjac sklop | 1.03 | 1 |
| ShadedWithEdges |  Supercar | 1.23 | 1 |
| ShadedWithEdges |  CT_TA | 3.5 | 1 |
| Shaded_RealView_Shadow_AO |  Voiture assomblee | 1.06 | 1 |
| Shaded_RealView_Shadow_AO |  Audi R8 S | 1.26 | 1 |
| Shaded_RealView_Shadow_AO |  Digger | 1.18 | 1 |
| Shaded_RealView_Shadow_AO |  Montagem1 | 1.25 | 1 |
| Shaded_RealView_Shadow_AO |  tower Assembly 02 | 1.07 | 1 |
| Shaded_RealView_Shadow_AO |  GrCadBlack_Owl_S2 | 1.64 | 1 |
| Shaded_RealView_Shadow_AO |  main | 1.62 | 1 |
| Shaded_RealView_Shadow_AO |  menjac sklop | 1.24 | 1 |
| Shaded_RealView_Shadow_AO |  Supercar | 1.64 | 1 |
| ShadedWithEdges_RealView_Shadow_AO |  Voiture assomblee | 1.18 | 1 |
| ShadedWithEdges_RealView_Shadow_AO |  Audi R8 S | 1.49 | 1 |
| ShadedWithEdges_RealView_Shadow_AO |  Digger | 1.42 | 1 |
| ShadedWithEdges_RealView_Shadow_AO |  Montagem1 | 1.34 | 1 |
| ShadedWithEdges_RealView_Shadow_AO |  tower Assembly 02 | 1.24 | 1 |
| ShadedWithEdges_RealView_Shadow_AO |  GrCadBlack_Owl_S2 | 2.27 | 1 |
| ShadedWithEdges_RealView_Shadow_AO |  main | 2.35 | 1 |
| ShadedWithEdges_RealView_Shadow_AO |  menjac sklop | 1.51 | 1 |
| ShadedWithEdges_RealView_Shadow_AO |  Supercar | 2.2 | 1 |
| Drawing |  Audi R8 S | 0.95 | 1 |
| Drawing |  GrCadBlack_Owl_S2 | 4.32 | 1 |
| Drawing |  main | 0.99 | 1 |
| CPU Raytrace |  Voiture assomblee | 165.66 | 1 |
| CPU Raytrace |  Audi R8 S | 174.43 | 1 |
| CPU Raytrace |  Digger | 171.01 | 1 |
| CPU Rebuild |  Voiture assomblee | 27.62 | 1 |
| CPU Rebuild |  Audi R8 S | 51.69 | 1 |
| CPU Rebuild |  Digger | 8.94 | 1 |
| CPU Convert |  Voiture assomblee | 61.13 | 1 |
| CPU Convert |  Audi R8 S | 82.02 | 1 |
| CPU Convert |  Digger | 27.56 | 1 |
| CPU Simulate |  DiggerArm_2.sldprt | 252.83 | 1 |
| CPU Mass Properties |  Digger | 0.36 | 1 |
| CPU Boolean Addition |  Boolean.sldprt | 14.46 | 1 |
| ModelLoad | Voiture assomblee | 6.02 | 1 |
| ModelLoad | Audi R8 S | 8.61 | 1 |
| ModelLoad | Digger | 4.06 | 1 |
| ModelLoad | DiggerArm_2.sldprt | 1.41 | 1 |
| ModelLoad | Montagem1 | 3.31 | 1 |
| ModelLoad | tower Assembly 02 | 4.71 | 1 |
| ModelLoad | GrCadBlack_Owl_S2 | 12.52 | 1 |
| ModelLoad | main | 14.35 | 1 |
| ModelLoad | menjac sklop | 8.34 | 1 |
| ModelLoad | Supercar | 11.58 | 1 |
| ModelLoad | CT_TA | 50.86 | 1 |
| ModelLoad | Boolean.sldprt | 1.94 | 1 |
| AvgModeTransition | Voiture assomblee | 0.63 | 1 |
| AvgModeTransition | Audi R8 S | 0.57 | 1 |
| AvgModeTransition | Digger | 0.66 | 1 |
| AvgModeTransition | Montagem1 | 0.6 | 1 |
| AvgModeTransition | tower Assembly 02 | 0.69 | 1 |
| AvgModeTransition | GrCadBlack_Owl_S2 | 0.98 | 1 |
| AvgModeTransition | main | 0.82 | 1 |
| AvgModeTransition | menjac sklop | 0.65 | 1 |
| AvgModeTransition | Supercar | 0.81 | 1 |
| AvgModeTransition | CT_TA | 24.83 | 1 |
