Composite Scores
SPECapc for Maya measures how long it takes for your system to render and manipulate a variety of scenes. Each test represents a usage model, and each composite score below is based on a weighted geometric mean of all scenes and rendering modes.
Composites
| Composite | Resolution | Score - MSAA |
|---|---|---|
| CPU Composite Score | 1920x1080 | 6.16 |
| GPU Composite Score | 1920x1080 | 5.81 |
| SubTests | Resolution | Score - MSAA |
| GPU Shaded | 1920x1080 | 4.06 |
| GPU Shaded SSAO | 1920x1080 | 6.73 |
| GPU Wireframe On Shaded | 1920x1080 | 5.61 |
| GPU Wireframe On Shaded SSAO | 1920x1080 | 6.87 |
| GPU Textured | 1920x1080 | 5.99 |
| GPU Textured SSAO | 1920x1080 | 6.22 |
| CPU Arnold Raytrace | 1920x1080 | 6.16 |
| Evaluation Cache | Resolution | Score - MSAA |
| Evaluation Cache Composite | 1920x1080 | 3.42 |
| Animation Playback on CPU, Evaluation Cache Disabled | 1920x1080 | 3.87 |
| Animation Playback on CPU, Evaluation Cache Enabled | 1920x1080 | 3.02 |
Benchmark Information
| Benchmark | ||
|---|---|---|
| Name | SPECapc for Maya 2024 Benchmark | |
| Version | 2024.1.0 | |
| Application Name | Maya 2024 | |
| Application Version | Cut Number 64,0,83,0,116,0,114,0,105,0,110,0,103,0,40,0,50,0,48,0,50,0,51,0,48,0,50,0,49,0,55,0,48,0,55,0,51,0,55,0,45,0,52,0,53,0,48,0,48,0,49,0,55,0,50,0,56,0,49,0,49,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,41,0 | |
| Arnold Name | MtoA for Maya 2024 | |
| Arnold Version | 5.3.1.1 | |
| Submission | ||
| Test Date | Mon Aug 14 2023 08:35:26 GMT-0500 (Central Daylight Time) | |
| Submission Candidate | Yes | |
| Submitting Company | Dell Technologies | |
| Comments | Power Slider: Best Performance; Power Scheme: Balanced; Vsync disabled; GPU driver:https://dl.dell.com/FOLDER09858138M/3/NVIDIA-RTX-2000-3500-4000-5000-A1000-and-GeForce_5XC50_WIN_31.0.15.2891_A01_01.EXE | |
System Configuration
| Workstation | ||
|---|---|---|
| Manufacturer | Dell Inc. | |
| Model | Precision 7680 | |
| BIOS Name | 1.4.0 | |
| Manufacturer | Dell Inc. | |
| Serial Number | PS25765 | |
| Version | DELL - 2 | |
| SMBIOS Version | 1.4.0 | |
| OS Name | Microsoft Windows 11 Pro | |
| Build Number | 22621 | |
| Graphics | ||
| Name | Intel(R) UHD Graphics | |
| Driver Version | 31.0.101.4314 | |
| Screen Resolution | 3840 x 2400 | |
| Name | NVIDIA RTX 5000 Ada Generation Laptop GPU | |
| Driver Version | 31.0.15.2891 | |
| Screen Resolution | 3840 x 2400 | |
| Current Resolution | 1920 x 1200 | |
| Screen Scaling | 100% | |
| Processor | ||
| Name | 13th Gen Intel(R) Core(TM) i9-13900HX | |
| Address Width | 64-bit | |
| Nominal Clock Speed | 2200 MHz | |
| Number Of Cores | 24 | |
| Number Of Logical Processors | 32 | |
| Memory | ||
| DIMM Name | Physical Memory | |
| Memory Speed | 5600 MHz | |
| Memory Capacity | 32 GB | |
| DIMM Name | Physical Memory | |
| Memory Speed | 5600 MHz | |
| Memory Capacity | 32 GB | |
| Disk Drives | ||
| Drive Model | PC801 NVMe SK hynix 512GB | |
| Drive Capacity | 476.94 GB | |
| Drive Model | PC801 NVMe SK hynix 512GB | |
| Drive Capacity | 476.94 GB | |
| Drive Model | PC801 NVMe SK hynix 512GB | |
| Drive Capacity | 476.94 GB | |
| Display | ||
| Generic PnP Monitor | ||
| Default Monitor | ||
Test List
The table below lists the subtests used to compute the composite results shown under the SCORES tab. The TestType column indicates which composite the test contribues to.
Tests
| TestType | Name | Time | Reference | Weight |
|---|---|---|---|---|

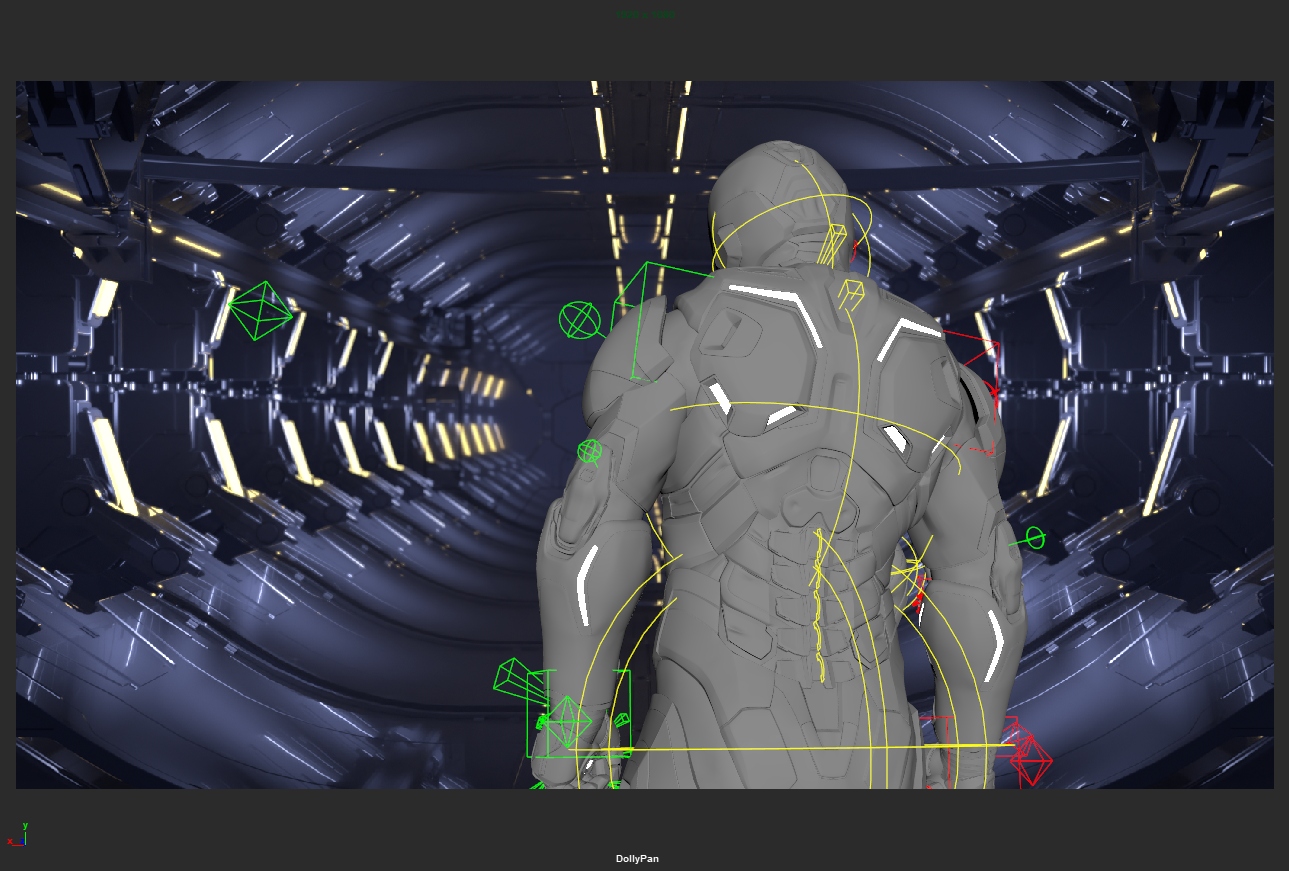

| gpuShaded |  SolAndSollette | 6.66 | 35.39 | 1 |

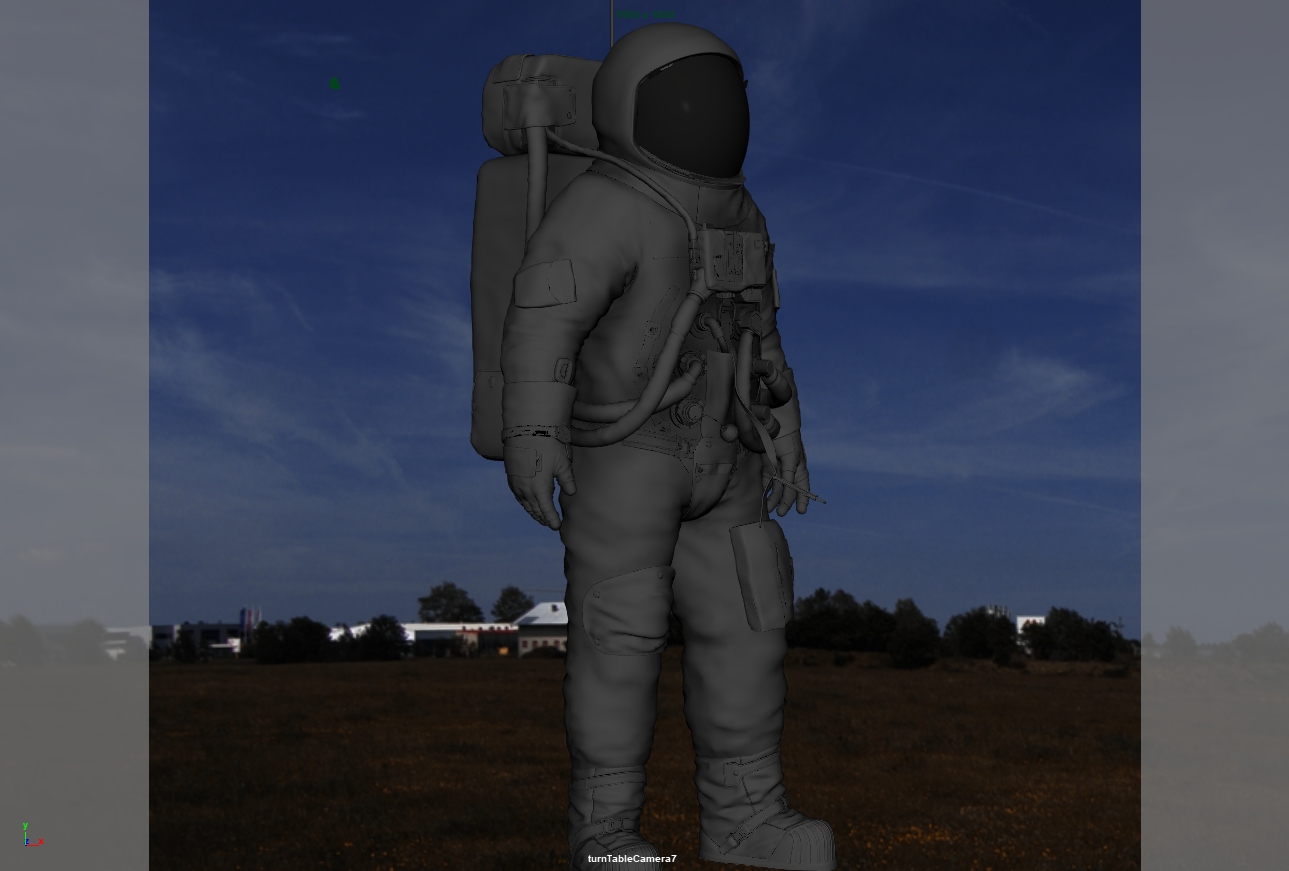

| gpuShaded |  Apollo 11 | 0.3 | 1.87 | 1 |
| gpuShaded |  sven many | 2.52 | 6.07 | 1 |
| gpuShaded |  sven many - GPU | 2.5 | 8.19 | 1 |
| gpuShaded |  tiger - GPU | 2.12 | 15.16 | 1 |

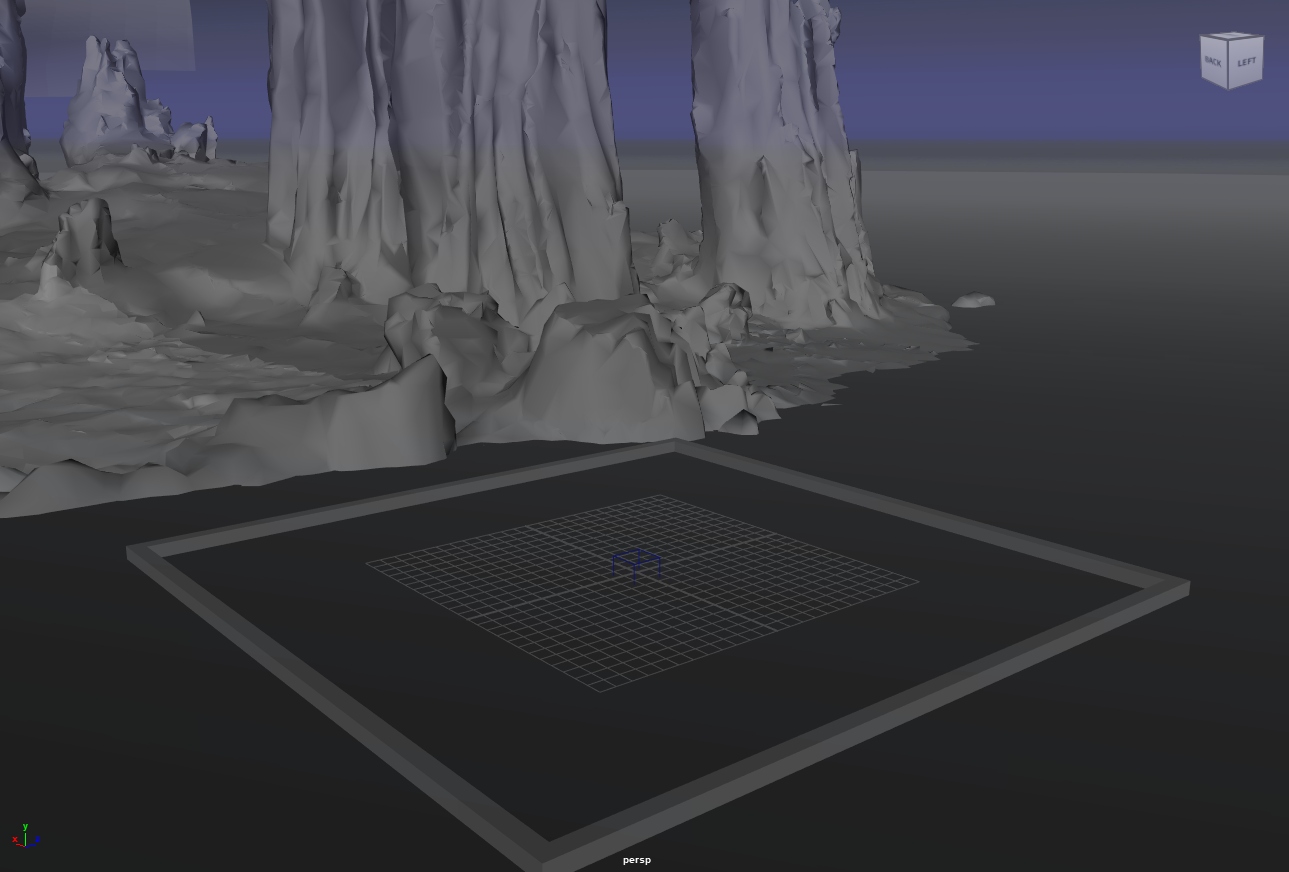

| gpuShaded |  spaceCrash | 1.73 | 7.37 | 1 |

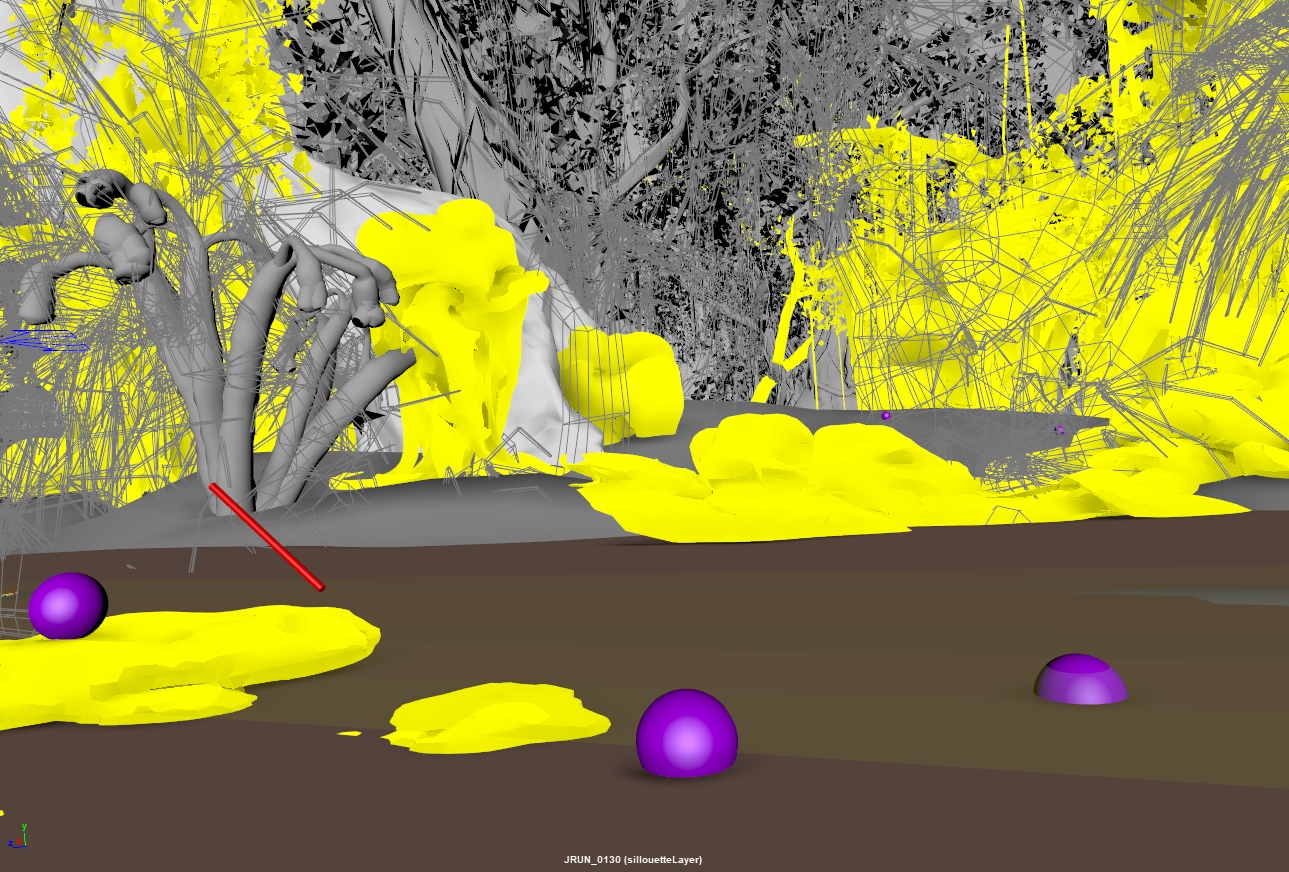

| gpuShaded |  jungleEscape | 3.27 | 8.35 | 1 |
| gpuShaded |  jungleEscape - GPU | 1.2 | 4.45 | 1 |
| gpuShadedSSAO |  SolAndSollette | 7 | 42.82 | 1 |
| gpuShadedSSAO |  Apollo 11 | 0.38 | 2.86 | 1 |
| gpuShadedSSAO |  sven many | 2.84 | 7.15 | 1 |
| gpuShadedSSAO |  sven many - GPU | 3.05 | 15.53 | 1 |

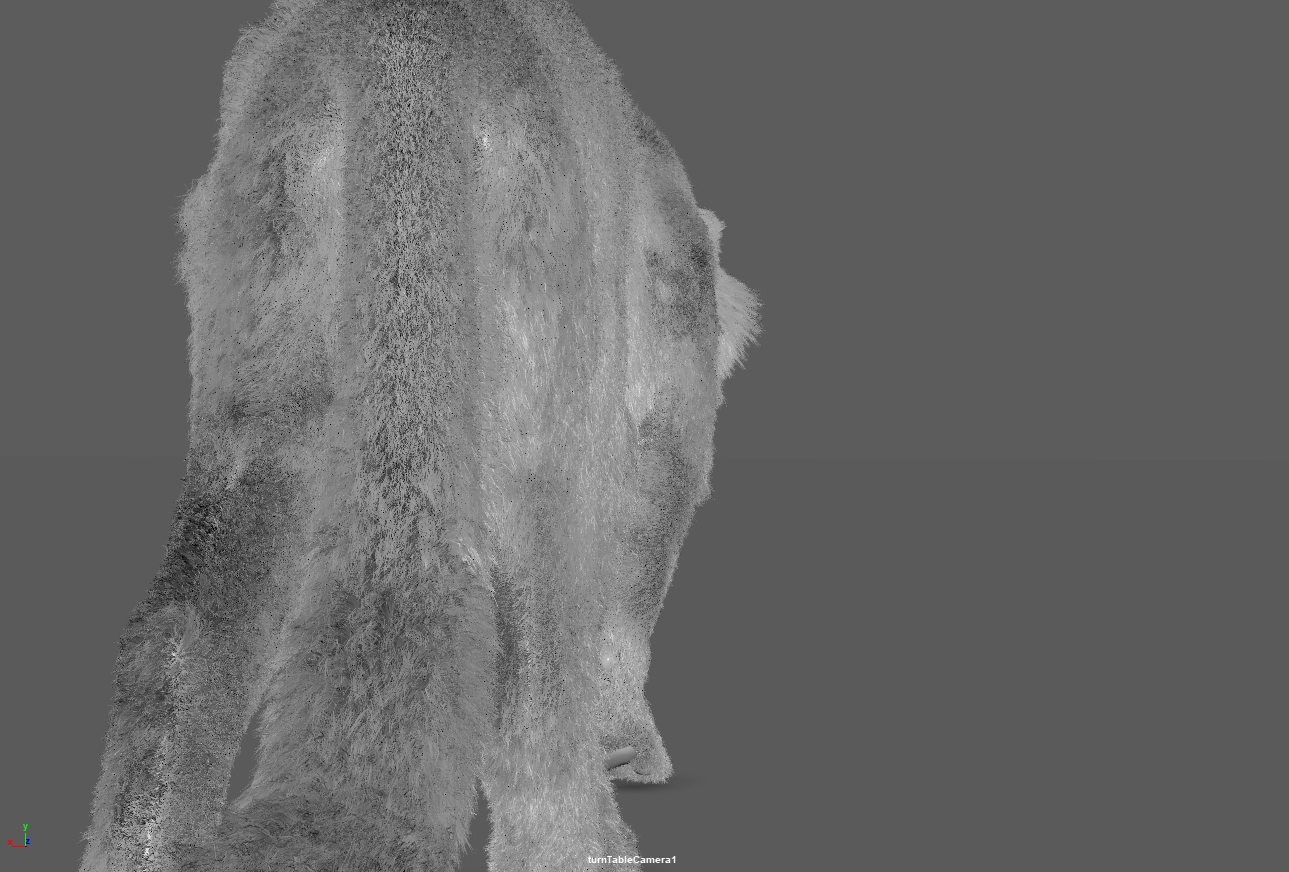

| gpuShadedSSAO |  tiger - GPU | 2.03 | 20.73 | 1 |
| gpuShadedSSAO |  spaceCrash | 1.94 | 18.36 | 1 |
| gpuShadedSSAO |  jungleEscape | 0.52 | 7.82 | 1 |
| gpuShadedSSAO |  jungleEscape - GPU | 0.79 | 3.84 | 1 |
| gpuWireframeOnShaded |  SolAndSollette | 6.86 | 38.31 | 1 |
| gpuWireframeOnShaded |  Apollo 11 | 0.37 | 2.32 | 1 |

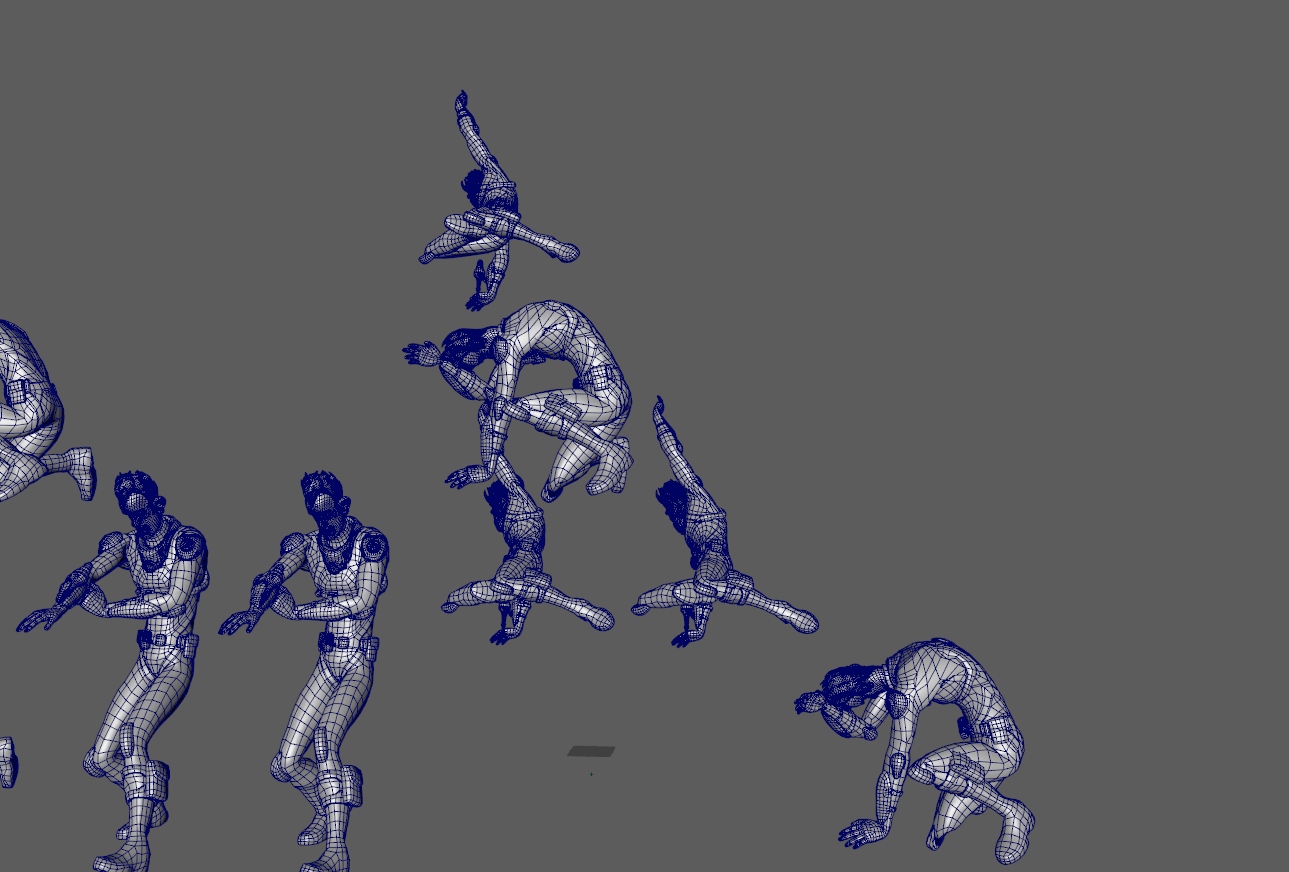

| gpuWireframeOnShaded |  sven many | 3.13 | 7.87 | 1 |
| gpuWireframeOnShaded |  sven many - GPU | 2.89 | 11.33 | 1 |
| gpuWireframeOnShaded |  tiger - GPU | 1.9 | 17.96 | 1 |
| gpuWireframeOnShaded |  spaceCrash | 1.86 | 9.93 | 1 |
| gpuWireframeOnShaded |  jungleEscape | 0.53 | 7.85 | 1 |
| gpuWireframeOnShaded |  jungleEscape - GPU | 1.05 | 3.94 | 1 |
| gpuWireframeOnShadedSSAO |  SolAndSollette | 7.41 | 51.31 | 1 |
| gpuWireframeOnShadedSSAO |  Apollo 11 | 0.44 | 3.31 | 1 |
| gpuWireframeOnShadedSSAO |  sven many | 3.52 | 8.91 | 1 |
| gpuWireframeOnShadedSSAO |  sven many - GPU | 3.79 | 18.77 | 1 |
| gpuWireframeOnShadedSSAO |  tiger - GPU | 2.39 | 24.31 | 1 |
| gpuWireframeOnShadedSSAO |  spaceCrash | 2.21 | 20.78 | 1 |
| gpuWireframeOnShadedSSAO |  jungleEscape | 0.57 | 7.97 | 1 |
| gpuWireframeOnShadedSSAO |  jungleEscape - GPU | 0.81 | 4.67 | 1 |
| gpuTextured |  SolAndSollette | 7.03 | 89.45 | 1 |
| gpuTextured |  Apollo 11 | 0.36 | 2.02 | 1 |
| gpuTextured |  sven many | 3.51 | 14.63 | 1 |
| gpuTextured |  sven many - GPU | 4.16 | 14.87 | 1 |
| gpuTextured |  tiger - GPU | 2.71 | 19.52 | 1 |

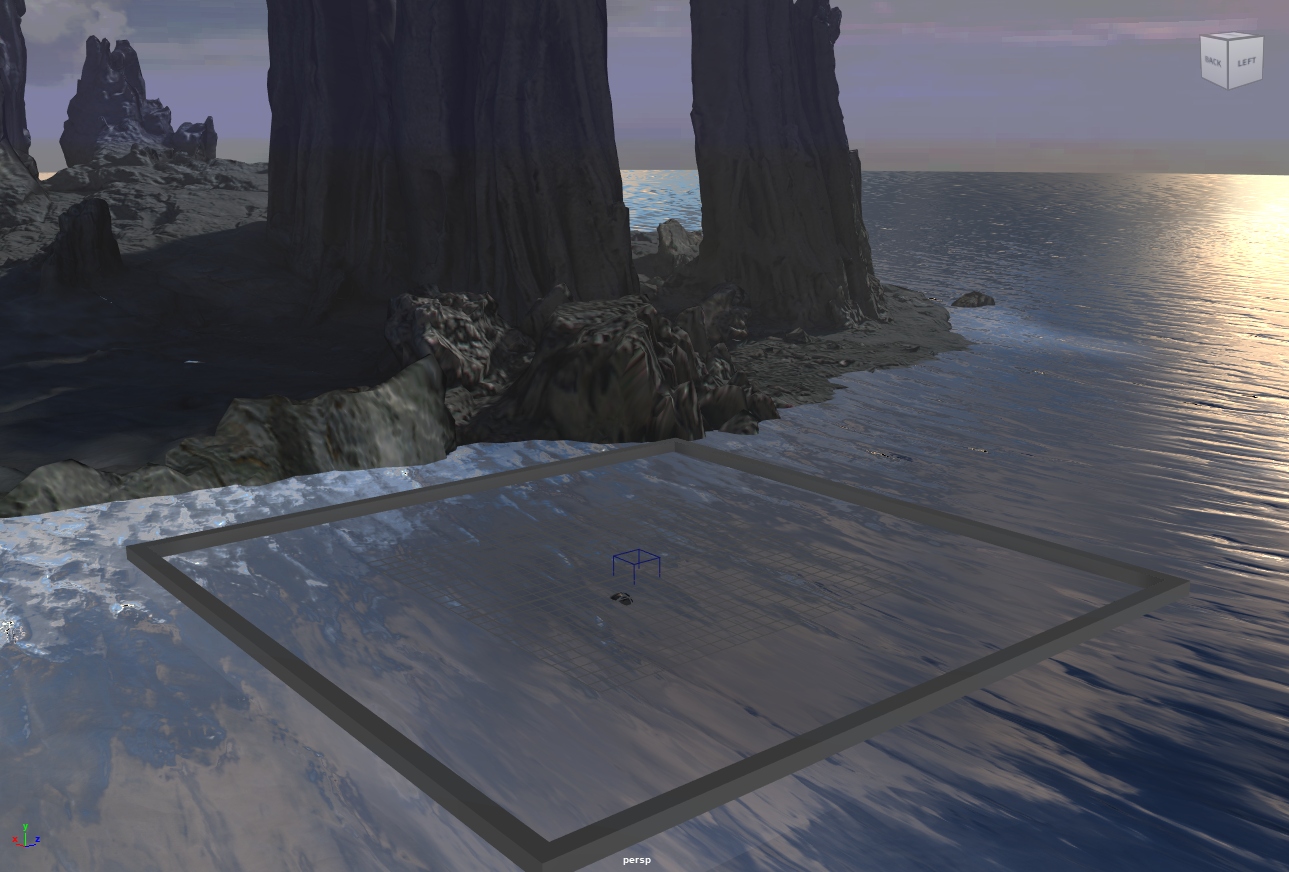

| gpuTextured |  spaceCrash | 2.84 | 16.96 | 1 |
| gpuTexturedSSAO |  SolAndSollette | 7.53 | 40.36 | 1 |
| gpuTexturedSSAO |  Apollo 11 | 0.42 | 1.53 | 1 |
| gpuTexturedSSAO |  sven many | 3.84 | 17.97 | 1 |
| gpuTexturedSSAO |  sven many - GPU | 3.92 | 20.63 | 1 |
| gpuTexturedSSAO |  tiger - GPU | 2.18 | 24.29 | 1 |
| gpuTexturedSSAO |  spaceCrash | 2.35 | 25.33 | 1 |
| cpuArnold |  room | 50.45 | 507.99 | 1 |
| cpuArnold |  solRayTrace | 291.9 | 1348.1 | 1 |
| cpuArnold |  wood scene | 51.42 | 258.41 | 1 |
| evaluationCacheDisabled |  WallofDeath | 19.73 | 76.28 | 1 |
| evaluationCacheOnCpu |  WallofDeath | 25.1 | 75.87 | 1 |
