| CPU2006 license: | 3 | Test date: | Nov-2017 |
|---|---|---|---|
| Test sponsor: | HPE | Hardware Availability: | Oct-2017 |
| Tested by: | HPE | Software Availability: | Sep-2017 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon Gold 5118 |
| CPU Characteristics: | Intel Turbo Boost Technology up to 3.20 GHz |
| CPU MHz: | 2300 |
| FPU: | Integrated |
| CPU(s) enabled: | 24 cores, 2 chips, 12 cores/chip |
| CPU(s) orderable: | 1, 2 chip(s) |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 1 MB I+D on chip per core |
| L3 Cache: | 16.5 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 192 GB (12 x 16 GB 2Rx8 PC4-2666V-R, running at 2400) |
| Disk Subsystem: | 1 x 480 GB SATA SSD, RAID 0 |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Red Hat Enterprise Linux Server release 7.3 Kernel 3.10.0-514.el7.x86_64 |
| Compiler: | C/C++: Version 17.0.3.191 of Intel C/C++ Compiler for Linux; Fortran: Version 17.0.3.191 of Intel Fortran Compiler for Linux |
| Auto Parallel: | Yes |
| File System: | xfs |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 32/64-bit |
| Peak Pointers: | Not Applicable |
| Other Software: | Microquill SmartHeap V10.2 |

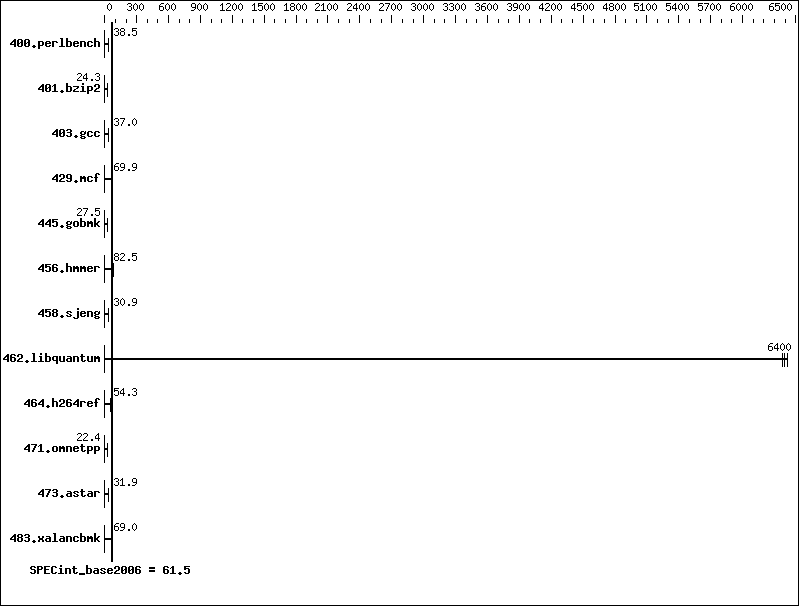

Results Table
| Benchmark | Base | Peak | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
| 400.perlbench | 254 | 38.5 | 253 | 38.6 | 254 | 38.5 | ||||||
| 401.bzip2 | 398 | 24.3 | 398 | 24.3 | 398 | 24.2 | ||||||
| 403.gcc | 218 | 37.0 | 217 | 37.0 | 218 | 36.9 | ||||||
| 429.mcf | 130 | 70.3 | 131 | 69.6 | 130 | 69.9 | ||||||
| 445.gobmk | 382 | 27.5 | 381 | 27.5 | 381 | 27.5 | ||||||
| 456.hmmer | 113 | 82.4 | 113 | 82.6 | 113 | 82.5 | ||||||
| 458.sjeng | 392 | 30.9 | 391 | 30.9 | 391 | 31.0 | ||||||
| 462.libquantum | 3.22 | 6430 | 3.25 | 6370 | 3.24 | 6400 | ||||||
| 464.h264ref | 408 | 54.2 | 407 | 54.4 | 407 | 54.3 | ||||||
| 471.omnetpp | 277 | 22.5 | 287 | 21.8 | 279 | 22.4 | ||||||
| 473.astar | 220 | 31.9 | 219 | 32.1 | 220 | 31.9 | ||||||
| 483.xalancbmk | 100 | 69.0 | 99.9 | 69.0 | 99.9 | 69.1 | ||||||
Operating System Notes
Stack size set to unlimited using "ulimit -s unlimited" Transparent Huge Pages enabled by default Filesystem page cache cleared with: shell invocation of 'sync; echo 3 > /proc/sys/vm/drop_caches' prior to run irqbalance disabled with "systemctl stop irqbalance" tuned profile set wtih "tuned-adm profile throughput-performance"
Platform Notes
BIOS Configuration: Intel Hyper-Threading set to Disabled Thermal Configuration set to Maximum Cooling LLC Prefetch set to Enabled LLC Dead Line Allocation set to Disabled Memory Patrol Scrubbing set to Disabled Workload Profile set to General Peak Frequency Compute Energy/Performance Bias set to Maximum Performance Workload Profile set to Custom NUMA Group Size Optimization set to Flat Uncore Frequency Scaling set to Auto Sysinfo program /root/cpu2006/config/sysinfo.rev6993 Revision 6993 of 2015-11-06 (b5e8d4b4eb51ed28d7f98696cbe290c1) running on localhost.localdomain Thu Nov 30 10:34:12 2017 This section contains SUT (System Under Test) info as seen by some common utilities. To remove or add to this section, see: http://www.spec.org/cpu2006/Docs/config.html#sysinfo From /proc/cpuinfo model name : Intel(R) Xeon(R) Gold 5118 CPU @ 2.30GHz 2 "physical id"s (chips) 24 "processors" cores, siblings (Caution: counting these is hw and system dependent. The following excerpts from /proc/cpuinfo might not be reliable. Use with caution.) cpu cores : 12 siblings : 12 physical 0: cores 0 1 2 3 4 5 8 9 10 11 12 13 physical 1: cores 0 1 2 3 4 5 8 9 10 11 12 13 cache size : 16896 KB From /proc/meminfo MemTotal: 197573296 kB HugePages_Total: 0 Hugepagesize: 2048 kB From /etc/*release* /etc/*version* os-release: NAME="Red Hat Enterprise Linux Server" VERSION="7.3 (Maipo)" ID="rhel" ID_LIKE="fedora" VERSION_ID="7.3" PRETTY_NAME="Red Hat Enterprise Linux Server 7.3 (Maipo)" ANSI_COLOR="0;31" CPE_NAME="cpe:/o:redhat:enterprise_linux:7.3:GA:server" redhat-release: Red Hat Enterprise Linux Server release 7.3 (Maipo) system-release: Red Hat Enterprise Linux Server release 7.3 (Maipo) system-release-cpe: cpe:/o:redhat:enterprise_linux:7.3:ga:server uname -a: Linux localhost.localdomain 3.10.0-514.el7.x86_64 #1 SMP Wed Oct 19 11:24:13 EDT 2016 x86_64 x86_64 x86_64 GNU/Linux run-level 3 Nov 30 10:32 SPEC is set to: /root/cpu2006 Filesystem Type Size Used Avail Use% Mounted on /dev/sda4 xfs 442G 28G 415G 7% / Additional information from dmidecode: Warning: Use caution when you interpret this section. The 'dmidecode' program reads system data which is "intended to allow hardware to be accurately determined", but the intent may not be met, as there are frequent changes to hardware, firmware, and the "DMTF SMBIOS" standard. BIOS HPE I41 09/29/2017 Memory: 4x UNKNOWN NOT AVAILABLE 12x UNKNOWN NOT AVAILABLE 16 GB 2 rank 2666 MHz, configured at 2400 MHz (End of data from sysinfo program)
General Notes
Environment variables set by runspec before the start of the run: KMP_AFFINITY = "granularity=fine,scatter" LD_LIBRARY_PATH = "/root/cpu2006/lib/ia32:/root/cpu2006/lib/intel64:/root/cpu2006/sh10.2" OMP_NUM_THREADS = "24" Binaries compiled on a system with 1x Intel Core i7-4790 CPU + 32GB RAM memory using Redhat Enterprise Linux 7.2 No: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented. No: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented. No: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented. This benchmark result is intended to provide perspective on past performance using the historical hardware and/or software described on this result page. The system as described on this result page was formerly generally available. At the time of this publication, it may not be shipping, and/or may not be supported, and/or may fail to meet other tests of General Availability described in the SPEC OSG Policy document, http://wwww.spec.org/osg/policy.htm. This measured result may not be representative of the result that would be measured were this benchmark run with hardware and software available as of the publication date.
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 403.gcc: | -DSPEC_CPU_LP64 |
| 429.mcf: | -DSPEC_CPU_LP64 |
| 445.gobmk: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
| 464.h264ref: | -DSPEC_CPU_LP64 |
| 471.omnetpp: | -DSPEC_CPU_LP64 |
| 473.astar: | -DSPEC_CPU_LP64 |
| 483.xalancbmk: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
