CPU2006 license: | 9046 | Test date: | Dec-2017 |
---|---|---|---|
Test sponsor: | Sugon | Hardware Availability: | Dec-2017 |
Tested by: | Sugon | Software Availability: | Oct-2017 |
Hardware | |
---|---|
CPU Name: | AMD EPYC 7551P |
CPU Characteristics: | AMD Turbo CORE technology up to 3.00 GHz |
CPU MHz: | 2000 |
FPU: | Integrated |
CPU(s) enabled: | 32 cores, 1 chip, 32 cores/chip, 2 threads/core |
CPU(s) orderable: | 1 chip |
Primary Cache: | 64 KB I + 32 KB D on chip per core |
Secondary Cache: | 512 KB I+D on chip per core |
L3 Cache: | 64 MB I+D on chip per chip, 8 MB shared / 4 cores |
Other Cache: | None |
Memory: | 512 GB (8 x 64 GB 4Rx4 PC4-2667V-L) |
Disk Subsystem: | 1 x 2000 GB SATA, 7200 RPM |
Other Hardware: | None |
Software | |
---|---|
Operating System: | Red Hat Enterprise Linux Server 7.4 Kernel 3.10.0-693.2.2 |
Compiler: | C/C++/Fortran: Version 4.5.2.1 of x86 Open64 Compiler Suite (from AMD) |
Auto Parallel: | No |
File System: | xfs |
System State: | Run level 3 (Multi User) |
Base Pointers: | 64-bit |
Peak Pointers: | 32/64-bit |
Other Software: | None |

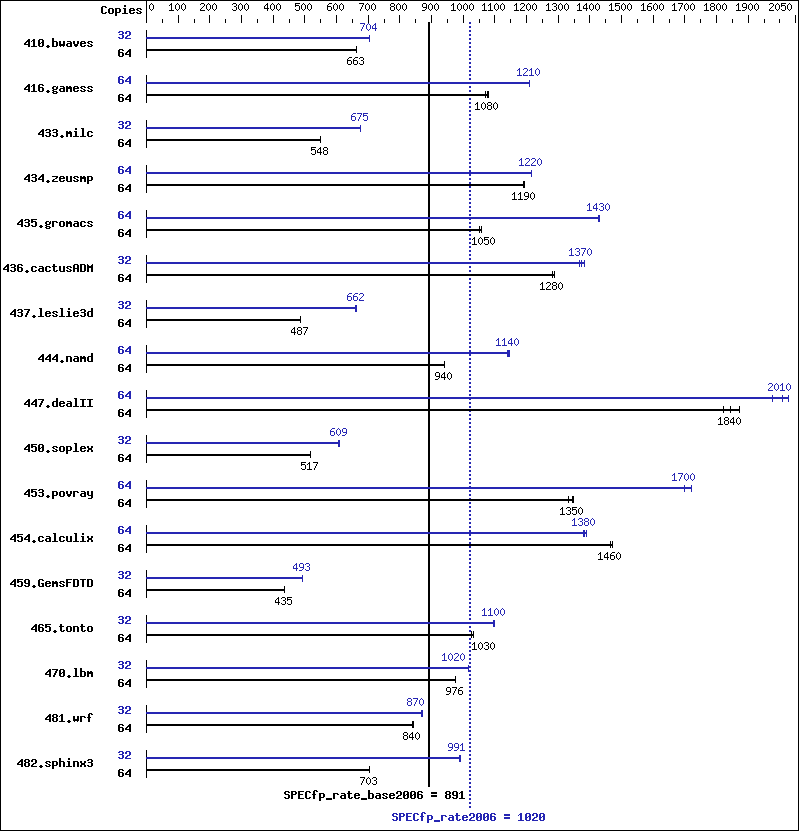

Benchmark | Base | Peak | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
410.bwaves | 64 | 1310 | 664 | 1311 | 663 | 1312 | 663 | 32 | 617 | 705 | 618 | 704 | 618 | 704 |
416.gamess | 64 | 1163 | 1080 | 1161 | 1080 | 1172 | 1070 | 64 | 1037 | 1210 | 1036 | 1210 | 1036 | 1210 |
433.milc | 64 | 1071 | 548 | 1072 | 548 | 1072 | 548 | 32 | 435 | 675 | 435 | 675 | 435 | 676 |
434.zeusmp | 64 | 489 | 1190 | 489 | 1190 | 488 | 1190 | 64 | 479 | 1220 | 480 | 1210 | 479 | 1220 |
435.gromacs | 64 | 432 | 1060 | 435 | 1050 | 435 | 1050 | 64 | 319 | 1430 | 319 | 1430 | 320 | 1430 |
436.cactusADM | 64 | 596 | 1280 | 596 | 1280 | 594 | 1290 | 32 | 280 | 1370 | 276 | 1380 | 278 | 1370 |
437.leslie3d | 64 | 1234 | 488 | 1236 | 487 | 1236 | 487 | 32 | 456 | 660 | 454 | 663 | 454 | 662 |
444.namd | 64 | 546 | 940 | 546 | 939 | 546 | 940 | 64 | 451 | 1140 | 447 | 1150 | 449 | 1140 |
447.dealII | 64 | 391 | 1870 | 402 | 1820 | 397 | 1840 | 64 | 361 | 2030 | 371 | 1980 | 365 | 2010 |
450.soplex | 64 | 1030 | 518 | 1032 | 517 | 1032 | 517 | 32 | 439 | 609 | 438 | 610 | 439 | 608 |
453.povray | 64 | 253 | 1350 | 252 | 1350 | 256 | 1330 | 64 | 200 | 1700 | 198 | 1720 | 200 | 1700 |
454.calculix | 64 | 360 | 1460 | 360 | 1460 | 359 | 1470 | 64 | 381 | 1380 | 382 | 1380 | 380 | 1390 |
459.GemsFDTD | 64 | 1561 | 435 | 1561 | 435 | 1561 | 435 | 32 | 687 | 494 | 689 | 493 | 688 | 493 |
465.tonto | 64 | 614 | 1020 | 611 | 1030 | 614 | 1030 | 32 | 288 | 1090 | 287 | 1100 | 286 | 1100 |
470.lbm | 64 | 901 | 976 | 902 | 975 | 900 | 977 | 32 | 432 | 1020 | 433 | 1020 | 432 | 1020 |
481.wrf | 64 | 850 | 841 | 852 | 839 | 851 | 840 | 32 | 410 | 872 | 412 | 867 | 411 | 870 |
482.sphinx3 | 64 | 1775 | 703 | 1775 | 703 | 1775 | 703 | 32 | 631 | 988 | 628 | 993 | 629 | 991 |
The config file option 'submit' was used. 'numactl' was used to bind copies to the cores. See the configuration file for details.
'ulimit -s unlimited' was used to set environment stack size 'ulimit -l 2097152' was used to set environment locked pages in memory limit runspec command invoked through numactl i.e.: numactl --interleave=all runspec <etc> Set dirty_ratio=8 to limit dirty cache to 8% of memory Set swappiness=1 to swap only if necessary Set zone_reclaim_mode=1 to free local node memory and avoid remote memory sync then drop_caches=3 to reset caches before invoking runcpu Transparent huge pages were enabled for this run (OS default) Set vm/nr_hugepages=57344 in /etc/sysctl.conf mount -t hugetlbfs nodev /mnt/hugepages
BIOS settings: Determinism Slider = Power cTDP Control = Manual cTDP = 200
Environment variables set by runspec before the start of the run: HUGETLB_LIMIT = "896" LD_LIBRARY_PATH = "/home/cpu2006/amd1603-rate-libs-revB/32:/home/cpu2006/amd1603-rate-libs-revB/64" The binaries were built with the AMD supported x86 Open64 Compiler Suite, which is only available from AMD at http://developer.amd.com/tools-and-sdks/cpu-development/x86-open64-compiler-suite/ Binaries were compiled on a system with 2 x AMD Opteron 6378 chips + 128 GB Memory using RHEL 6.3
opencc |
openCC |
openf95 |
opencc openf95 |
410.bwaves: | -DSPEC_CPU_LP64 |
416.gamess: | -DSPEC_CPU_LP64 |
433.milc: | -DSPEC_CPU_LP64 |
434.zeusmp: | -DSPEC_CPU_LP64 |
435.gromacs: | -DSPEC_CPU_LP64 |
436.cactusADM: | -DSPEC_CPU_LP64 -fno-second-underscore |
437.leslie3d: | -DSPEC_CPU_LP64 |
444.namd: | -DSPEC_CPU_LP64 |
447.dealII: | -DSPEC_CPU_LP64 |
450.soplex: | -DSPEC_CPU_LP64 |
453.povray: | -DSPEC_CPU_LP64 |
454.calculix: | -DSPEC_CPU_LP64 |
459.GemsFDTD: | -DSPEC_CPU_LP64 |
465.tonto: | -DSPEC_CPU_LP64 |
470.lbm: | -DSPEC_CPU_LP64 |
481.wrf: | -DSPEC_CPU_LINUX -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LP64 -fno-second-underscore |
482.sphinx3: | -DSPEC_CPU_LP64 |
-Ofast -OPT:malloc_alg=1 -HP:bd=2m:heap=2m -IPA:plimit=8000 -IPA:small_pu=100 -mso -march=bdver1 -mno-fma4 -mno-xop -mno-tbm -WB, -Wl, -z,muldefs |
-Ofast -static -CG:load_exe=0 -OPT:malloc_alg=1 -INLINE:aggressive=on -HP:bd=2m:heap=2m -D__OPEN64_FAST_SET -march=bdver2 -mno-fma4 -mno-xop -mno-tbm -WB, -Wl, -z,muldefs |
-Ofast -LNO:blocking=off -LNO:simd_peel_align=on -OPT:rsqrt=2 -OPT:unroll_size=256 -HP:bd=2m:heap=2m -mso -march=bdver1 -mno-fma4 -mno-xop -mno-tbm -WB, -Wl, -z,muldefs |
opencc |
openCC |
openf95 |
opencc openf95 |
410.bwaves: | -DSPEC_CPU_LP64 |
416.gamess: | -DSPEC_CPU_LP64 |
433.milc: | -DSPEC_CPU_LP64 |
434.zeusmp: | -DSPEC_CPU_LP64 |
435.gromacs: | -DSPEC_CPU_LP64 |
436.cactusADM: | -DSPEC_CPU_LP64 -fno-second-underscore |
437.leslie3d: | -DSPEC_CPU_LP64 |
444.namd: | -DSPEC_CPU_LP64 |
453.povray: | -DSPEC_CPU_LP64 |
454.calculix: | -DSPEC_CPU_LP64 |
459.GemsFDTD: | -DSPEC_CPU_LP64 |
465.tonto: | -DSPEC_CPU_LP64 |
470.lbm: | -DSPEC_CPU_LP64 |
481.wrf: | -DSPEC_CPU_LINUX -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LP64 -fno-second-underscore |
