| CPU2006 license: | 9017 | Test date: | Aug-2017 |
|---|---|---|---|
| Test sponsor: | Lenovo Global Technology | Hardware Availability: | Sep-2017 |
| Tested by: | Lenovo Global Technology | Software Availability: | Apr-2017 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon Platinum 8160T |
| CPU Characteristics: | Intel Turbo Boost Technology up to 3.70 GHz |
| CPU MHz: | 2100 |
| FPU: | Integrated |
| CPU(s) enabled: | 192 cores, 8 chips, 24 cores/chip, 2 threads/core |
| CPU(s) orderable: | 2,4,8 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 1 MB I+D on chip per core |
| L3 Cache: | 33 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 3 TB (96 x 32 GB 2Rx4 PC4-2666V-R) |
| Disk Subsystem: | 800 GB tmpfs |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SUSE Linux Enterprise Server 12 SP2 (x86_64) Kernel 4.4.21-69-default |
| Compiler: | C/C++: Version 17.0.3.191 of Intel C/C++ Compiler for Linux; Fortran: Version 17.0.3.191 of Intel Fortran Compiler for Linux |
| Auto Parallel: | Yes |
| File System: | tmpfs |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 32/64-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | None |

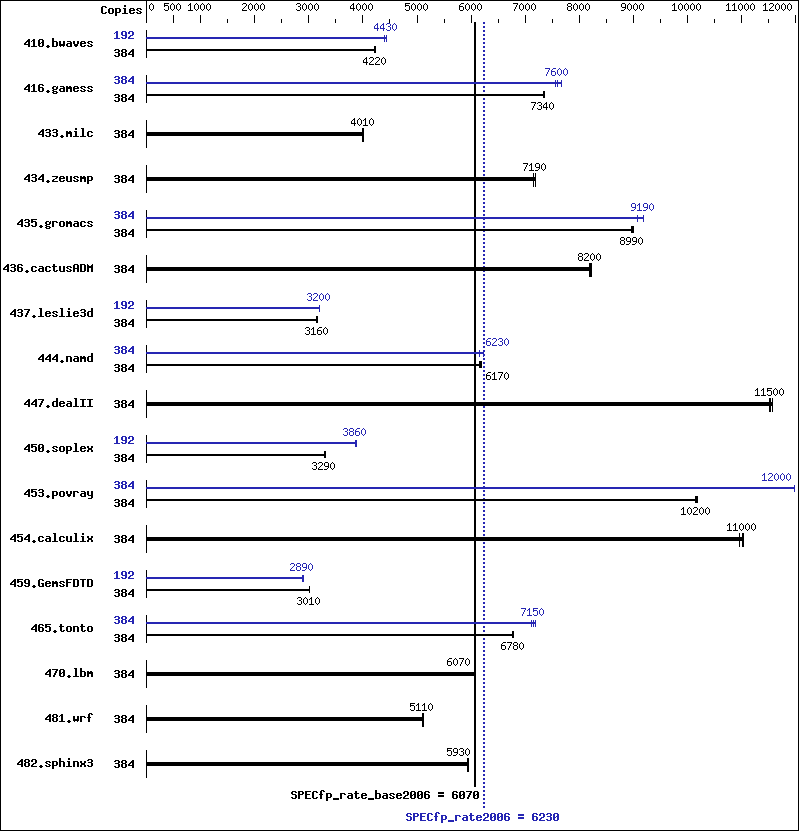

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 410.bwaves | 384 | 1232 | 4240 | 1237 | 4220 | 1235 | 4220 | 192 | 589 | 4430 | 589 | 4430 | 592 | 4400 |
| 416.gamess | 384 | 1023 | 7350 | 1024 | 7340 | 1025 | 7340 | 384 | 980 | 7670 | 994 | 7570 | 990 | 7600 |
| 433.milc | 384 | 882 | 4000 | 880 | 4010 | 880 | 4010 | 384 | 882 | 4000 | 880 | 4010 | 880 | 4010 |
| 434.zeusmp | 384 | 486 | 7190 | 488 | 7160 | 486 | 7190 | 384 | 486 | 7190 | 488 | 7160 | 486 | 7190 |
| 435.gromacs | 384 | 306 | 8960 | 305 | 8990 | 305 | 8990 | 384 | 302 | 9080 | 298 | 9190 | 298 | 9190 |
| 436.cactusADM | 384 | 560 | 8190 | 559 | 8200 | 558 | 8220 | 384 | 560 | 8190 | 559 | 8200 | 558 | 8220 |
| 437.leslie3d | 384 | 1144 | 3160 | 1146 | 3150 | 1144 | 3160 | 192 | 563 | 3200 | 565 | 3190 | 565 | 3200 |
| 444.namd | 384 | 499 | 6170 | 501 | 6150 | 497 | 6190 | 384 | 500 | 6160 | 494 | 6240 | 494 | 6230 |
| 447.dealII | 384 | 382 | 11500 | 381 | 11500 | 380 | 11600 | 384 | 382 | 11500 | 381 | 11500 | 380 | 11600 |
| 450.soplex | 384 | 974 | 3290 | 973 | 3290 | 968 | 3310 | 192 | 415 | 3860 | 415 | 3860 | 413 | 3880 |
| 453.povray | 384 | 201 | 10200 | 201 | 10200 | 201 | 10200 | 384 | 171 | 12000 | 171 | 12000 | 171 | 12000 |
| 454.calculix | 384 | 287 | 11000 | 288 | 11000 | 289 | 11000 | 384 | 287 | 11000 | 288 | 11000 | 289 | 11000 |
| 459.GemsFDTD | 384 | 1352 | 3010 | 1352 | 3010 | 1352 | 3010 | 192 | 706 | 2890 | 705 | 2890 | 704 | 2900 |
| 465.tonto | 384 | 559 | 6760 | 557 | 6780 | 557 | 6790 | 384 | 531 | 7120 | 525 | 7200 | 528 | 7150 |
| 470.lbm | 384 | 869 | 6070 | 869 | 6070 | 871 | 6050 | 384 | 869 | 6070 | 869 | 6070 | 871 | 6050 |
| 481.wrf | 384 | 840 | 5110 | 841 | 5100 | 838 | 5120 | 384 | 840 | 5110 | 841 | 5100 | 838 | 5120 |
| 482.sphinx3 | 384 | 1263 | 5920 | 1259 | 5940 | 1261 | 5930 | 384 | 1263 | 5920 | 1259 | 5940 | 1261 | 5930 |
Submit Notes
The numactl mechanism was used to bind copies to processors. The config file option 'submit' was used to generate numactl commands to bind each copy to a specific processor. For details, please see the config file.
Operating System Notes
Stack size set to unlimited using "ulimit -s unlimited" Tmpfs filesystem can be set with: mount -t tmpfs -o size=800g tmpfs /home Process tuning setting: echo 50000 > /proc/sys/kernel/sched_cfs_bandwidth_slice_us echo 240000000 > /proc/sys/kernel/sched_latency_ns echo 5000000 > /proc/sys/kernel/sched_migration_cost_ns echo 100000000 > /proc/sys/kernel/sched_min_granularity_ns echo 150000000 > /proc/sys/kernel/sched_wakeup_granularity_ns
Platform Notes
BIOS configuration: Choose Operating Mode set to Maximum Performance SNC set to Enable DCU Streamer Prefetcher set to Disable Stale AtoS set to Enable LLC dead line alloc set to Disable Sysinfo program /home/cpu2006-1.2-ic17.0u3/config/sysinfo.rev6993 Revision 6993 of 2015-11-06 (b5e8d4b4eb51ed28d7f98696cbe290c1) running on Proton8S-SUSE12SP2 Sun Aug 20 05:05:32 2017 This section contains SUT (System Under Test) info as seen by some common utilities. To remove or add to this section, see: http://www.spec.org/cpu2006/Docs/config.html#sysinfo From /proc/cpuinfo model name : Intel(R) Xeon(R) Platinum 8160T CPU @ 2.10GHz 8 "physical id"s (chips) 384 "processors" cores, siblings (Caution: counting these is hw and system dependent. The following excerpts from /proc/cpuinfo might not be reliable. Use with caution.) cpu cores : 24 siblings : 48 physical 0: cores 0 1 2 3 4 5 8 9 10 11 12 13 16 17 18 19 20 21 24 25 26 27 28 29 physical 1: cores 0 1 2 3 4 5 8 9 10 11 12 13 16 17 18 19 20 21 24 25 26 27 28 29 physical 2: cores 0 1 2 3 4 5 8 9 10 11 12 13 16 17 18 19 20 21 24 25 26 27 28 29 physical 3: cores 0 1 2 3 4 5 8 9 10 11 12 13 16 17 18 19 20 21 24 25 26 27 28 29 physical 4: cores 0 1 2 3 4 5 8 9 10 11 12 13 16 17 18 19 20 21 24 25 26 27 28 29 physical 5: cores 0 1 2 3 4 5 8 9 10 11 12 13 16 17 18 19 20 21 24 25 26 27 28 29 physical 6: cores 0 1 2 3 4 5 8 9 10 11 12 13 16 17 18 19 20 21 24 25 26 27 28 29 physical 7: cores 0 1 2 3 4 5 8 9 10 11 12 13 16 17 18 19 20 21 24 25 26 27 28 29 cache size : 33792 KB From /proc/meminfo MemTotal: 3170207836 kB HugePages_Total: 0 Hugepagesize: 2048 kB From /etc/*release* /etc/*version* SuSE-release: SUSE Linux Enterprise Server 12 (x86_64) VERSION = 12 PATCHLEVEL = 2 # This file is deprecated and will be removed in a future service pack or release. # Please check /etc/os-release for details about this release. os-release: NAME="SLES" VERSION="12-SP2" VERSION_ID="12.2" PRETTY_NAME="SUSE Linux Enterprise Server 12 SP2" ID="sles" ANSI_COLOR="0;32" CPE_NAME="cpe:/o:suse:sles:12:sp2" uname -a: Linux Proton8S-SUSE12SP2 4.4.21-69-default #1 SMP Tue Oct 25 10:58:20 UTC 2016 (9464f67) x86_64 x86_64 x86_64 GNU/Linux run-level 3 Aug 20 05:02 SPEC is set to: /home/cpu2006-1.2-ic17.0u3 Filesystem Type Size Used Avail Use% Mounted on tmpfs tmpfs 800G 3.7G 797G 1% /home Additional information from dmidecode: Warning: Use caution when you interpret this section. The 'dmidecode' program reads system data which is "intended to allow hardware to be accurately determined", but the intent may not be met, as there are frequent changes to hardware, firmware, and the "DMTF SMBIOS" standard. BIOS Lenovo -[PSE105L-1.00]- 06/22/2017 Memory: 96x Samsung M393A4K40BB2-CTD 32 GB 2 rank 2666 MHz (End of data from sysinfo program)
General Notes
Environment variables set by runspec before the start of the run: LD_LIBRARY_PATH = "/home/cpu2006-1.2-ic17.0u3/lib/ia32:/home/cpu2006-1.2-ic17.0u3/lib/intel64:/home/cpu2006-1.2-ic17.0u3/sh10.2" Binaries compiled on a system with 1x Intel Core i7-4790 CPU + 32GB RAM memory using Redhat Enterprise Linux 7.2 Transparent Huge Pages enabled by default Filesystem page cache cleared with: shell invocation of 'sync; echo 3 > /proc/sys/vm/drop_caches' prior to run runspec command invoked through numactl i.e.: numactl --interleave=all runspec <etc>
Base Compiler Invocation
C benchmarks:
| icc -m64 |
C++ benchmarks:
| icpc -m64 |
Fortran benchmarks:
| ifort -m64 |
Benchmarks using both Fortran and C:
| icc -m64 ifort -m64 |
Base Portability Flags
| 410.bwaves: | -DSPEC_CPU_LP64 |
| 416.gamess: | -DSPEC_CPU_LP64 |
| 433.milc: | -DSPEC_CPU_LP64 |
| 434.zeusmp: | -DSPEC_CPU_LP64 |
| 435.gromacs: | -DSPEC_CPU_LP64 -nofor_main |
| 436.cactusADM: | -DSPEC_CPU_LP64 -nofor_main |
| 437.leslie3d: | -DSPEC_CPU_LP64 |
| 444.namd: | -DSPEC_CPU_LP64 |
| 447.dealII: | -DSPEC_CPU_LP64 |
| 450.soplex: | -DSPEC_CPU_LP64 |
| 453.povray: | -DSPEC_CPU_LP64 |
| 454.calculix: | -DSPEC_CPU_LP64 -nofor_main |
| 459.GemsFDTD: | -DSPEC_CPU_LP64 |
| 465.tonto: | -DSPEC_CPU_LP64 |
| 470.lbm: | -DSPEC_CPU_LP64 |
| 481.wrf: | -DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX |
| 482.sphinx3: | -DSPEC_CPU_LP64 |
Base Optimization Flags
C benchmarks:
| -xCORE-AVX2 -ipo -O3 -no-prec-div -qopt-prefetch -auto-p32 -qopt-mem-layout-trans=3 |
C++ benchmarks:
| -xCORE-AVX2 -ipo -O3 -no-prec-div -qopt-prefetch -auto-p32 -qopt-mem-layout-trans=3 |
Fortran benchmarks:
| -xCORE-AVX2 -ipo -O3 -no-prec-div -qopt-prefetch |
Benchmarks using both Fortran and C:
| -xCORE-AVX2 -ipo -O3 -no-prec-div -qopt-prefetch -auto-p32 -qopt-mem-layout-trans=3 |
Peak Compiler Invocation
C benchmarks:
| icc -m64 |
C++ benchmarks (except as noted below):
| icpc -m64 | |
| 450.soplex: | icpc -m32 -L/opt/intel/compilers_and_libraries_2017/linux/lib/ia32 |
Fortran benchmarks:
| ifort -m64 |
Benchmarks using both Fortran and C:
| icc -m64 ifort -m64 |
Peak Portability Flags
| 410.bwaves: | -DSPEC_CPU_LP64 |
| 416.gamess: | -DSPEC_CPU_LP64 |
| 433.milc: | -DSPEC_CPU_LP64 |
| 434.zeusmp: | -DSPEC_CPU_LP64 |
| 435.gromacs: | -DSPEC_CPU_LP64 -nofor_main |
| 436.cactusADM: | -DSPEC_CPU_LP64 -nofor_main |
| 437.leslie3d: | -DSPEC_CPU_LP64 |
| 444.namd: | -DSPEC_CPU_LP64 |
| 447.dealII: | -DSPEC_CPU_LP64 |
| 450.soplex: | -D_FILE_OFFSET_BITS=64 |
| 453.povray: | -DSPEC_CPU_LP64 |
| 454.calculix: | -DSPEC_CPU_LP64 -nofor_main |
| 459.GemsFDTD: | -DSPEC_CPU_LP64 |
| 465.tonto: | -DSPEC_CPU_LP64 |
| 470.lbm: | -DSPEC_CPU_LP64 |
| 481.wrf: | -DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX |
| 482.sphinx3: | -DSPEC_CPU_LP64 |
Peak Optimization Flags
C benchmarks:
| 433.milc: | basepeak = yes |
| 470.lbm: | basepeak = yes |
| 482.sphinx3: | basepeak = yes |
C++ benchmarks:
| 444.namd: | -prof-gen(pass 1) -prof-use(pass 2) -xCORE-AVX2(pass 2) -par-num-threads=1(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -fno-alias -auto-ilp32 -qopt-mem-layout-trans=3 |
| 447.dealII: | basepeak = yes |
| 450.soplex: | -prof-gen(pass 1) -prof-use(pass 2) -xCORE-AVX2(pass 2) -par-num-threads=1(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -qopt-malloc-options=3 -qopt-mem-layout-trans=3 |
| 453.povray: | -prof-gen(pass 1) -prof-use(pass 2) -xCORE-AVX2(pass 2) -par-num-threads=1(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -unroll4 -qopt-mem-layout-trans=3 |
Fortran benchmarks:
| 410.bwaves: | -xCORE-AVX2 -ipo -O3 -no-prec-div -qopt-prefetch |
| 416.gamess: | -prof-gen(pass 1) -prof-use(pass 2) -xCORE-AVX2(pass 2) -par-num-threads=1(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -unroll2 -inline-level=0 -scalar-rep- |
| 434.zeusmp: | basepeak = yes |
| 437.leslie3d: | Same as 410.bwaves |
| 459.GemsFDTD: | Same as 410.bwaves |
| 465.tonto: | -prof-gen(pass 1) -prof-use(pass 2) -xCORE-AVX2(pass 2) -par-num-threads=1(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -unroll4 -auto -inline-calloc -qopt-malloc-options=3 |
Benchmarks using both Fortran and C:
| 435.gromacs: | -prof-gen(pass 1) -prof-use(pass 2) -xCORE-AVX2(pass 2) -par-num-threads=1(pass 1) -qopt-prefetch -auto-ilp32 -qopt-mem-layout-trans=3 |
| 436.cactusADM: | basepeak = yes |
| 454.calculix: | basepeak = yes |
| 481.wrf: | basepeak = yes |
