SPEC® CFP2006 Result

Dell Inc.

PowerEdge C6320P (Intel Xeon Phi 7210F 1.30 GHz)

SPECfp®_rate2006 = 705

SPECfp_rate_base2006 = 681

CPU2006 license:	55	Test date:	Apr-2017
Test sponsor:	Dell Inc.	Hardware Availability:	Mar-2017
Tested by:	Dell Inc.	Software Availability:	Jan-2016

Hardware
CPU Name:	Intel Xeon Phi 7210F
CPU Characteristics:	Intel Turbo Boost Technology up to 1.50 GHz
CPU MHz:	1300
FPU:	Integrated
CPU(s) enabled:	64 cores, 1 chip, 64 cores/chip, 4 threads/core
CPU(s) orderable:	1 chip
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	1 MB I+D on chip per two cores
L3 Cache:	None
Other Cache:	None
Memory:	400 GB (6 x 64 GB 2Rx8 PC4-2400T-R, running at 2133 MHz + 8 x 2 GB 6400 MHz MCDRAM)
Disk Subsystem:	1 x 1 TB 7.2K RPM SATA
Other Hardware:	None

Software
Operating System:	CentOS Linux release 7.3.1611 (Core) 3.10.0-514.10.2.el7.x86_64
Compiler:	C/C++: Version 16.0.2.181 of Intel C++ Studio XE for Linux; Fortran: Version 16.0.2.181 of Intel Fortran Studio XE for Linux
Auto Parallel:	No
File System:	ext4
System State:	Run level 3 (multi-user)
Base Pointers:	32/64-bit
Peak Pointers:	32/64-bit
Other Software:	None

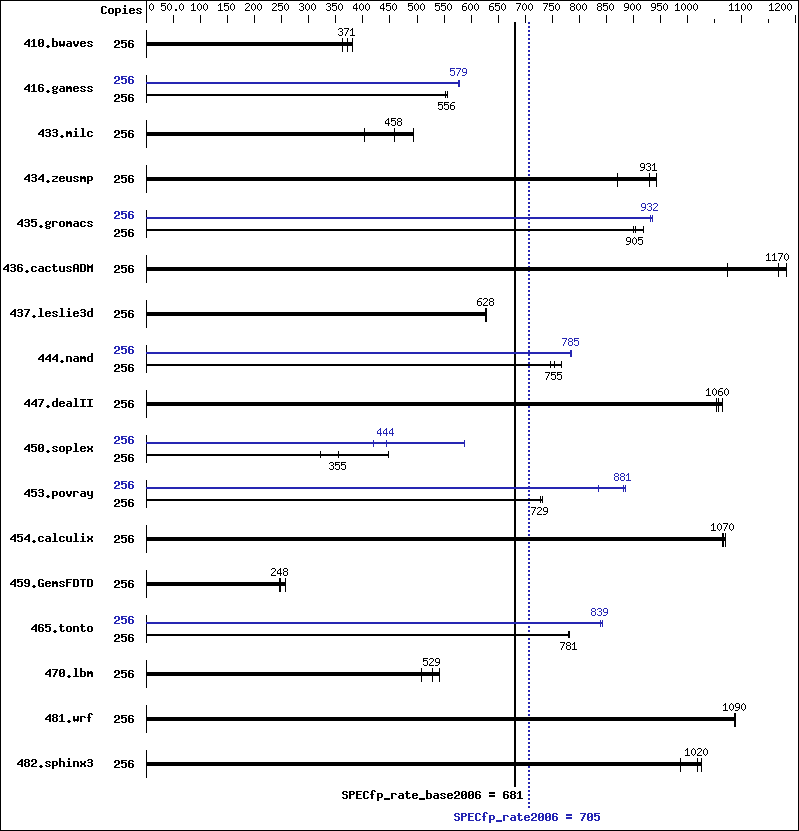

Results Table

Benchmark	Base							Peak
Benchmark	Copies	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Copies	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves	256	9594	363	9131	381	9385	371	256	9594	363	9131	381	9385	371
416.gamess	256	9069	553	9008	556	9021	556	256	8659	579	8657	579	8703	576
433.milc	256	4763	493	5127	458	5831	403	256	4763	493	5127	458	5831	403
434.zeusmp	256	2472	942	2503	931	2679	870	256	2472	942	2503	931	2679	870
435.gromacs	256	2030	901	2020	905	1990	918	256	1953	936	1960	932	1964	931
436.cactusADM	256	2620	1170	2585	1180	2850	1070	256	2620	1170	2585	1180	2850	1070
437.leslie3d	256	3824	629	3845	626	3832	628	256	3824	629	3845	626	3832	628
444.namd	256	2748	747	2719	755	2674	768	256	2619	784	2616	785	2615	785
447.dealII	256	2781	1050	2749	1070	2770	1060	256	2781	1050	2749	1070	2770	1060
450.soplex	256	6011	355	6623	322	4771	448	256	4812	444	5099	419	3634	588
453.povray	256	2005	679	1859	733	1869	729	256	1629	836	1539	885	1545	881
454.calculix	256	1974	1070	1982	1070	1984	1060	256	1974	1070	1982	1070	1984	1060
459.GemsFDTD	256	10539	258	10941	248	11042	246	256	10539	258	10941	248	11042	246
465.tonto	256	3225	781	3219	783	3227	781	256	2987	843	3005	838	3004	839
470.lbm	256	6505	541	6915	509	6646	529	256	6505	541	6915	509	6646	529
481.wrf	256	2627	1090	2626	1090	2631	1090	256	2627	1090	2626	1090	2631	1090
482.sphinx3	256	5056	987	4862	1030	4897	1020	256	5056	987	4862	1030	4897	1020

Submit Notes

 The numactl mechanism was used to bind copies to processors. The config file option 'submit'
 was used to generate numactl commands to bind each copy to a specific processor.
 For details, please see the config file.

Operating System Notes

 Stack size set to unlimited using "ulimit -s unlimited"

Platform Notes

 Sysinfo program /root/cpu2006-1.2/config/sysinfo.rev6914
 $Rev: 6914 $ $Date:: 2014-06-25 #$ e3fbb8667b5a285932ceab81e28219e1
 running on localhost.localdomain Mon Apr 17 15:51:38 2017

 This section contains SUT (System Under Test) info as seen by
 some common utilities.  To remove or add to this section, see:
   http://www.spec.org/cpu2006/Docs/config.html#sysinfo

 From /proc/cpuinfo
    model name : Intel(R) Genuine Intel(R) CPU 0000 @ 1.30GHz
       1 "physical id"s (chips)
       256 "processors"
    cores, siblings (Caution: counting these is hw and system dependent.  The
    following excerpts from /proc/cpuinfo might not be reliable.  Use with
    caution.)
       cpu cores : 64
       siblings  : 256
       physical 0: cores 0 1 10 11 12 13 14 15 18 19 20 21 22 23 24 25 26 27 28
       29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53
       56 57 58 59 60 61 62 63 64 65 68 69 70 71 72 73
    cache size : 1024 KB

 From /proc/meminfo
    MemTotal:       395950384 kB
    HugePages_Total:       0
    Hugepagesize:       2048 kB

 From /etc/*release* /etc/*version*
    centos-release: CentOS Linux release 7.3.1611 (Core)
    centos-release-upstream: Derived from Red Hat Enterprise Linux 7.3 (Source)
    os-release:
       NAME="CentOS Linux"
       VERSION="7 (Core)"
       ID="centos"
       ID_LIKE="rhel fedora"
       VERSION_ID="7"
       PRETTY_NAME="CentOS Linux 7 (Core)"
       ANSI_COLOR="0;31"
       CPE_NAME="cpe:/o:centos:centos:7"
    redhat-release: CentOS Linux release 7.3.1611 (Core)
    system-release: CentOS Linux release 7.3.1611 (Core)
    system-release-cpe: cpe:/o:centos:centos:7

 uname -a:
    Linux localhost.localdomain 3.10.0-514.10.2.el7.x86_64 #1 SMP Fri Mar 3
    00:04:05 UTC 2017 x86_64 x86_64 x86_64 GNU/Linux

 run-level 3 Apr 14 11:54

 SPEC is set to: /root/cpu2006-1.2
    Filesystem     Type  Size  Used Avail Use% Mounted on
    /dev/sda1      ext4  847G  495G  309G  62% /
 Additional information from dmidecode:

    Warning: Use caution when you interpret this section. The 'dmidecode' program
    reads system data which is "intended to allow hardware to be accurately
    determined", but the intent may not be met, as there are frequent changes to
    hardware, firmware, and the "DMTF SMBIOS" standard.

   BIOS Dell Inc. 1.2.0 04/13/2017
   Memory:
    8x INTEL N/A 2 GB 6400 MHz
    6x Samsung M386A8K40BMB-CRC 64 GB 4 rank 2400 MHz, configured at 2133 MHz

 (End of data from sysinfo program)

General Notes

Environment variables set by runspec before the start of the run:
LD_LIBRARY_PATH = "/root/cpu2006-1.2/libs/32:/root/cpu2006-1.2/libs/64:/root/cpu2006-1.2/sh"

 Binaries compiled on a system with
 Intel 2nd Generation Xeon Phi CPU
 + 96GB DDR4 RAM memory using RedHat EL 7.2
 Filesystem page cache cleared with:
 echo 1>       /proc/sys/vm/drop_caches
 runspec command invoked through numactl i.e.:
 numactl --interleave=all runspec <etc>

Base Compiler Invocation

C benchmarks:

icc -m64

C++ benchmarks:

icpc -m64

Fortran benchmarks:

ifort -m64

Benchmarks using both Fortran and C:

icc -m64 ifort -m64

Base Portability Flags

410.bwaves:	-DSPEC_CPU_LP64
416.gamess:	-DSPEC_CPU_LP64
433.milc:	-DSPEC_CPU_LP64
434.zeusmp:	-DSPEC_CPU_LP64
435.gromacs:	-DSPEC_CPU_LP64 -nofor_main
436.cactusADM:	-DSPEC_CPU_LP64 -nofor_main
437.leslie3d:	-DSPEC_CPU_LP64
444.namd:	-DSPEC_CPU_LP64
447.dealII:	-DSPEC_CPU_LP64
450.soplex:	-DSPEC_CPU_LP64
453.povray:	-DSPEC_CPU_LP64
454.calculix:	-DSPEC_CPU_LP64 -nofor_main
459.GemsFDTD:	-DSPEC_CPU_LP64
465.tonto:	-DSPEC_CPU_LP64
470.lbm:	-DSPEC_CPU_LP64
481.wrf:	-DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX
482.sphinx3:	-DSPEC_CPU_LP64

Peak Compiler Invocation

C benchmarks:

icc -m64

C++ benchmarks (except as noted below):

	icpc -m64
450.soplex:	icpc -m32 -L/opt/intel/compilers_and_libraries_2016/linux/compiler/lib/ia32_lin

Fortran benchmarks:

ifort -m64

Benchmarks using both Fortran and C:

icc -m64 ifort -m64

Peak Portability Flags

410.bwaves:	-DSPEC_CPU_LP64
416.gamess:	-DSPEC_CPU_LP64
433.milc:	-DSPEC_CPU_LP64
434.zeusmp:	-DSPEC_CPU_LP64
435.gromacs:	-DSPEC_CPU_LP64 -nofor_main
436.cactusADM:	-DSPEC_CPU_LP64 -nofor_main
437.leslie3d:	-DSPEC_CPU_LP64
444.namd:	-DSPEC_CPU_LP64
447.dealII:	-DSPEC_CPU_LP64
450.soplex:	-D_FILE_OFFSET_BITS=64
453.povray:	-DSPEC_CPU_LP64
454.calculix:	-DSPEC_CPU_LP64 -nofor_main
459.GemsFDTD:	-DSPEC_CPU_LP64
465.tonto:	-DSPEC_CPU_LP64
470.lbm:	-DSPEC_CPU_LP64
481.wrf:	-DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX
482.sphinx3:	-DSPEC_CPU_LP64

Peak Optimization Flags

C benchmarks:

433.milc:	basepeak = yes
470.lbm:	basepeak = yes
482.sphinx3:	basepeak = yes

C++ benchmarks:

444.namd:	-xMIC-AVX512 -ipo -O3 -no-prec-div -prof-gen(pass 1) -prof-use(pass 2) -par-num-threads=1(pass 1) -fno-alias -auto-ilp32
447.dealII:	basepeak = yes
450.soplex:	-xMIC-AVX512 -ipo -O3 -no-prec-div -prof-gen(pass 1) -prof-use(pass 2) -par-num-threads=1(pass 1) -opt-malloc-options=3
453.povray:	-xMIC-AVX512 -ipo -O3 -no-prec-div -prof-gen(pass 1) -prof-use(pass 2) -par-num-threads=1(pass 1) -unroll4 -ansi-alias

Fortran benchmarks:

410.bwaves:	basepeak = yes
416.gamess:	-xMIC-AVX512 -ipo -O3 -no-prec-div -prof-gen(pass 1) -par-num-threads=1(pass 1) -prof-use(pass 2) -unroll2 -inline-level=0 -scalar-rep-
434.zeusmp:	basepeak = yes
437.leslie3d:	basepeak = yes
459.GemsFDTD:	basepeak = yes
465.tonto:	-xMIC-AVX512 -ipo -O3 -no-prec-div -prof-gen(pass 1) -par-num-threads=1(pass 1) -prof-use(pass 2) -unroll4 -auto -inline-calloc -opt-malloc-options=3

Benchmarks using both Fortran and C:

435.gromacs:	-xMIC-AVX512 -ipo -O3 -no-prec-div -prof-gen(pass 1) -prof-use(pass 2) -par-num-threads=1(pass 1) -opt-prefetch -auto-ilp32
436.cactusADM:	basepeak = yes
454.calculix:	basepeak = yes
481.wrf:	basepeak = yes

The flags files that were used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Intel-ic16.0-official-linux64-revB.html,
http://www.spec.org/cpu2006/flags/Default-Platform-Flags.html.

You can also download the XML flags sources by saving the following links:
http://www.spec.org/cpu2006/flags/Intel-ic16.0-official-linux64-revB.xml,
http://www.spec.org/cpu2006/flags/Default-Platform-Flags.xml.
