SPEC® CFP2006 Result

Copyright 2006-2017 Standard Performance Evaluation Corporation

Fujitsu

Fujitsu SPARC M12-2S

CPU2006 license: 19 Test date: Mar-2017
Test sponsor: Fujitsu Hardware Availability: Apr-2017
Tested by: Fujitsu Software Availability: Jul-2017

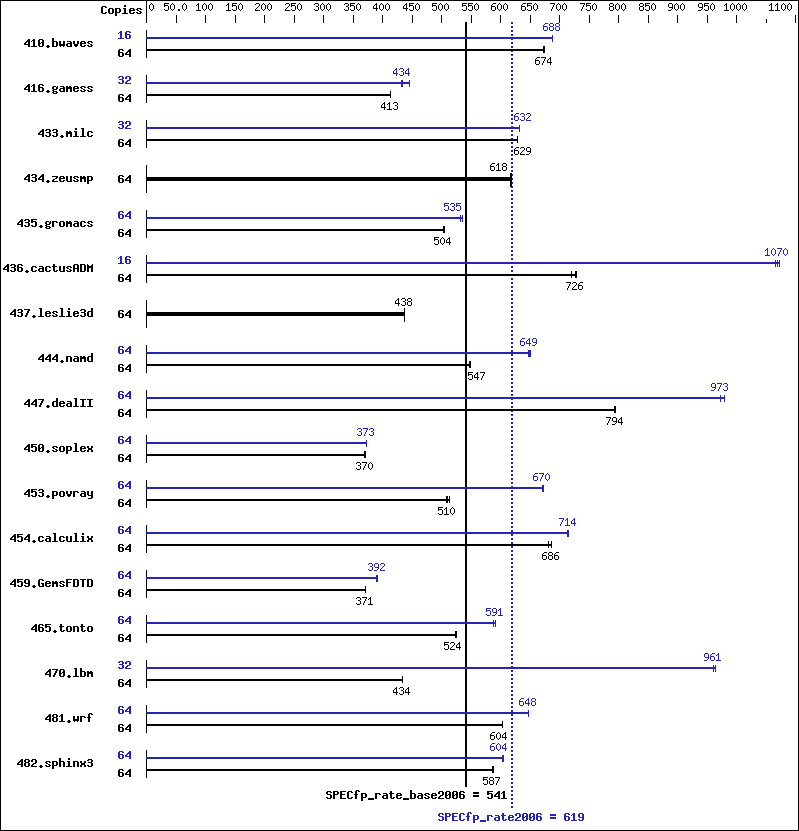

Benchmark results graph
Hardware
CPU Name: SPARC64 XII
CPU Characteristics: High Speed Mode up to 4.35 GHz
CPU MHz: 4250
FPU: Integrated
CPU(s) enabled: 8 cores, 1 chip, 8 cores/chip, 8 threads/core
CPU(s) orderable: 1 to 16 BBs; each BB contains 1 or 2 CPU chips;
the number of orderable total cores is 2, 3, 4,
.. 384
Primary Cache: 64 KB I + 64 KB D on chip per core
Secondary Cache: 512 KB I+D on chip per core
L3 Cache: 32 MB I+D on chip per chip
Other Cache: None
Memory: 512 GB (16 x 32 GB 2Rx4 PC4-2400T-R)
Disk Subsystem: 1 x 600 GB 10K RPM SAS (for system disk)
Other Hardware: None
Software
Operating System: Oracle Solaris 11.3 (with June 2017 SRU)
Compiler: C/C++/Fortran: Version 12.6 of Oracle Developer
Studio
Auto Parallel: No
File System: tmpfs
System State: Default
Base Pointers: 32-bit
Peak Pointers: 32-bit
Other Software: None

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 64 1290 674 1291 674 1292 673 16 316 688 316 688 316 688
416.gamess 64 3035 413 3037 413 3034 413 32 1405 446 1451 432 1443 434
433.milc 64 934 629 934 629 934 629 32 465 632 465 632 465 632
434.zeusmp 64 942 618 942 618 944 617 64 942 618 942 618 944 617
435.gromacs 64 904 506 907 504 908 503 64 859 532 853 536 854 535
436.cactusADM 64 1062 720 1053 726 1051 728 16 179 1070 178 1070 180 1060
437.leslie3d 64 1374 438 1376 437 1375 438 64 1374 438 1376 437 1375 438
444.namd 64 939 547 936 548 939 547 64 794 647 791 649 789 651
447.dealII 64 923 793 922 794 922 794 64 752 973 748 979 753 972
450.soplex 64 1443 370 1441 370 1441 370 64 1431 373 1429 373 1430 373
453.povray 64 664 513 670 508 667 510 64 506 673 508 670 508 670
454.calculix 64 775 681 770 686 769 687 64 739 714 739 714 739 714
459.GemsFDTD 64 1830 371 1832 371 1831 371 64 1733 392 1741 390 1732 392
465.tonto 64 1201 524 1199 525 1201 524 64 1065 591 1065 591 1072 587
470.lbm 64 2028 434 2026 434 2028 434 32 456 965 458 961 458 961
481.wrf 64 1185 603 1184 604 1185 604 64 1104 648 1103 648 1103 648
482.sphinx3 64 2126 587 2123 588 2126 587 64 2063 605 2066 604 2070 603

Submit Notes

 Processes were assigned to specific processors using 'pbind' commands.
 The config file option 'submit' was used, along with a list of
 processors in the 'BIND' variable, to generate the pbind commands.
 (For details, please see the config file.)

Operating System Notes

 Shell Environments:
    ulimit -s 131072 was used to limit the space consumed by the stack
    (and therefore make more space available to the heap).

    The "Logical Domains Manager" service was turned off using the command "svcadm disable ldmd".

 System Tunables:
 (/etc/system parameters)
    autoup = 86400
       Causes pages older than the listed number of seconds to be written by fsflush.
    doiflush = 0
       Controls whether file system metadata syncs will be executed during fsflush invocations.
    dopageflush = 0
       Controls whether memory is examined for modified pages during fsflush invocations.
    zfs:zfs_arc_max=1073741824
       Determines the maximum size of the ZFS Adaptive Replacement Cache (ARC).

Platform Notes

Firmware Settings:
(XSCF operations)
   Set High Speed Mode via XSCF command "sethsmode -s on".

 Sysinfo program /export/cpu2006/config/sysinfo
 Revision 6993 of 2015-11-06 (5bc7c140478f0d042f37127effc8c1a9)
 running on H2S-258-D0 Thu Mar  2 18:15:24 2017

 This section contains SUT (System Under Test) info as seen by
 some common utilities.  To remove or add to this section, see:
   http://www.spec.org/cpu2006/Docs/config.html#sysinfo

 From /usr/sbin/psrinfo
    SPARC64-XII (chipid 0, clock 4250 MHz)
    1 chips
    64 threads
    4250 MHz

 From kstat:        8 cores

 From prtconf: 521728 Megabytes

 /etc/release:
      Oracle Solaris 11.3 SPARC
 uname -a:
    SunOS H2S-258-D0 5.11 11.3 sun4v sparc sun4v

 SPEC is set to: /export/cpu2006

 disk: df -h  /export/cpu2006
 Filesystem             Size   Used  Available Capacity  Mounted on
 rpool/export           547G   6.2G       265G     3%    /export

 (End of data from sysinfo program)

General Notes

 The Building Block (BB) is just a Fujitsu SPARC M12-2S that is the basic
 unit to be expanded as if stacking up children's blocks.

 File System:
  tmpfs: output_root was used to put run directories in /tmp/cpu2006
  zfs: operating system

 SPEC CPU2006 benchmark:
  Updated with runspec --update

Base Compiler Invocation

C benchmarks:

 cc

C++ benchmarks:

 CC

Fortran benchmarks:

 f90

Benchmarks using both Fortran and C:

 cc   f90

Base Portability Flags

447.dealII:  -DBOOST_NO_COMPILER_CONFIG

Base Optimization Flags

C benchmarks:

 -std=c99   -m32   -fast   -xtarget=sparc64xii   -xipo=2   -xpagesize=4M   -xsegment_align=4M   -xthroughput   -xalias_level=std   -xprefetch_level=2

C++ benchmarks:

 -m32   -fast   -xtarget=sparc64xii   -xipo=2   -xpagesize=4M   -xsegment_align=4M   -xthroughput   -xalias_level=compatible   -library=stlport4

Fortran benchmarks:

 -m32   -fast   -xtarget=sparc64xii   -xipo=2   -xpagesize=4M   -xsegment_align=4M   -xthroughput   -xvector=no%lib

Benchmarks using both Fortran and C:

 -std=c99   -m32   -fast(cc)   -fast(f95)   -xtarget=sparc64xii   -xipo=2   -xpagesize=4M   -xsegment_align=4M   -xthroughput   -xalias_level=std   -xprefetch_level=2   -xvector=no%lib

Base Other Flags

C benchmarks:

 -xjobs=8

C++ benchmarks:

 -xjobs=8

Fortran benchmarks:

 -xjobs=8

Benchmarks using both Fortran and C:

 -xjobs=8

Peak Compiler Invocation

C benchmarks:

 cc

C++ benchmarks:

 CC

Fortran benchmarks:

 f90

Benchmarks using both Fortran and C:

 cc   f90

Peak Portability Flags

447.dealII:  -DBOOST_NO_COMPILER_CONFIG

Peak Optimization Flags

C benchmarks:

433.milc:  -std=c99   -m32   -fast   -xtarget=sparc64xii   -xpagesize=4M   -xsegment_align=4M   -xthroughput   -xipo=2   -xalias_level=std   -fsimple=1   -W2,-Ainline:rs=400   -Qoption cg -Qms_pipe+alldoall   -W2,-Asac   -xthroughput=no
470.lbm:  -std=c99   -m32   -fast   -xtarget=sparc64xii   -xpagesize=4M   -xsegment_align=4M   -xthroughput   -xipo=2   -xalias_level=std   -xprefetch_level=2   -xpagesize=256M   -xsegment_align=256M   -xthroughput=no   -lbsdmalloc
482.sphinx3:  -std=c99   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -m32   -fast   -xtarget=sparc64xii   -xpagesize=4M   -xsegment_align=4M   -xthroughput   -xO4   -xipo=2   -xprefetch=latx:0.6   -xinline_param=level:1   -xprefetch=no%auto   -lbsdmalloc

C++ benchmarks:

444.namd:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -m32   -fast   -xtarget=sparc64xii   -xpagesize=4M   -xsegment_align=4M   -xthroughput   -xalias_level=compatible   -xprefetch=no%auto   -Wc,-Qms_pipe+alldoall
447.dealII:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -m32   -fast   -xtarget=sparc64xii   -xpagesize=4M   -xsegment_align=4M   -xthroughput   -xtarget=sparc64xplus   -xipo=1   -xalias_level=compatible   -xrestrict   -xprefetch=no%auto   -Qoption cg -Qiselect-funcalign=64   -xthroughput=yes   -library=stdcxx4   -template=extdef
450.soplex:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -m32   -fast   -xtarget=sparc64xii   -xpagesize=4M   -xsegment_align=4M   -xthroughput   -xipo=2   -Wc,-Qlp=0
453.povray:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -m32   -fast   -xtarget=sparc64xii   -xpagesize=4M   -xsegment_align=4M   -xthroughput   -xO4   -xtarget=sparc64xplus   -xipo=2   -xalias_level=compatible   -xlinkopt=2   -xprefetch=no%auto   -xunroll=7   -Qoption iropt -Ainline:rs=1024   -Qoption iropt -Ainline:cs=1024   -Qoption iropt -Ainline:inc=900   -lfast

Fortran benchmarks:

410.bwaves:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -m32   -fast   -xtarget=sparc64xii   -xpagesize=4M   -xsegment_align=4M   -xthroughput   -xipo=2   -xunroll=4   -xvector=%none   -xprefetch=no%auto
416.gamess:  -m32   -fast   -xtarget=sparc64xii   -xpagesize=4M   -xsegment_align=4M   -xthroughput   -xvector=no%simd   -xprefetch=latx:0.1
434.zeusmp:  basepeak = yes
437.leslie3d:  basepeak = yes
459.GemsFDTD:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -m32   -fast   -xtarget=sparc64xii   -xpagesize=4M   -xsegment_align=4M   -xthroughput   -xunroll=9   -xprefetch=latx:0.2   -xprefetch_level=3   -Qoption cg -Qlp-av=128   -Qoption iropt -Rujam
465.tonto:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -m32   -fast   -xtarget=sparc64xii   -xpagesize=4M   -xsegment_align=4M   -xthroughput   -xipo=1   -xO4   -xunroll=3   -xprefetch=no%auto   -xthroughput=no   -lbsdmalloc

Benchmarks using both Fortran and C:

435.gromacs:  -std=c99   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -m32   -fast(cc)   -fast(f95)   -xtarget=sparc64xii   -xpagesize=4M   -xsegment_align=4M   -xthroughput   -xalias_level=strong   -Wc,-Qicache-chbab=1   -Wc,-Qiselect-rsqrta=2   -Wc,-Qiselect-rsqrta1x=2   -qoption cg -Qicache-chbab=1   -qoption cg -Qiselect-rsqrta=2   -qoption cg -Qiselect-rsqrta1x=2
436.cactusADM:  -std=c99   -m32   -fast(cc)   -fast(f95)   -xtarget=sparc64xii   -xpagesize=4M   -xsegment_align=4M   -xthroughput   -xtarget=sparc64xplus   -xunroll=10   -xprefetch=latx:2.0   -xpagesize=256M   -xsegment_align=256M   -xthroughput=no   -lbsdmalloc
454.calculix:  -std=c99   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -m32   -fast(cc)   -fast(f95)   -xtarget=sparc64xii   -xpagesize=4M   -xsegment_align=4M   -xthroughput   -xtarget=sparc64xplus   -xipo=1   -Wc,-Qiselect-funcalign=64   -xinline_param=level:3   -Qoption cg -Qiselect-funcalign=64
481.wrf:  -std=c99   -m32   -fast(cc)   -fast(f95)   -xtarget=sparc64xii   -xpagesize=4M   -xsegment_align=4M   -xthroughput   -xunroll=9   -xprefetch=latx:0.4   -Qoption iropt -Rujam   -xO4   -xthroughput=no

Peak Other Flags

C benchmarks:

 -xjobs=8

C++ benchmarks:

 -xjobs=8

Fortran benchmarks:

 -xjobs=8

Benchmarks using both Fortran and C:

 -xjobs=8

The flags files that were used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Oracle-Developer-Studio12.6.html,
http://www.spec.org/cpu2006/flags/Fujitsu-M12-2S.html.

You can also download the XML flags sources by saving the following links:
http://www.spec.org/cpu2006/flags/Oracle-Developer-Studio12.6.xml,
http://www.spec.org/cpu2006/flags/Fujitsu-M12-2S.xml.
