SPEC® CFP2006 Result

Copyright 2006-2017 Standard Performance Evaluation Corporation

Fujitsu

Fujitsu SPARC M12-2S

CPU2006 license: 19 Test date: Mar-2017
Test sponsor: Fujitsu Hardware Availability: Apr-2017
Tested by: Fujitsu Software Availability: Jul-2017

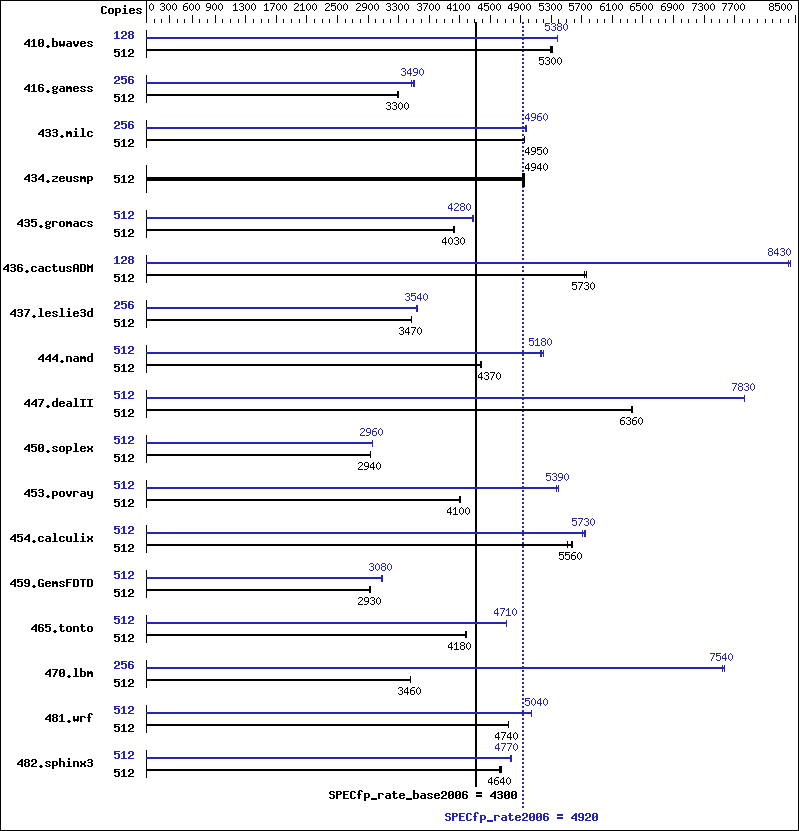

Benchmark results graph
Hardware
CPU Name: SPARC64 XII
CPU Characteristics: High Speed Mode up to 4.35 GHz
CPU MHz: 4250
FPU: Integrated
CPU(s) enabled: 64 cores, 8 chips, 8 cores/chip, 8 threads/core
CPU(s) orderable: 1 to 16 BBs; each BB contains 1 or 2 CPU chips;
the number of orderable total cores is 2, 3, 4,
.. 384
Primary Cache: 64 KB I + 64 KB D on chip per core
Secondary Cache: 512 KB I+D on chip per core
L3 Cache: 32 MB I+D on chip per chip
Other Cache: None
Memory: 4 TB (128 x 32 GB 2Rx4 PC4-2400T-R)
Disk Subsystem: 1 x 600 GB 10K RPM SAS (for system disk)
Other Hardware: None
Software
Operating System: Oracle Solaris 11.3 (with June 2017 SRU)
Compiler: C/C++/Fortran: Version 12.6 of Oracle Developer
Studio
Auto Parallel: No
File System: tmpfs
System State: Default
Base Pointers: 32-bit
Peak Pointers: 32-bit
Other Software: None

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 512 1314 5290 1312 5300 1310 5310 128 323 5380 323 5380 323 5380
416.gamess 512 3041 3300 3045 3290 3039 3300 256 1428 3510 1436 3490 1442 3480
433.milc 512 949 4950 949 4950 950 4950 256 473 4970 474 4960 474 4960
434.zeusmp 512 941 4950 943 4940 945 4930 512 941 4950 943 4940 945 4930
435.gromacs 512 909 4020 906 4030 908 4030 512 853 4290 854 4280 856 4270
436.cactusADM 512 1063 5760 1067 5730 1067 5730 128 182 8410 182 8430 181 8430
437.leslie3d 512 1388 3470 1387 3470 1386 3470 256 679 3540 680 3540 678 3550
444.namd 512 939 4370 938 4380 939 4370 512 791 5190 793 5180 797 5150
447.dealII 512 922 6350 920 6360 920 6370 512 748 7830 748 7830 748 7830
450.soplex 512 1453 2940 1455 2940 1453 2940 512 1444 2960 1443 2960 1443 2960
453.povray 512 664 4100 664 4100 663 4110 512 505 5400 507 5370 506 5390
454.calculix 512 759 5560 766 5520 758 5570 512 735 5750 740 5710 737 5730
459.GemsFDTD 512 1854 2930 1863 2920 1856 2930 512 1766 3080 1759 3090 1768 3070
465.tonto 512 1202 4190 1204 4180 1206 4180 512 1069 4710 1070 4710 1070 4710
470.lbm 512 2032 3460 2033 3460 2034 3460 256 467 7540 466 7540 465 7560
481.wrf 512 1207 4740 1205 4740 1206 4740 512 1134 5040 1134 5040 1134 5050
482.sphinx3 512 2144 4650 2160 4620 2151 4640 512 2093 4770 2092 4770 2090 4780

Submit Notes

 Processes were assigned to specific processors using 'pbind' commands.
 The config file option 'submit' was used, along with a list of
 processors in the 'BIND' variable, to generate the pbind commands.
 (For details, please see the config file.)

Operating System Notes

 Shell Environments:
    ulimit -s 131072 was used to limit the space consumed by the stack
    (and therefore make more space available to the heap).

    The "Logical Domains Manager" service was turned off using the command "svcadm disable ldmd".

 System Tunables:
 (/etc/system parameters)
    autoup = 86400
       Causes pages older than the listed number of seconds to be written by fsflush.
    doiflush = 0
       Controls whether file system metadata syncs will be executed during fsflush invocations.
    dopageflush = 0
       Controls whether memory is examined for modified pages during fsflush invocations.
    zfs:zfs_arc_max=1073741824
       Determines the maximum size of the ZFS Adaptive Replacement Cache (ARC).

Platform Notes

Firmware Settings:
(XSCF operations)
   Set High Speed Mode via XSCF command "sethsmode -s on".

 Sysinfo program /export/cpu2006/config/sysinfo
 Revision 6993 of 2015-11-06 (c9426fd40261140bb4c02f7d35768596)
 running on H2S-257-D0 Sat Mar 11 18:16:13 2017

 This section contains SUT (System Under Test) info as seen by
 some common utilities.  To remove or add to this section, see:
   http://www.spec.org/cpu2006/Docs/config.html#sysinfo

 From /usr/sbin/psrinfo
    SPARC64-XII (chipid 0, clock 4250 MHz)
    SPARC64-XII (chipid 1, clock 4250 MHz)
    SPARC64-XII (chipid 2, clock 4250 MHz)
    SPARC64-XII (chipid 3, clock 4250 MHz)
    SPARC64-XII (chipid 4, clock 4250 MHz)
    SPARC64-XII (chipid 5, clock 4250 MHz)
    SPARC64-XII (chipid 6, clock 4250 MHz)
    SPARC64-XII (chipid 7, clock 4250 MHz)
    8 chips
    512 threads
    4250 MHz

 From kstat:       64 cores

 From prtconf: 4187136 Megabytes

 /etc/release:
      Oracle Solaris 11.3 SPARC
 uname -a:
    SunOS H2S-257-D0 5.11 11.3 sun4v sparc sun4v

 SPEC is set to: /export/cpu2006

 disk: df -h  /export/cpu2006
 Filesystem             Size   Used  Available Capacity  Mounted on
 rpool/export           547G    26G       243G    10%    /export

 (End of data from sysinfo program)

General Notes

 The Building Block (BB) is just a Fujitsu SPARC M12-2S that is the basic
 unit to be expanded as if stacking up children's blocks.

 File System:
  tmpfs: output_root was used to put run directories in /tmp/cpu2006
  zfs: operating system

 SPEC CPU2006 benchmark:
  Updated with runspec --update

Base Compiler Invocation

C benchmarks:

 cc

C++ benchmarks:

 CC

Fortran benchmarks:

 f90

Benchmarks using both Fortran and C:

 cc   f90

Base Portability Flags

447.dealII:  -DBOOST_NO_COMPILER_CONFIG

Base Optimization Flags

C benchmarks:

 -std=c99   -m32   -fast   -xtarget=sparc64xii   -xipo=2   -xpagesize=4M   -xsegment_align=4M   -xthroughput   -xalias_level=std   -xprefetch_level=2

C++ benchmarks:

 -m32   -fast   -xtarget=sparc64xii   -xipo=2   -xpagesize=4M   -xsegment_align=4M   -xthroughput   -xalias_level=compatible   -library=stlport4

Fortran benchmarks:

 -m32   -fast   -xtarget=sparc64xii   -xipo=2   -xpagesize=4M   -xsegment_align=4M   -xthroughput   -xvector=no%lib

Benchmarks using both Fortran and C:

 -std=c99   -m32   -fast(cc)   -fast(f95)   -xtarget=sparc64xii   -xipo=2   -xpagesize=4M   -xsegment_align=4M   -xthroughput   -xalias_level=std   -xprefetch_level=2   -xvector=no%lib

Base Other Flags

C benchmarks:

 -xjobs=8

C++ benchmarks:

 -xjobs=8

Fortran benchmarks:

 -xjobs=8

Benchmarks using both Fortran and C:

 -xjobs=8

Peak Compiler Invocation

C benchmarks:

 cc

C++ benchmarks:

 CC

Fortran benchmarks:

 f90

Benchmarks using both Fortran and C:

 cc   f90

Peak Portability Flags

447.dealII:  -DBOOST_NO_COMPILER_CONFIG

Peak Optimization Flags

C benchmarks:

433.milc:  -std=c99   -m32   -fast   -xtarget=sparc64xii   -xpagesize=4M   -xsegment_align=4M   -xthroughput   -xipo=2   -xalias_level=std   -fsimple=1   -W2,-Ainline:rs=400   -Qoption cg -Qms_pipe+alldoall   -W2,-Asac   -xthroughput=no
470.lbm:  -std=c99   -m32   -fast   -xtarget=sparc64xii   -xpagesize=4M   -xsegment_align=4M   -xthroughput   -xipo=2   -xalias_level=std   -xprefetch_level=2   -xpagesize=256M   -xsegment_align=256M   -xthroughput=no   -lbsdmalloc
482.sphinx3:  -std=c99   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -m32   -fast   -xtarget=sparc64xii   -xpagesize=4M   -xsegment_align=4M   -xthroughput   -xO4   -xipo=2   -xprefetch=latx:0.6   -xinline_param=level:1   -xprefetch=no%auto   -lbsdmalloc

C++ benchmarks:

444.namd:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -m32   -fast   -xtarget=sparc64xii   -xpagesize=4M   -xsegment_align=4M   -xthroughput   -xalias_level=compatible   -xprefetch=no%auto   -Wc,-Qms_pipe+alldoall
447.dealII:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -m32   -fast   -xtarget=sparc64xii   -xpagesize=4M   -xsegment_align=4M   -xthroughput   -xtarget=sparc64xplus   -xipo=1   -xalias_level=compatible   -xrestrict   -xprefetch=no%auto   -Qoption cg -Qiselect-funcalign=64   -xthroughput=yes   -library=stdcxx4   -template=extdef
450.soplex:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -m32   -fast   -xtarget=sparc64xii   -xpagesize=4M   -xsegment_align=4M   -xthroughput   -xipo=2   -Wc,-Qlp=0
453.povray:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -m32   -fast   -xtarget=sparc64xii   -xpagesize=4M   -xsegment_align=4M   -xthroughput   -xO4   -xtarget=sparc64xplus   -xipo=2   -xalias_level=compatible   -xlinkopt=2   -xprefetch=no%auto   -xunroll=7   -Qoption iropt -Ainline:rs=1024   -Qoption iropt -Ainline:cs=1024   -Qoption iropt -Ainline:inc=900   -lfast

Fortran benchmarks:

410.bwaves:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -m32   -fast   -xtarget=sparc64xii   -xpagesize=4M   -xsegment_align=4M   -xthroughput   -xipo=2   -xunroll=4   -xvector=%none   -xprefetch=no%auto
416.gamess:  -m32   -fast   -xtarget=sparc64xii   -xpagesize=4M   -xsegment_align=4M   -xthroughput   -xvector=no%simd   -xprefetch=latx:0.1
434.zeusmp:  basepeak = yes
437.leslie3d:  -m32   -fast   -xtarget=sparc64xii   -xpagesize=4M   -xsegment_align=4M   -xthroughput   -xunroll=2   -xvector=%none   -xprefetch=latx:0.8   -Qoption cg -Qms_pipe+alldoall   -xinline_param=level:1   -xthroughput=no
459.GemsFDTD:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -m32   -fast   -xtarget=sparc64xii   -xpagesize=4M   -xsegment_align=4M   -xthroughput   -xunroll=9   -xprefetch=latx:0.2   -xprefetch_level=3   -Qoption cg -Qlp-av=128   -Qoption iropt -Rujam
465.tonto:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -m32   -fast   -xtarget=sparc64xii   -xpagesize=4M   -xsegment_align=4M   -xthroughput   -xipo=1   -xO4   -xunroll=3   -xprefetch=no%auto   -xthroughput=no   -lbsdmalloc

Benchmarks using both Fortran and C:

435.gromacs:  -std=c99   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -m32   -fast(cc)   -fast(f95)   -xtarget=sparc64xii   -xpagesize=4M   -xsegment_align=4M   -xthroughput   -xalias_level=strong   -Wc,-Qicache-chbab=1   -Wc,-Qiselect-rsqrta=2   -Wc,-Qiselect-rsqrta1x=2   -qoption cg -Qicache-chbab=1   -qoption cg -Qiselect-rsqrta=2   -qoption cg -Qiselect-rsqrta1x=2
436.cactusADM:  -std=c99   -m32   -fast(cc)   -fast(f95)   -xtarget=sparc64xii   -xpagesize=4M   -xsegment_align=4M   -xthroughput   -xtarget=sparc64xplus   -xunroll=10   -xprefetch=latx:2.0   -xpagesize=256M   -xsegment_align=256M   -xthroughput=no   -lbsdmalloc
454.calculix:  -std=c99   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -m32   -fast(cc)   -fast(f95)   -xtarget=sparc64xii   -xpagesize=4M   -xsegment_align=4M   -xthroughput   -xtarget=sparc64xplus   -xipo=1   -Wc,-Qiselect-funcalign=64   -xinline_param=level:3   -Qoption cg -Qiselect-funcalign=64
481.wrf:  -std=c99   -m32   -fast(cc)   -fast(f95)   -xtarget=sparc64xii   -xpagesize=4M   -xsegment_align=4M   -xthroughput   -xunroll=9   -xprefetch=latx:0.4   -Qoption iropt -Rujam   -xO4   -xthroughput=no

Peak Other Flags

C benchmarks:

 -xjobs=8

C++ benchmarks:

 -xjobs=8

Fortran benchmarks:

 -xjobs=8

Benchmarks using both Fortran and C:

 -xjobs=8

The flags files that were used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Oracle-Developer-Studio12.6.html,
http://www.spec.org/cpu2006/flags/Fujitsu-M12-2S.html.

You can also download the XML flags sources by saving the following links:
http://www.spec.org/cpu2006/flags/Oracle-Developer-Studio12.6.xml,
http://www.spec.org/cpu2006/flags/Fujitsu-M12-2S.xml.
