SPEC® CINT2006 Result

Copyright 2006-2017 Standard Performance Evaluation Corporation

M Computers s.r.o.

MIC HD S7200AP (Intel Xeon Phi 7210, 1.30GHz)

SPECint®_rate2006 = Not Run

CPU2006 license: 4204 Test date: Dec-2016
Test sponsor: M Computers s.r.o. Hardware Availability: Sep-2016
Tested by: M Computers s.r.o. Software Availability: Feb-2016

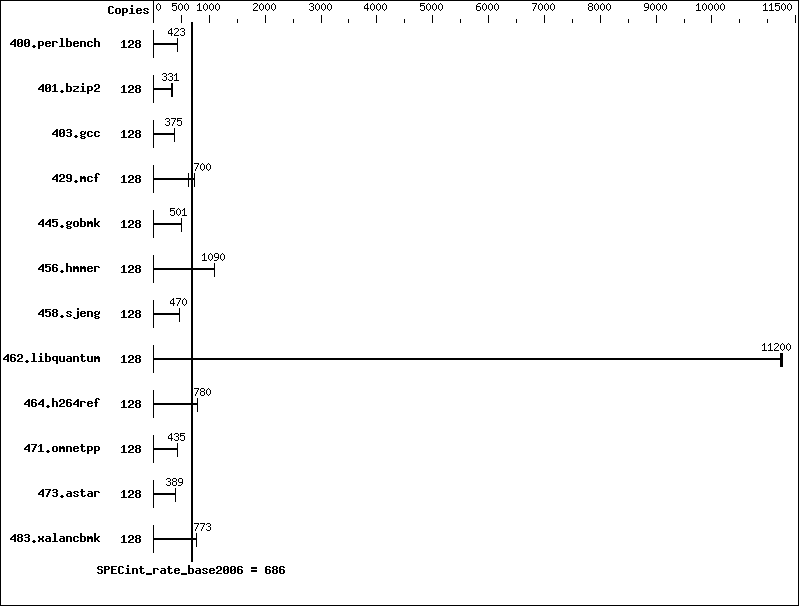

Benchmark results graph
Hardware
CPU Name: Intel Xeon Phi 7210
CPU Characteristics: Intel Turbo Boost Technology up to 1.50 GHz
CPU MHz: 1300
FPU: Integrated
CPU(s) enabled: 64 cores, 1 chip, 64 cores/chip, 4 threads/core
CPU(s) orderable: 1 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per two cores
L3 Cache: None
Other Cache: None
Memory: 192 GB (6 x 32 GB 2Rx4 PC4-2400T-R, running at
1200MHz)
Disk Subsystem: 800 GB SSD
Other Hardware: 16 GB MCDRAM
Software
Operating System: CentOS 7.2
3.10.0-327.18.2.el7.x86_64
Compiler: C/C++: Version 16.0.2.181 of Intel C++ Studio XE
for Linux
Auto Parallel: No
File System: ext4
System State: Run level 3 (multi-user)
Base Pointers: 32-bit
Peak Pointers: 32/64-bit
Other Software: Microquill SmartHeap V10.2

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 128 2963 422 2891 433 2956 423
401.bzip2 128 3931 314 3730 331 3693 334
403.gcc 128 2756 374 2746 375 2731 377
429.mcf 128 1861 627 1668 700 1589 735
445.gobmk 128 2670 503 2687 500 2680 501
456.hmmer 128 1096 1090 1091 1090 1094 1090
458.sjeng 128 3299 470 3338 464 3279 472
462.libquantum 128 235 11300 236 11200 236 11200
464.h264ref 128 3633 780 3630 780 3626 781
471.omnetpp 128 1840 435 1833 437 1851 432
473.astar 128 2310 389 2307 389 2306 390
483.xalancbmk 128 1145 772 1141 774 1142 773

Submit Notes

 The taskset mechanism was used to bind copies to processors. The config file option 'submit'
 was used to generate numactl commands to bind each copy to a specific processor.
 For details, please see the config file.

Operating System Notes

 Stack size set to unlimited using "ulimit -s unlimited"

Platform Notes

 BIOS Configuration:
 CPU and Power Performance Policy = Performance
 Patrol Scrub = Disabled
 Set Fan Profile = Performance
 Fan PWM Offset = 100
 Cluster mode = Quadrant
 Memory mode = Cache
 Processor C6 = Disabled

General Notes

Environment variables set by runspec before the start of the run:
LD_LIBRARY_PATH = "/spec/libs/32:/spec/libs/64:/spec/sh/:$/opt/intel/compilers_and_libraries_2016.2.181/linux/compiler/lib/intel64_lin"

 Binaries compiled on a system with
 1x Intel 2nd Generation Xeon Phi CPU
 + 192GB memory using CentOS 7.2
 Transparent Huge Pages enabled with:
 echo always > /sys/kernel/mm/transparent_hugepage/enabled

Base Compiler Invocation

C benchmarks:

 icc -m32 -L/opt/intel/compilers_and_libraries_2016/linux/compiler/lib/ia32_lin

C++ benchmarks:

 icpc -m32 -L/opt/intel/compilers_and_libraries_2016/linux/compiler/lib/ia32_lin

Base Portability Flags

400.perlbench:  -DSPEC_CPU_LINUX_IA32
462.libquantum:  -DSPEC_CPU_LINUX
483.xalancbmk:  -DSPEC_CPU_LINUX

Base Optimization Flags

C benchmarks:

 -xMIC-AVX512   -ipo   -O3   -no-prec-div   -opt-prefetch

C++ benchmarks:

 -xMIC-AVX512   -ipo   -O3   -no-prec-div   -opt-prefetch   -Wl,-z,muldefs   -L/spec/sh -lsmartheap

Base Other Flags

C benchmarks:

403.gcc:  -Dalloca=_alloca

The flags files that were used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/MComputers-Platform-Settings-V1.2-KNL-revA.html,
http://www.spec.org/cpu2006/flags/Intel-ic16.0-official-linux64-revB.html.

You can also download the XML flags sources by saving the following links:
http://www.spec.org/cpu2006/flags/MComputers-Platform-Settings-V1.2-KNL-revA.xml,
http://www.spec.org/cpu2006/flags/Intel-ic16.0-official-linux64-revB.xml.
