SPEC® CFP2006 Result

Copyright 2006-2016 Standard Performance Evaluation Corporation

Cisco Systems

Cisco UCS C460 M4 (Intel Xeon E7-4830 v4 2.00
GHz)

SPECfp®2006 = 107

CPU2006 license: 9019 Test date: Nov-2016
Test sponsor: Cisco Systems Hardware Availability: Jul-2016
Tested by: Cisco Systems Software Availability: Dec-2015

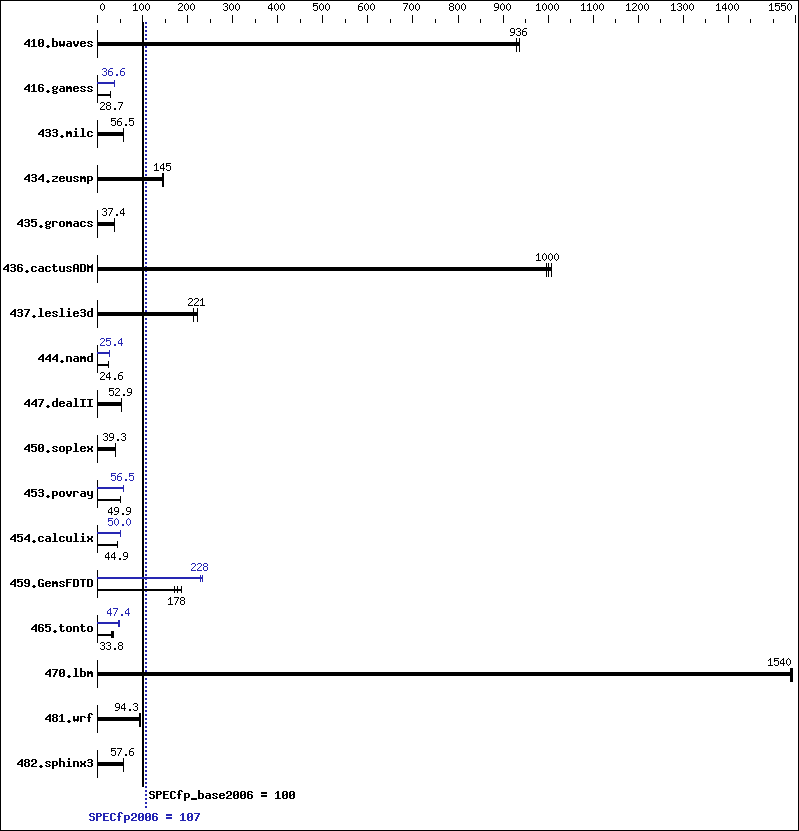

Benchmark results graph
Hardware
CPU Name: Intel Xeon E7-4830 v4
CPU Characteristics: Intel Turbo Boost Technology up to 2.80 GHz
CPU MHz: 2000
FPU: Integrated
CPU(s) enabled: 56 cores, 4 chips, 14 cores/chip
CPU(s) orderable: 2,4 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
L3 Cache: 35 MB I+D on chip per chip
Other Cache: None
Memory: 512 GB (32 x 16 GB 2Rx4 PC4-2400T-R,
running at 1333 MHz)
Disk Subsystem: 1 x 400 GB SAS SSD
Other Hardware: None
Software
Operating System: SUSE Linux Enterprise Server 12 SP1 (x86_64)
3.12.49-11-default
Compiler: C/C++: Version 16.0.0.101 of Intel C++ Studio XE
for Linux;
Fortran: Version 16.0.0.101 of Intel Fortran
Studio XE for Linux
Auto Parallel: Yes
File System: xfs
System State: Run level 3 (multi-user)
Base Pointers: 64-bit
Peak Pointers: 32/64-bit
Other Software: None

Results Table

Benchmark Base Peak
Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 14.5  937   14.5  936   14.6  929   14.5  937   14.5  936   14.6  929
416.gamess 683    28.7 683    28.7 681    28.7 536    36.5 534    36.7 535    36.6
433.milc 163    56.5 163    56.5 162    56.5 163    56.5 163    56.5 162    56.5
434.zeusmp 63.3  144   62.8  145   62.6  145   63.3  144   62.8  145   62.6  145
435.gromacs 191    37.3 191    37.5 191    37.4 191    37.3 191    37.5 191    37.4
436.cactusADM 12.0  996   11.9  1010   11.9  1000   12.0  996   11.9  1010   11.9  1000
437.leslie3d 42.3  222   42.5  221   44.3  212   42.3  222   42.5  221   44.3  212
444.namd 326    24.6 326    24.6 326    24.6 316    25.4 316    25.4 316    25.4
447.dealII 216    52.9 216    52.9 216    52.9 216    52.9 216    52.9 216    52.9
450.soplex 213    39.2 212    39.3 212    39.4 213    39.2 212    39.3 212    39.4
453.povray 107    49.9 107    49.9 106    50.1 94.1  56.5 94.4  56.4 93.8  56.7
454.calculix 184    44.9 184    44.9 184    44.9 166    49.7 165    50.2 165    50.0
459.GemsFDTD 59.6  178   57.4  185   62.3  170   46.5  228   46.7  227   45.6  233
465.tonto 315    31.2 291    33.8 290    33.9 207    47.5 210    46.9 208    47.4
470.lbm 8.91 1540   8.92 1540   8.94 1540   8.91 1540   8.92 1540   8.94 1540
481.wrf 120    92.8 117    95.5 118    94.3 120    92.8 117    95.5 118    94.3
482.sphinx3 341    57.2 338    57.6 338    57.7 341    57.2 338    57.6 338    57.7

Operating System Notes

 Stack size set to unlimited using "ulimit -s unlimited"

Platform Notes

BIOS Settings:
Intel Hyper-Threading Technology option set to Disabled
CPU performance set to Enterprise
Power Technology set to Energy Efficient
Energy Performance BIAS setting set to Balanced Performance
Memory RAS configuration set to Maximum Performance
Memory Power Saving Mode set to Disabled
QPI Snoop Mode set to Home Directory Snoop with OSB
 Sysinfo program /opt/cpu2006-1.2/config/sysinfo.rev6914
 $Rev: 6914 $ $Date:: 2014-06-25 #$ e3fbb8667b5a285932ceab81e28219e1
 running on linux-69f9 Mon Nov  7 11:17:47 2016

 This section contains SUT (System Under Test) info as seen by
 some common utilities.  To remove or add to this section, see:
   http://www.spec.org/cpu2006/Docs/config.html#sysinfo

 From /proc/cpuinfo
    model name : Intel(R) Xeon(R) CPU E7-4830 v4 @ 2.00GHz
       4 "physical id"s (chips)
       56 "processors"
    cores, siblings (Caution: counting these is hw and system dependent.  The
    following excerpts from /proc/cpuinfo might not be reliable.  Use with
    caution.)
       cpu cores : 14
       siblings  : 14
       physical 0: cores 0 1 2 3 4 5 6 8 9 10 11 12 13 14
       physical 1: cores 0 1 2 3 4 5 6 8 9 10 11 12 13 14
       physical 2: cores 0 1 2 3 4 5 6 8 9 10 11 12 13 14
       physical 3: cores 0 1 2 3 4 5 6 8 9 10 11 12 13 14
    cache size : 35840 KB

 From /proc/meminfo
    MemTotal:       529300708 kB
    HugePages_Total:       0
    Hugepagesize:       2048 kB

 From /etc/*release* /etc/*version*
    SuSE-release:
       SUSE Linux Enterprise Server 12 (x86_64)
       VERSION = 12
       PATCHLEVEL = 1
       # This file is deprecated and will be removed in a future service pack or
       release.
       # Please check /etc/os-release for details about this release.
    os-release:
       NAME="SLES"
       VERSION="12-SP1"
       VERSION_ID="12.1"
       PRETTY_NAME="SUSE Linux Enterprise Server 12 SP1"
       ID="sles"
       ANSI_COLOR="0;32"
       CPE_NAME="cpe:/o:suse:sles:12:sp1"

 uname -a:
    Linux linux-69f9 3.12.49-11-default #1 SMP Wed Nov 11 20:52:43 UTC 2015
    (8d714a0) x86_64 x86_64 x86_64 GNU/Linux

 run-level 3 Nov 6 18:04

 SPEC is set to: /opt/cpu2006-1.2
    Filesystem     Type  Size  Used Avail Use% Mounted on
    /dev/sda1      xfs   372G   41G  331G  11% /
 Additional information from dmidecode:

    Warning: Use caution when you interpret this section. The 'dmidecode' program
    reads system data which is "intended to allow hardware to be accurately
    determined", but the intent may not be met, as there are frequent changes to
    hardware, firmware, and the "DMTF SMBIOS" standard.

   BIOS Cisco Systems, Inc. C460M4.2.0.13b.0.080320162321 08/03/2016
   Memory:
    32x 0xCE00 M393A2G40EB1-CRC 16 GB 2 rank 2400 MHz, configured at 1333 MHz
    64x NO DIMM NO DIMM   2400 MHz

 (End of data from sysinfo program)

General Notes

Environment variables set by runspec before the start of the run:
KMP_AFFINITY = "granularity=fine,compact"
LD_LIBRARY_PATH = "/opt/cpu2006-1.2/libs/32:/opt/cpu2006-1.2/libs/64:/opt/cpu2006-1.2/sh"
OMP_NUM_THREADS = "56"

 Binaries compiled on a system with 1x Intel Core i5-4670K CPU + 32GB
 memory using RedHat EL 7.1

Base Compiler Invocation

C benchmarks:

 icc -m64

C++ benchmarks:

 icpc -m64

Fortran benchmarks:

 ifort -m64

Benchmarks using both Fortran and C:

 icc -m64   ifort -m64

Base Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64   -nofor_main
436.cactusADM:  -DSPEC_CPU_LP64   -nofor_main
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
450.soplex:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64   -nofor_main
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_CASE_FLAG   -DSPEC_CPU_LINUX
482.sphinx3:  -DSPEC_CPU_LP64

Base Optimization Flags

C benchmarks:

 -xCORE-AVX2   -ipo   -O3   -no-prec-div   -parallel   -opt-prefetch   -ansi-alias

C++ benchmarks:

 -xCORE-AVX2   -ipo   -O3   -no-prec-div   -opt-prefetch   -ansi-alias

Fortran benchmarks:

 -xCORE-AVX2   -ipo   -O3   -no-prec-div   -parallel   -opt-prefetch

Benchmarks using both Fortran and C:

 -xCORE-AVX2   -ipo   -O3   -no-prec-div   -parallel   -opt-prefetch   -ansi-alias

Peak Compiler Invocation

C benchmarks:

 icc -m64

C++ benchmarks:

 icpc -m64

Fortran benchmarks:

 ifort -m64

Benchmarks using both Fortran and C:

 icc -m64   ifort -m64

Peak Portability Flags

Same as Base Portability Flags

Peak Optimization Flags

C benchmarks:

433.milc:  basepeak = yes
470.lbm:  basepeak = yes
482.sphinx3:  basepeak = yes

C++ benchmarks:

444.namd:  -xCORE-AVX2(pass 2)   -prof-gen:threadsafe(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -par-num-threads=1(pass 1)   -prof-use(pass 2)   -fno-alias   -auto-ilp32
447.dealII:  basepeak = yes
450.soplex:  basepeak = yes
453.povray:  -xCORE-AVX2(pass 2)   -prof-gen:threadsafe(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -par-num-threads=1(pass 1)   -prof-use(pass 2)   -unroll4   -ansi-alias

Fortran benchmarks:

410.bwaves:  basepeak = yes
416.gamess:  -xCORE-AVX2(pass 2)   -prof-gen:threadsafe(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -par-num-threads=1(pass 1)   -prof-use(pass 2)   -unroll2   -inline-level=0   -scalar-rep-
434.zeusmp:  basepeak = yes
437.leslie3d:  basepeak = yes
459.GemsFDTD:  -xCORE-AVX2(pass 2)   -prof-gen:threadsafe(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -par-num-threads=1(pass 1)   -prof-use(pass 2)   -unroll2   -inline-level=0   -opt-prefetch   -parallel
465.tonto:  -xCORE-AVX2(pass 2)   -prof-gen:threadsafe(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -par-num-threads=1(pass 1)   -prof-use(pass 2)   -inline-calloc   -opt-malloc-options=3   -auto   -unroll4

Benchmarks using both Fortran and C:

435.gromacs:  basepeak = yes
436.cactusADM:  basepeak = yes
454.calculix:  -xCORE-AVX2   -ipo   -O3   -no-prec-div   -auto-ilp32   -ansi-alias
481.wrf:  basepeak = yes

The flags files that were used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Intel-ic16.0-official-linux64.html,
http://www.spec.org/cpu2006/flags/Cisco-Platform-Settings-V1.2-revE.html.

You can also download the XML flags sources by saving the following links:
http://www.spec.org/cpu2006/flags/Intel-ic16.0-official-linux64.xml,
http://www.spec.org/cpu2006/flags/Cisco-Platform-Settings-V1.2-revE.xml.
