| CPU2006 license: | 19 | Test date: | Jul-2016 |
|---|---|---|---|
| Test sponsor: | Fujitsu | Hardware Availability: | Apr-2016 |
| Tested by: | Fujitsu | Software Availability: | Sep-2015 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E5-2623 v4 |
| CPU Characteristics: | Intel Turbo Boost Technology up to 3.20 GHz |
| CPU MHz: | 2600 |
| FPU: | Integrated |
| CPU(s) enabled: | 8 cores, 2 chips, 4 cores/chip, 2 threads/core |
| CPU(s) orderable: | 1,2 chip |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 10 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 256 GB (16 x 16 GB 2Rx4 PC4-2400T-R, running at 2133 MHz) |
| Disk Subsystem: | 1 x SATA, 1000 GB, 7200 RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SUSE Linux Enterprise Server 12 SP1 (x86_64) Kernel 3.12.49-11-default |
| Compiler: | C/C++: Version 16.0.0.101 of Intel C++ Studio XE for Linux; Fortran: Version 16.0.0.101 of Intel Fortran Studio XE for Linux |
| Auto Parallel: | No |
| File System: | xfs |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 32/64-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | None |

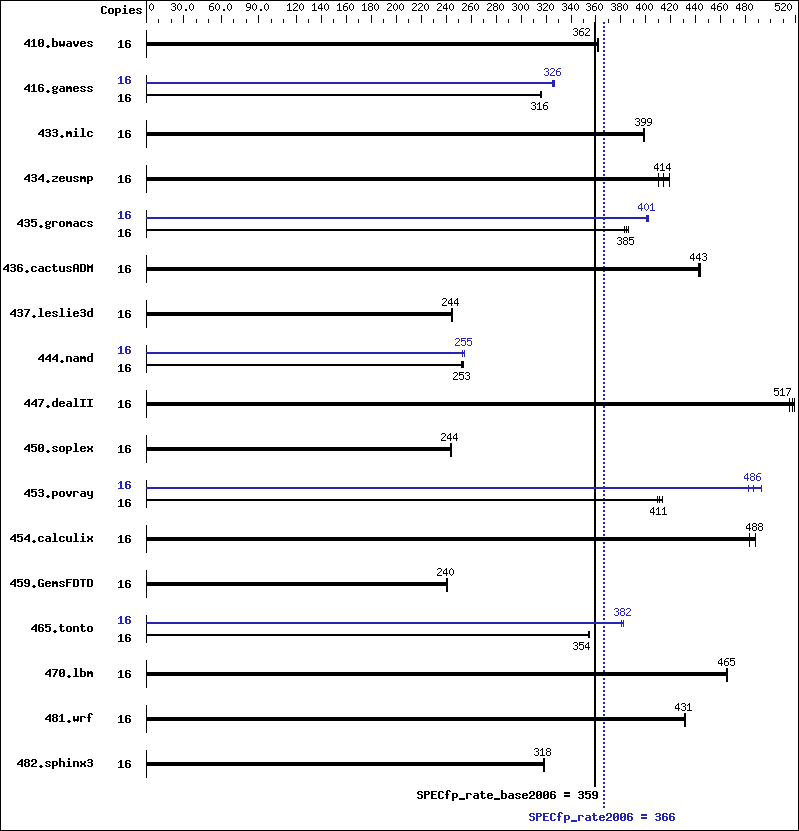

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 410.bwaves | 16 | 601 | 362 | 601 | 362 | 602 | 361 | 16 | 601 | 362 | 601 | 362 | 602 | 361 |
| 416.gamess | 16 | 990 | 316 | 993 | 315 | 992 | 316 | 16 | 962 | 326 | 960 | 326 | 959 | 327 |
| 433.milc | 16 | 369 | 398 | 369 | 399 | 368 | 399 | 16 | 369 | 398 | 369 | 399 | 368 | 399 |
| 434.zeusmp | 16 | 355 | 410 | 352 | 414 | 348 | 419 | 16 | 355 | 410 | 352 | 414 | 348 | 419 |
| 435.gromacs | 16 | 297 | 385 | 296 | 386 | 298 | 383 | 16 | 284 | 402 | 285 | 401 | 285 | 401 |
| 436.cactusADM | 16 | 433 | 442 | 431 | 444 | 432 | 443 | 16 | 433 | 442 | 431 | 444 | 432 | 443 |
| 437.leslie3d | 16 | 616 | 244 | 615 | 245 | 616 | 244 | 16 | 616 | 244 | 615 | 245 | 616 | 244 |
| 444.namd | 16 | 506 | 254 | 508 | 253 | 507 | 253 | 16 | 503 | 255 | 503 | 255 | 507 | 253 |
| 447.dealII | 16 | 356 | 515 | 354 | 517 | 353 | 519 | 16 | 356 | 515 | 354 | 517 | 353 | 519 |
| 450.soplex | 16 | 547 | 244 | 548 | 243 | 547 | 244 | 16 | 547 | 244 | 548 | 243 | 547 | 244 |
| 453.povray | 16 | 207 | 411 | 208 | 409 | 206 | 413 | 16 | 173 | 493 | 175 | 486 | 177 | 482 |
| 454.calculix | 16 | 270 | 488 | 270 | 488 | 273 | 483 | 16 | 270 | 488 | 270 | 488 | 273 | 483 |
| 459.GemsFDTD | 16 | 705 | 241 | 706 | 240 | 707 | 240 | 16 | 705 | 241 | 706 | 240 | 707 | 240 |
| 465.tonto | 16 | 444 | 354 | 444 | 354 | 443 | 355 | 16 | 414 | 380 | 412 | 382 | 412 | 382 |
| 470.lbm | 16 | 473 | 465 | 473 | 465 | 474 | 464 | 16 | 473 | 465 | 473 | 465 | 474 | 464 |
| 481.wrf | 16 | 414 | 431 | 415 | 431 | 415 | 431 | 16 | 414 | 431 | 415 | 431 | 415 | 431 |
| 482.sphinx3 | 16 | 980 | 318 | 981 | 318 | 978 | 319 | 16 | 980 | 318 | 981 | 318 | 978 | 319 |
Submit Notes
The numactl mechanism was used to bind copies to processors. The config file option 'submit' was used to generate numactl commands to bind each copy to a specific processor. For details, please see the config file.
Operating System Notes
Stack size set to unlimited using "ulimit -s unlimited"
Platform Notes
BIOS configuration:
Energy Performance = Performance
Utilization Profile = Unbalanced
QPI snoop mode: Early Snoop
COD Enable = Disabled, Early Snoop = Enabled, Home Snoop Dir OSB = Disabled
CPU C1E Support = Disabled
Sysinfo program /home/SPECcpu2006/config/sysinfo.rev6914
$Rev: 6914 $ $Date:: 2014-06-25 #$ e3fbb8667b5a285932ceab81e28219e1
running on CX2550M2 Wed Jul 27 22:58:19 2016
This section contains SUT (System Under Test) info as seen by
some common utilities. To remove or add to this section, see:
http://www.spec.org/cpu2006/Docs/config.html#sysinfo
From /proc/cpuinfo
model name : Intel(R) Xeon(R) CPU E5-2623 v4 @ 2.60GHz
2 "physical id"s (chips)
16 "processors"
cores, siblings (Caution: counting these is hw and system dependent. The
following excerpts from /proc/cpuinfo might not be reliable. Use with
caution.)
cpu cores : 4
siblings : 8
physical 0: cores 0 1 2 3
physical 1: cores 0 1 2 3
cache size : 10240 KB
From /proc/meminfo
MemTotal: 264322708 kB
HugePages_Total: 0
Hugepagesize: 2048 kB
/usr/bin/lsb_release -d
SUSE Linux Enterprise Server 12 SP1
From /etc/*release* /etc/*version*
SuSE-release:
SUSE Linux Enterprise Server 12 (x86_64)
VERSION = 12
PATCHLEVEL = 1
# This file is deprecated and will be removed in a future service pack or
release.
# Please check /etc/os-release for details about this release.
os-release:
NAME="SLES"
VERSION="12-SP1"
VERSION_ID="12.1"
PRETTY_NAME="SUSE Linux Enterprise Server 12 SP1"
ID="sles"
ANSI_COLOR="0;32"
CPE_NAME="cpe:/o:suse:sles:12:sp1"
uname -a:
Linux CX2550M2 3.12.49-11-default #1 SMP Wed Nov 11 20:52:43 UTC 2015
(8d714a0) x86_64 x86_64 x86_64 GNU/Linux
run-level 3 Jul 27 12:45 last=5
SPEC is set to: /home/SPECcpu2006
Filesystem Type Size Used Avail Use% Mounted on
/dev/sda3 xfs 890G 19G 871G 3% /home
Additional information from dmidecode:
Warning: Use caution when you interpret this section. The 'dmidecode' program
reads system data which is "intended to allow hardware to be accurately
determined", but the intent may not be met, as there are frequent changes to
hardware, firmware, and the "DMTF SMBIOS" standard.
BIOS FUJITSU // American Megatrends Inc. V5.0.0.11 R1.4.0 for D3343-B1x
03/17/2016
Memory:
16x Hyundai Electronics (Hynix) HMA42GR7AFR4N-UH 16 GB 2 rank 2133 MHz
(End of data from sysinfo program)
General Notes
Environment variables set by runspec before the start of the run: LD_LIBRARY_PATH = "/home/SPECcpu2006/libs/32:/home/SPECcpu2006/libs/64:/home/SPECcpu2006/sh" Binaries compiled on a system with 1x Intel Core i5-4670K CPU + 32GB memory using RedHat EL 7.1 Transparent Huge Pages enabled with: echo always > /sys/kernel/mm/transparent_hugepage/enabled Filesystem page cache cleared with: echo 1> /proc/sys/vm/drop_caches runspec command invoked through numactl i.e.: numactl --interleave=all runspec <etc> For information about Fujitsu please visit: http://www.fujitsu.com
Base Compiler Invocation
C benchmarks:
| icc -m64 |
C++ benchmarks:
| icpc -m64 |
Fortran benchmarks:
| ifort -m64 |
Benchmarks using both Fortran and C:
| icc -m64 ifort -m64 |
Base Portability Flags
| 410.bwaves: | -DSPEC_CPU_LP64 |
| 416.gamess: | -DSPEC_CPU_LP64 |
| 433.milc: | -DSPEC_CPU_LP64 |
| 434.zeusmp: | -DSPEC_CPU_LP64 |
| 435.gromacs: | -DSPEC_CPU_LP64 -nofor_main |
| 436.cactusADM: | -DSPEC_CPU_LP64 -nofor_main |
| 437.leslie3d: | -DSPEC_CPU_LP64 |
| 444.namd: | -DSPEC_CPU_LP64 |
| 447.dealII: | -DSPEC_CPU_LP64 |
| 450.soplex: | -DSPEC_CPU_LP64 |
| 453.povray: | -DSPEC_CPU_LP64 |
| 454.calculix: | -DSPEC_CPU_LP64 -nofor_main |
| 459.GemsFDTD: | -DSPEC_CPU_LP64 |
| 465.tonto: | -DSPEC_CPU_LP64 |
| 470.lbm: | -DSPEC_CPU_LP64 |
| 481.wrf: | -DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX |
| 482.sphinx3: | -DSPEC_CPU_LP64 |
Base Optimization Flags
C benchmarks:
| -xCORE-AVX2 -ipo -O3 -no-prec-div -opt-prefetch -auto-p32 -ansi-alias -opt-mem-layout-trans=3 |
C++ benchmarks:
| -xCORE-AVX2 -ipo -O3 -no-prec-div -opt-prefetch -auto-p32 -ansi-alias -opt-mem-layout-trans=3 |
Fortran benchmarks:
| -xCORE-AVX2 -ipo -O3 -no-prec-div -opt-prefetch |
Benchmarks using both Fortran and C:
| -xCORE-AVX2 -ipo -O3 -no-prec-div -opt-prefetch -auto-p32 -ansi-alias -opt-mem-layout-trans=3 |
Peak Compiler Invocation
C benchmarks:
| icc -m64 |
C++ benchmarks:
| icpc -m64 |
Fortran benchmarks:
| ifort -m64 |
Benchmarks using both Fortran and C:
| icc -m64 ifort -m64 |
Peak Portability Flags
Same as Base Portability Flags
Peak Optimization Flags
C benchmarks:
| 433.milc: | basepeak = yes |
| 470.lbm: | basepeak = yes |
| 482.sphinx3: | basepeak = yes |
C++ benchmarks:
| 444.namd: | -xCORE-AVX2(pass 2) -prof-gen:threadsafe(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -par-num-threads=1(pass 1) -opt-mem-layout-trans=3(pass 2) -prof-use(pass 2) -fno-alias -auto-ilp32 |
| 447.dealII: | basepeak = yes |
| 450.soplex: | basepeak = yes |
| 453.povray: | -xCORE-AVX2(pass 2) -prof-gen:threadsafe(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -par-num-threads=1(pass 1) -opt-mem-layout-trans=3(pass 2) -prof-use(pass 2) -unroll4 -ansi-alias |
Fortran benchmarks:
| 410.bwaves: | basepeak = yes |
| 416.gamess: | -xCORE-AVX2(pass 2) -prof-gen:threadsafe(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -par-num-threads=1(pass 1) -prof-use(pass 2) -unroll2 -inline-level=0 -scalar-rep- |
| 434.zeusmp: | basepeak = yes |
| 437.leslie3d: | basepeak = yes |
| 459.GemsFDTD: | basepeak = yes |
| 465.tonto: | -xCORE-AVX2(pass 2) -prof-gen:threadsafe(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -par-num-threads=1(pass 1) -prof-use(pass 2) -unroll4 -auto -inline-calloc -opt-malloc-options=3 |
Benchmarks using both Fortran and C:
| 435.gromacs: | -xCORE-AVX2(pass 2) -prof-gen:threadsafe(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -par-num-threads=1(pass 1) -opt-mem-layout-trans=3(pass 2) -prof-use(pass 2) -opt-prefetch -auto-ilp32 |
| 436.cactusADM: | basepeak = yes |
| 454.calculix: | basepeak = yes |
| 481.wrf: | basepeak = yes |
