SPEC® CFP2006 Result

Copyright 2006-2016 Standard Performance Evaluation Corporation

Lenovo Group Limited

Lenovo Flex System x240 M5
(2.40 GHz, Intel Xeon E5-2640 v4)

SPECfp®2006 = 120

CPU2006 license: 9017 Test date: Jun-2016
Test sponsor: Lenovo Group Limited Hardware Availability: Mar-2016
Tested by: Lenovo Group Limited Software Availability: Dec-2015

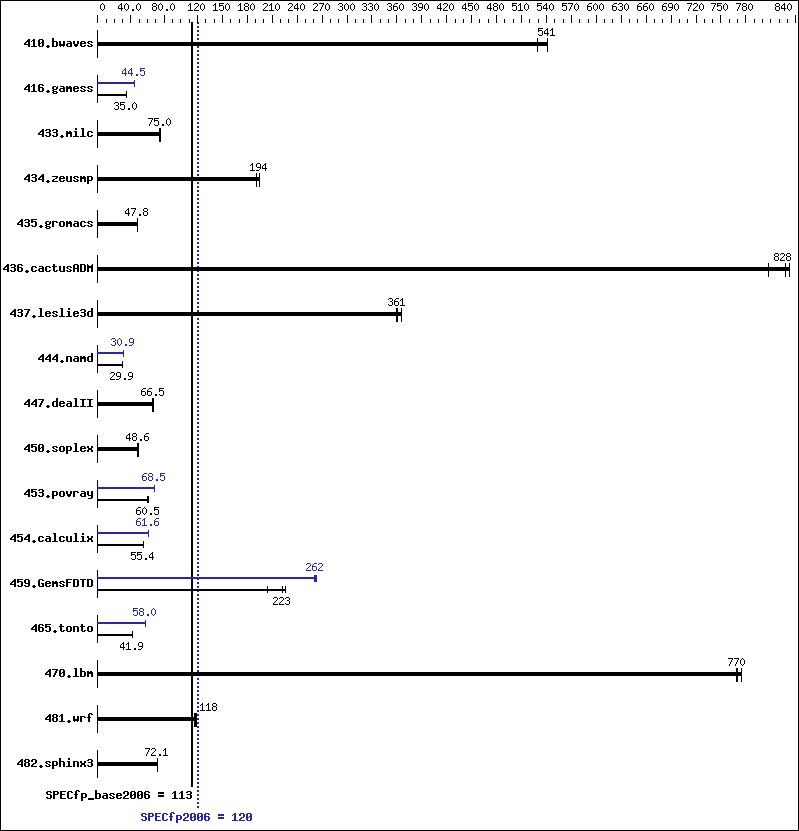

Benchmark results graph
Hardware
CPU Name: Intel Xeon E5-2640 v4
CPU Characteristics: Intel Turbo Boost Technology up to 3.40 GHz
CPU MHz: 2400
FPU: Integrated
CPU(s) enabled: 20 cores, 2 chips, 10 cores/chip
CPU(s) orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
L3 Cache: 25 MB I+D on chip per chip
Other Cache: None
Memory: 256 GB (16 x 16 GB 2Rx4 PC4-2400T-R, running at
2133 MHz)
Disk Subsystem: 2 x 600 GB 15000 RPM SAS, RAID 1
Other Hardware: None
Software
Operating System: SUSE Linux Enterprise Server 12 SP1 (x86_64)
Kernel 3.12.49-11-default
Compiler: C/C++: Version 16.0.0.101 of Intel C++ Studio XE
for Linux;
Fortran: Version 16.0.0.101 of Intel Fortran
Studio XE for Linux
Auto Parallel: Yes
File System: xfs
System State: Run level 3 (multi-user)
Base Pointers: 64-bit
Peak Pointers: 32/64-bit
Other Software: None

Results Table

Benchmark Base Peak
Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 25.7 529   25.1 541   25.1 541   25.7 529   25.1 541   25.1 541
416.gamess 560   35.0 560   34.9 559   35.0 440   44.5 440   44.5 440   44.5
433.milc 122   75.0 122   75.0 123   74.9 122   75.0 122   75.0 123   74.9
434.zeusmp 47.6 191   46.8 194   46.6 195   47.6 191   46.8 194   46.6 195
435.gromacs 149   47.8 149   47.8 149   47.8 149   47.8 149   47.8 149   47.8
436.cactusADM 14.4 828   14.4 832   14.8 808   14.4 828   14.4 832   14.8 808
437.leslie3d 26.2 359   25.7 365   26.0 361   26.2 359   25.7 365   26.0 361
444.namd 268   29.9 267   30.0 269   29.8 259   30.9 259   30.9 260   30.9
447.dealII 172   66.5 172   66.5 172   66.5 172   66.5 172   66.5 172   66.5
450.soplex 170   49.0 172   48.6 173   48.3 170   49.0 172   48.6 173   48.3
453.povray 87.9 60.5 87.3 60.9 88.1 60.4 78.0 68.2 77.5 68.6 77.6 68.5
454.calculix 148   55.6 149   55.2 149   55.4 134   61.6 134   61.6 134   61.6
459.GemsFDTD 47.6 223   47.1 225   51.9 204   40.4 263   40.7 261   40.6 262
465.tonto 236   41.7 235   41.9 235   41.9 170   58.0 170   58.0 170   57.9
470.lbm 17.9 768   17.9 770   17.7 774   17.9 768   17.9 770   17.7 774
481.wrf 94.4 118   94.7 118   95.6 117   94.4 118   94.7 118   95.6 117
482.sphinx3 270   72.2 270   72.1 271   72.0 270   72.2 270   72.1 271   72.0

Operating System Notes

 Stack size set to unlimited using "ulimit -s unlimited"

Platform Notes

 BIOS Configuration:
  Operating Mode set to Maximum "Performance"
  Hyper-Threading set to Disabled
  COD Preference set to Disabled
 Sysinfo program /home/cpu2006-1.2-ic16.0/config/sysinfo.rev6914
 $Rev: 6914 $ $Date:: 2014-06-25 #$ e3fbb8667b5a285932ceab81e28219e1
 running on Bonnevil-01 Mon Jun 20 18:40:50 2016

 This section contains SUT (System Under Test) info as seen by
 some common utilities.  To remove or add to this section, see:
   http://www.spec.org/cpu2006/Docs/config.html#sysinfo

 From /proc/cpuinfo
    model name : Intel(R) Xeon(R) CPU E5-2640 v4 @ 2.40GHz
       2 "physical id"s (chips)
       20 "processors"
    cores, siblings (Caution: counting these is hw and system dependent.  The
    following excerpts from /proc/cpuinfo might not be reliable.  Use with
    caution.)
       cpu cores : 10
       siblings  : 10
       physical 0: cores 0 1 2 3 4 8 9 10 11 12
       physical 1: cores 0 1 2 3 4 8 9 10 11 12
    cache size : 25600 KB

 From /proc/meminfo
    MemTotal:       263830652 kB
    HugePages_Total:       0
    Hugepagesize:       2048 kB

 From /etc/*release* /etc/*version*
    SuSE-release:
       SUSE Linux Enterprise Server 12 (x86_64)
       VERSION = 12
       PATCHLEVEL = 1
       # This file is deprecated and will be removed in a future service pack or
       release.
       # Please check /etc/os-release for details about this release.
    os-release:
       NAME="SLES"
       VERSION="12-SP1"
       VERSION_ID="12.1"
       PRETTY_NAME="SUSE Linux Enterprise Server 12 SP1"
       ID="sles"
       ANSI_COLOR="0;32"
       CPE_NAME="cpe:/o:suse:sles:12:sp1"

 uname -a:
    Linux Bonnevil-01 3.12.49-11-default #1 SMP Wed Nov 11 20:52:43 UTC 2015
    (8d714a0) x86_64 x86_64 x86_64 GNU/Linux

 run-level 3 Jun 20 13:40

 SPEC is set to: /home/cpu2006-1.2-ic16.0
    Filesystem     Type  Size  Used Avail Use% Mounted on
    /dev/sda4      xfs   502G  6.5G  496G   2% /home
 Additional information from dmidecode:

    Warning: Use caution when you interpret this section. The 'dmidecode' program
    reads system data which is "intended to allow hardware to be accurately
    determined", but the intent may not be met, as there are frequent changes to
    hardware, firmware, and the "DMTF SMBIOS" standard.

   BIOS LENOVO -[C4E124J-2.10]- 05/05/2016
   Memory:
    16x Hynix HMA42GR7AFR4N-UH 16 GB 2 rank 2400 MHz, configured at 2133 MHz
    8x NO DIMM Unknown

 (End of data from sysinfo program)

General Notes

Environment variables set by runspec before the start of the run:
KMP_AFFINITY = "granularity=fine,compact"
LD_LIBRARY_PATH = "/home/cpu2006-1.2-ic16.0/libs/32:/home/cpu2006-1.2-ic16.0/libs/64:/home/cpu2006-1.2-ic16.0/sh"
OMP_NUM_THREADS = "20"

 Binaries compiled on a system with 1x Intel Core i5-4670K CPU + 32GB
 memory using RedHat EL 7.1
 Transparent Huge Pages disabled with:
 echo never > /sys/kernel/mm/transparent_hugepage/enabled

Base Compiler Invocation

C benchmarks:

 icc -m64

C++ benchmarks:

 icpc -m64

Fortran benchmarks:

 ifort -m64

Benchmarks using both Fortran and C:

 icc -m64   ifort -m64

Base Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64   -nofor_main
436.cactusADM:  -DSPEC_CPU_LP64   -nofor_main
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
450.soplex:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64   -nofor_main
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_CASE_FLAG   -DSPEC_CPU_LINUX
482.sphinx3:  -DSPEC_CPU_LP64

Base Optimization Flags

C benchmarks:

 -xCORE-AVX2   -ipo   -O3   -no-prec-div   -parallel   -opt-prefetch   -ansi-alias

C++ benchmarks:

 -xCORE-AVX2   -ipo   -O3   -no-prec-div   -opt-prefetch   -ansi-alias

Fortran benchmarks:

 -xCORE-AVX2   -ipo   -O3   -no-prec-div   -parallel   -opt-prefetch

Benchmarks using both Fortran and C:

 -xCORE-AVX2   -ipo   -O3   -no-prec-div   -parallel   -opt-prefetch   -ansi-alias

Peak Compiler Invocation

C benchmarks:

 icc -m64

C++ benchmarks:

 icpc -m64

Fortran benchmarks:

 ifort -m64

Benchmarks using both Fortran and C:

 icc -m64   ifort -m64

Peak Portability Flags

Same as Base Portability Flags

Peak Optimization Flags

C benchmarks:

433.milc:  basepeak = yes
470.lbm:  basepeak = yes
482.sphinx3:  basepeak = yes

C++ benchmarks:

444.namd:  -xCORE-AVX2(pass 2)   -prof-gen:threadsafe(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -par-num-threads=1(pass 1)   -prof-use(pass 2)   -fno-alias   -auto-ilp32
447.dealII:  basepeak = yes
450.soplex:  basepeak = yes
453.povray:  -xCORE-AVX2(pass 2)   -prof-gen:threadsafe(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -par-num-threads=1(pass 1)   -prof-use(pass 2)   -unroll4   -ansi-alias

Fortran benchmarks:

410.bwaves:  basepeak = yes
416.gamess:  -xCORE-AVX2(pass 2)   -prof-gen:threadsafe(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -par-num-threads=1(pass 1)   -prof-use(pass 2)   -unroll2   -inline-level=0   -scalar-rep-
434.zeusmp:  basepeak = yes
437.leslie3d:  basepeak = yes
459.GemsFDTD:  -xCORE-AVX2(pass 2)   -prof-gen:threadsafe(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -par-num-threads=1(pass 1)   -prof-use(pass 2)   -unroll2   -inline-level=0   -opt-prefetch   -parallel
465.tonto:  -xCORE-AVX2(pass 2)   -prof-gen:threadsafe(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -par-num-threads=1(pass 1)   -prof-use(pass 2)   -inline-calloc   -opt-malloc-options=3   -auto   -unroll4

Benchmarks using both Fortran and C:

435.gromacs:  basepeak = yes
436.cactusADM:  basepeak = yes
454.calculix:  -xCORE-AVX2   -ipo   -O3   -no-prec-div   -auto-ilp32   -ansi-alias
481.wrf:  basepeak = yes

The flags files that were used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Intel-ic16.0-official-linux64.html,
http://www.spec.org/cpu2006/flags/Lenovo-Platform-Flags-V1.2-BDW-B.html.

You can also download the XML flags sources by saving the following links:
http://www.spec.org/cpu2006/flags/Intel-ic16.0-official-linux64.xml,
http://www.spec.org/cpu2006/flags/Lenovo-Platform-Flags-V1.2-BDW-B.xml.
