SPEC® CFP2006 Result

Copyright 2006-2016 Standard Performance Evaluation Corporation

M Computers s.r.o.

HPC HD S2600TPR (Intel Xeon E5-2630 v4, 2.2 GHz)

SPECfp®2006 = 111

CPU2006 license: 4204 Test date: Jun-2016
Test sponsor: M Computers s.r.o. Hardware Availability: Mar-2016
Tested by: M Computers s.r.o. Software Availability: Feb-2016

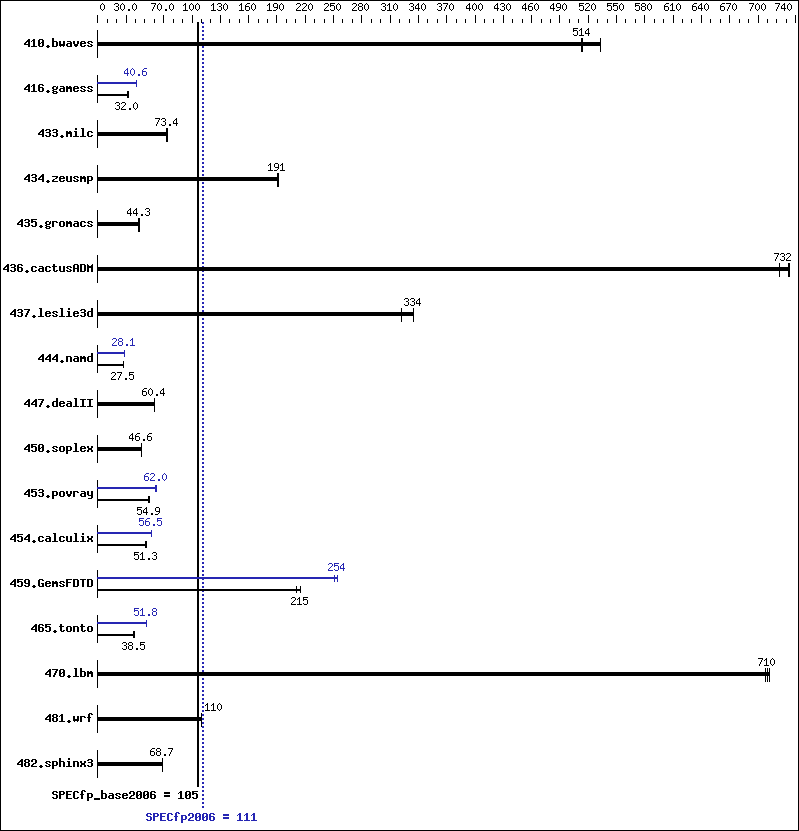

Benchmark results graph
Hardware
CPU Name: Intel Xeon E5-2630 v4
CPU Characteristics: Intel Turbo Boost Technology up to 3.10 GHz
CPU MHz: 2200
FPU: Integrated
CPU(s) enabled: 20 cores, 2 chips, 10 cores/chip
CPU(s) orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
L3 Cache: 25 MB I+D on chip per chip
Other Cache: None
Memory: 256 GB (16 x 16 GB 2Rx4 PC4-2400T-R,
running at 2133 MHz)
Disk Subsystem: 430 GB SATA SSHD
Other Hardware: None
Software
Operating System: CentOS Linux release 7.2.1511 (Core)
3.10.0-327.18.2.el7.x86_64
Compiler: C/C++: Version 16.0.2.181 of Intel C++ Studio XE
for Linux;
Fortran: Version 16.0.2.181 of Intel Fortran
Studio XE for Linux
Auto Parallel: Yes
File System: xfs
System State: Run level 3 (multi-user)
Base Pointers: 64-bit
Peak Pointers: 32/64-bit
Other Software: None

Results Table

Benchmark Base Peak
Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 26.5 513   25.5 534   26.4 514   26.5 513   25.5 534   26.4 514
416.gamess 612   32.0 613   31.9 608   32.2 482   40.6 481   40.7 482   40.6
433.milc 125   73.6 125   73.4 125   73.4 125   73.6 125   73.4 125   73.4
434.zeusmp 47.7 191   47.5 191   47.7 191   47.7 191   47.5 191   47.7 191
435.gromacs 161   44.5 164   43.5 161   44.3 161   44.5 164   43.5 161   44.3
436.cactusADM 16.3 733   16.5 723   16.3 732   16.3 733   16.5 723   16.3 732
437.leslie3d 28.1 334   28.1 334   29.2 322   28.1 334   28.1 334   29.2 322
444.namd 292   27.5 292   27.5 292   27.5 286   28.1 286   28.0 286   28.1
447.dealII 190   60.3 189   60.4 189   60.4 190   60.3 189   60.4 189   60.4
450.soplex 179   46.7 179   46.6 179   46.6 179   46.7 179   46.6 179   46.6
453.povray 96.8 54.9 96.7 55.0 98.1 54.2 85.8 62.0 85.2 62.5 86.3 61.6
454.calculix 161   51.3 161   51.3 162   51.1 146   56.6 146   56.5 146   56.5
459.GemsFDTD 49.4 215   49.4 215   50.3 211   41.8 254   41.7 254   42.4 250
465.tonto 254   38.8 256   38.5 257   38.4 189   51.9 190   51.8 191   51.5
470.lbm 19.3 712   19.3 710   19.4 707   19.3 712   19.3 710   19.4 707
481.wrf 101   110   101   110   102   110   101   110   101   110   102   110
482.sphinx3 283   68.9 284   68.7 285   68.5 283   68.9 284   68.7 285   68.5

Operating System Notes

 Stack size set to unlimited using "ulimit -s unlimited"
 Transparent Huge Pages enabled with:
  echo always > /sys/kernel/mm/transparent_hugepage/enabled

Platform Notes

 BIOS Configuration:
 CPU and Power Performance Policy = Performance
 Set Fan Profile = Performance
 Fan PWM Offset = 100
 Intel(R) Hyper-Threading Tech = Disabled
 Sysinfo program /spec/config/sysinfo.rev6993
 Revision 6993 of 2015-11-06 (d0ff56c28028b704bda9287de9eee273)
 running on grunt Sun Jun 19 08:10:07 2016

 This section contains SUT (System Under Test) info as seen by
 some common utilities.  To remove or add to this section, see:
   http://www.spec.org/cpu2006/Docs/config.html#sysinfo

 From /proc/cpuinfo
    model name : Intel(R) Xeon(R) CPU E5-2630 v4 @ 2.20GHz
       2 "physical id"s (chips)
       20 "processors"
    cores, siblings (Caution: counting these is hw and system dependent.  The
    following excerpts from /proc/cpuinfo might not be reliable.  Use with
    caution.)
       cpu cores : 10
       siblings  : 10
       physical 0: cores 0 1 2 3 4 8 9 10 11 12
       physical 1: cores 0 1 2 3 4 8 9 10 11 12
    cache size : 25600 KB

 From /proc/meminfo
    MemTotal:       263859080 kB
    HugePages_Total:       0
    Hugepagesize:       2048 kB

 From /etc/*release* /etc/*version*
    centos-release: CentOS Linux release 7.2.1511 (Core)
    centos-release-upstream: Derived from Red Hat Enterprise Linux 7.2 (Source)
    os-release:
       NAME="CentOS Linux"
       VERSION="7 (Core)"
       ID="centos"
       ID_LIKE="rhel fedora"
       VERSION_ID="7"
       PRETTY_NAME="CentOS Linux 7 (Core)"
       ANSI_COLOR="0;31"
       CPE_NAME="cpe:/o:centos:centos:7"
    redhat-release: CentOS Linux release 7.2.1511 (Core)
    system-release: CentOS Linux release 7.2.1511 (Core)
    system-release-cpe: cpe:/o:centos:centos:7

 uname -a:
    Linux grunt 3.10.0-327.18.2.el7.x86_64 #1 SMP Thu May 12 11:03:55 UTC 2016
    x86_64 x86_64 x86_64 GNU/Linux

 run-level 3 Jun 19 08:07

 SPEC is set to: /spec
    Filesystem     Type  Size  Used Avail Use% Mounted on
    /dev/sda1      xfs   430G   52G  379G  12% /
 Additional information from dmidecode:

    Warning: Use caution when you interpret this section. The 'dmidecode' program
    reads system data which is "intended to allow hardware to be accurately
    determined", but the intent may not be met, as there are frequent changes to
    hardware, firmware, and the "DMTF SMBIOS" standard.

   BIOS  SE5C610.86B.01.01.0016.033120161139 03/31/2016
   Memory:
    16x Kinston 9965662-004.A00G 16 GB 2 rank 2400 MHz, configured at 2134 MHz

 (End of data from sysinfo program)

General Notes

Environment variables set by runspec before the start of the run:
KMP_AFFINITY = "granularity=fine,compact"
LD_LIBRARY_PATH = "/spec/libs/32:/spec/libs/64:$/opt/intel/compilers_and_libraries_2016.2.181/linux/compiler/lib/intel64_lin"
OMP_NUM_THREADS = "20"

 Binaries compiled on a system with 2x Intel Xeon E5-2630 v4 CPU + 256GB
 memory using CentOS 7.2
 Transparent Huge Pages Disabled with:
 echo never > /sys/kernel/mm/transparent_hugepage/enabled

Base Compiler Invocation

C benchmarks:

 icc -m64

C++ benchmarks:

 icpc -m64

Fortran benchmarks:

 ifort -m64

Benchmarks using both Fortran and C:

 icc -m64   ifort -m64

Base Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64   -nofor_main
436.cactusADM:  -DSPEC_CPU_LP64   -nofor_main
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
450.soplex:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64   -nofor_main
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_CASE_FLAG   -DSPEC_CPU_LINUX
482.sphinx3:  -DSPEC_CPU_LP64

Base Optimization Flags

C benchmarks:

 -xCORE-AVX2   -ipo   -O3   -no-prec-div   -parallel   -opt-prefetch   -ansi-alias

C++ benchmarks:

 -xCORE-AVX2   -ipo   -O3   -no-prec-div   -opt-prefetch   -ansi-alias

Fortran benchmarks:

 -xCORE-AVX2   -ipo   -O3   -no-prec-div   -parallel   -opt-prefetch

Benchmarks using both Fortran and C:

 -xCORE-AVX2   -ipo   -O3   -no-prec-div   -parallel   -opt-prefetch   -ansi-alias

Peak Compiler Invocation

C benchmarks:

 icc -m64

C++ benchmarks:

 icpc -m64

Fortran benchmarks:

 ifort -m64

Benchmarks using both Fortran and C:

 icc -m64   ifort -m64

Peak Portability Flags

Same as Base Portability Flags

Peak Optimization Flags

C benchmarks:

433.milc:  basepeak = yes
470.lbm:  basepeak = yes
482.sphinx3:  basepeak = yes

C++ benchmarks:

444.namd:  -xCORE-AVX2(pass 2)   -prof-gen:threadsafe(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -par-num-threads=1(pass 1)   -prof-use(pass 2)   -fno-alias   -auto-ilp32
447.dealII:  basepeak = yes
450.soplex:  basepeak = yes
453.povray:  -xCORE-AVX2(pass 2)   -prof-gen:threadsafe(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -par-num-threads=1(pass 1)   -prof-use(pass 2)   -unroll4   -ansi-alias

Fortran benchmarks:

410.bwaves:  basepeak = yes
416.gamess:  -xCORE-AVX2(pass 2)   -prof-gen:threadsafe(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -par-num-threads=1(pass 1)   -prof-use(pass 2)   -unroll2   -inline-level=0   -scalar-rep-
434.zeusmp:  basepeak = yes
437.leslie3d:  basepeak = yes
459.GemsFDTD:  -xCORE-AVX2(pass 2)   -prof-gen:threadsafe(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -par-num-threads=1(pass 1)   -prof-use(pass 2)   -unroll2   -inline-level=0   -opt-prefetch   -parallel
465.tonto:  -xCORE-AVX2(pass 2)   -prof-gen:threadsafe(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -par-num-threads=1(pass 1)   -prof-use(pass 2)   -inline-calloc   -opt-malloc-options=3   -auto   -unroll4

Benchmarks using both Fortran and C:

435.gromacs:  basepeak = yes
436.cactusADM:  basepeak = yes
454.calculix:  -xCORE-AVX2   -ipo   -O3   -no-prec-div   -auto-ilp32   -ansi-alias
481.wrf:  basepeak = yes

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Intel-ic16.0-official-linux64.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Intel-ic16.0-official-linux64.xml.
