| CPU2006 license: | 001176 | Test date: | May-2016 |
|---|---|---|---|
| Test sponsor: | Supermicro | Hardware Availability: | Mar-2016 |
| Tested by: | Supermicro | Software Availability: | Sep-2015 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E5-2630 v4 |
| CPU Characteristics: | Intel Turbo Boost Technology up to 3.10 GHz |
| CPU MHz: | 2200 |
| FPU: | Integrated |
| CPU(s) enabled: | 20 cores, 2 chips, 10 cores/chip |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 25 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 256 GB (8 x 32 GB 2Rx4 PC4-2400T-R, running at 2133 MHz) |
| Disk Subsystem: | 1 x 400 GB SATA III SSD |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SUSE Linux Enterprise Server 12 SP1, Kernel 3.12.49-11-default |
| Compiler: | C/C++: Version 16.0.0.101 of Intel C++ Studio XE for Linux |
| Auto Parallel: | Yes |
| File System: | xfs |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 32/64-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V10.2 |

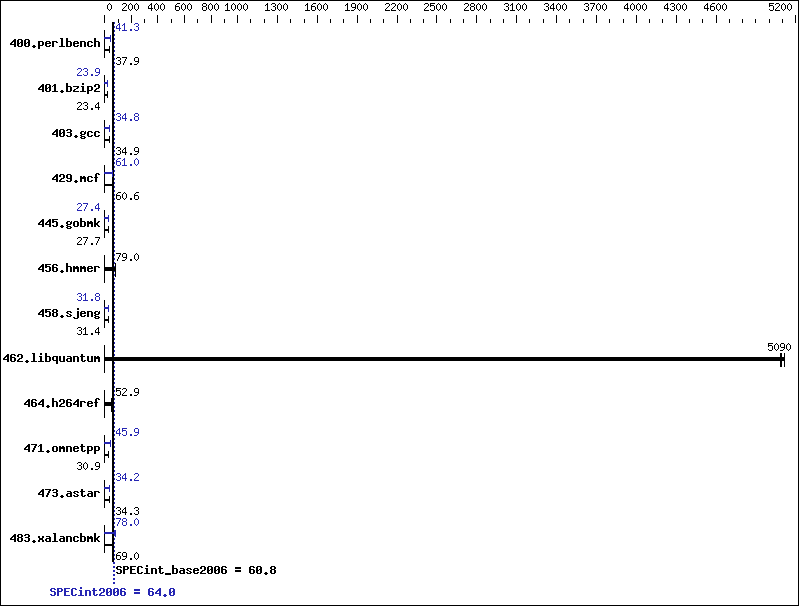

Results Table
| Benchmark | Base | Peak | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
| 400.perlbench | 259 | 37.8 | 258 | 37.9 | 257 | 38.0 | 237 | 41.3 | 237 | 41.3 | 237 | 41.2 |
| 401.bzip2 | 413 | 23.4 | 411 | 23.5 | 413 | 23.4 | 405 | 23.8 | 404 | 23.9 | 404 | 23.9 |
| 403.gcc | 231 | 34.9 | 231 | 34.8 | 231 | 34.9 | 232 | 34.7 | 231 | 34.8 | 231 | 34.8 |
| 429.mcf | 151 | 60.6 | 152 | 60.1 | 150 | 60.9 | 148 | 61.4 | 151 | 60.5 | 149 | 61.0 |
| 445.gobmk | 378 | 27.8 | 378 | 27.7 | 379 | 27.7 | 383 | 27.4 | 382 | 27.4 | 382 | 27.4 |
| 456.hmmer | 118 | 79.1 | 118 | 78.7 | 118 | 79.0 | 118 | 79.1 | 118 | 78.7 | 118 | 79.0 |
| 458.sjeng | 384 | 31.5 | 385 | 31.4 | 385 | 31.4 | 380 | 31.8 | 380 | 31.8 | 380 | 31.8 |
| 462.libquantum | 4.07 | 5090 | 4.07 | 5090 | 4.05 | 5120 | 4.07 | 5090 | 4.07 | 5090 | 4.05 | 5120 |
| 464.h264ref | 418 | 52.9 | 418 | 52.9 | 419 | 52.8 | 418 | 52.9 | 418 | 52.9 | 419 | 52.8 |
| 471.omnetpp | 201 | 31.1 | 202 | 30.9 | 204 | 30.7 | 136 | 45.9 | 137 | 45.5 | 136 | 45.9 |
| 473.astar | 206 | 34.2 | 205 | 34.3 | 205 | 34.3 | 206 | 34.2 | 205 | 34.2 | 205 | 34.3 |
| 483.xalancbmk | 99.9 | 69.0 | 100 | 68.9 | 100 | 69.0 | 88.5 | 78.0 | 88.5 | 78.0 | 88.6 | 77.9 |
Submit Notes
The config file option 'submit' was used.
Operating System Notes
Stack size set to unlimited using "ulimit -s unlimited"
Platform Notes
BIOS Settings: Early Snoop = Disable Hyper-Threading (ALL) = Disabled Sysinfo program /home/cpu2006_ic16/config/sysinfo.rev6914 $Rev: 6914 $ $Date:: 2014-06-25 #$ e3fbb8667b5a285932ceab81e28219e1 running on linux-hp47 Thu May 5 17:30:25 2016 This section contains SUT (System Under Test) info as seen by some common utilities. To remove or add to this section, see: http://www.spec.org/cpu2006/Docs/config.html#sysinfo From /proc/cpuinfo model name : Intel(R) Xeon(R) CPU E5-2630 v4 @ 2.20GHz 2 "physical id"s (chips) 20 "processors" cores, siblings (Caution: counting these is hw and system dependent. The following excerpts from /proc/cpuinfo might not be reliable. Use with caution.) cpu cores : 10 siblings : 10 physical 0: cores 0 1 2 3 4 8 9 10 11 12 physical 1: cores 0 1 2 3 4 8 9 10 11 12 cache size : 25600 KB From /proc/meminfo MemTotal: 264381112 kB HugePages_Total: 0 Hugepagesize: 2048 kB From /etc/*release* /etc/*version* SuSE-release: SUSE Linux Enterprise Server 12 (x86_64) VERSION = 12 PATCHLEVEL = 1 # This file is deprecated and will be removed in a future service pack or release. # Please check /etc/os-release for details about this release. os-release: NAME="SLES" VERSION="12-SP1" VERSION_ID="12.1" PRETTY_NAME="SUSE Linux Enterprise Server 12 SP1" ID="sles" ANSI_COLOR="0;32" CPE_NAME="cpe:/o:suse:sles:12:sp1" uname -a: Linux linux-hp47 3.12.49-11-default #1 SMP Wed Nov 11 20:52:43 UTC 2015 (8d714a0) x86_64 x86_64 x86_64 GNU/Linux run-level 3 May 5 17:30 SPEC is set to: /home/cpu2006_ic16 Filesystem Type Size Used Avail Use% Mounted on /dev/sda1 btrfs 373G 70G 303G 19% / Additional information from dmidecode: Warning: Use caution when you interpret this section. The 'dmidecode' program reads system data which is "intended to allow hardware to be accurately determined", but the intent may not be met, as there are frequent changes to hardware, firmware, and the "DMTF SMBIOS" standard. BIOS American Megatrends Inc. 2.0 12/17/2015 Memory: 8x Micron 36ASF4G72PZ-2G3A1 32 GB 2 rank 2400 MHz, configured at 2133 MHz (End of data from sysinfo program)
General Notes
Environment variables set by runspec before the start of the run: KMP_AFFINITY = "granularity=fine,scatter" LD_LIBRARY_PATH = "/home/cpu2006_ic16/libs/32:/home/cpu2006_ic16/libs/64:/home/cpu2006_ic16/sh" OMP_NUM_THREADS = "20" Binaries compiled on a system with 1x Intel Core i5-4670K CPU + 32GB memory using RedHat EL 7.1 Transparent Huge Pages enabled with: echo always > /sys/kernel/mm/transparent_hugepage/enabled
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 403.gcc: | -DSPEC_CPU_LP64 |
| 429.mcf: | -DSPEC_CPU_LP64 |
| 445.gobmk: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
| 464.h264ref: | -DSPEC_CPU_LP64 |
| 471.omnetpp: | -DSPEC_CPU_LP64 |
| 473.astar: | -DSPEC_CPU_LP64 |
| 483.xalancbmk: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xCORE-AVX2 -ipo -O3 -no-prec-div -parallel -opt-prefetch -auto-p32 |
C++ benchmarks:
| -xCORE-AVX2 -ipo -O3 -no-prec-div -opt-prefetch -auto-p32 -Wl,-z,muldefs -L/sh -lsmartheap64 |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc -m64 | |
| 400.perlbench: | icc -m32 -L/opt/intel/compilers_and_libraries_2016/linux/compiler/lib/ia32_lin |
| 445.gobmk: | icc -m32 -L/opt/intel/compilers_and_libraries_2016/linux/compiler/lib/ia32_lin |
C++ benchmarks (except as noted below):
| icpc -m32 -L/opt/intel/compilers_and_libraries_2016/linux/compiler/lib/ia32_lin | |
| 473.astar: | icpc -m64 |
Peak Portability Flags
| 400.perlbench: | -D_FILE_OFFSET_BITS=64 -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 403.gcc: | -DSPEC_CPU_LP64 |
| 429.mcf: | -DSPEC_CPU_LP64 |
| 445.gobmk: | -D_FILE_OFFSET_BITS=64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
| 464.h264ref: | -DSPEC_CPU_LP64 |
| 471.omnetpp: | -D_FILE_OFFSET_BITS=64 |
| 473.astar: | -DSPEC_CPU_LP64 |
| 483.xalancbmk: | -D_FILE_OFFSET_BITS=64 -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -xCORE-AVX2(pass 2) -prof-gen:threadsafe(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -par-num-threads=1(pass 1) -prof-use(pass 2) -opt-prefetch -ansi-alias |
| 401.bzip2: | -xCORE-AVX2(pass 2) -prof-gen:threadsafe(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div -par-num-threads=1(pass 1) -prof-use(pass 2) -auto-ilp32 -opt-prefetch -ansi-alias |
| 403.gcc: | -xCORE-AVX2 -ipo -O3 -no-prec-div -inline-calloc -opt-malloc-options=3 -auto-ilp32 |
| 429.mcf: | -xCORE-AVX2 -ipo -O3 -no-prec-div -parallel -opt-prefetch -auto-p32 |
| 445.gobmk: | -xCORE-AVX2(pass 2) -prof-gen:threadsafe(pass 1) -prof-use(pass 2) -par-num-threads=1(pass 1) -ansi-alias |
| 456.hmmer: | basepeak = yes |
| 458.sjeng: | -xCORE-AVX2(pass 2) -prof-gen:threadsafe(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -par-num-threads=1(pass 1) -prof-use(pass 2) -unroll4 |
| 462.libquantum: | basepeak = yes |
| 464.h264ref: | basepeak = yes |
C++ benchmarks:
| 471.omnetpp: | -xCORE-AVX2(pass 2) -prof-gen:threadsafe(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -par-num-threads=1(pass 1) -prof-use(pass 2) -opt-ra-region-strategy=block -ansi-alias -Wl,-z,muldefs -L/sh -lsmartheap |
| 473.astar: | -xCORE-AVX2 -ipo -O3 -no-prec-div -opt-prefetch -auto-p32 -Wl,-z,muldefs -L/sh -lsmartheap64 |
| 483.xalancbmk: | -xCORE-AVX2 -ipo -O3 -no-prec-div -opt-prefetch -ansi-alias -Wl,-z,muldefs -L/sh -lsmartheap |
