SPEC® CFP2006 Result

Copyright 2006-2016 Standard Performance Evaluation Corporation

Supermicro

SuperServer 5019S-M
(X11SSH-F , Intel Xeon E3-1240 v5)

SPECfp®2006 = 100

CPU2006 license: 001176 Test date: Dec-2015
Test sponsor: Supermicro Hardware Availability: Oct-2015
Tested by: Supermicro Software Availability: Sep-2015

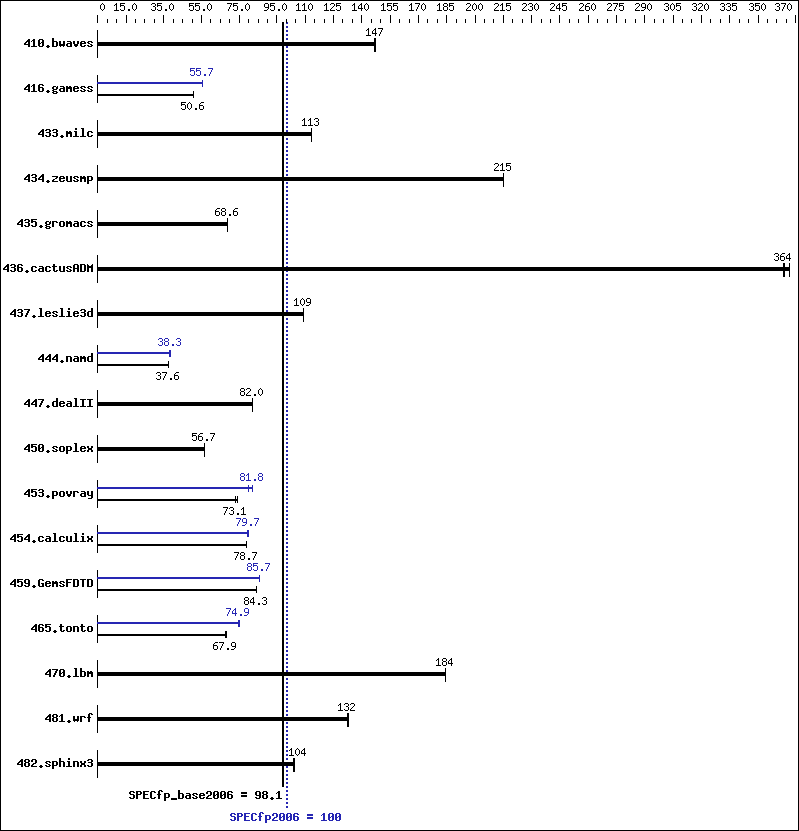

Benchmark results graph
Hardware
CPU Name: Intel Xeon E3-1240 v5
CPU Characteristics: Intel Turbo Boost Technology up to 3.90 GHz
CPU MHz: 3500
FPU: Integrated
CPU(s) enabled: 4 cores, 1 chip, 4 cores/chip
CPU(s) orderable: 1 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
L3 Cache: 8 MB I+D on chip per chip
Other Cache: None
Memory: 16 GB (2 x 8 GB 2Rx8 PC4-2133P-U)
Disk Subsystem: 1 x 400 GB SATA III SSD
Other Hardware: None
Software
Operating System: Red Hat Enterprise Linux Server release 7.2,
Kernel 3.10.0-327.el7.x86_64
Compiler: C/C++: Version 16.0.0.101 of Intel C++ Studio XE
for Linux;
Fortran: Version 16.0.0.101 of Intel Fortran
Studio XE for Linux
Auto Parallel: Yes
File System: xfs
System State: Run level 3 (multi-user)
Base Pointers: 64-bit
Peak Pointers: 32/64-bit
Other Software: None

Results Table

Benchmark Base Peak
Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 92.6 147   92.4 147   92.4 147   92.6 147   92.4 147   92.4 147
416.gamess 387   50.6 387   50.6 386   50.7 352   55.7 352   55.6 352   55.7
433.milc 81.0 113   81.1 113   81.0 113   81.0 113   81.1 113   81.0 113
434.zeusmp 42.3 215   42.3 215   42.3 215   42.3 215   42.3 215   42.3 215
435.gromacs 104   68.6 104   68.8 104   68.6 104   68.6 104   68.8 104   68.6
436.cactusADM 32.6 367   32.9 363   32.8 364   32.6 367   32.9 363   32.8 364
437.leslie3d 86.1 109   86.0 109   86.1 109   86.1 109   86.0 109   86.1 109
444.namd 213   37.6 213   37.6 213   37.6 209   38.3 209   38.3 210   38.2
447.dealII 139   82.0 139   82.1 139   82.0 139   82.0 139   82.1 139   82.0
450.soplex 147   56.7 147   56.8 147   56.7 147   56.7 147   56.8 147   56.7
453.povray 72.9 73.0 71.7 74.2 72.8 73.1 66.4 80.2 65.0 81.8 64.8 82.1
454.calculix 105   78.8 105   78.7 105   78.7 104   79.6 103   79.8 103   79.7
459.GemsFDTD 126   84.2 126   84.3 126   84.3 124   85.7 124   85.6 124   85.7
465.tonto 145   67.9 144   68.2 145   67.9 131   75.0 132   74.5 131   74.9
470.lbm 74.5 184   74.5 184   74.5 184   74.5 184   74.5 184   74.5 184
481.wrf 84.4 132   84.3 132   83.9 133   84.4 132   84.3 132   83.9 133
482.sphinx3 187   104   188   104   188   104   187   104   188   104   188   104

Operating System Notes

 Stack size set to unlimited using "ulimit -s unlimited"

Platform Notes

 BIOS Settings:
 Hyper-threading = Disabled
 Sysinfo program /home/cpu2006/config/sysinfo.rev6914
 $Rev: 6914 $ $Date:: 2014-06-25 #$ e3fbb8667b5a285932ceab81e28219e1
 running on localhost.localdomain Mon Dec 28 21:31:27 2015

 This section contains SUT (System Under Test) info as seen by
 some common utilities.  To remove or add to this section, see:
   http://www.spec.org/cpu2006/Docs/config.html#sysinfo

 From /proc/cpuinfo
    model name : Intel(R) Xeon(R) CPU E3-1240 v5 @ 3.50GHz
       1 "physical id"s (chips)
       4 "processors"
    cores, siblings (Caution: counting these is hw and system dependent.  The
    following excerpts from /proc/cpuinfo might not be reliable.  Use with
    caution.)
       cpu cores : 4
       siblings  : 4
       physical 0: cores 0 1 2 3
    cache size : 8192 KB

 From /proc/meminfo
    MemTotal:       16088756 kB
    HugePages_Total:       0
    Hugepagesize:       2048 kB

 From /etc/*release* /etc/*version*
    os-release:
       NAME="Red Hat Enterprise Linux Server"
       VERSION="7.2 (Maipo)"
       ID="rhel"
       ID_LIKE="fedora"
       VERSION_ID="7.2"
       PRETTY_NAME="Red Hat Enterprise Linux Server 7.2 (Maipo)"
       ANSI_COLOR="0;31"
       CPE_NAME="cpe:/o:redhat:enterprise_linux:7.2:GA:server"
    redhat-release: Red Hat Enterprise Linux Server release 7.2 (Maipo)
    system-release: Red Hat Enterprise Linux Server release 7.2 (Maipo)
    system-release-cpe: cpe:/o:redhat:enterprise_linux:7.2:ga:server

 uname -a:
    Linux localhost.localdomain 3.10.0-327.el7.x86_64 #1 SMP Thu Oct 29 17:29:29
    EDT 2015 x86_64 x86_64 x86_64 GNU/Linux

 run-level 3 Dec 28 17:21

 SPEC is set to: /home/cpu2006
    Filesystem            Type  Size  Used Avail Use% Mounted on
    /dev/mapper/rhel-root xfs   280G   26G  254G  10% /
 Additional information from dmidecode:

    Warning: Use caution when you interpret this section. The 'dmidecode' program
    reads system data which is "intended to allow hardware to be accurately
    determined", but the intent may not be met, as there are frequent changes to
    hardware, firmware, and the "DMTF SMBIOS" standard.

   BIOS American Megatrends Inc. 1.0a 11/13/2015
   Memory:
    2x Micron 16ATF1G64AZ-2G1A2 8 GB 2 rank 2133 MHz
    2x Not Specified Not Specified

 (End of data from sysinfo program)

General Notes

Environment variables set by runspec before the start of the run:
KMP_AFFINITY = "granularity=fine,compact,1,0"
LD_LIBRARY_PATH = "/home/cpu2006/libs/32:/home/cpu2006/libs/64:/home/cpu2006/sh"
OMP_NUM_THREADS = "4"

 Binaries compiled on a system with 1x Intel Core i5-4670K CPU + 32GB
 memory using RedHat EL 7.1
 Transparent Huge Pages enabled with:
 echo always > /sys/kernel/mm/transparent_hugepage/enabled

Base Compiler Invocation

C benchmarks:

 icc -m64

C++ benchmarks:

 icpc -m64

Fortran benchmarks:

 ifort -m64

Benchmarks using both Fortran and C:

 icc -m64   ifort -m64

Base Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64   -nofor_main
436.cactusADM:  -DSPEC_CPU_LP64   -nofor_main
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
450.soplex:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64   -nofor_main
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_CASE_FLAG   -DSPEC_CPU_LINUX
482.sphinx3:  -DSPEC_CPU_LP64

Base Optimization Flags

C benchmarks:

 -xCORE-AVX2   -ipo   -O3   -no-prec-div   -parallel   -opt-prefetch   -ansi-alias

C++ benchmarks:

 -xCORE-AVX2   -ipo   -O3   -no-prec-div   -opt-prefetch   -ansi-alias

Fortran benchmarks:

 -xCORE-AVX2   -ipo   -O3   -no-prec-div   -parallel   -opt-prefetch

Benchmarks using both Fortran and C:

 -xCORE-AVX2   -ipo   -O3   -no-prec-div   -parallel   -opt-prefetch   -ansi-alias

Peak Compiler Invocation

C benchmarks:

 icc -m64

C++ benchmarks:

 icpc -m64

Fortran benchmarks:

 ifort -m64

Benchmarks using both Fortran and C:

 icc -m64   ifort -m64

Peak Portability Flags

Same as Base Portability Flags

Peak Optimization Flags

C benchmarks:

433.milc:  basepeak = yes
470.lbm:  basepeak = yes
482.sphinx3:  basepeak = yes

C++ benchmarks:

444.namd:  -xCORE-AVX2(pass 2)   -prof-gen:threadsafe(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -par-num-threads=1(pass 1)   -prof-use(pass 2)   -fno-alias   -auto-ilp32
447.dealII:  basepeak = yes
450.soplex:  basepeak = yes
453.povray:  -xCORE-AVX2(pass 2)   -prof-gen:threadsafe(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -par-num-threads=1(pass 1)   -prof-use(pass 2)   -unroll4   -ansi-alias

Fortran benchmarks:

410.bwaves:  basepeak = yes
416.gamess:  -xCORE-AVX2(pass 2)   -prof-gen:threadsafe(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -par-num-threads=1(pass 1)   -prof-use(pass 2)   -unroll2   -inline-level=0   -scalar-rep-
434.zeusmp:  basepeak = yes
437.leslie3d:  basepeak = yes
459.GemsFDTD:  -xCORE-AVX2(pass 2)   -prof-gen:threadsafe(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -par-num-threads=1(pass 1)   -prof-use(pass 2)   -unroll2   -inline-level=0   -opt-prefetch   -parallel
465.tonto:  -xCORE-AVX2(pass 2)   -prof-gen:threadsafe(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -par-num-threads=1(pass 1)   -prof-use(pass 2)   -inline-calloc   -opt-malloc-options=3   -auto   -unroll4

Benchmarks using both Fortran and C:

435.gromacs:  basepeak = yes
436.cactusADM:  basepeak = yes
454.calculix:  -xCORE-AVX2   -ipo   -O3   -no-prec-div   -auto-ilp32   -ansi-alias
481.wrf:  basepeak = yes

The flags files that were used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Intel-ic16.0-official-linux64.html,
http://www.spec.org/cpu2006/flags/Supermicro-Platform-Settings-V1.2-revH.html.

You can also download the XML flags sources by saving the following links:
http://www.spec.org/cpu2006/flags/Intel-ic16.0-official-linux64.xml,
http://www.spec.org/cpu2006/flags/Supermicro-Platform-Settings-V1.2-revH.xml.
