SPEC® CINT2006 Result

Copyright 2006-2016 Standard Performance Evaluation Corporation

SGI

SGI UV 300 (Intel Xeon E7-8890 v3, 2.5 GHz)

CPU2006 license: 4 Test date: Dec-2015
Test sponsor: SGI Hardware Availability: Sep-2015
Tested by: SGI Software Availability: Nov-2015

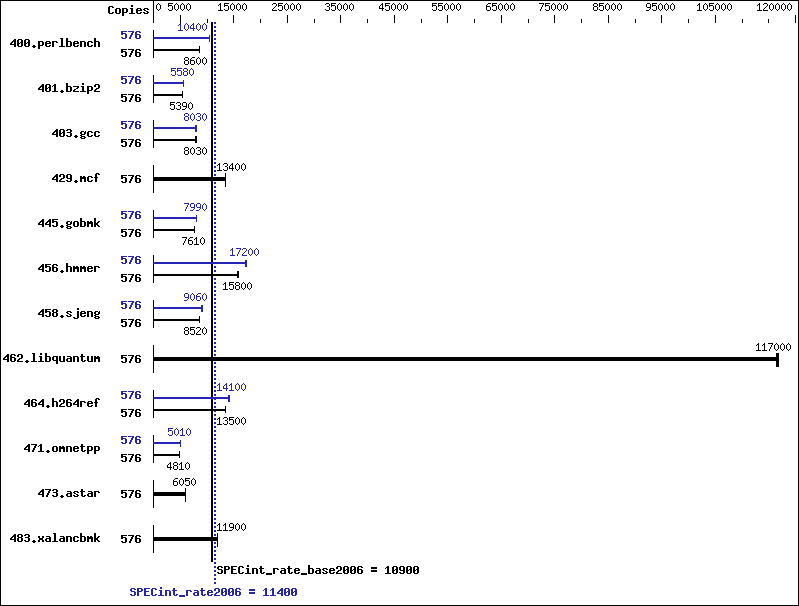

Benchmark results graph
Hardware
CPU Name: Intel Xeon E7-8890 v3
CPU Characteristics: Intel Turbo Boost Technology up to 3.30 GHz
CPU MHz: 2500
FPU: Integrated
CPU(s) enabled: 288 cores, 16 chips, 18 cores/chip, 2 threads/core
CPU(s) orderable: 4-64 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
L3 Cache: 45 MB I+D on chip per chip
Other Cache: None
Memory: 8 TB (256 x 32 GB 2Rx4 PC4-2133P-R,
running at 1600 MHz)
Disk Subsystem: 8 TB tmpfs
Other Hardware: None
Software
Operating System: SUSE Linux Enterprise Server 11 (x86_64) SP4,
Kernel 3.0.101-65.1.9552.0.PTF-default
Compiler: C/C++: Version 16.0.0.109 of Intel C++ Studio XE
for Linux
Auto Parallel: No
File System: tmpfs
System State: Run level 3 (multi-user)
Base Pointers: 32-bit
Peak Pointers: 32/64-bit
Other Software: Microquill SmartHeap V10.2

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 576 654 8600 658 8550 652 8630 576 542 10400 542 10400 542 10400
401.bzip2 576 1028 5410 1034 5380 1031 5390 576 995 5580 1001 5550 996 5580
403.gcc 576 578 8030 585 7930 578 8030 576 584 7940 577 8030 576 8040
429.mcf 576 392 13400 392 13400 392 13400 576 392 13400 392 13400 392 13400
445.gobmk 576 794 7610 793 7620 794 7610 576 756 7990 756 7990 757 7980
456.hmmer 576 337 16000 340 15800 342 15700 576 314 17100 312 17200 311 17300
458.sjeng 576 819 8510 818 8520 818 8520 576 769 9060 769 9060 769 9060
462.libquantum 576 102 116000 102 117000 102 117000 576 102 116000 102 117000 102 117000
464.h264ref 576 952 13400 945 13500 942 13500 576 905 14100 903 14100 903 14100
471.omnetpp 576 750 4800 748 4810 749 4810 576 720 5000 719 5010 719 5010
473.astar 576 669 6050 669 6050 669 6050 576 669 6050 669 6050 669 6050
483.xalancbmk 576 335 11900 334 11900 333 11900 576 335 11900 334 11900 333 11900

Submit Notes

 The numactl mechanism was used to bind copies to processors. The config file option 'submit'
 was used to generate numactl commands to bind each copy to a specific processor.
 For details, please see the config file.

Operating System Notes

 Stack size set to unlimited using "ulimit -s unlimited"

 Tmpfs filesystem set up with:
   mkdir -p /mnt/shm/cpu2006-ic16
   mount -t tmpfs -o size=8192G,rw tmpfs /mnt/shm/cpu2006-ic16

 Turbo mode activated with:
   modprobe acpi_cpufreq
   cpupower frequency-set -u 3300MHz -d 3300MHz -g performance

Platform Notes

 BT Mode set to Auto-select

General Notes

Environment variables set by runspec before the start of the run:
LD_LIBRARY_PATH = "/mnt/shm/cpu2006-ic16/libs/32:/mnt/shm/cpu2006-ic16/libs/64:/mnt/shm/cpu2006-ic16/sh"

 Transparent Huge Pages enabled with:
 echo always > /sys/kernel/mm/transparent_hugepage/enabled
 Filesystem page cache cleared with:
 echo 1 > /proc/sys/vm/drop_caches
 runspec command invoked through numactl i.e.:
 numactl --interleave=all runspec <etc>

Base Compiler Invocation

C benchmarks:

 icc -m32 -L/sw/sdev/intel/parallel_studio_xe_2016/compilers_and_libraries/linux/lib/ia32_lin

C++ benchmarks:

 icpc -m32 -L/sw/sdev/intel/parallel_studio_xe_2016/compilers_and_libraries/linux/lib/ia32_lin

Base Portability Flags

400.perlbench:  -D_FILE_OFFSET_BITS=64   -DSPEC_CPU_LINUX_IA32
401.bzip2:  -D_FILE_OFFSET_BITS=64
403.gcc:  -D_FILE_OFFSET_BITS=64
429.mcf:  -D_FILE_OFFSET_BITS=64
445.gobmk:  -D_FILE_OFFSET_BITS=64
456.hmmer:  -D_FILE_OFFSET_BITS=64
458.sjeng:  -D_FILE_OFFSET_BITS=64
462.libquantum:  -D_FILE_OFFSET_BITS=64   -DSPEC_CPU_LINUX
464.h264ref:  -D_FILE_OFFSET_BITS=64
471.omnetpp:  -D_FILE_OFFSET_BITS=64
473.astar:  -D_FILE_OFFSET_BITS=64
483.xalancbmk:  -D_FILE_OFFSET_BITS=64   -DSPEC_CPU_LINUX

Base Optimization Flags

C benchmarks:

 -xCORE-AVX2   -ipo   -O3   -no-prec-div   -opt-prefetch   -opt-mem-layout-trans=3

C++ benchmarks:

 -xCORE-AVX2   -ipo   -O3   -no-prec-div   -opt-prefetch   -opt-mem-layout-trans=3   -Wl,-z,muldefs   -L/root/cpu2006-ic16/sh -lsmartheap

Base Other Flags

C benchmarks:

403.gcc:  -Dalloca=_alloca

Peak Compiler Invocation

C benchmarks (except as noted below):

 icc -m32 -L/sw/sdev/intel/parallel_studio_xe_2016/compilers_and_libraries/linux/lib/ia32_lin
400.perlbench:  icc -m64
401.bzip2:  icc -m64
456.hmmer:  icc -m64
458.sjeng:  icc -m64

C++ benchmarks:

 icpc -m32 -L/sw/sdev/intel/parallel_studio_xe_2016/compilers_and_libraries/linux/lib/ia32_lin

Peak Portability Flags

400.perlbench:  -D_FILE_OFFSET_BITS=64   -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX_X64
401.bzip2:  -D_FILE_OFFSET_BITS=64   -DSPEC_CPU_LP64
403.gcc:  -D_FILE_OFFSET_BITS=64
429.mcf:  -D_FILE_OFFSET_BITS=64
445.gobmk:  -D_FILE_OFFSET_BITS=64
456.hmmer:  -D_FILE_OFFSET_BITS=64   -DSPEC_CPU_LP64
458.sjeng:  -D_FILE_OFFSET_BITS=64   -DSPEC_CPU_LP64
462.libquantum:  -D_FILE_OFFSET_BITS=64   -DSPEC_CPU_LINUX
464.h264ref:  -D_FILE_OFFSET_BITS=64
471.omnetpp:  -D_FILE_OFFSET_BITS=64
473.astar:  -D_FILE_OFFSET_BITS=64
483.xalancbmk:  -D_FILE_OFFSET_BITS=64   -DSPEC_CPU_LINUX

Peak Optimization Flags

C benchmarks:

400.perlbench:  -xCORE-AVX2(pass 2)   -prof-gen:threadsafe(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -par-num-threads=1(pass 1)   -prof-use(pass 2)   -auto-ilp32
401.bzip2:  -xCORE-AVX2(pass 2)   -prof-gen:threadsafe(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -par-num-threads=1(pass 1)   -prof-use(pass 2)   -opt-prefetch   -auto-ilp32   -ansi-alias
403.gcc:  -xCORE-AVX2   -ipo   -O3   -no-prec-div
429.mcf:  basepeak = yes
445.gobmk:  -xCORE-AVX2(pass 2)   -prof-gen:threadsafe(pass 1)   -prof-use(pass 2)   -par-num-threads=1(pass 1)   -ansi-alias   -opt-mem-layout-trans=3
456.hmmer:  -xCORE-AVX2   -ipo   -O3   -no-prec-div   -unroll2   -auto-ilp32
458.sjeng:  -xCORE-AVX2(pass 2)   -prof-gen:threadsafe(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -par-num-threads=1(pass 1)   -prof-use(pass 2)   -unroll4   -auto-ilp32
462.libquantum:  basepeak = yes
464.h264ref:  -xCORE-AVX2(pass 2)   -prof-gen:threadsafe(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -par-num-threads=1(pass 1)   -prof-use(pass 2)   -unroll2   -ansi-alias

C++ benchmarks:

471.omnetpp:  -xCORE-AVX2(pass 2)   -prof-gen:threadsafe(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -par-num-threads=1(pass 1)   -prof-use(pass 2)   -ansi-alias   -opt-ra-region-strategy=block   -Wl,-z,muldefs   -L/root/cpu2006-ic16/sh -lsmartheap
473.astar:  basepeak = yes
483.xalancbmk:  basepeak = yes

Peak Other Flags

C benchmarks:

403.gcc:  -Dalloca=_alloca

The flags files that were used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Intel-ic16.0-official-linux64.html,
http://www.spec.org/cpu2006/flags/SGI-UV300-Platform-Flags.20160112.html.

You can also download the XML flags sources by saving the following links:
http://www.spec.org/cpu2006/flags/Intel-ic16.0-official-linux64.xml,
http://www.spec.org/cpu2006/flags/SGI-UV300-Platform-Flags.20160112.xml.

SPEC and SPECint are registered trademarks of the Standard Performance Evaluation Corporation. All other brand and product names appearing in this result are trademarks or registered trademarks of their respective holders.

For questions about this result, please contact the tester.
For other inquiries, please contact webmaster@spec.org
Copyright 2006-2016 Standard Performance Evaluation Corporation
Tested with SPEC CPU2006 v1.2.
Report generated on Tue Jan 12 15:45:52 2016 by SPEC CPU2006 HTML formatter v6932.
Originally published on 12 January 2016.
