| CPU2006 license: | 6 | Test date: | Oct-2015 |
|---|---|---|---|
| Test sponsor: | Oracle Corporation | Hardware Availability: | Oct-2015 |
| Tested by: | Oracle Corporation | Software Availability: | Oct-2015 |
| Hardware | |
|---|---|
| CPU Name: | SPARC M7 |
| CPU Characteristics: | |
| CPU MHz: | 4133 |
| FPU: | Integrated |
| CPU(s) enabled: | 32 cores, 1 chip, 32 cores/chip, 8 threads/core |
| CPU(s) orderable: | 1 chip |
| Primary Cache: | 16 KB I + 16 KB D on chip per core |
| Secondary Cache: | 2 MB I on chip per chip (256 KB / 4 cores); 4 MB D on chip per chip (256 KB / 2 cores) |
| L3 Cache: | 64 MB I+D on chip per chip (8 MB / 4 cores) |
| Other Cache: | None |
| Memory: | 512 GB (16 x 32 GB 4Rx4 PC4-2133P-L) |
| Disk Subsystem: | 732 GB, 4 x 400 GB SAS SSD (mirrored) |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Oracle Solaris 11.3 |
| Compiler: | C/C++/Fortran: Version 12.4 of Oracle Solaris Studio, 4/15 Patch Set |
| Auto Parallel: | No |
| File System: | zfs |
| System State: | Default |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32-bit |
| Other Software: | None |

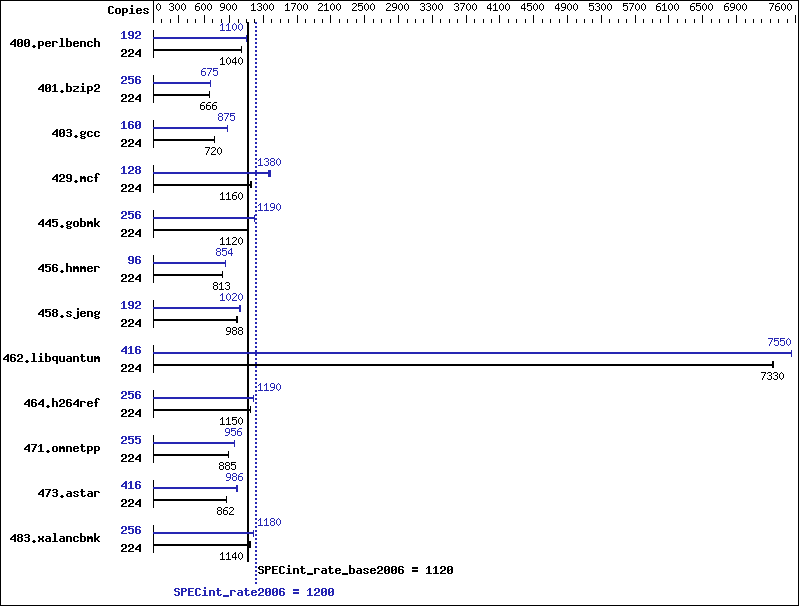

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 224 | 2109 | 1040 | 2108 | 1040 | 2109 | 1040 | 192 | 1700 | 1100 | 1699 | 1100 | 1699 | 1100 |
| 401.bzip2 | 224 | 3240 | 667 | 3246 | 666 | 3245 | 666 | 256 | 3667 | 674 | 3661 | 675 | 3655 | 676 |
| 403.gcc | 224 | 2509 | 719 | 2503 | 720 | 2505 | 720 | 160 | 1474 | 874 | 1472 | 875 | 1469 | 877 |
| 429.mcf | 224 | 1759 | 1160 | 1771 | 1150 | 1764 | 1160 | 128 | 848 | 1380 | 846 | 1380 | 861 | 1360 |
| 445.gobmk | 224 | 2096 | 1120 | 2105 | 1120 | 2115 | 1110 | 256 | 2251 | 1190 | 2252 | 1190 | 2250 | 1190 |
| 456.hmmer | 224 | 2574 | 812 | 2566 | 814 | 2571 | 813 | 96 | 1050 | 853 | 1049 | 854 | 1049 | 854 |
| 458.sjeng | 224 | 2743 | 988 | 2740 | 989 | 2751 | 985 | 192 | 2277 | 1020 | 2268 | 1020 | 2253 | 1030 |
| 462.libquantum | 224 | 633 | 7330 | 633 | 7340 | 633 | 7330 | 416 | 1141 | 7550 | 1142 | 7550 | 1141 | 7550 |
| 464.h264ref | 224 | 4297 | 1150 | 4301 | 1150 | 4307 | 1150 | 256 | 4771 | 1190 | 4782 | 1180 | 4778 | 1190 |
| 471.omnetpp | 224 | 1581 | 885 | 1581 | 885 | 1581 | 885 | 255 | 1668 | 956 | 1667 | 956 | 1667 | 956 |
| 473.astar | 224 | 1822 | 863 | 1824 | 862 | 1825 | 862 | 416 | 2964 | 985 | 2962 | 986 | 2951 | 990 |
| 483.xalancbmk | 224 | 1353 | 1140 | 1354 | 1140 | 1354 | 1140 | 256 | 1495 | 1180 | 1495 | 1180 | 1495 | 1180 |
Submit Notes
Processes were bound to cores using "submit" and "pbind". The config file option 'submit' was used in order to accomplish this.
Operating System Notes
ulimit -s 131072 was used to limit the space
consumed by the stack
/etc/system parameters
set user_reserve_hint_pct=85
Informs the system about how much memory is expected
to be used by applications (as a percentage)
poweradm set administrative-authority=none
Disables Solaris power management
600 GB of swap space was configured
Platform Notes
Power policy set to 'disabled' at ILOM Power Managment menu Sysinfo program /cpu2006/config/sysinfo.rev6818 $Rev: 6818 $ $Date:: 2012-07-17 #$ 5569a0425e2ad530534e4c79a46e4d28 running on t7-1-003.us.oracle.com Thu Oct 15 14:31:09 2015 This section contains SUT (System Under Test) info as seen by some common utilities. To remove or add to this section, see: http://www.spec.org/cpu2006/Docs/config.html#sysinfo From /usr/sbin/psrinfo SPARC-M7 (chipid 0, clock 4133 MHz) 1 chips 256 threads 4133 MHz From kstat: 32 cores From prtconf: 489728 Megabytes /etc/release: Oracle Solaris 11.3 SPARC uname -a: SunOS t7-1-003.us.oracle.com 5.11 11.3 sun4v sparc sun4v disk: df -h $SPEC Filesystem Size Used Available Capacity Mounted on spec/nogz/cpu2006 732G 1.9G 730G 1% /cpu2006 (End of data from sysinfo program)
General Notes
SPEC CPU2006 benchmark was updated with runspec --update
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_SOLARIS_SPARC |
| 403.gcc: | -DSPEC_CPU_SOLARIS |
| 462.libquantum: | -DSPEC_CPU_SOLARIS |
| 483.xalancbmk: | -DSPEC_CPU_SOLARIS |
Base Optimization Flags
C benchmarks:
| -g -xsegment_align=64K -fast -xipo=2 -xpagesize_heap=256M -xprefetch=no%auto -lfast -xalias_level=std -xthroughput |
C++ benchmarks:
| -g -xsegment_align=64K -fast -xipo=2 -xpagesize_heap=256M -xprefetch=no%auto -lfast -xalias_level=compatible -library=stlport4 -xthroughput |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_SOLARIS_SPARC |
| 403.gcc: | -DSPEC_CPU_SOLARIS |
| 462.libquantum: | -DSPEC_CPU_SOLARIS |
| 483.xalancbmk: | -DSPEC_CPU_SOLARIS |
Peak Optimization Flags
C benchmarks:
C++ benchmarks:
| 471.omnetpp: | -g -xprofile=collect:./feedback(pass 1) -xprofile=use:./feedback(pass 2) -fast -xipo=2 -xpagesize=256M -xalias_level=compatible -library=stdcxx4 -template=extdef -lmmheap |
| 473.astar: | -g -xprofile=collect:./feedback(pass 1) -xprofile=use:./feedback(pass 2) -fast -xpagesize=256M -xalias_level=compatible -xprefetch=no%auto -library=stdcxx4 -template=extdef -lfast |
| 483.xalancbmk: | -g -xprofile=collect:./feedback(pass 1) -xprofile=use:./feedback(pass 2) -fast -xipo=2 -xpagesize=256M -xalias_level=compatible -xprefetch=no%auto -library=stlport4 -lfast |
