CPU2006 license: | 9006 | Test date: | Jul-2015 |
---|---|---|---|
Test sponsor: | NEC Corporation | Hardware Availability: | Jun-2015 |
Tested by: | NEC Corporation | Software Availability: | Oct-2014 |
Hardware | |
---|---|
CPU Name: | Intel Xeon E5-2699 v3 |
CPU Characteristics: | Intel Turbo Boost Technology up to 3.60 GHz |
CPU MHz: | 2300 |
FPU: | Integrated |
CPU(s) enabled: | 36 cores, 2 chips, 18 cores/chip |
CPU(s) orderable: | 1,2 chips |
Primary Cache: | 32 KB I + 32 KB D on chip per core |
Secondary Cache: | 256 KB I+D on chip per core |
L3 Cache: | 45 MB I+D on chip per chip |
Other Cache: | None |
Memory: | 128 GB (8 x 16 GB 2Rx4 PC4-2133P-R) |
Disk Subsystem: | NEC Storage M100 via Fibre Channel (See additional details below) |
Other Hardware: | None |
Software | |
---|---|
Operating System: | Red Hat Enterprise Linux Server release 6.6 (Santiago) Kernel 2.6.32-504.el6.x86_64 |
Compiler: | C/C++: Version 15.0.0.090 of Intel C++ Studio XE for Linux |
Auto Parallel: | Yes |
File System: | ext4 |
System State: | Run level 3 (multi-user) |
Base Pointers: | 32/64-bit |
Peak Pointers: | 32/64-bit |
Other Software: | Microquill SmartHeap V8.1 |

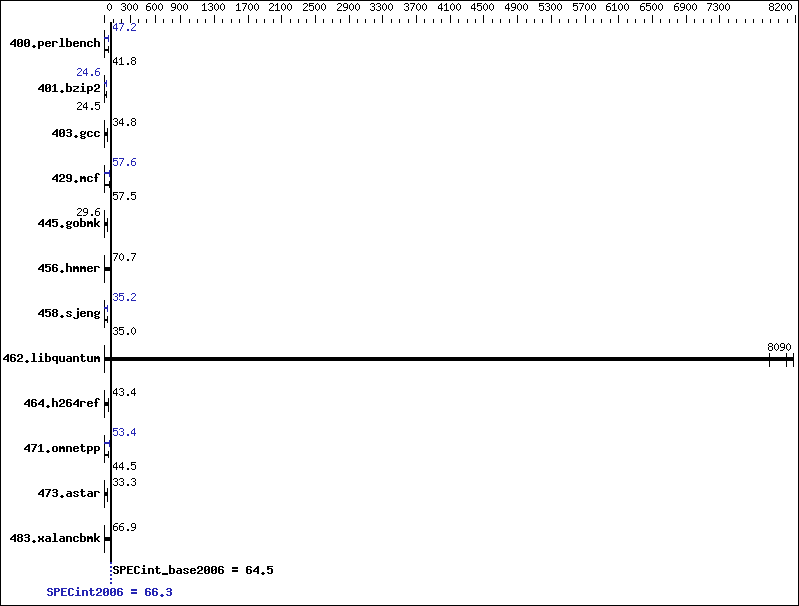

Benchmark | Base | Peak | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
400.perlbench | 233 | 41.9 | 234 | 41.8 | 234 | 41.7 | 207 | 47.2 | 207 | 47.2 | 207 | 47.2 |
401.bzip2 | 393 | 24.5 | 393 | 24.6 | 396 | 24.4 | 391 | 24.6 | 392 | 24.6 | 392 | 24.6 |
403.gcc | 231 | 34.9 | 231 | 34.8 | 231 | 34.8 | 231 | 34.9 | 231 | 34.8 | 231 | 34.8 |
429.mcf | 159 | 57.3 | 159 | 57.5 | 157 | 58.0 | 158 | 57.6 | 160 | 57.1 | 158 | 57.6 |
445.gobmk | 354 | 29.6 | 355 | 29.6 | 355 | 29.6 | 354 | 29.6 | 355 | 29.6 | 355 | 29.6 |
456.hmmer | 132 | 70.7 | 132 | 70.6 | 132 | 70.7 | 132 | 70.7 | 132 | 70.6 | 132 | 70.7 |
458.sjeng | 346 | 35.0 | 346 | 35.0 | 346 | 35.0 | 344 | 35.2 | 343 | 35.2 | 344 | 35.2 |
462.libquantum | 2.53 | 8180 | 2.56 | 8090 | 2.63 | 7890 | 2.53 | 8180 | 2.56 | 8090 | 2.63 | 7890 |
464.h264ref | 510 | 43.4 | 510 | 43.4 | 511 | 43.3 | 510 | 43.4 | 510 | 43.4 | 511 | 43.3 |
471.omnetpp | 139 | 44.8 | 141 | 44.3 | 141 | 44.5 | 117 | 53.5 | 118 | 53.2 | 117 | 53.4 |
473.astar | 211 | 33.3 | 211 | 33.3 | 212 | 33.2 | 211 | 33.3 | 211 | 33.3 | 212 | 33.2 |
483.xalancbmk | 103 | 66.9 | 103 | 67.0 | 104 | 66.5 | 103 | 66.9 | 103 | 67.0 | 104 | 66.5 |
Stack size set to unlimited using "ulimit -s unlimited"
BIOS Settings: Energy Performance: Performance Patrol Scrub: Disabled Hyper-Threading: Disabled Storage Configuration for Disk Subsystem: NEC Storage M100 has 4 x 600 GB 10000 RPM SAS disks under RAID-10 configuration mounted over 8Gbps Fibre Channel interface with these options "defaults" in the /etc/fstab.
Environment variables set by runspec before the start of the run: KMP_AFFINITY = "granularity=fine,compact" LD_LIBRARY_PATH = "/home/cpu2006/libs/32:/home/cpu2006/libs/64:/home/cpu2006/sh" OMP_NUM_THREADS = "36" Transparent Huge Pages enabled with: echo always > /sys/kernel/mm/redhat_transparent_hugepage/enabled
400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
401.bzip2: | -DSPEC_CPU_LP64 |
403.gcc: | -DSPEC_CPU_LP64 |
429.mcf: | -DSPEC_CPU_LP64 |
445.gobmk: | -DSPEC_CPU_LP64 |
456.hmmer: | -DSPEC_CPU_LP64 |
458.sjeng: | -DSPEC_CPU_LP64 |
462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
464.h264ref: | -DSPEC_CPU_LP64 |
471.omnetpp: | -DSPEC_CPU_LP64 |
473.astar: | -DSPEC_CPU_LP64 |
483.xalancbmk: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
-xCORE-AVX2 -ipo -O3 -no-prec-div -parallel -opt-prefetch -auto-p32 |
-xCORE-AVX2 -ipo -O3 -no-prec-div -opt-prefetch -auto-p32 -Wl,-z,muldefs -L/sh -lsmartheap64 |
icc -m64 | |
400.perlbench: | icc -m32 -L/opt/intel/composer_xe_2015/lib/ia32 |
icpc -m64 | |
471.omnetpp: | icpc -m32 -L/opt/intel/composer_xe_2015/lib/ia32 |
400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
401.bzip2: | -DSPEC_CPU_LP64 |
403.gcc: | -DSPEC_CPU_LP64 |
429.mcf: | -DSPEC_CPU_LP64 |
445.gobmk: | -DSPEC_CPU_LP64 |
456.hmmer: | -DSPEC_CPU_LP64 |
458.sjeng: | -DSPEC_CPU_LP64 |
462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
464.h264ref: | -DSPEC_CPU_LP64 |
473.astar: | -DSPEC_CPU_LP64 |
483.xalancbmk: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
400.perlbench: | -xCORE-AVX2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -opt-prefetch -ansi-alias |
401.bzip2: | -xCORE-AVX2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div -prof-use(pass 2) -auto-ilp32 -opt-prefetch -ansi-alias |
403.gcc: | basepeak = yes |
429.mcf: | -xCORE-AVX2 -ipo -O3 -no-prec-div -parallel -opt-prefetch -auto-p32 |
445.gobmk: | basepeak = yes |
456.hmmer: | basepeak = yes |
458.sjeng: | -xCORE-AVX2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll4 |
462.libquantum: | basepeak = yes |
464.h264ref: | basepeak = yes |
471.omnetpp: | -xCORE-AVX2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -opt-ra-region-strategy=block -ansi-alias -Wl,-z,muldefs -L/sh -lsmartheap |
473.astar: | basepeak = yes |
483.xalancbmk: | basepeak = yes |
