| CPU2006 license: | 9006 | Test date: | Dec-2014 |
|---|---|---|---|
| Test sponsor: | NEC Corporation | Hardware Availability: | Apr-2015 |
| Tested by: | NEC Corporation | Software Availability: | Jul-2014 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E5-2690 v3 |
| CPU Characteristics: | Intel Turbo Boost Technology up to 3.50 GHz |
| CPU MHz: | 2600 |
| FPU: | Integrated |
| CPU(s) enabled: | 24 cores, 2 chips, 12 cores/chip |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 30 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 96 GB (6 x 16 GB 2Rx4 PC4-2133P-R) |
| Disk Subsystem: | 1 x 300 GB SAS, 10000 RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Red Hat Enterprise Linux Server release 6.5 (Santiago) Kernel 2.6.32-431.20.3.el6.x86_64 |
| Compiler: | C/C++: Version 15.0.0.090 of Intel C++ Studio XE for Linux |
| Auto Parallel: | Yes |
| File System: | ext4 |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 32/64-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V8.1 |

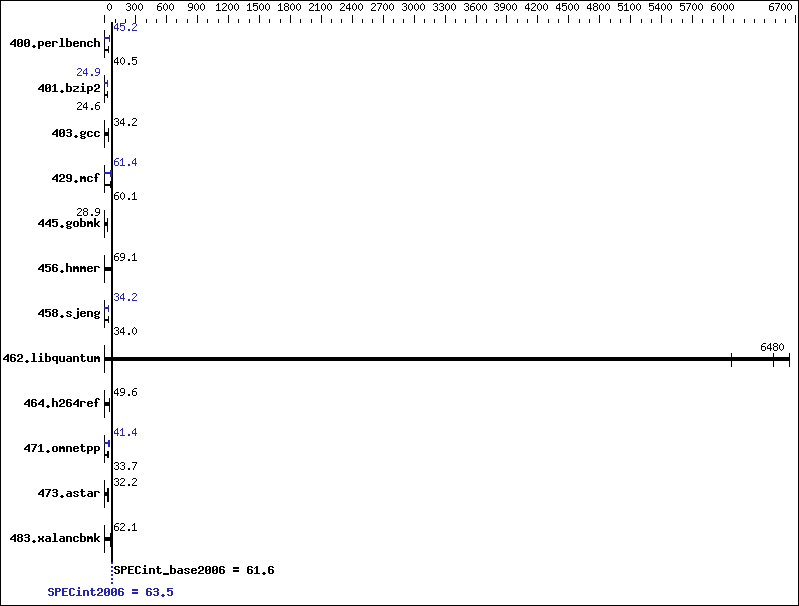

Results Table
| Benchmark | Base | Peak | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
| 400.perlbench | 247 | 39.5 | 241 | 40.5 | 240 | 40.6 | 215 | 45.5 | 219 | 44.6 | 216 | 45.2 |
| 401.bzip2 | 413 | 23.4 | 392 | 24.6 | 389 | 24.8 | 388 | 24.9 | 393 | 24.6 | 388 | 24.9 |
| 403.gcc | 234 | 34.4 | 237 | 33.9 | 236 | 34.2 | 234 | 34.4 | 237 | 33.9 | 236 | 34.2 |
| 429.mcf | 148 | 61.5 | 152 | 60.1 | 166 | 54.8 | 157 | 58.2 | 148 | 61.5 | 149 | 61.4 |
| 445.gobmk | 362 | 29.0 | 364 | 28.9 | 364 | 28.8 | 362 | 29.0 | 364 | 28.9 | 364 | 28.8 |
| 456.hmmer | 135 | 69.1 | 135 | 69.1 | 135 | 69.0 | 135 | 69.1 | 135 | 69.1 | 135 | 69.0 |
| 458.sjeng | 356 | 34.0 | 355 | 34.0 | 355 | 34.1 | 354 | 34.1 | 354 | 34.2 | 354 | 34.2 |
| 462.libquantum | 3.41 | 6070 | 3.20 | 6480 | 3.12 | 6640 | 3.41 | 6070 | 3.20 | 6480 | 3.12 | 6640 |
| 464.h264ref | 446 | 49.6 | 446 | 49.6 | 447 | 49.5 | 446 | 49.6 | 446 | 49.6 | 447 | 49.5 |
| 471.omnetpp | 214 | 29.2 | 184 | 34.0 | 186 | 33.7 | 132 | 47.2 | 158 | 39.6 | 151 | 41.4 |
| 473.astar | 238 | 29.5 | 214 | 32.8 | 218 | 32.2 | 238 | 29.5 | 214 | 32.8 | 218 | 32.2 |
| 483.xalancbmk | 130 | 53.2 | 111 | 62.1 | 105 | 65.5 | 130 | 53.2 | 111 | 62.1 | 105 | 65.5 |
Operating System Notes
Stack size set to unlimited using "ulimit -s unlimited"
Platform Notes
BIOS Settings: Processor C6 Report: Enabled Energy Performance: Performance Patrol Scrub: Disabled Hyper-Threading: Disabled
General Notes
Environment variables set by runspec before the start of the run: KMP_AFFINITY = "granularity=fine,compact" LD_LIBRARY_PATH = "/home/cpu2006/libs/32:/home/cpu2006/libs/64:/home/cpu2006/sh" OMP_NUM_THREADS = "24" Transparent Huge Pages enabled with: echo always > /sys/kernel/mm/redhat_transparent_hugepage/enabled
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 403.gcc: | -DSPEC_CPU_LP64 |
| 429.mcf: | -DSPEC_CPU_LP64 |
| 445.gobmk: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
| 464.h264ref: | -DSPEC_CPU_LP64 |
| 471.omnetpp: | -DSPEC_CPU_LP64 |
| 473.astar: | -DSPEC_CPU_LP64 |
| 483.xalancbmk: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xCORE-AVX2 -ipo -O3 -no-prec-div -parallel -opt-prefetch -auto-p32 |
C++ benchmarks:
| -xCORE-AVX2 -ipo -O3 -no-prec-div -opt-prefetch -auto-p32 -Wl,-z,muldefs -L/sh -lsmartheap64 |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc -m64 | |
| 400.perlbench: | icc -m32 -L/opt/intel/composer_xe_2015/lib/ia32 |
C++ benchmarks (except as noted below):
| icpc -m64 | |
| 471.omnetpp: | icpc -m32 -L/opt/intel/composer_xe_2015/lib/ia32 |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 403.gcc: | -DSPEC_CPU_LP64 |
| 429.mcf: | -DSPEC_CPU_LP64 |
| 445.gobmk: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
| 464.h264ref: | -DSPEC_CPU_LP64 |
| 473.astar: | -DSPEC_CPU_LP64 |
| 483.xalancbmk: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -xCORE-AVX2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -opt-prefetch -ansi-alias |
| 401.bzip2: | -xCORE-AVX2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div -prof-use(pass 2) -auto-ilp32 -opt-prefetch -ansi-alias |
| 403.gcc: | basepeak = yes |
| 429.mcf: | -xCORE-AVX2 -ipo -O3 -no-prec-div -parallel -opt-prefetch -auto-p32 |
| 445.gobmk: | basepeak = yes |
| 456.hmmer: | basepeak = yes |
| 458.sjeng: | -xCORE-AVX2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll4 |
| 462.libquantum: | basepeak = yes |
| 464.h264ref: | basepeak = yes |
C++ benchmarks:
| 471.omnetpp: | -xCORE-AVX2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -opt-ra-region-strategy=block -ansi-alias -Wl,-z,muldefs -L/sh -lsmartheap |
| 473.astar: | basepeak = yes |
| 483.xalancbmk: | basepeak = yes |
