| CPU2006 license: | 9006 | Test date: | Apr-2015 |
|---|---|---|---|
| Test sponsor: | NEC Corporation | Hardware Availability: | Jan-2015 |
| Tested by: | NEC Corporation | Software Availability: | Jul-2014 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E5-2640 v3 |
| CPU Characteristics: | Intel Turbo Boost Technology up to 3.40 GHz |
| CPU MHz: | 2600 |
| FPU: | Integrated |
| CPU(s) enabled: | 8 cores, 1 chip, 8 cores/chip, 2 threads/core |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 20 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 128 GB (8 x 16 GB 2Rx4 PC4-2133P-R, running at 1866 MHz) |
| Disk Subsystem: | 1 x 250 GB SATA, 7200 RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Red Hat Enterprise Linux Server release 6.5 (Santiago) Kernel 2.6.32-431.20.3.el6.x86_64 |
| Compiler: | C/C++: Version 15.0.0.090 of Intel C++ Studio XE for Linux |
| Auto Parallel: | No |
| File System: | ext4 |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V8.1 |

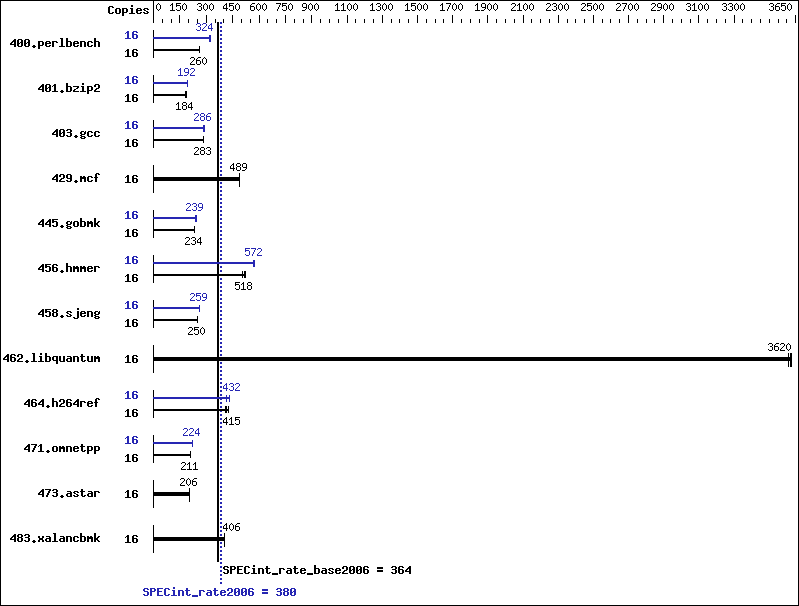

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 16 | 601 | 260 | 601 | 260 | 602 | 260 | 16 | 482 | 324 | 482 | 324 | 487 | 321 |
| 401.bzip2 | 16 | 838 | 184 | 839 | 184 | 835 | 185 | 16 | 805 | 192 | 805 | 192 | 806 | 192 |
| 403.gcc | 16 | 451 | 286 | 455 | 283 | 455 | 283 | 16 | 446 | 289 | 450 | 286 | 450 | 286 |
| 429.mcf | 16 | 300 | 487 | 299 | 489 | 298 | 490 | 16 | 300 | 487 | 299 | 489 | 298 | 490 |
| 445.gobmk | 16 | 717 | 234 | 717 | 234 | 717 | 234 | 16 | 694 | 242 | 703 | 239 | 704 | 238 |
| 456.hmmer | 16 | 286 | 522 | 288 | 518 | 294 | 507 | 16 | 261 | 572 | 261 | 571 | 260 | 574 |
| 458.sjeng | 16 | 774 | 250 | 775 | 250 | 773 | 251 | 16 | 747 | 259 | 745 | 260 | 746 | 259 |
| 462.libquantum | 16 | 91.9 | 3610 | 91.4 | 3630 | 91.5 | 3620 | 16 | 91.9 | 3610 | 91.4 | 3630 | 91.5 | 3620 |
| 464.h264ref | 16 | 833 | 425 | 853 | 415 | 863 | 410 | 16 | 848 | 418 | 815 | 435 | 819 | 432 |
| 471.omnetpp | 16 | 473 | 211 | 474 | 211 | 472 | 212 | 16 | 447 | 224 | 447 | 224 | 449 | 223 |
| 473.astar | 16 | 544 | 206 | 547 | 205 | 544 | 206 | 16 | 544 | 206 | 547 | 205 | 544 | 206 |
| 483.xalancbmk | 16 | 272 | 406 | 273 | 404 | 272 | 406 | 16 | 272 | 406 | 273 | 404 | 272 | 406 |
Submit Notes
The numactl mechanism was used to bind copies to processors. The config file option 'submit' was used to generate numactl commands to bind each copy to a specific processor. For details, please see the config file.
Operating System Notes
Stack size set to unlimited using "ulimit -s unlimited"
Platform Notes
BIOS Settings: Power Management Policy: Custom Energy Performance: Performance Patrol Scrub: Disabled
General Notes
Environment variables set by runspec before the start of the run: LD_LIBRARY_PATH = "/home/cpu2006/libs/32:/home/cpu2006/libs/64:/home/cpu2006/sh" Transparent Huge Pages enabled with: echo always > /sys/kernel/mm/redhat_transparent_hugepage/enabled Filesystem page cache cleared with: echo 1 > /proc/sys/vm/drop_caches runspec command invoked through numactl i.e.: numactl --interleave=all runspec <etc>
Base Compiler Invocation
C benchmarks:
| icc -m32 -L/opt/intel/composer_xe_2015/lib/ia32 |
C++ benchmarks:
| icpc -m32 -L/opt/intel/composer_xe_2015/lib/ia32 |
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xCORE-AVX2 -ipo -O3 -no-prec-div -opt-prefetch -opt-mem-layout-trans=3 |
C++ benchmarks:
| -xCORE-AVX2 -ipo -O3 -no-prec-div -opt-prefetch -opt-mem-layout-trans=3 -Wl,-z,muldefs -L/sh -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc -m32 -L/opt/intel/composer_xe_2015/lib/ia32 | |
| 400.perlbench: | icc -m64 |
| 401.bzip2: | icc -m64 |
| 456.hmmer: | icc -m64 |
| 458.sjeng: | icc -m64 |
C++ benchmarks:
| icpc -m32 -L/opt/intel/composer_xe_2015/lib/ia32 |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -xCORE-AVX2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -auto-ilp32 |
| 401.bzip2: | -xCORE-AVX2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -opt-prefetch -auto-ilp32 -ansi-alias |
| 403.gcc: | -xCORE-AVX2 -ipo -O3 -no-prec-div |
| 429.mcf: | basepeak = yes |
| 445.gobmk: | -xCORE-AVX2(pass 2) -prof-gen(pass 1) -prof-use(pass 2) -ansi-alias -opt-mem-layout-trans=3 |
| 456.hmmer: | -xCORE-AVX2 -ipo -O3 -no-prec-div -unroll2 -auto-ilp32 |
| 458.sjeng: | -xCORE-AVX2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll4 -auto-ilp32 |
| 462.libquantum: | basepeak = yes |
| 464.h264ref: | -xCORE-AVX2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll2 -ansi-alias |
C++ benchmarks:
| 471.omnetpp: | -xCORE-AVX2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/sh -lsmartheap |
| 473.astar: | basepeak = yes |
| 483.xalancbmk: | basepeak = yes |
