| CPU2006 license: | 55 | Test date: | Apr-2015 |
|---|---|---|---|
| Test sponsor: | Dell Inc. | Hardware Availability: | Jun-2015 |
| Tested by: | Dell Inc. | Software Availability: | Oct-2014 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E7-8893 v3 |
| CPU Characteristics: | Intel Turbo Boost Technology up to 3.50 GHz |
| CPU MHz: | 3200 |
| FPU: | Integrated |
| CPU(s) enabled: | 16 cores, 4 chips, 4 cores/chip, 2 threads/core |
| CPU(s) orderable: | 2,4 chip |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 45 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 512 GB (32 x 16 GB 2Rx4 PC4-2133P-R, running at 1600 MHz) |
| Disk Subsystem: | 2 x 200 GB SAS6 SSD, RAID0 |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SUSE Linux Enterprise Server 12 3.12.28-4-default |
| Compiler: | C/C++: Version 15.0.0.090 of Intel C++ Studio XE for Linux |
| Auto Parallel: | Yes |
| File System: | ext4 |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 32/64-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V10.0 |

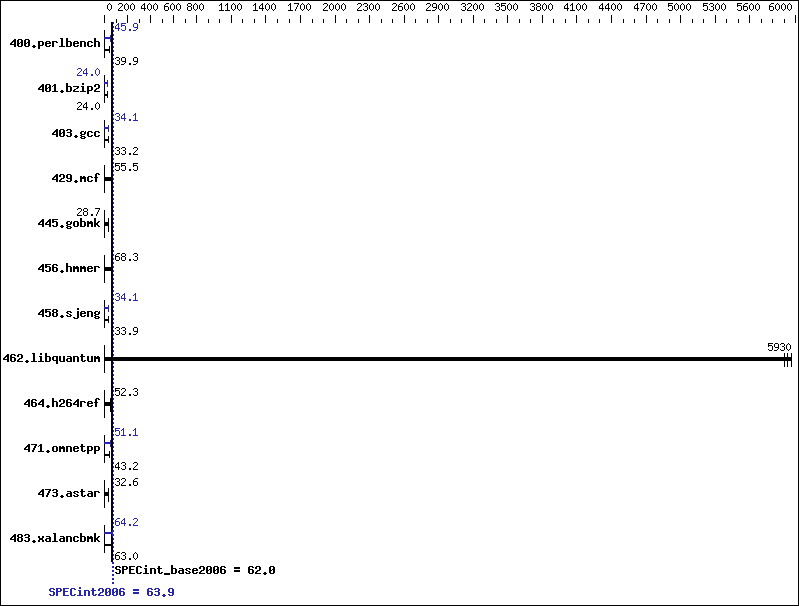

Results Table
| Benchmark | Base | Peak | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
| 400.perlbench | 244 | 40.1 | 245 | 39.9 | 245 | 39.9 | 213 | 45.9 | 213 | 45.9 | 213 | 45.8 |
| 401.bzip2 | 403 | 24.0 | 401 | 24.0 | 403 | 23.9 | 402 | 24.0 | 402 | 24.0 | 402 | 24.0 |
| 403.gcc | 242 | 33.2 | 243 | 33.2 | 242 | 33.2 | 235 | 34.2 | 236 | 34.1 | 238 | 33.8 |
| 429.mcf | 164 | 55.4 | 164 | 55.7 | 164 | 55.5 | 164 | 55.4 | 164 | 55.7 | 164 | 55.5 |
| 445.gobmk | 367 | 28.6 | 366 | 28.7 | 366 | 28.7 | 367 | 28.6 | 366 | 28.7 | 366 | 28.7 |
| 456.hmmer | 137 | 68.3 | 137 | 68.3 | 137 | 68.4 | 137 | 68.3 | 137 | 68.3 | 137 | 68.4 |
| 458.sjeng | 356 | 34.0 | 356 | 33.9 | 357 | 33.9 | 355 | 34.1 | 355 | 34.1 | 355 | 34.1 |
| 462.libquantum | 3.48 | 5960 | 3.51 | 5900 | 3.50 | 5930 | 3.48 | 5960 | 3.51 | 5900 | 3.50 | 5930 |
| 464.h264ref | 425 | 52.1 | 423 | 52.4 | 423 | 52.3 | 425 | 52.1 | 423 | 52.4 | 423 | 52.3 |
| 471.omnetpp | 146 | 42.8 | 142 | 44.1 | 145 | 43.2 | 116 | 53.7 | 122 | 51.1 | 123 | 50.9 |
| 473.astar | 216 | 32.5 | 215 | 32.6 | 214 | 32.8 | 216 | 32.5 | 215 | 32.6 | 214 | 32.8 |
| 483.xalancbmk | 108 | 63.7 | 110 | 62.6 | 110 | 63.0 | 109 | 63.6 | 107 | 64.3 | 108 | 64.2 |
Submit Notes
The config file option 'submit' was used.
Operating System Notes
Stack size set to unlimited using "ulimit -s unlimited"
Platform Notes
BIOS Settings: Virtualization Technology disabled System Profile set to Custom CPU Power Management set to Maximum Performance Memory Frequency set to Maximum Performance Turbo Boost enabled Energy Efficient Turbo disabled C1E disabled C States disabled Collaborative CPU Performance Control disabled Memory Patrol Scrub disabled Memory Refresh Rate set to 1x Uncore Frequency set to Maximum Energy Efficient Policy set to Performance Monitor/MWait enabled Sysinfo program /root/Desktop/Performance/ic15.0_Aug29_2014/config/sysinfo.rev6914 $Rev: 6914 $ $Date:: 2014-06-25 #$ e3fbb8667b5a285932ceab81e28219e1 running on linux-1uzu Sun Apr 12 08:36:43 2015 This section contains SUT (System Under Test) info as seen by some common utilities. To remove or add to this section, see: http://www.spec.org/cpu2006/Docs/config.html#sysinfo From /proc/cpuinfo model name : Intel(R) Xeon(R) CPU E7-8893 v3 @ 3.20GHz 4 "physical id"s (chips) 32 "processors" cores, siblings (Caution: counting these is hw and system dependent. The following excerpts from /proc/cpuinfo might not be reliable. Use with caution.) cpu cores : 4 siblings : 8 physical 0: cores 1 5 16 20 physical 1: cores 1 5 16 20 physical 2: cores 1 5 16 20 physical 3: cores 1 5 16 20 cache size : 46080 KB From /proc/meminfo MemTotal: 529204236 kB HugePages_Total: 0 Hugepagesize: 2048 kB /usr/bin/lsb_release -d SUSE Linux Enterprise Server 12 From /etc/*release* /etc/*version* SuSE-release: SUSE Linux Enterprise Server 12 (x86_64) VERSION = 12 PATCHLEVEL = 0 # This file is deprecated and will be removed in a future service pack or release. # Please check /etc/os-release for details about this release. os-release: NAME="SLES" VERSION="12" VERSION_ID="12" PRETTY_NAME="SUSE Linux Enterprise Server 12" ID="sles" ANSI_COLOR="0;32" CPE_NAME="cpe:/o:suse:sles:12" uname -a: Linux linux-1uzu 3.12.28-4-default #1 SMP Thu Sep 25 17:02:34 UTC 2014 (9879bd4) x86_64 x86_64 x86_64 GNU/Linux run-level 3 Apr 10 19:19 last=5 SPEC is set to: /root/Desktop/Performance/ic15.0_Aug29_2014 Filesystem Type Size Used Avail Use% Mounted on /dev/sdb3 ext4 325G 21G 304G 7% /home Additional information from dmidecode: Warning: Use caution when you interpret this section. The 'dmidecode' program reads system data which is "intended to allow hardware to be accurately determined", but the intent may not be met, as there are frequent changes to hardware, firmware, and the "DMTF SMBIOS" standard. BIOS Dell Inc. 1.0.1 [MRC_096] 03/27/2015 Memory: 32x 00AD00B300AD Not Specified 16 GB 2 rank 2133 MHz, configured at 1600 MHz 64x Not Specified Not Specified (End of data from sysinfo program)
General Notes
Environment variables set by runspec before the start of the run: KMP_AFFINITY = "granularity=fine,scatter" LD_LIBRARY_PATH = "/root/Desktop/Performance/ic15.0_Aug29_2014/libs/32:/root/Desktop/Performance/ic15.0_Aug29_2014/libs/64:/root/Desktop/Performance/ic15.0_Aug29_2014/sh" OMP_NUM_THREADS = "16" Binaries compiled on a system with 1x Core i5-4670K CPU + 16GB memory using RedHat EL 7.0 Transparent Huge Pages enabled with: echo always > /sys/kernel/mm/transparent_hugepage/enabled
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 403.gcc: | -DSPEC_CPU_LP64 |
| 429.mcf: | -DSPEC_CPU_LP64 |
| 445.gobmk: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
| 464.h264ref: | -DSPEC_CPU_LP64 |
| 471.omnetpp: | -DSPEC_CPU_LP64 |
| 473.astar: | -DSPEC_CPU_LP64 |
| 483.xalancbmk: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xCORE-AVX2 -ipo -O3 -no-prec-div -parallel -opt-prefetch -auto-p32 |
C++ benchmarks:
| -xCORE-AVX2 -ipo -O3 -no-prec-div -opt-prefetch -auto-p32 -Wl,-z,muldefs -L/sh -lsmartheap64 |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc -m64 | |
| 400.perlbench: | icc -m32 -L/opt/intel/composer_xe_2015/lib/ia32 |
C++ benchmarks (except as noted below):
| icpc -m32 -L/opt/intel/composer_xe_2015/lib/ia32 | |
| 473.astar: | icpc -m64 |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 403.gcc: | -DSPEC_CPU_LP64 |
| 429.mcf: | -DSPEC_CPU_LP64 |
| 445.gobmk: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
| 464.h264ref: | -DSPEC_CPU_LP64 |
| 473.astar: | -DSPEC_CPU_LP64 |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -xCORE-AVX2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -opt-prefetch -ansi-alias |
| 401.bzip2: | -xCORE-AVX2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div -prof-use(pass 2) -auto-ilp32 -opt-prefetch -ansi-alias |
| 403.gcc: | -xCORE-AVX2 -ipo -O3 -no-prec-div -inline-calloc -opt-malloc-options=3 -auto-ilp32 |
| 429.mcf: | basepeak = yes |
| 445.gobmk: | basepeak = yes |
| 456.hmmer: | basepeak = yes |
| 458.sjeng: | -xCORE-AVX2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll4 |
| 462.libquantum: | basepeak = yes |
| 464.h264ref: | basepeak = yes |
C++ benchmarks:
| 471.omnetpp: | -xCORE-AVX2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -opt-ra-region-strategy=block -ansi-alias -Wl,-z,muldefs -L/sh -lsmartheap |
| 473.astar: | basepeak = yes |
| 483.xalancbmk: | -xCORE-AVX2 -ipo -O3 -no-prec-div -opt-prefetch -ansi-alias -Wl,-z,muldefs -L/sh -lsmartheap |
