| CPU2006 license: | 9017 | Test date: | Apr-2015 |
|---|---|---|---|
| Test sponsor: | Lenovo Group Limited | Hardware Availability: | Nov-2014 |
| Tested by: | Lenovo Group Limited | Software Availability: | Sep-2014 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E5-2698 v3 |
| CPU Characteristics: | Intel Turbo Boost Technology up to 3.60 GHz |
| CPU MHz: | 2300 |
| FPU: | Integrated |
| CPU(s) enabled: | 32 cores, 2 chips, 16 cores/chip, 2 threads/core |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 40 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 256 GB (16 x 16 GB 2Rx4 PC4-2133P-R) |
| Disk Subsystem: | 1 x 1000 GB SATA, 7200 RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Red Hat Enterprise Linux Server release 7.0 (Maipo) 3.10.0-123.el7.x86_64 |
| Compiler: | C/C++: Version 15.0.0.090 of Intel C++ Studio XE for Linux |
| Auto Parallel: | No |
| File System: | xfs |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V10.0 |

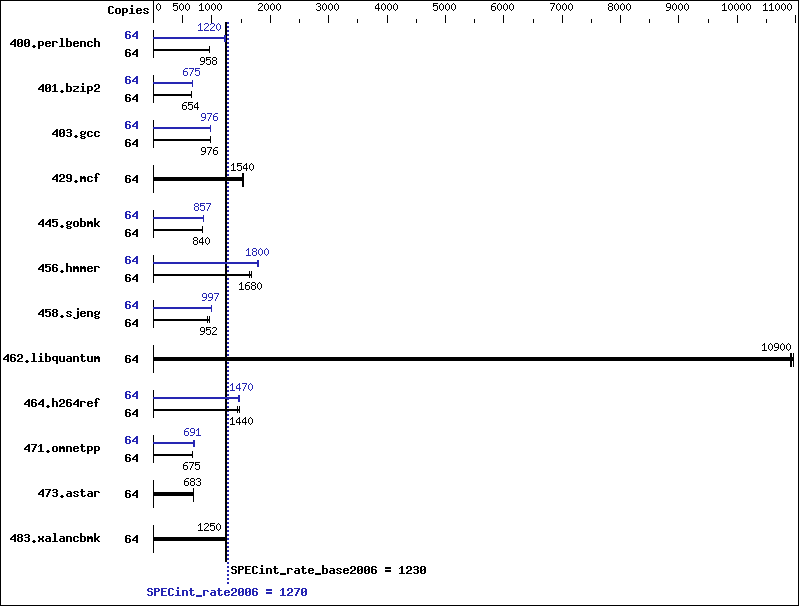

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 64 | 651 | 960 | 656 | 953 | 652 | 958 | 64 | 514 | 1220 | 513 | 1220 | 510 | 1230 |
| 401.bzip2 | 64 | 941 | 656 | 944 | 654 | 946 | 653 | 64 | 914 | 675 | 915 | 675 | 916 | 674 |
| 403.gcc | 64 | 528 | 976 | 525 | 982 | 529 | 975 | 64 | 526 | 979 | 528 | 976 | 528 | 976 |
| 429.mcf | 64 | 384 | 1520 | 380 | 1540 | 379 | 1540 | 64 | 384 | 1520 | 380 | 1540 | 379 | 1540 |
| 445.gobmk | 64 | 799 | 840 | 799 | 840 | 797 | 842 | 64 | 781 | 859 | 784 | 857 | 783 | 857 |
| 456.hmmer | 64 | 361 | 1650 | 355 | 1680 | 355 | 1680 | 64 | 334 | 1790 | 333 | 1800 | 332 | 1800 |
| 458.sjeng | 64 | 834 | 929 | 814 | 952 | 813 | 953 | 64 | 777 | 997 | 776 | 998 | 778 | 996 |
| 462.libquantum | 64 | 121 | 10900 | 121 | 11000 | 121 | 10900 | 64 | 121 | 10900 | 121 | 11000 | 121 | 10900 |
| 464.h264ref | 64 | 987 | 1430 | 960 | 1480 | 981 | 1440 | 64 | 967 | 1460 | 963 | 1470 | 964 | 1470 |
| 471.omnetpp | 64 | 594 | 674 | 592 | 675 | 593 | 675 | 64 | 579 | 690 | 576 | 694 | 579 | 691 |
| 473.astar | 64 | 658 | 682 | 658 | 683 | 657 | 684 | 64 | 658 | 682 | 658 | 683 | 657 | 684 |
| 483.xalancbmk | 64 | 354 | 1250 | 353 | 1250 | 354 | 1250 | 64 | 354 | 1250 | 353 | 1250 | 354 | 1250 |
Submit Notes
The numactl mechanism was used to bind copies to processors. The config file option 'submit' was used to generate numactl commands to bind each copy to a specific processor. For details, please see the config file.
Operating System Notes
Stack size set to unlimited using "ulimit -s unlimited"
Platform Notes
BIOS setting: Operating Mode set to "Efficiency-Favor Performance" Sysinfo program /home/SPEC/config/sysinfo.rev6914 $Rev: 6914 $ $Date:: 2014-06-25 #$ e3fbb8667b5a285932ceab81e28219e1 running on wilykat.labs.lenovo.com Wed Apr 1 03:44:02 2015 This section contains SUT (System Under Test) info as seen by some common utilities. To remove or add to this section, see: http://www.spec.org/cpu2006/Docs/config.html#sysinfo From /proc/cpuinfo model name : Intel(R) Xeon(R) CPU E5-2698 v3 @ 2.30GHz 2 "physical id"s (chips) 64 "processors" cores, siblings (Caution: counting these is hw and system dependent. The following excerpts from /proc/cpuinfo might not be reliable. Use with caution.) cpu cores : 8 siblings : 16 physical 0: cores 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 physical 1: cores 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 cache size : 20480 KB From /proc/meminfo MemTotal: 263581756 kB HugePages_Total: 0 Hugepagesize: 2048 kB From /etc/*release* /etc/*version* os-release: NAME="Red Hat Enterprise Linux Server" VERSION="7.0 (Maipo)" ID="rhel" ID_LIKE="fedora" VERSION_ID="7.0" PRETTY_NAME="Red Hat Enterprise Linux Server 7.0 (Maipo)" ANSI_COLOR="0;31" CPE_NAME="cpe:/o:redhat:enterprise_linux:7.0:GA:server" redhat-release: Red Hat Enterprise Linux Server release 7.0 (Maipo) system-release: Red Hat Enterprise Linux Server release 7.0 (Maipo) system-release-cpe: cpe:/o:redhat:enterprise_linux:7.0:ga:server uname -a: Linux wilykat.labs.lenovo.com 3.10.0-123.el7.x86_64 #1 SMP Mon May 5 11:16:57 EDT 2014 x86_64 x86_64 x86_64 GNU/Linux run-level 3 Apr 1 03:06 SPEC is set to: /home/SPEC Filesystem Type Size Used Avail Use% Mounted on /dev/mapper/rhel-root xfs 927G 9.0G 918G 1% / Additional information from dmidecode: Warning: Use caution when you interpret this section. The 'dmidecode' program reads system data which is "intended to allow hardware to be accurately determined", but the intent may not be met, as there are frequent changes to hardware, firmware, and the "DMTF SMBIOS" standard. BIOS IBM -[THE106CUS-1.11]- 02/16/2015 Memory: 10x Hynix HMA42GR7MFR4N-TF 16 GB 2 rank 2133 MHz 6x Hynix HMA42GR7MFR4N-TFT1 16 GB 2 rank 2133 MHz (End of data from sysinfo program)
General Notes
Environment variables set by runspec before the start of the run: LD_LIBRARY_PATH = "/home/SPEC/libs/32:/home/SPEC/libs/64:/home/SPEC/sh" Binaries compiled on a system with 1x Core i5-4670K CPU + 16GB memory using RedHat EL 7.0 Transparent Huge Pages enabled with: echo always > /sys/kernel/mm/transparent_hugepage/enabled Filesystem page cache cleared with: echo 1> /proc/sys/vm/drop_caches runspec command invoked through numactl i.e.: numactl --interleave=all runspec <etc>
Base Compiler Invocation
C benchmarks:
| icc -m32 -L/opt/intel/composer_xe_2015/lib/ia32 |
C++ benchmarks:
| icpc -m32 -L/opt/intel/composer_xe_2015/lib/ia32 |
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xCORE-AVX2 -ipo -O3 -no-prec-div -opt-prefetch |
C++ benchmarks:
| -xCORE-AVX2 -ipo -O3 -no-prec-div -opt-prefetch -Wl,-z,muldefs -L/sh -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc -m32 -L/opt/intel/composer_xe_2015/lib/ia32 | |
| 400.perlbench: | icc -m64 |
| 401.bzip2: | icc -m64 |
| 456.hmmer: | icc -m64 |
| 458.sjeng: | icc -m64 |
C++ benchmarks:
| icpc -m32 -L/opt/intel/composer_xe_2015/lib/ia32 |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -xCORE-AVX2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -auto-ilp32 |
| 401.bzip2: | -xCORE-AVX2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -opt-prefetch -auto-ilp32 -ansi-alias |
| 403.gcc: | -xCORE-AVX2 -ipo -O3 -no-prec-div |
| 429.mcf: | basepeak = yes |
| 445.gobmk: | -xCORE-AVX2(pass 2) -prof-gen(pass 1) -prof-use(pass 2) -ansi-alias |
| 456.hmmer: | -xCORE-AVX2 -ipo -O3 -no-prec-div -unroll2 -auto-ilp32 |
| 458.sjeng: | -xCORE-AVX2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll4 -auto-ilp32 |
| 462.libquantum: | basepeak = yes |
| 464.h264ref: | -xCORE-AVX2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll2 -ansi-alias |
C++ benchmarks:
| 471.omnetpp: | -xCORE-AVX2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/sh -lsmartheap |
| 473.astar: | basepeak = yes |
| 483.xalancbmk: | basepeak = yes |
