| CPU2006 license: | 3175 | Test date: | Mar-2015 |
|---|---|---|---|
| Test sponsor: | Huawei | Hardware Availability: | Sep-2014 |
| Tested by: | Huawei | Software Availability: | Sep-2014 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E5-2650L v3 |
| CPU Characteristics: | Intel Turbo Boost Technology up to 2.50 GHz |
| CPU MHz: | 1800 |
| FPU: | Integrated |
| CPU(s) enabled: | 24 cores, 2 chips, 12 cores/chip |
| CPU(s) orderable: | 1,2 chip |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 30 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 256 GB (16 x 16 GB 2Rx4 PC4-2133P-R) |
| Disk Subsystem: | 1 x 500 GB SATA, 7200 RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Red Hat Enterprise Linux Server release 7.0 (Maipo) 3.10.0-123.el7.x86_64 |
| Compiler: | C/C++: Version 15.0.0.090 of Intel C++ Studio XE for Linux |
| Auto Parallel: | Yes |
| File System: | ext4 |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 32/64-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V10.0 |

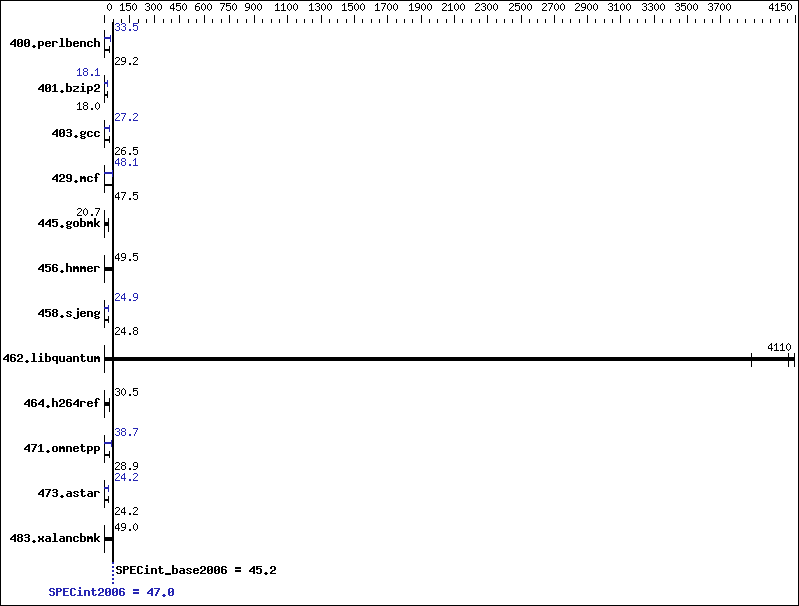

Results Table
| Benchmark | Base | Peak | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
| 400.perlbench | 335 | 29.2 | 334 | 29.3 | 335 | 29.2 | 292 | 33.4 | 292 | 33.5 | 291 | 33.6 |
| 401.bzip2 | 537 | 18.0 | 537 | 18.0 | 535 | 18.0 | 532 | 18.1 | 533 | 18.1 | 532 | 18.1 |
| 403.gcc | 303 | 26.5 | 303 | 26.6 | 304 | 26.5 | 296 | 27.2 | 295 | 27.3 | 296 | 27.2 |
| 429.mcf | 189 | 48.2 | 192 | 47.4 | 192 | 47.5 | 190 | 48.1 | 192 | 47.4 | 190 | 48.1 |
| 445.gobmk | 506 | 20.7 | 505 | 20.8 | 509 | 20.6 | 506 | 20.7 | 505 | 20.8 | 509 | 20.6 |
| 456.hmmer | 188 | 49.5 | 189 | 49.4 | 188 | 49.5 | 188 | 49.5 | 189 | 49.4 | 188 | 49.5 |
| 458.sjeng | 488 | 24.8 | 488 | 24.8 | 488 | 24.8 | 485 | 24.9 | 486 | 24.9 | 486 | 24.9 |
| 462.libquantum | 5.04 | 4110 | 5.33 | 3890 | 5.00 | 4140 | 5.04 | 4110 | 5.33 | 3890 | 5.00 | 4140 |
| 464.h264ref | 725 | 30.5 | 727 | 30.4 | 724 | 30.6 | 725 | 30.5 | 727 | 30.4 | 724 | 30.6 |
| 471.omnetpp | 217 | 28.8 | 216 | 28.9 | 216 | 29.0 | 162 | 38.7 | 160 | 39.0 | 163 | 38.3 |
| 473.astar | 289 | 24.3 | 290 | 24.2 | 290 | 24.2 | 290 | 24.2 | 290 | 24.2 | 291 | 24.1 |
| 483.xalancbmk | 141 | 49.0 | 141 | 49.0 | 140 | 49.1 | 141 | 49.0 | 141 | 49.0 | 140 | 49.1 |
Submit Notes
The config file option 'submit' was used.
Operating System Notes
Stack size set to unlimited using "ulimit -s unlimited"
Platform Notes
BIOS configuration: Set Power Efficiency Mode to Custom Set Snoop Mode to ES mode Set Intel Hyper-threading Technology to Disable Sysinfo program /spec15/config/sysinfo.rev6914 $Rev: 6914 $ $Date:: 2014-06-25 #$ e3fbb8667b5a285932ceab81e28219e1 running on localhost.localdomain Thu Mar 19 12:11:59 2015 This section contains SUT (System Under Test) info as seen by some common utilities. To remove or add to this section, see: http://www.spec.org/cpu2006/Docs/config.html#sysinfo From /proc/cpuinfo model name : Intel(R) Xeon(R) CPU E5-2650L v3 @ 1.80GHz 2 "physical id"s (chips) 24 "processors" cores, siblings (Caution: counting these is hw and system dependent. The following excerpts from /proc/cpuinfo might not be reliable. Use with caution.) cpu cores : 12 siblings : 12 physical 0: cores 0 1 2 3 4 5 8 9 10 11 12 13 physical 1: cores 0 1 2 3 4 5 8 9 10 11 12 13 cache size : 30720 KB From /proc/meminfo MemTotal: 263720560 kB HugePages_Total: 0 Hugepagesize: 2048 kB From /etc/*release* /etc/*version* os-release: NAME="Red Hat Enterprise Linux Server" VERSION="7.0 (Maipo)" ID="rhel" ID_LIKE="fedora" VERSION_ID="7.0" PRETTY_NAME="Red Hat Enterprise Linux Server 7.0 (Maipo)" ANSI_COLOR="0;31" CPE_NAME="cpe:/o:redhat:enterprise_linux:7.0:GA:server" redhat-release: Red Hat Enterprise Linux Server release 7.0 (Maipo) system-release: Red Hat Enterprise Linux Server release 7.0 (Maipo) system-release-cpe: cpe:/o:redhat:enterprise_linux:7.0:ga:server uname -a: Linux localhost.localdomain 3.10.0-123.el7.x86_64 #1 SMP Mon May 5 11:16:57 EDT 2014 x86_64 x86_64 x86_64 GNU/Linux run-level 3 Mar 19 04:58 SPEC is set to: /spec15 Filesystem Type Size Used Avail Use% Mounted on /dev/sda1 ext4 443G 165G 256G 40% / Additional information from dmidecode: Warning: Use caution when you interpret this section. The 'dmidecode' program reads system data which is "intended to allow hardware to be accurately determined", but the intent may not be met, as there are frequent changes to hardware, firmware, and the "DMTF SMBIOS" standard. BIOS Insyde Corp. 1.17 09/03/2014 Memory: 8x Micron 36ASF2G72PZ-2G1A2 16 GB 1 rank 2133 MHz 8x Micron 36ASF2G72PZ-2G1A2 16 GB 2 rank 2133 MHz (End of data from sysinfo program)
General Notes
Environment variables set by runspec before the start of the run: KMP_AFFINITY = "granularity=fine,compact,1,0" LD_LIBRARY_PATH = "/spec15/libs/32:/spec15/libs/64:/spec15/sh" OMP_NUM_THREADS = "24" Binaries compiled on a system with 1x Core i5-4670K CPU + 16GB memory using RedHat EL 7.0 Transparent Huge Pages enabled with: echo always > /sys/kernel/mm/transparent_hugepage/enabled runspec command invoked through numactl i.e.: numactl --interleave=all runspec <etc>
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 403.gcc: | -DSPEC_CPU_LP64 |
| 429.mcf: | -DSPEC_CPU_LP64 |
| 445.gobmk: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
| 464.h264ref: | -DSPEC_CPU_LP64 |
| 471.omnetpp: | -DSPEC_CPU_LP64 |
| 473.astar: | -DSPEC_CPU_LP64 |
| 483.xalancbmk: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xCORE-AVX2 -ipo -O3 -no-prec-div -parallel -opt-prefetch -auto-p32 |
C++ benchmarks:
| -xCORE-AVX2 -ipo -O3 -no-prec-div -opt-prefetch -auto-p32 -Wl,-z,muldefs -L/sh -lsmartheap64 |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc -m64 | |
| 400.perlbench: | icc -m32 -L/opt/intel/composer_xe_2015/lib/ia32 |
C++ benchmarks (except as noted below):
| icpc -m64 | |
| 471.omnetpp: | icpc -m32 -L/opt/intel/composer_xe_2015/lib/ia32 |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 403.gcc: | -DSPEC_CPU_LP64 |
| 429.mcf: | -DSPEC_CPU_LP64 |
| 445.gobmk: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
| 464.h264ref: | -DSPEC_CPU_LP64 |
| 473.astar: | -DSPEC_CPU_LP64 |
| 483.xalancbmk: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -xCORE-AVX2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -opt-prefetch -ansi-alias |
| 401.bzip2: | -xCORE-AVX2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div -prof-use(pass 2) -auto-ilp32 -opt-prefetch -ansi-alias |
| 403.gcc: | -xCORE-AVX2 -ipo -O3 -no-prec-div -inline-calloc -opt-malloc-options=3 -auto-ilp32 |
| 429.mcf: | -xCORE-AVX2 -ipo -O3 -no-prec-div -parallel -opt-prefetch -auto-p32 |
| 445.gobmk: | basepeak = yes |
| 456.hmmer: | basepeak = yes |
| 458.sjeng: | -xCORE-AVX2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll4 |
| 462.libquantum: | basepeak = yes |
| 464.h264ref: | basepeak = yes |
C++ benchmarks:
| 471.omnetpp: | -xCORE-AVX2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -opt-ra-region-strategy=block -ansi-alias -Wl,-z,muldefs -L/sh -lsmartheap |
| 473.astar: | -xCORE-AVX2 -ipo -O3 -no-prec-div -opt-prefetch -auto-p32 -Wl,-z,muldefs -L/sh -lsmartheap64 |
| 483.xalancbmk: | basepeak = yes |
