CPU2006 license: | 001176 | Test date: | Nov-2014 |
---|---|---|---|
Test sponsor: | Supermicro | Hardware Availability: | Sep-2014 |
Tested by: | Supermicro | Software Availability: | Sep-2014 |
Hardware | |
---|---|
CPU Name: | Intel Xeon E5-2603 v3 |
CPU Characteristics: | |
CPU MHz: | 1600 |
FPU: | Integrated |
CPU(s) enabled: | 12 cores, 2 chips, 6 cores/chip |
CPU(s) orderable: | 1,2 chips |
Primary Cache: | 32 KB I + 32 KB D on chip per core |
Secondary Cache: | 256 KB I+D on chip per core |
L3 Cache: | 15 MB I+D on chip per chip |
Other Cache: | None |
Memory: | 256 GB (16 x 16 GB 2Rx4 PC4-2133P-R) |
Disk Subsystem: | 1 x 1000 GB SATA III, 7200 RPM |
Other Hardware: | None |
Software | |
---|---|
Operating System: | CentOS Linux Server release 7.0, Kernel 3.10.0-123.9.2.el7.x86_64 |
Compiler: | C/C++: Version 15.0.0.090 of Intel C++ Studio XE for Linux |
Auto Parallel: | Yes |
File System: | ext4 |
System State: | Run level 3 (multi-user) |
Base Pointers: | 32/64-bit |
Peak Pointers: | 32/64-bit |
Other Software: | Microquill SmartHeap V10.0 |

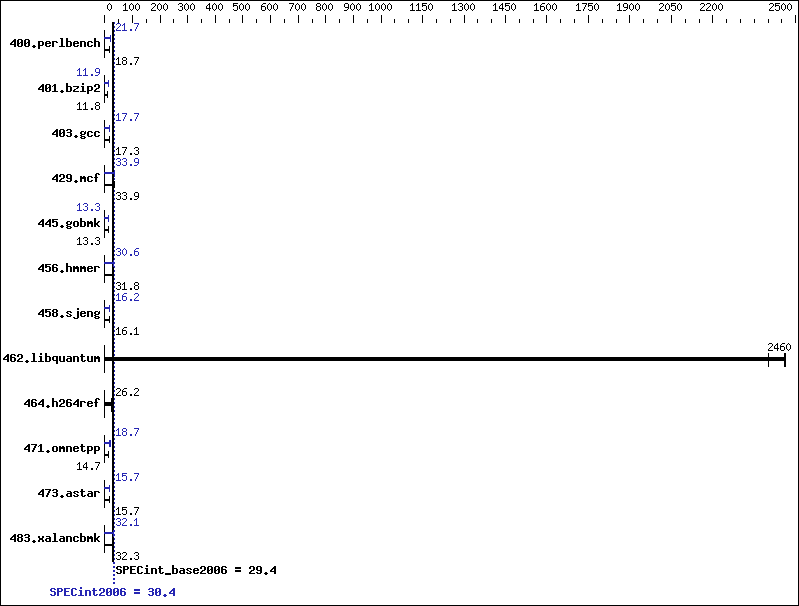

Benchmark | Base | Peak | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
400.perlbench | 522 | 18.7 | 521 | 18.7 | 520 | 18.8 | 452 | 21.6 | 451 | 21.7 | 451 | 21.7 |
401.bzip2 | 822 | 11.7 | 821 | 11.8 | 821 | 11.8 | 813 | 11.9 | 813 | 11.9 | 813 | 11.9 |
403.gcc | 464 | 17.4 | 465 | 17.3 | 465 | 17.3 | 454 | 17.7 | 457 | 17.6 | 453 | 17.8 |
429.mcf | 269 | 33.9 | 269 | 33.9 | 269 | 33.9 | 269 | 33.9 | 269 | 33.9 | 272 | 33.5 |
445.gobmk | 785 | 13.4 | 786 | 13.3 | 787 | 13.3 | 788 | 13.3 | 787 | 13.3 | 787 | 13.3 |
456.hmmer | 293 | 31.8 | 294 | 31.7 | 293 | 31.8 | 305 | 30.6 | 309 | 30.2 | 305 | 30.6 |
458.sjeng | 752 | 16.1 | 751 | 16.1 | 751 | 16.1 | 749 | 16.2 | 748 | 16.2 | 748 | 16.2 |
462.libquantum | 8.63 | 2400 | 8.43 | 2460 | 8.41 | 2460 | 8.63 | 2400 | 8.43 | 2460 | 8.41 | 2460 |
464.h264ref | 844 | 26.2 | 839 | 26.4 | 844 | 26.2 | 844 | 26.2 | 839 | 26.4 | 844 | 26.2 |
471.omnetpp | 427 | 14.6 | 425 | 14.7 | 424 | 14.7 | 334 | 18.7 | 326 | 19.2 | 334 | 18.7 |
473.astar | 448 | 15.7 | 448 | 15.7 | 448 | 15.7 | 446 | 15.7 | 443 | 15.9 | 449 | 15.6 |
483.xalancbmk | 213 | 32.3 | 214 | 32.3 | 213 | 32.3 | 216 | 32.0 | 215 | 32.1 | 215 | 32.1 |
The config file option 'submit' was used.
Stack size set to unlimited using "ulimit -s unlimited"
BIOS Settings: Early Snoop = Disable
Environment variables set by runspec before the start of the run: KMP_AFFINITY = "granularity=fine,scatter" LD_LIBRARY_PATH = "/home/SPEC2K6/SPEC2006-V12/libs/32:/home/SPEC2K6/SPEC2006-V12/libs/64:/home/SPEC2K6/SPEC2006-V12/sh" OMP_NUM_THREADS = "12" Binaries compiled on a system with 1x Core i5-4670K CPU + 16GB memory using RedHat EL 7.0 Transparent Huge Pages enabled with: echo always > /sys/kernel/mm/transparent_hugepage/enabled
400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
401.bzip2: | -DSPEC_CPU_LP64 |
403.gcc: | -DSPEC_CPU_LP64 |
429.mcf: | -DSPEC_CPU_LP64 |
445.gobmk: | -DSPEC_CPU_LP64 |
456.hmmer: | -DSPEC_CPU_LP64 |
458.sjeng: | -DSPEC_CPU_LP64 |
462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
464.h264ref: | -DSPEC_CPU_LP64 |
471.omnetpp: | -DSPEC_CPU_LP64 |
473.astar: | -DSPEC_CPU_LP64 |
483.xalancbmk: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
-xCORE-AVX2 -ipo -O3 -no-prec-div -parallel -opt-prefetch -auto-p32 |
-xCORE-AVX2 -ipo -O3 -no-prec-div -opt-prefetch -auto-p32 -Wl,-z,muldefs -L/sh -lsmartheap64 |
icc -m64 | |
400.perlbench: | icc -m32 -L/opt/intel/composer_xe_2015/lib/ia32 |
445.gobmk: | icc -m32 -L/opt/intel/composer_xe_2015/lib/ia32 |
icpc -m32 -L/opt/intel/composer_xe_2015/lib/ia32 | |
473.astar: | icpc -m64 |
400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
401.bzip2: | -DSPEC_CPU_LP64 |
403.gcc: | -DSPEC_CPU_LP64 |
429.mcf: | -DSPEC_CPU_LP64 |
456.hmmer: | -DSPEC_CPU_LP64 |
458.sjeng: | -DSPEC_CPU_LP64 |
462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
464.h264ref: | -DSPEC_CPU_LP64 |
473.astar: | -DSPEC_CPU_LP64 |
483.xalancbmk: | -DSPEC_CPU_LINUX |
400.perlbench: | -xCORE-AVX2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -opt-prefetch -ansi-alias |
401.bzip2: | -xCORE-AVX2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div -prof-use(pass 2) -auto-ilp32 -opt-prefetch -ansi-alias |
403.gcc: | -xCORE-AVX2 -ipo -O3 -no-prec-div -inline-calloc -opt-malloc-options=3 -auto-ilp32 |
429.mcf: | -xCORE-AVX2 -ipo -O3 -no-prec-div -parallel -opt-prefetch -auto-p32 |
445.gobmk: | -xCORE-AVX2(pass 2) -prof-gen(pass 1) -prof-use(pass 2) -ansi-alias |
456.hmmer: | -xCORE-AVX2 -ipo -O3 -no-prec-div -unroll2 -auto-ilp32 -ansi-alias |
458.sjeng: | -xCORE-AVX2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll4 |
462.libquantum: | basepeak = yes |
464.h264ref: | basepeak = yes |
471.omnetpp: | -xCORE-AVX2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -opt-ra-region-strategy=block -ansi-alias -Wl,-z,muldefs -L/sh -lsmartheap |
473.astar: | -xCORE-AVX2 -ipo -O3 -no-prec-div -opt-prefetch -auto-p32 -Wl,-z,muldefs -L/sh -lsmartheap64 |
483.xalancbmk: | -xCORE-AVX2 -ipo -O3 -no-prec-div -opt-prefetch -ansi-alias -Wl,-z,muldefs -L/sh -lsmartheap |
