| CPU2006 license: | 9017 | Test date: | Oct-2014 |
|---|---|---|---|
| Test sponsor: | Lenovo Group Limited | Hardware Availability: | Sep-2014 |
| Tested by: | Lenovo Group Limited | Software Availability: | Nov-2013 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E5-2643 v3 |
| CPU Characteristics: | Intel Turbo Boost Technology up to 3.70 GHz |
| CPU MHz: | 3400 |
| FPU: | Integrated |
| CPU(s) enabled: | 12 cores, 2 chips, 6 cores/chip, 2 threads/core |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 20 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 256 GB (16 x 16 GB 2Rx4 PC4-2133P-R) |
| Disk Subsystem: | 1 x 800 GB SATA SSD |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Red Hat Enterprise Linux Server release 6.5 (Santiago) 2.6.32-431.el6.x86_64 |
| Compiler: | C/C++: Version 14.0.0.080 of Intel C++ Studio XE for Linux |
| Auto Parallel: | No |
| File System: | ext4 |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V10.0 |

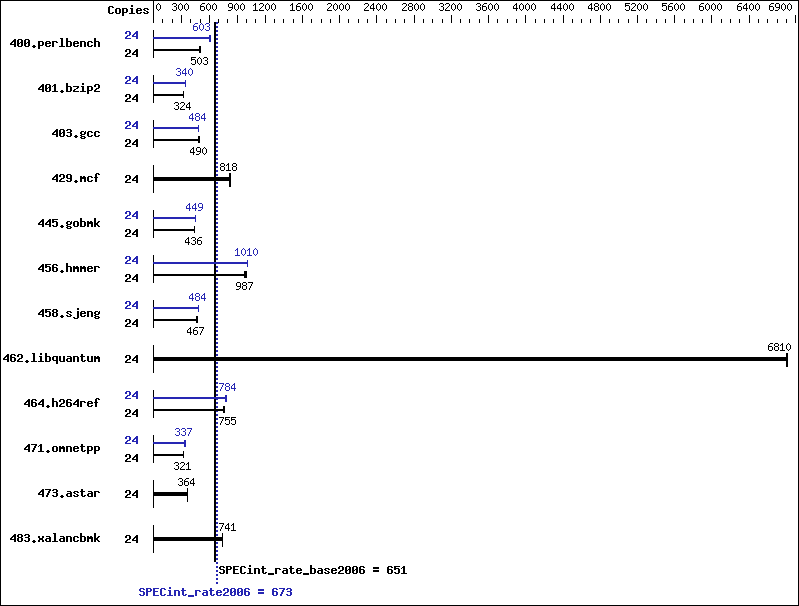

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 24 | 472 | 497 | 465 | 504 | 466 | 503 | 24 | 390 | 602 | 389 | 603 | 386 | 607 |
| 401.bzip2 | 24 | 715 | 324 | 714 | 324 | 714 | 324 | 24 | 683 | 339 | 681 | 340 | 682 | 340 |
| 403.gcc | 24 | 398 | 485 | 395 | 490 | 394 | 491 | 24 | 398 | 485 | 399 | 484 | 399 | 484 |
| 429.mcf | 24 | 266 | 823 | 269 | 815 | 267 | 818 | 24 | 266 | 823 | 269 | 815 | 267 | 818 |
| 445.gobmk | 24 | 578 | 436 | 577 | 436 | 578 | 435 | 24 | 559 | 450 | 561 | 449 | 561 | 449 |
| 456.hmmer | 24 | 227 | 987 | 224 | 1000 | 228 | 983 | 24 | 221 | 1010 | 221 | 1010 | 221 | 1010 |
| 458.sjeng | 24 | 622 | 467 | 623 | 466 | 612 | 475 | 24 | 601 | 483 | 600 | 484 | 600 | 484 |
| 462.libquantum | 24 | 73.0 | 6810 | 73.0 | 6810 | 73.2 | 6800 | 24 | 73.0 | 6810 | 73.0 | 6810 | 73.2 | 6800 |
| 464.h264ref | 24 | 704 | 755 | 701 | 758 | 707 | 751 | 24 | 678 | 784 | 675 | 786 | 682 | 779 |
| 471.omnetpp | 24 | 470 | 319 | 467 | 321 | 468 | 321 | 24 | 445 | 337 | 443 | 339 | 445 | 337 |
| 473.astar | 24 | 460 | 366 | 463 | 364 | 463 | 364 | 24 | 460 | 366 | 463 | 364 | 463 | 364 |
| 483.xalancbmk | 24 | 224 | 740 | 223 | 742 | 223 | 741 | 24 | 224 | 740 | 223 | 742 | 223 | 741 |
Submit Notes
The numactl mechanism was used to bind copies to processors. The config file option 'submit' was used to generate numactl commands to bind each copy to a specific processor. For details, please see the config file.
Operating System Notes
Stack size set to unlimited using "ulimit -s unlimited"
Platform Notes
BIOS configuration: Cluster On Die set to Enabled Early Snoop set to Disabled Performance Profile set to Custom C1E Support set to Disabled Core C3 set to Disabled Core C6 set to Disabled Thermal Profile set to Max Performance Memory Power Savings set to Disabled Sysinfo program /usr/cpu2006/config/sysinfo.rev6818 $Rev: 6818 $ $Date:: 2012-07-17 #$ e86d102572650a6e4d596a3cee98f191 running on TD350 Thu Oct 23 17:39:32 2014 This section contains SUT (System Under Test) info as seen by some common utilities. To remove or add to this section, see: http://www.spec.org/cpu2006/Docs/config.html#sysinfo From /proc/cpuinfo model name : Intel(R) Xeon(R) CPU E5-2643 v3 @ 3.40GHz 2 "physical id"s (chips) 24 "processors" cores, siblings (Caution: counting these is hw and system dependent. The following excerpts from /proc/cpuinfo might not be reliable. Use with caution.) cpu cores : 6 siblings : 12 physical 0: cores 0 1 2 3 4 5 physical 1: cores 0 1 2 3 4 5 cache size : 20480 KB From /proc/meminfo MemTotal: 264414648 kB HugePages_Total: 0 Hugepagesize: 2048 kB /usr/bin/lsb_release -d Red Hat Enterprise Linux Server release 6.5 (Santiago) From /etc/*release* /etc/*version* redhat-release: Red Hat Enterprise Linux Server release 6.5 (Santiago) system-release: Red Hat Enterprise Linux Server release 6.5 (Santiago) system-release-cpe: cpe:/o:redhat:enterprise_linux:6server:ga:server uname -a: Linux TD350 2.6.32-431.el6.x86_64 #1 SMP Sun Nov 10 22:19:54 EST 2013 x86_64 x86_64 x86_64 GNU/Linux run-level 3 Oct 23 17:39 SPEC is set to: /usr/cpu2006 Filesystem Type Size Used Avail Use% Mounted on /dev/sda2 ext4 730G 15G 679G 3% / Additional information from dmidecode: BIOS LENOVO TB5TS110 10/06/2014 Memory: 16x 16 GB 2x Hynix Semiconductor HMA42GR7MFR4N-TF 16 GB 2133 MHz 2 rank 14x Hynix Semiconductor HMA42GR7MFR4N-TFTD 16 GB 2133 MHz 2 rank (End of data from sysinfo program) TD350 support 4 channels and 8 DIMMs per processor, total 8 channels and 16 DIMMs. All 16 DIMM slots installed with 16 GB DIMM for this run.
General Notes
Environment variables set by runspec before the start of the run: LD_LIBRARY_PATH = "/usr/cpu2006/libs/32:/usr/cpu2006/libs/64:/usr/cpu2006/sh" Binaries compiled on a system with 1x Core i7-860 CPU + 8GB memory using RedHat EL 6.4 Transparent Huge Pages enabled with: echo always > /sys/kernel/mm/redhat_transparent_hugepage/enabled Filesystem page cache cleared with: echo 1> /proc/sys/vm/drop_caches runspec command invoked through numactl i.e.: numactl --interleave=all runspec <etc>
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xCORE-AVX2 -ipo -O3 -no-prec-div -opt-prefetch -opt-mem-layout-trans=3 |
C++ benchmarks:
| -xCORE-AVX2 -ipo -O3 -no-prec-div -opt-prefetch -opt-mem-layout-trans=3 -Wl,-z,muldefs -L/sh -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc -m32 | |
| 400.perlbench: | icc -m64 |
| 401.bzip2: | icc -m64 |
| 456.hmmer: | icc -m64 |
| 458.sjeng: | icc -m64 |
C++ benchmarks:
| icpc -m32 |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -xCORE-AVX2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -auto-ilp32 |
| 401.bzip2: | -xCORE-AVX2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -opt-prefetch -auto-ilp32 -ansi-alias |
| 403.gcc: | -xCORE-AVX2 -ipo -O3 -no-prec-div |
| 429.mcf: | basepeak = yes |
| 445.gobmk: | -xCORE-AVX2(pass 2) -prof-gen(pass 1) -prof-use(pass 2) -ansi-alias -opt-mem-layout-trans=3 |
| 456.hmmer: | -xCORE-AVX2 -ipo -O3 -no-prec-div -unroll2 -auto-ilp32 |
| 458.sjeng: | -xCORE-AVX2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll4 -auto-ilp32 |
| 462.libquantum: | basepeak = yes |
| 464.h264ref: | -xCORE-AVX2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll2 -ansi-alias |
C++ benchmarks:
| 471.omnetpp: | -xCORE-AVX2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/sh -lsmartheap |
| 473.astar: | basepeak = yes |
| 483.xalancbmk: | basepeak = yes |
