CPU2006 license: | 001176 | Test date: | Sep-2014 |
---|---|---|---|
Test sponsor: | Supermicro | Hardware Availability: | Sep-2014 |
Tested by: | Supermicro | Software Availability: | Sep-2014 |
Hardware | |
---|---|
CPU Name: | Intel Xeon E5-2695 v3 |
CPU Characteristics: | Intel Turbo Boost Technology up to 3.30 GHz |
CPU MHz: | 2300 |
FPU: | Integrated |
CPU(s) enabled: | 28 cores, 2 chips, 14 cores/chip |
CPU(s) orderable: | 1,2 chips |
Primary Cache: | 32 KB I + 32 KB D on chip per core |
Secondary Cache: | 256 KB I+D on chip per core |
L3 Cache: | 35 MB I+D on chip per chip |
Other Cache: | None |
Memory: | 256 GB (16 x 16 GB 2Rx4 PC4-2133P-R) |
Disk Subsystem: | 1 x 500 GB SATA II, 7200 RPM |
Other Hardware: | None |
Software | |
---|---|
Operating System: | Red Hat Enterprise Linux Server release 7.0, Kernel 3.10.0-123.el7.x86_64 |
Compiler: | C/C++: Version 15.0.0.090 of Intel C++ Studio XE for Linux |
Auto Parallel: | Yes |
File System: | ext4 |
System State: | Run level 3 (multi-user) |
Base Pointers: | 32/64-bit |
Peak Pointers: | 32/64-bit |
Other Software: | Microquill SmartHeap V10.0 |

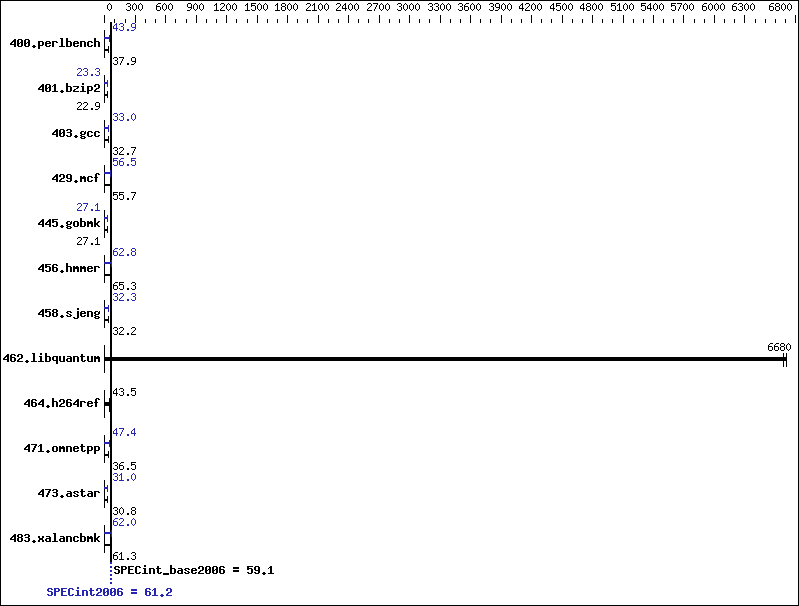

Benchmark | Base | Peak | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
400.perlbench | 257 | 38.0 | 258 | 37.9 | 258 | 37.8 | 222 | 43.9 | 222 | 44.0 | 223 | 43.8 |
401.bzip2 | 421 | 22.9 | 421 | 22.9 | 420 | 23.0 | 415 | 23.2 | 415 | 23.3 | 415 | 23.3 |
403.gcc | 246 | 32.7 | 246 | 32.7 | 247 | 32.6 | 244 | 33.0 | 244 | 33.0 | 243 | 33.1 |
429.mcf | 166 | 54.8 | 164 | 55.7 | 163 | 56.1 | 163 | 55.8 | 161 | 56.6 | 161 | 56.5 |
445.gobmk | 387 | 27.1 | 386 | 27.1 | 388 | 27.1 | 388 | 27.1 | 387 | 27.1 | 388 | 27.0 |
456.hmmer | 143 | 65.3 | 143 | 65.3 | 143 | 65.3 | 148 | 62.9 | 149 | 62.8 | 149 | 62.7 |
458.sjeng | 375 | 32.2 | 376 | 32.2 | 375 | 32.2 | 373 | 32.4 | 374 | 32.3 | 374 | 32.3 |
462.libquantum | 3.10 | 6680 | 3.10 | 6680 | 3.09 | 6710 | 3.10 | 6680 | 3.10 | 6680 | 3.09 | 6710 |
464.h264ref | 511 | 43.3 | 509 | 43.5 | 509 | 43.5 | 511 | 43.3 | 509 | 43.5 | 509 | 43.5 |
471.omnetpp | 171 | 36.6 | 171 | 36.5 | 172 | 36.3 | 132 | 47.3 | 132 | 47.4 | 131 | 47.6 |
473.astar | 228 | 30.8 | 228 | 30.7 | 224 | 31.4 | 226 | 31.0 | 226 | 31.0 | 226 | 31.0 |
483.xalancbmk | 113 | 61.3 | 112 | 61.5 | 114 | 60.7 | 111 | 62.0 | 111 | 62.0 | 110 | 62.6 |
The config file option 'submit' was used.
Stack size set to unlimited using "ulimit -s unlimited"
BIOS Settings: Early Snoop = Disable Enforce POR = Disable Hyper-Threading (ALL) = Disable
Environment variables set by runspec before the start of the run: KMP_AFFINITY = "granularity=fine,scatter" LD_LIBRARY_PATH = "/home/Trial/SPEC2006_v11/libs/32:/home/Trial/SPEC2006_v11/libs/64:/home/Trial/SPEC2006_v11/sh" OMP_NUM_THREADS = "28" Binaries compiled on a system with 1x Core i5-4670K CPU + 16GB memory using RedHat EL 7.0 Transparent Huge Pages enabled with: echo always > /sys/kernel/mm/transparent_hugepage/enabled
400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
401.bzip2: | -DSPEC_CPU_LP64 |
403.gcc: | -DSPEC_CPU_LP64 |
429.mcf: | -DSPEC_CPU_LP64 |
445.gobmk: | -DSPEC_CPU_LP64 |
456.hmmer: | -DSPEC_CPU_LP64 |
458.sjeng: | -DSPEC_CPU_LP64 |
462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
464.h264ref: | -DSPEC_CPU_LP64 |
471.omnetpp: | -DSPEC_CPU_LP64 |
473.astar: | -DSPEC_CPU_LP64 |
483.xalancbmk: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
-xCORE-AVX2 -ipo -O3 -no-prec-div -parallel -opt-prefetch -auto-p32 |
-xCORE-AVX2 -ipo -O3 -no-prec-div -opt-prefetch -auto-p32 -Wl,-z,muldefs -L/sh -lsmartheap64 |
icc -m64 | |
400.perlbench: | icc -m32 -L/opt/intel/composer_xe_2015/lib/ia32 |
445.gobmk: | icc -m32 -L/opt/intel/composer_xe_2015/lib/ia32 |
icpc -m32 -L/opt/intel/composer_xe_2015/lib/ia32 | |
473.astar: | icpc -m64 |
400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
401.bzip2: | -DSPEC_CPU_LP64 |
403.gcc: | -DSPEC_CPU_LP64 |
429.mcf: | -DSPEC_CPU_LP64 |
456.hmmer: | -DSPEC_CPU_LP64 |
458.sjeng: | -DSPEC_CPU_LP64 |
462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
464.h264ref: | -DSPEC_CPU_LP64 |
473.astar: | -DSPEC_CPU_LP64 |
483.xalancbmk: | -DSPEC_CPU_LINUX |
400.perlbench: | -xCORE-AVX2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -opt-prefetch -ansi-alias |
401.bzip2: | -xCORE-AVX2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div -prof-use(pass 2) -auto-ilp32 -opt-prefetch -ansi-alias |
403.gcc: | -xCORE-AVX2 -ipo -O3 -no-prec-div -inline-calloc -opt-malloc-options=3 -auto-ilp32 |
429.mcf: | -xCORE-AVX2 -ipo -O3 -no-prec-div -parallel -opt-prefetch -auto-p32 |
445.gobmk: | -xCORE-AVX2(pass 2) -prof-gen(pass 1) -prof-use(pass 2) -ansi-alias |
456.hmmer: | -xCORE-AVX2 -ipo -O3 -no-prec-div -unroll2 -auto-ilp32 -ansi-alias |
458.sjeng: | -xCORE-AVX2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll4 |
462.libquantum: | basepeak = yes |
464.h264ref: | basepeak = yes |
471.omnetpp: | -xCORE-AVX2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -opt-ra-region-strategy=block -ansi-alias -Wl,-z,muldefs -L/sh -lsmartheap |
473.astar: | -xCORE-AVX2 -ipo -O3 -no-prec-div -opt-prefetch -auto-p32 -Wl,-z,muldefs -L/sh -lsmartheap64 |
483.xalancbmk: | -xCORE-AVX2 -ipo -O3 -no-prec-div -opt-prefetch -ansi-alias -Wl,-z,muldefs -L/sh -lsmartheap |
