CPU2006 license: | 001176 | Test date: | Oct-2014 |
---|---|---|---|
Test sponsor: | Supermicro | Hardware Availability: | Sep-2014 |
Tested by: | Supermicro | Software Availability: | Nov-2013 |
Hardware | |
---|---|
CPU Name: | Intel Xeon E5-2697 v3 |
CPU Characteristics: | Intel Turbo Boost Technology up to 3.60 GHz |
CPU MHz: | 2600 |
FPU: | Integrated |
CPU(s) enabled: | 28 cores, 2 chips, 14 cores/chip |
CPU(s) orderable: | 1,2 chips |
Primary Cache: | 32 KB I + 32 KB D on chip per core |
Secondary Cache: | 256 KB I+D on chip per core |
L3 Cache: | 35 MB I+D on chip per chip |
Other Cache: | None |
Memory: | 256 GB (16 x 16 GB 2Rx4 PC4-2133P-R) |
Disk Subsystem: | 1 x 2000 GB SATA III, 7200 RPM |
Other Hardware: | None |
Software | |
---|---|
Operating System: | Red Hat Enterprise Linux Server release 6.5, Kernel 2.6.32-431.el6.x86_64 |
Compiler: | C/C++: Version 14.0.0.080 of Intel C++ Studio XE for Linux; |
Auto Parallel: | Yes |
File System: | ext4 |
System State: | Run level 3 (multi-user) |
Base Pointers: | 32/64-bit |
Peak Pointers: | 32/64-bit |
Other Software: | Microquill SmartHeap V10.0 |

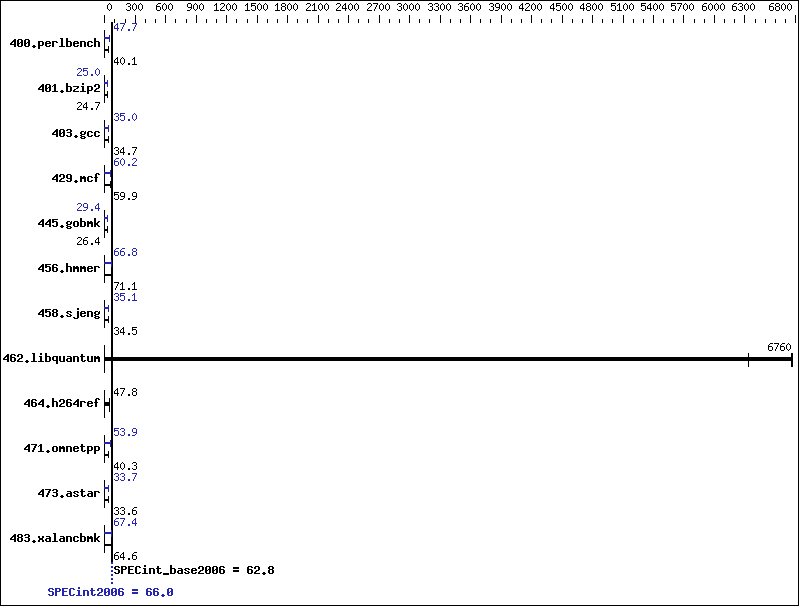

Benchmark | Base | Peak | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
400.perlbench | 244 | 40.1 | 244 | 40.1 | 244 | 40.1 | 206 | 47.5 | 205 | 47.7 | 205 | 47.7 |
401.bzip2 | 391 | 24.7 | 391 | 24.7 | 391 | 24.7 | 385 | 25.1 | 386 | 25.0 | 386 | 25.0 |
403.gcc | 231 | 34.8 | 232 | 34.7 | 232 | 34.7 | 230 | 35.0 | 230 | 35.1 | 230 | 35.0 |
429.mcf | 152 | 60.0 | 152 | 59.9 | 154 | 59.2 | 150 | 60.8 | 152 | 60.0 | 151 | 60.2 |
445.gobmk | 397 | 26.4 | 397 | 26.4 | 398 | 26.4 | 356 | 29.4 | 357 | 29.4 | 357 | 29.4 |
456.hmmer | 134 | 69.7 | 130 | 71.8 | 131 | 71.1 | 140 | 66.9 | 141 | 66.3 | 140 | 66.8 |
458.sjeng | 352 | 34.3 | 350 | 34.5 | 351 | 34.5 | 345 | 35.1 | 345 | 35.1 | 345 | 35.1 |
462.libquantum | 3.07 | 6760 | 3.06 | 6770 | 3.27 | 6330 | 3.07 | 6760 | 3.06 | 6770 | 3.27 | 6330 |
464.h264ref | 466 | 47.5 | 463 | 47.8 | 463 | 47.8 | 466 | 47.5 | 463 | 47.8 | 463 | 47.8 |
471.omnetpp | 155 | 40.3 | 155 | 40.3 | 155 | 40.2 | 115 | 54.4 | 116 | 53.9 | 118 | 53.1 |
473.astar | 209 | 33.6 | 208 | 33.7 | 210 | 33.4 | 209 | 33.6 | 208 | 33.7 | 208 | 33.8 |
483.xalancbmk | 107 | 64.6 | 106 | 65.0 | 107 | 64.6 | 102 | 67.3 | 102 | 67.6 | 102 | 67.4 |
The config file option 'submit' was used.
Stack size set to unlimited using "ulimit -s unlimited"
BIOS Settings: Hyper-Threading (All) = Disabled Early Snoop = Disabled Enforce POR = Disabled COD Enabled = Disabled
Environment variables set by runspec before the start of the run: KMP_AFFINITY = "granularity=fine,scatter" LD_LIBRARY_PATH = "/home/Trial/SPEC2006_v11/libs/32:/home/Trial/SPEC2006_v11/libs/64:/home/Trial/SPEC2006_v11/sh" OMP_NUM_THREADS = "28" Binaries compiled on a system with 1x Core i7-860 CPU + 8GB memory using RedHat EL 6.4 Transparent Huge Pages enabled with: echo always > /sys/kernel/mm/redhat_transparent_hugepage/enabled
400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
401.bzip2: | -DSPEC_CPU_LP64 |
403.gcc: | -DSPEC_CPU_LP64 |
429.mcf: | -DSPEC_CPU_LP64 |
445.gobmk: | -DSPEC_CPU_LP64 |
456.hmmer: | -DSPEC_CPU_LP64 |
458.sjeng: | -DSPEC_CPU_LP64 |
462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
464.h264ref: | -DSPEC_CPU_LP64 |
471.omnetpp: | -DSPEC_CPU_LP64 |
473.astar: | -DSPEC_CPU_LP64 |
483.xalancbmk: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
-xCORE-AVX2 -ipo -O3 -no-prec-div -parallel -opt-prefetch -auto-p32 |
-xCORE-AVX2 -ipo -O3 -no-prec-div -opt-prefetch -auto-p32 -Wl,-z,muldefs -L/sh -lsmartheap64 |
icc -m64 | |
400.perlbench: | icc -m32 |
445.gobmk: | icc -m32 |
icpc -m32 | |
473.astar: | icpc -m64 |
400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
401.bzip2: | -DSPEC_CPU_LP64 |
403.gcc: | -DSPEC_CPU_LP64 |
429.mcf: | -DSPEC_CPU_LP64 |
456.hmmer: | -DSPEC_CPU_LP64 |
458.sjeng: | -DSPEC_CPU_LP64 |
462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
464.h264ref: | -DSPEC_CPU_LP64 |
473.astar: | -DSPEC_CPU_LP64 |
483.xalancbmk: | -DSPEC_CPU_LINUX |
400.perlbench: | -xCORE-AVX2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -opt-prefetch -ansi-alias |
401.bzip2: | -xCORE-AVX2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div -prof-use(pass 2) -auto-ilp32 -opt-prefetch -ansi-alias |
403.gcc: | -xCORE-AVX2 -ipo -O3 -no-prec-div -inline-calloc -opt-malloc-options=3 -auto-ilp32 |
429.mcf: | -xCORE-AVX2 -ipo -O3 -no-prec-div -parallel -opt-prefetch -auto-p32 |
445.gobmk: | -xCORE-AVX2(pass 2) -prof-gen(pass 1) -prof-use(pass 2) -ansi-alias |
456.hmmer: | -xCORE-AVX2 -ipo -O3 -no-prec-div -unroll2 -auto-ilp32 -ansi-alias |
458.sjeng: | -xCORE-AVX2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll4 |
462.libquantum: | basepeak = yes |
464.h264ref: | basepeak = yes |
471.omnetpp: | -xCORE-AVX2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -opt-ra-region-strategy=block -ansi-alias -Wl,-z,muldefs -L/sh -lsmartheap |
473.astar: | -xCORE-AVX2 -ipo -O3 -no-prec-div -opt-prefetch -auto-p32 -Wl,-z,muldefs -L/sh -lsmartheap64 |
483.xalancbmk: | -xCORE-AVX2 -ipo -O3 -no-prec-div -opt-prefetch -ansi-alias -Wl,-z,muldefs -L/sh -lsmartheap |
