| CPU2006 license: | 3 | Test date: | Sep-2014 |
|---|---|---|---|
| Test sponsor: | Hewlett-Packard Company | Hardware Availability: | Sep-2014 |
| Tested by: | Hewlett-Packard Company | Software Availability: | Sep-2014 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E5-2609 v3 |
| CPU Characteristics: | |
| CPU MHz: | 1900 |
| FPU: | Integrated |
| CPU(s) enabled: | 12 cores, 2 chips, 6 cores/chip |
| CPU(s) orderable: | 1,2 chip |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 15 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 256 GB (16 x 16 GB 2Rx4 PC4-2133P-R, running at 1600 MHz) |
| Disk Subsystem: | 1 x 400 GB SSA SAS, RAID 0 |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Red Hat Enterprise Linux Server release 7.0, (Maipo) Kernel 3.10.0-123.el7.x86_64 |
| Compiler: | C/C++: Version 14.0.0.080 of Intel C++ Studio XE for Linux |
| Auto Parallel: | Yes |
| File System: | xfs |
| System State: | Run level 3 (multi-users) |
| Base Pointers: | 32/64-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V10.0 |

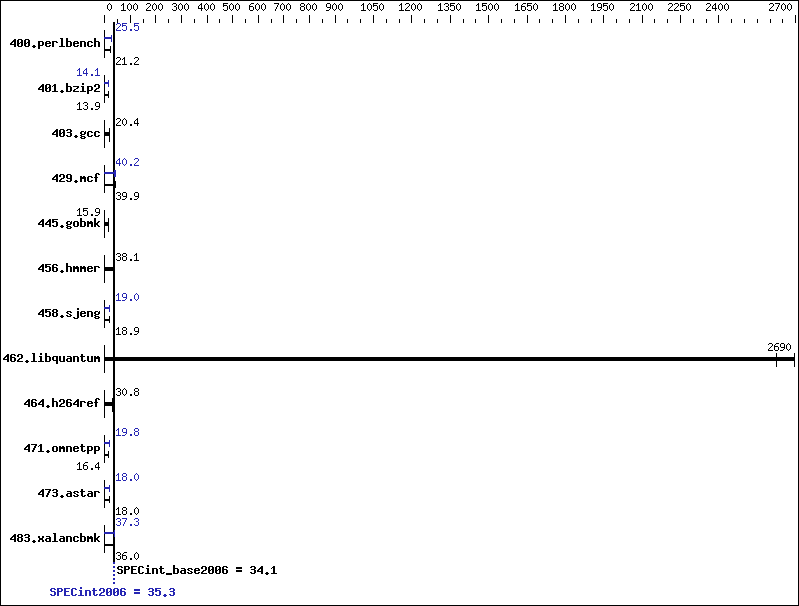

Results Table
| Benchmark | Base | Peak | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
| 400.perlbench | 459 | 21.3 | 460 | 21.2 | 461 | 21.2 | 383 | 25.5 | 382 | 25.6 | 382 | 25.5 |
| 401.bzip2 | 693 | 13.9 | 693 | 13.9 | 692 | 14.0 | 685 | 14.1 | 685 | 14.1 | 685 | 14.1 |
| 403.gcc | 395 | 20.4 | 395 | 20.4 | 395 | 20.4 | 395 | 20.4 | 395 | 20.4 | 395 | 20.4 |
| 429.mcf | 223 | 40.9 | 229 | 39.8 | 229 | 39.9 | 224 | 40.7 | 228 | 40.0 | 227 | 40.2 |
| 445.gobmk | 658 | 15.9 | 659 | 15.9 | 659 | 15.9 | 658 | 15.9 | 659 | 15.9 | 659 | 15.9 |
| 456.hmmer | 245 | 38.1 | 244 | 38.2 | 245 | 38.1 | 245 | 38.1 | 244 | 38.2 | 245 | 38.1 |
| 458.sjeng | 640 | 18.9 | 640 | 18.9 | 640 | 18.9 | 637 | 19.0 | 638 | 19.0 | 638 | 19.0 |
| 462.libquantum | 7.69 | 2690 | 7.89 | 2630 | 7.69 | 2690 | 7.69 | 2690 | 7.89 | 2630 | 7.69 | 2690 |
| 464.h264ref | 718 | 30.8 | 714 | 31.0 | 720 | 30.7 | 718 | 30.8 | 714 | 31.0 | 720 | 30.7 |
| 471.omnetpp | 381 | 16.4 | 380 | 16.4 | 380 | 16.4 | 315 | 19.8 | 315 | 19.8 | 316 | 19.8 |
| 473.astar | 389 | 18.1 | 392 | 17.9 | 391 | 18.0 | 391 | 18.0 | 391 | 18.0 | 391 | 17.9 |
| 483.xalancbmk | 204 | 33.8 | 189 | 36.6 | 192 | 36.0 | 185 | 37.3 | 184 | 37.6 | 185 | 37.3 |
Submit Notes
The config file option 'submit' was used.
Operating System Notes
Stack size set to unlimited using "ulimit -s unlimited" Filesystem page cache cleared with: echo 1 > /proc/sys/vm/drop_caches echo 1 > /proc/sys/vm/zone_reclaim_mode
Platform Notes
BIOS Configuration: HP Power Profile set to Custom HP Power Regulator to HP Static High Performance Mode Minimum Processor Idle Power Package State set to No Package State QPI Snoop Configuration set to Early Snoop Thermal Configuration set to Maximum Cooling Collaborative Power Control set to Disabled Memory Patrol Scrubbing set to Disabled Memory Double Refresh Rate set to 1x Refresh Sysinfo program /home/cpu2006/config/sysinfo.rev6818 $Rev: 6818 $ $Date:: 2012-07-17 #$ e86d102572650a6e4d596a3cee98f191 running on DL360_Gen9 Thu Sep 18 16:42:49 2014 This section contains SUT (System Under Test) info as seen by some common utilities. To remove or add to this section, see: http://www.spec.org/cpu2006/Docs/config.html#sysinfo From /proc/cpuinfo model name : Intel(R) Xeon(R) CPU E5-2609 v3 @ 1.90GHz 2 "physical id"s (chips) 12 "processors" cores, siblings (Caution: counting these is hw and system dependent. The following excerpts from /proc/cpuinfo might not be reliable. Use with caution.) cpu cores : 2 cpu cores : 4 siblings : 2 siblings : 4 physical 0: cores 0 1 2 3 4 5 physical 1: cores 0 1 2 3 4 5 cache size : 7680 KB From /proc/meminfo MemTotal: 263846800 kB HugePages_Total: 0 Hugepagesize: 2048 kB From /etc/*release* /etc/*version* os-release: NAME="Red Hat Enterprise Linux Server" VERSION="7.0 (Maipo)" ID="rhel" ID_LIKE="fedora" VERSION_ID="7.0" PRETTY_NAME="Red Hat Enterprise Linux Server 7.0 (Maipo)" ANSI_COLOR="0;31" CPE_NAME="cpe:/o:redhat:enterprise_linux:7.0:GA:server" redhat-release: Red Hat Enterprise Linux Server release 7.0 (Maipo) system-release: Red Hat Enterprise Linux Server release 7.0 (Maipo) system-release-cpe: cpe:/o:redhat:enterprise_linux:7.0:ga:server uname -a: Linux DL360_Gen9 3.10.0-123.el7.x86_64 #1 SMP Mon May 5 11:16:57 EDT 2014 x86_64 x86_64 x86_64 GNU/Linux run-level 3 Sep 16 11:31 SPEC is set to: /home/cpu2006 Filesystem Type Size Used Avail Use% Mounted on /dev/mapper/rhel-home xfs 318G 34G 285G 11% /home Additional information from dmidecode: BIOS HP P89 07/11/2014 Memory: 16x HP NOT AVAILABLE 16 GB 1600 MHz 2 rank 8x UNKNOWN NOT AVAILABLE (End of data from sysinfo program) Regarding the sysinfo display about the memory installed, the correct amount of memory is 256 GB and the dmidecode description should have one line reading as: 16x HP NOT AVAILABLE 16 GB 1600 MHz 2 rank
General Notes
Environment variables set by runspec before the start of the run: KMP_AFFINITY = "granularity=fine,scatter" LD_LIBRARY_PATH = "/home/cpu2006/libs/32:/home/cpu2006/libs/64:/home/cpu2006/sh" OMP_NUM_THREADS = "12" Binaries compiled on a system with 1x Core i7-860 CPU + 8GB memory using RedHat EL 6.4
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 403.gcc: | -DSPEC_CPU_LP64 |
| 429.mcf: | -DSPEC_CPU_LP64 |
| 445.gobmk: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
| 464.h264ref: | -DSPEC_CPU_LP64 |
| 471.omnetpp: | -DSPEC_CPU_LP64 |
| 473.astar: | -DSPEC_CPU_LP64 |
| 483.xalancbmk: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xCORE-AVX2 -ipo -O3 -no-prec-div -parallel -opt-prefetch -auto-p32 |
C++ benchmarks:
| -xCORE-AVX2 -ipo -O3 -no-prec-div -opt-prefetch -auto-p32 -Wl,-z,muldefs -L/sh -lsmartheap64 |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc -m64 | |
| 400.perlbench: | icc -m32 |
C++ benchmarks (except as noted below):
| icpc -m32 | |
| 473.astar: | icpc -m64 |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 403.gcc: | -DSPEC_CPU_LP64 |
| 429.mcf: | -DSPEC_CPU_LP64 |
| 445.gobmk: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
| 464.h264ref: | -DSPEC_CPU_LP64 |
| 473.astar: | -DSPEC_CPU_LP64 |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -xCORE-AVX2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -opt-prefetch -ansi-alias |
| 401.bzip2: | -xCORE-AVX2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div -prof-use(pass 2) -auto-ilp32 -opt-prefetch -ansi-alias |
| 403.gcc: | basepeak = yes |
| 429.mcf: | -xCORE-AVX2 -ipo -O3 -no-prec-div -parallel -opt-prefetch -auto-p32 |
| 445.gobmk: | basepeak = yes |
| 456.hmmer: | basepeak = yes |
| 458.sjeng: | -xCORE-AVX2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll4 |
| 462.libquantum: | basepeak = yes |
| 464.h264ref: | basepeak = yes |
C++ benchmarks:
| 471.omnetpp: | -xCORE-AVX2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -opt-ra-region-strategy=block -ansi-alias -Wl,-z,muldefs -L/sh -lsmartheap |
| 473.astar: | -xCORE-AVX2 -ipo -O3 -no-prec-div -opt-prefetch -auto-p32 -Wl,-z,muldefs -L/sh -lsmartheap64 |
| 483.xalancbmk: | -xCORE-AVX2 -ipo -O3 -no-prec-div -opt-prefetch -ansi-alias -Wl,-z,muldefs -L/sh -lsmartheap |
