| CPU2006 license: | 13 | Test date: | Sep-2014 |
|---|---|---|---|
| Test sponsor: | Intel Corporation | Hardware Availability: | Jun-2014 |
| Tested by: | Intel Corporation | Software Availability: | Oct-2013 |
| Hardware | |
|---|---|
| CPU Name: | Intel Core i5-4300U |
| CPU Characteristics: | Intel Turbo Boost Technology up to 2.90 GHz |
| CPU MHz: | 1900 |
| FPU: | Integrated |
| CPU(s) enabled: | 2 cores, 1 chip, 2 cores/chip, 2 threads/core |
| CPU(s) orderable: | 1 chip |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 3 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 4 GB (4 x 1 GB 2Rx32 PC3L-12800U-11) |
| Disk Subsystem: | 128 GB SSD |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Microsoft Windows 8.1 Pro 6.3.9600 N/A Build 9600 |
| Compiler: | C/C++: Version 14.0.1.139 of Intel C++ Studio XE for Windows; Libraries: Version 16.00.30319.01 of Microsoft Visual Studio 2010 Professional SP1 |
| Auto Parallel: | No |
| File System: | NTFS |
| System State: | Default |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | SmartHeap Library Version 10.0 from http://www.microquill.com/ |

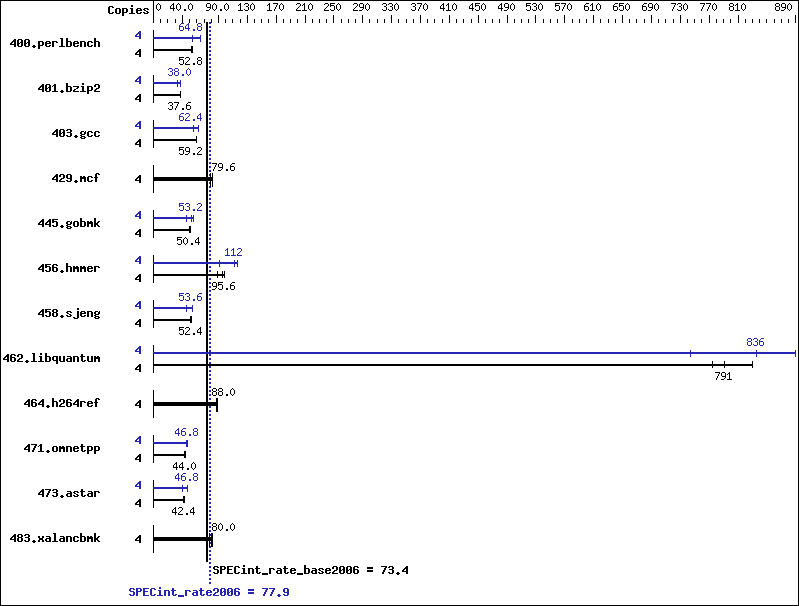

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 4 | 738 | 52.8 | 730 | 53.6 | 751 | 52.0 | 4 | 597 | 65.6 | 603 | 64.8 | 718 | 54.4 |
| 401.bzip2 | 4 | 1031 | 37.6 | 1024 | 37.6 | 1015 | 38.0 | 4 | 1012 | 38.0 | 1016 | 38.0 | 1142 | 33.6 |
| 403.gcc | 4 | 544 | 59.2 | 539 | 59.6 | 543 | 59.2 | 4 | 517 | 62.4 | 511 | 62.8 | 574 | 56.0 |
| 429.mcf | 4 | 458 | 79.6 | 442 | 82.4 | 466 | 78.4 | 4 | 458 | 79.6 | 442 | 82.4 | 466 | 78.4 |
| 445.gobmk | 4 | 825 | 50.8 | 844 | 49.6 | 835 | 50.4 | 4 | 790 | 53.2 | 767 | 54.8 | 932 | 45.2 |
| 456.hmmer | 4 | 422 | 88.4 | 379 | 98.4 | 390 | 95.6 | 4 | 335 | 112 | 320 | 117 | 409 | 91.2 |
| 458.sjeng | 4 | 936 | 51.6 | 925 | 52.4 | 919 | 52.8 | 4 | 906 | 53.6 | 889 | 54.4 | 1074 | 45.2 |
| 462.libquantum | 4 | 99.9 | 830 | 105 | 791 | 107 | 774 | 4 | 99.2 | 836 | 93.2 | 889 | 111 | 744 |
| 464.h264ref | 4 | 1005 | 88.0 | 1000 | 88.4 | 1015 | 87.2 | 4 | 1005 | 88.0 | 1000 | 88.4 | 1015 | 87.2 |
| 471.omnetpp | 4 | 578 | 43.2 | 556 | 44.8 | 569 | 44.0 | 4 | 534 | 46.8 | 531 | 47.2 | 548 | 45.6 |
| 473.astar | 4 | 655 | 42.8 | 661 | 42.4 | 681 | 41.2 | 4 | 595 | 47.2 | 599 | 46.8 | 686 | 40.8 |
| 483.xalancbmk | 4 | 336 | 82.4 | 355 | 78.0 | 345 | 80.0 | 4 | 336 | 82.4 | 355 | 78.0 | 345 | 80.0 |
Compiler Invocation Notes
To compile these binaries, the Intel Compiler 14.0 was set up to generate 32-bit binaries with the command: "ipsxe-comp-vars.bat ia32 vs2010" (shortcut provided in the Intel(r) Parallel Studio XE 2013 program folder)
Submit Notes
Processes were bound to specific processors using the start command with the /affinity switch. The config file option 'submit' was used to generate the affinity mask for each process.
Platform Notes
Sysinfo program C:\Users\peca\Desktop\SPEC14.0\SPEC14.0/Docs/sysinfo $Rev: 6775 $ $Date:: 2011-08-16 #$ \8787f7622badcf24e01c368b1db4377c running on ea_i5 Thu Sep 11 01:26:16 2014 This section contains SUT (System Under Test) info as seen by some common utilities. To remove or add to this section, see: http://www.spec.org/cpu2006/Docs/config.html#sysinfo Trying 'systeminfo' OS Name : Microsoft Windows 8.1 Pro OS Version : 6.3.9600 N/A Build 9600 System Manufacturer: Microsoft Corporation System Model : Surface Pro 3 Processor(s) : 1 Processor(s) Installed. [01]: Intel64 Family 6 Model 69 Stepping 1 GenuineIntel ~1900 Mhz BIOS Version : American Megatrends Inc. 3.10.0250, 8/28/2014 Total Physical Memory: 4,001 MB Trying 'wmic cpu get /value' DeviceID : CPU0 L2CacheSize : 512 L3CacheSize : 3072 MaxClockSpeed : 2501 Name : Intel(R) Core(TM) i5-4300U CPU @ 1.90GHz NumberOfCores : 2 NumberOfLogicalProcessors: 4 (End of data from sysinfo program)
Component Notes
Test ran with power supply connected Power Supply: 12V, 2.58A
General Notes
Binaries compiled on a system with 1x Intel Core i7-860 CPU + 8GB memory using Windows 7 Enterprise 64-bit
Base Portability Flags
| 403.gcc: | -DSPEC_CPU_WIN32 |
| 464.h264ref: | -DWIN32 -DSPEC_CPU_NO_INTTYPES |
| 483.xalancbmk: | -Qoption,cpp,--no_wchar_t_keyword |
Base Optimization Flags
C benchmarks:
| -QxCORE-AVX2 -Qipo -O3 -Qprec-div- -Qopt-prefetch /F512000000 |
C++ benchmarks:
| -QxCORE-AVX2 -Qipo -O3 -Qprec-div- -Qopt-prefetch -Qcxx-features /F512000000 shlW32M.lib -link /FORCE:MULTIPLE |
Peak Compiler Invocation
C benchmarks (except as noted below):
C++ benchmarks (except as noted below):
| icl -Qvc10 | |
| 473.astar: | C:\Program Files (x86)\Intel\Composer XE 2013 SP1/bin/intel64/icl.exe |
Peak Portability Flags
| 403.gcc: | -DSPEC_CPU_WIN32 |
| 456.hmmer: | -DSPEC_CPU_P64 |
| 458.sjeng: | -DSPEC_CPU_P64 |
| 462.libquantum: | -DSPEC_CPU_P64 |
| 464.h264ref: | -DWIN32 -DSPEC_CPU_NO_INTTYPES |
| 473.astar: | -DSPEC_CPU_P64 |
| 483.xalancbmk: | -Qoption,cpp,--no_wchar_t_keyword |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -QxCORE-AVX2(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qansi-alias -Qopt-prefetch /F512000000 shlW32M.lib -link /FORCE:MULTIPLE |
| 401.bzip2: | -QxCORE-AVX2(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qopt-prefetch -Qansi-alias /F512000000 |
| 403.gcc: | -QxCORE-AVX2(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qopt-prefetch /F512000000 |
| 429.mcf: | basepeak = yes |
| 445.gobmk: | -QxCORE-AVX2(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O2 -Qprec-div- -Qansi-alias /F512000000 |
| 456.hmmer: | -Qauto-ilp32 -QxCORE-AVX2(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qopt-prefetch /F512000000 |
| 458.sjeng: | -Qauto-ilp32 -QxCORE-AVX2(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qunroll4 /F512000000 |
| 462.libquantum: | -Qauto-ilp32 -QxCORE-AVX2 -Qipo -O3 -Qprec-div- -Qopt-prefetch /F512000000 |
| 464.h264ref: | basepeak = yes |
C++ benchmarks:
| 471.omnetpp: | -QxCORE-AVX2(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qansi-alias -Qopt-ra-region-strategy=block /F512000000 shlW32M.lib -link /FORCE:MULTIPLE |
| 473.astar: | -Qauto-ilp32 -QxCORE-AVX2 -Qipo -O3 -Qprec-div- -Qopt-prefetch /F512000000 shlW64M.lib -link /FORCE:MULTIPLE |
| 483.xalancbmk: | basepeak = yes |
