CPU2006 license: | 3175 | Test date: | Aug-2014 |
---|---|---|---|
Test sponsor: | Huawei | Hardware Availability: | Feb-2012 |
Tested by: | Huawei | Software Availability: | Nov-2013 |
Hardware | |
---|---|
CPU Name: | Intel Xeon E5-2670 |
CPU Characteristics: | Intel Turbo Boost Technology up to 3.30 GHz |
CPU MHz: | 2600 |
FPU: | Integrated |
CPU(s) enabled: | 16 cores, 2 chips, 8 cores/chip, 2 threads/core |
CPU(s) orderable: | 1,2 chip |
Primary Cache: | 32 KB I + 32 KB D on chip per core |
Secondary Cache: | 256 KB I+D on chip per core |
L3 Cache: | 20 MB I+D on chip per chip |
Other Cache: | None |
Memory: | 128 GB (8 x 16 GB 2Rx4 PC3-14900R-13, ECC, running at 1600 MHz) |
Disk Subsystem: | 1 X 500 GB SATA 7200 RPM |
Other Hardware: | None |
Software | |
---|---|
Operating System: | Red Hat Enterprise Linux Server release 6.5 (Santiago) 2.6.32-431.el6.x86_64 |
Compiler: | C/C++: Version 14.0.0.080 of Intel C++ Studio XE for Linux; Fortran: Version 14.0.0.080 of Intel Fortran Studio XE for Linux |
Auto Parallel: | No |
File System: | ext3 |
System State: | Run level 3 (multi-user) |
Base Pointers: | 32/64-bit |
Peak Pointers: | 32/64-bit |
Other Software: | None |

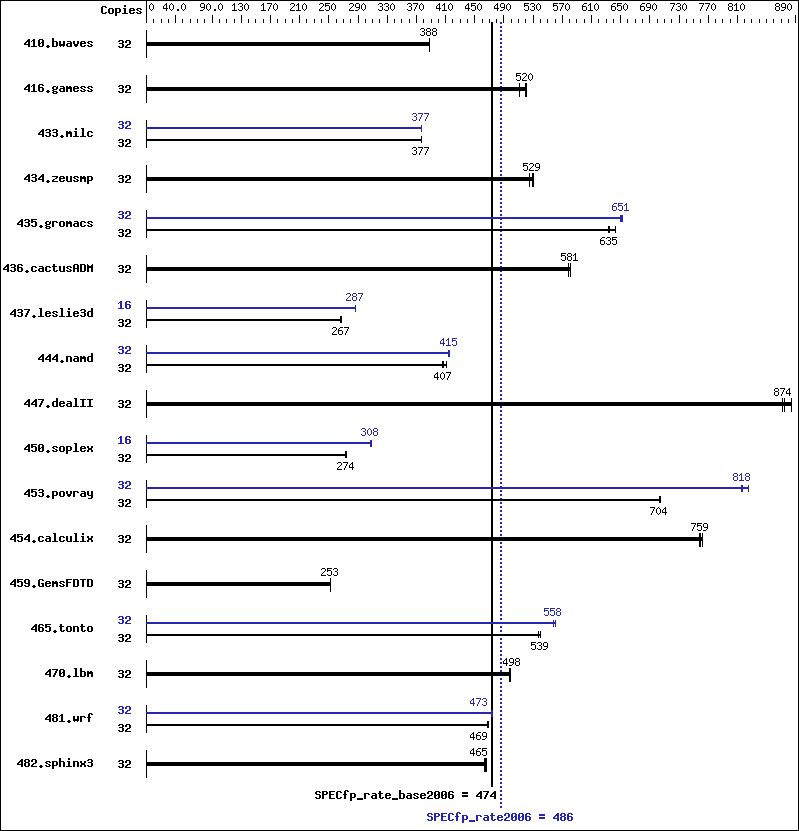

Benchmark | Base | Peak | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
410.bwaves | 32 | 1123 | 387 | 1121 | 388 | 1120 | 388 | 32 | 1123 | 387 | 1121 | 388 | 1120 | 388 |
416.gamess | 32 | 1226 | 511 | 1206 | 520 | 1204 | 521 | 32 | 1226 | 511 | 1206 | 520 | 1204 | 521 |
433.milc | 32 | 779 | 377 | 780 | 377 | 780 | 377 | 32 | 779 | 377 | 779 | 377 | 779 | 377 |
434.zeusmp | 32 | 555 | 525 | 551 | 529 | 549 | 530 | 32 | 555 | 525 | 551 | 529 | 549 | 530 |
435.gromacs | 32 | 360 | 635 | 361 | 633 | 356 | 643 | 32 | 350 | 653 | 351 | 650 | 351 | 651 |
436.cactusADM | 32 | 657 | 582 | 658 | 581 | 662 | 578 | 32 | 657 | 582 | 658 | 581 | 662 | 578 |
437.leslie3d | 32 | 1128 | 267 | 1127 | 267 | 1132 | 266 | 16 | 524 | 287 | 524 | 287 | 526 | 286 |
444.namd | 32 | 631 | 406 | 631 | 407 | 624 | 411 | 32 | 619 | 415 | 618 | 415 | 618 | 416 |
447.dealII | 32 | 420 | 872 | 419 | 874 | 414 | 885 | 32 | 420 | 872 | 419 | 874 | 414 | 885 |
450.soplex | 32 | 977 | 273 | 975 | 274 | 975 | 274 | 16 | 434 | 308 | 433 | 308 | 434 | 308 |
453.povray | 32 | 242 | 704 | 242 | 703 | 242 | 704 | 32 | 208 | 818 | 209 | 816 | 206 | 825 |
454.calculix | 32 | 348 | 759 | 346 | 762 | 348 | 758 | 32 | 348 | 759 | 346 | 762 | 348 | 758 |
459.GemsFDTD | 32 | 1345 | 252 | 1344 | 253 | 1344 | 253 | 32 | 1345 | 252 | 1344 | 253 | 1344 | 253 |
465.tonto | 32 | 584 | 539 | 583 | 541 | 586 | 538 | 32 | 562 | 561 | 564 | 558 | 564 | 558 |
470.lbm | 32 | 883 | 498 | 883 | 498 | 882 | 499 | 32 | 883 | 498 | 883 | 498 | 882 | 499 |
481.wrf | 32 | 764 | 468 | 763 | 469 | 762 | 469 | 32 | 755 | 473 | 755 | 474 | 755 | 473 |
482.sphinx3 | 32 | 1341 | 465 | 1337 | 466 | 1344 | 464 | 32 | 1341 | 465 | 1337 | 466 | 1344 | 464 |
The numactl mechanism was used to bind copies to processors. The config file option 'submit' was used to generate numactl commands to bind each copy to a specific processor. For details, please see the config file.
Stack size set to unlimited using "ulimit -s unlimited"
Sysinfo program /spec/config/sysinfo.rev6818 $Rev: 6818 $ $Date:: 2012-07-17 #$ e86d102572650a6e4d596a3cee98f191 running on localhost Wed Aug 6 22:28:52 2014 This section contains SUT (System Under Test) info as seen by some common utilities. To remove or add to this section, see: http://www.spec.org/cpu2006/Docs/config.html#sysinfo From /proc/cpuinfo model name : Intel(R) Xeon(R) CPU E5-2670 0 @ 2.60GHz 2 "physical id"s (chips) 32 "processors" cores, siblings (Caution: counting these is hw and system dependent. The following excerpts from /proc/cpuinfo might not be reliable. Use with caution.) cpu cores : 8 siblings : 16 physical 0: cores 0 1 2 3 4 5 6 7 physical 1: cores 0 1 2 3 4 5 6 7 cache size : 20480 KB From /proc/meminfo MemTotal: 132114848 kB HugePages_Total: 0 Hugepagesize: 2048 kB /usr/bin/lsb_release -d Red Hat Enterprise Linux Server release 6.5 (Santiago) From /etc/*release* /etc/*version* redhat-release: Red Hat Enterprise Linux Server release 6.5 (Santiago) system-release: Red Hat Enterprise Linux Server release 6.5 (Santiago) system-release-cpe: cpe:/o:redhat:enterprise_linux:6server:ga:server uname -a: Linux localhost 2.6.32-431.el6.x86_64 #1 SMP Sun Nov 10 22:19:54 EST 2013 x86_64 x86_64 x86_64 GNU/Linux run-level 3 Aug 6 05:30 SPEC is set to: /spec Filesystem Type Size Used Avail Use% Mounted on /dev/sda2 ext3 455G 342G 91G 80% / Additional information from dmidecode: BIOS Insyde Corp. OARYV385 02/20/2014 Memory: 8x Samsung M393B2G70BH0-CMA 16 GB 1600 MHz 2 rank (End of data from sysinfo program)
Environment variables set by runspec before the start of the run: LD_LIBRARY_PATH = "/spec/libs/32:/spec/libs/64:/spec/sh" Binaries compiled on a system with 1x Core i7-860 CPU + 8GB memory using RedHat EL 6.4 Transparent Huge Pages enabled with: echo always > /sys/kernel/mm/redhat_transparent_hugepage/enabled Filesystem page cache cleared with: echo 1> /proc/sys/vm/drop_caches runspec command invoked through numactl i.e.: numactl --interleave=all runspec <etc>
icc -m64 |
icpc -m64 |
ifort -m64 |
icc -m64 ifort -m64 |
410.bwaves: | -DSPEC_CPU_LP64 |
416.gamess: | -DSPEC_CPU_LP64 |
433.milc: | -DSPEC_CPU_LP64 |
434.zeusmp: | -DSPEC_CPU_LP64 |
435.gromacs: | -DSPEC_CPU_LP64 -nofor_main |
436.cactusADM: | -DSPEC_CPU_LP64 -nofor_main |
437.leslie3d: | -DSPEC_CPU_LP64 |
444.namd: | -DSPEC_CPU_LP64 |
447.dealII: | -DSPEC_CPU_LP64 |
450.soplex: | -DSPEC_CPU_LP64 |
453.povray: | -DSPEC_CPU_LP64 |
454.calculix: | -DSPEC_CPU_LP64 -nofor_main |
459.GemsFDTD: | -DSPEC_CPU_LP64 |
465.tonto: | -DSPEC_CPU_LP64 |
470.lbm: | -DSPEC_CPU_LP64 |
481.wrf: | -DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX |
482.sphinx3: | -DSPEC_CPU_LP64 |
-xAVX -ipo -O3 -no-prec-div -opt-prefetch -auto-p32 -ansi-alias -opt-mem-layout-trans=3 |
-xAVX -ipo -O3 -no-prec-div -opt-prefetch -auto-p32 -ansi-alias -opt-mem-layout-trans=3 |
-xAVX -ipo -O3 -no-prec-div -opt-prefetch |
-xAVX -ipo -O3 -no-prec-div -opt-prefetch -auto-p32 -ansi-alias -opt-mem-layout-trans=3 |
icc -m64 |
icpc -m64 | |
450.soplex: | icpc -m32 |
ifort -m64 |
icc -m64 ifort -m64 |
410.bwaves: | -DSPEC_CPU_LP64 |
416.gamess: | -DSPEC_CPU_LP64 |
433.milc: | -DSPEC_CPU_LP64 |
434.zeusmp: | -DSPEC_CPU_LP64 |
435.gromacs: | -DSPEC_CPU_LP64 -nofor_main |
436.cactusADM: | -DSPEC_CPU_LP64 -nofor_main |
437.leslie3d: | -DSPEC_CPU_LP64 |
444.namd: | -DSPEC_CPU_LP64 |
447.dealII: | -DSPEC_CPU_LP64 |
453.povray: | -DSPEC_CPU_LP64 |
454.calculix: | -DSPEC_CPU_LP64 -nofor_main |
459.GemsFDTD: | -DSPEC_CPU_LP64 |
465.tonto: | -DSPEC_CPU_LP64 |
470.lbm: | -DSPEC_CPU_LP64 |
481.wrf: | -DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX |
482.sphinx3: | -DSPEC_CPU_LP64 |
433.milc: | -xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -opt-mem-layout-trans=3(pass 2) -prof-use(pass 2) -auto-ilp32 |
470.lbm: | basepeak = yes |
482.sphinx3: | basepeak = yes |
444.namd: | -xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -opt-mem-layout-trans=3(pass 2) -prof-use(pass 2) -fno-alias -auto-ilp32 |
447.dealII: | basepeak = yes |
450.soplex: | -xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -opt-mem-layout-trans=3(pass 2) -prof-use(pass 2) -opt-malloc-options=3 |
453.povray: | -xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -opt-mem-layout-trans=3(pass 2) -prof-use(pass 2) -unroll4 -ansi-alias |
410.bwaves: | basepeak = yes |
416.gamess: | basepeak = yes |
434.zeusmp: | basepeak = yes |
437.leslie3d: | -xAVX -ipo -O3 -no-prec-div -opt-prefetch |
459.GemsFDTD: | basepeak = yes |
465.tonto: | -xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll4 -auto -inline-calloc -opt-malloc-options=3 |
435.gromacs: | -xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -opt-mem-layout-trans=3(pass 2) -prof-use(pass 2) -opt-prefetch -auto-ilp32 |
436.cactusADM: | basepeak = yes |
454.calculix: | basepeak = yes |
481.wrf: | -xAVX -ipo -O3 -no-prec-div -auto-ilp32 |
