SPEC® CINT2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Intel Corporation

Intel DH87MC Motherboard (Intel Core i7-4770)

SPECint®2006 = 61.8

CPU2006 license: 13 Test date: Jul-2014
Test sponsor: Intel Corporation Hardware Availability: Jun-2013
Tested by: Intel Corporation Software Availability: Oct-2013

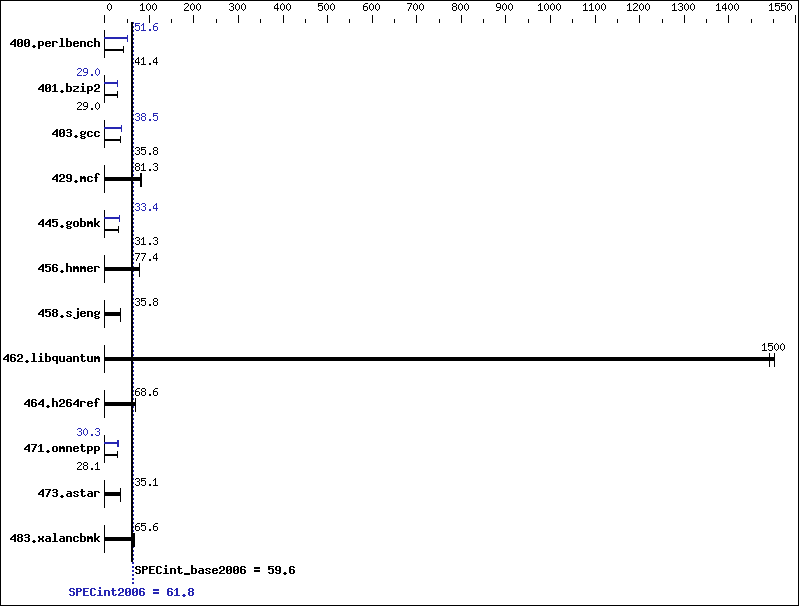

Benchmark results graph
Hardware
CPU Name: Intel Core i7-4770
CPU Characteristics: Intel Turbo Boost Technology up to 3.90 GHz
CPU MHz: 3400
FPU: Integrated
CPU(s) enabled: 4 cores, 1 chip, 4 cores/chip, 2 threads/core
CPU(s) orderable: 1 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
L3 Cache: 8 MB I+D on chip per chip
Other Cache: None
Memory: 8 GB (2 x 4 GB 2Rx4 PC3-12800U-11)
Disk Subsystem: 1 TB Seagate SATA HDD, 7200 RPM
Other Hardware: None
Software
Operating System: Microsoft Windows 8.1 Pro
6.3.9600 N/A Build 9600
Compiler: C/C++: Version 14.0.1.139 of Intel C++ Studio XE
for Windows;
Libraries: Version 16.00.30319.01 of Microsoft
Visual Studio 2010 Professional SP1
Auto Parallel: Yes
File System: NTFS
System State: Default
Base Pointers: 32/64-bit
Peak Pointers: 32/64-bit
Other Software: SmartHeap Library Version 10.0 from
http://www.microquill.com/

Results Table

Benchmark Base Peak
Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 236   41.4 236   41.3 236   41.4 189   51.6 190   51.5 189   51.8
401.bzip2 332   29.0 333   29.0 332   29.0 332   29.0 333   29.0 330   29.2
403.gcc 225   35.8 225   35.8 225   35.8 209   38.5 210   38.4 209   38.5
429.mcf 112   81.3 112   81.4 112   81.1 112   81.3 112   81.4 112   81.1
445.gobmk 335   31.3 335   31.3 335   31.3 314   33.4 315   33.3 314   33.4
456.hmmer 121   77.4 121   77.4 120   77.5 121   77.4 121   77.4 120   77.5
458.sjeng 338   35.8 339   35.7 338   35.9 338   35.8 339   35.7 338   35.9
462.libquantum 13.8 1500   13.9 1490   13.8 1500   13.8 1500   13.9 1490   13.8 1500
464.h264ref 323   68.6 323   68.6 323   68.5 323   68.6 323   68.6 323   68.5
471.omnetpp 223   28.1 223   28.1 224   28.0 206   30.3 211   29.6 207   30.3
473.astar 200   35.1 199   35.2 201   35.0 200   35.1 199   35.2 201   35.0
483.xalancbmk 106   65.0 105   65.6 105   65.7 106   65.0 105   65.6 105   65.7

Compiler Invocation Notes

 To compile these binaries, the Intel Compiler 14.0 was set up to
 generate 64-bit binaries with the command:
 "ipsxe-comp-vars.bat intel64 vs2010" (shortcut provided in the Intel(r)
 Parallel Studio XE 2013 program folder)

Platform Notes

 Sysinfo program C:\SPEC14.0/Docs/sysinfo
 $Rev: 6775 $ $Date:: 2011-08-16 #$ \8787f7622badcf24e01c368b1db4377c
 running on Clt7C05070D8262 Fri Jul 25 16:07:11 2014

 This section contains SUT (System Under Test) info as seen by
 some common utilities.  To remove or add to this section, see:
   http://www.spec.org/cpu2006/Docs/config.html#sysinfo

 Trying 'systeminfo'
 OS Name       : Microsoft Windows 8.1 Pro
 OS Version    : 6.3.9600 N/A Build 9600
 System Manufacturer: INTEL_
 System Model  : DH87MC__
 Processor(s)  : 1 Processor(s) Installed.
      [01]: Intel64 Family 6 Model 60 Stepping 3 GenuineIntel ~3401 Mhz
 BIOS Version  : Intel Corp. MCH8710H.86A.0047.2013.0606.1508, 6/6/2013
 Total Physical Memory: 7,862 MB

 Trying 'wmic cpu get /value'
 DeviceID      : CPU0
 L2CacheSize   : 1024
 L3CacheSize   : 8192
 MaxClockSpeed : 3401
 Name          : Intel(R) Core(TM) i7-4770 CPU @ 3.40GHz
 NumberOfCores : 4
 NumberOfLogicalProcessors: 8

 (End of data from sysinfo program)

Component Notes

 Tested systems can be used with Shin-G ATX case,
 PC Power and Cooling 1200W power supply

General Notes

 OMP_NUM_THREADS set to number of processors cores
 KMP_AFFINITY set to granularity=fine,scatter
 Binaries compiled on a system with 1x Intel Core i7-860 CPU
 + 8GB memory using Windows 7 Enterprise 64-bit

Base Compiler Invocation

C benchmarks:

 icl -Qvc10   -Qstd=c99

C++ benchmarks:

 icl -Qvc10

Base Portability Flags

400.perlbench:  -DSPEC_CPU_P64   -DSPEC_CPU_WIN64_X64   -DSPEC_CPU_NO_NEED_VA_COPY
401.bzip2:  -DSPEC_CPU_P64
403.gcc:  -DSPEC_CPU_P64   -DSPEC_CPU_WIN64
429.mcf:  -DSPEC_CPU_P64
445.gobmk:  -DSPEC_CPU_P64
456.hmmer:  -DSPEC_CPU_P64
458.sjeng:  -DSPEC_CPU_P64
462.libquantum:  -DSPEC_CPU_P64
464.h264ref:  -DSPEC_CPU_P64   -DWIN32   -DSPEC_CPU_NO_INTTYPES
471.omnetpp:  -DSPEC_CPU_P64   -DSPEC_CPU_WIN64
473.astar:  -DSPEC_CPU_P64
483.xalancbmk:  -DSPEC_CPU_P64   -Qoption,cpp,--no_wchar_t_keyword

Base Optimization Flags

C benchmarks:

 -QxCORE-AVX2   -Qipo   -O3   -Qprec-div-   -Qopt-prefetch   -Qparallel   -Qauto-ilp32   /F512000000

C++ benchmarks:

 -QxCORE-AVX2   -Qipo   -O3   -Qprec-div-   -Qopt-prefetch   -Qcxx-features   -Qauto-ilp32   /F512000000   shlW64M.lib    -link /FORCE:MULTIPLE

Base Other Flags

C benchmarks:

403.gcc:  -Dalloca=_alloca

Peak Compiler Invocation

C benchmarks:

 icl -Qvc10   -Qstd=c99

C++ benchmarks:

 icl -Qvc10

Peak Portability Flags

Same as Base Portability Flags

Peak Optimization Flags

C benchmarks:

400.perlbench:  -QxCORE-AVX2(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qansi-alias   -Qopt-prefetch   -Qauto-ilp32   /F512000000   shlW64M.lib    -link /FORCE:MULTIPLE
401.bzip2:  -QxCORE-AVX2(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qopt-prefetch   -Qansi-alias   -Qauto-ilp32   /F512000000
403.gcc:  -QxCORE-AVX2(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qauto-ilp32   /F512000000
429.mcf:  basepeak = yes
445.gobmk:  -QxCORE-AVX2(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O2   -Qprec-div-   -Qansi-alias   -Qauto-ilp32   /F512000000
456.hmmer:  basepeak = yes
458.sjeng:  basepeak = yes
462.libquantum:  basepeak = yes
464.h264ref:  basepeak = yes

C++ benchmarks:

471.omnetpp:  -QxCORE-AVX2(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qansi-alias   -Qopt-ra-region-strategy=block   -Qauto-ilp32   /F512000000   shlW64M.lib    -link /FORCE:MULTIPLE
473.astar:  basepeak = yes
483.xalancbmk:  basepeak = yes

Peak Other Flags

C benchmarks:

403.gcc:  -Dalloca=_alloca

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Intel-ic14.0-official-windows.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Intel-ic14.0-official-windows.xml.
