| CPU2006 license: | 3175 | Test date: | Jul-2014 |
|---|---|---|---|
| Test sponsor: | Huawei | Hardware Availability: | Feb-2014 |
| Tested by: | Huawei | Software Availability: | Nov-2013 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E7-8890 v2 |
| CPU Characteristics: | Intel Turbo Boost Technology up to 3.40 GHz |
| CPU MHz: | 2800 |
| FPU: | Integrated |
| CPU(s) enabled: | 120 cores, 8 chips, 15 cores/chip, 2 threads/core |
| CPU(s) orderable: | 4,8 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 37.5 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 2 TB (128 x 16 GB 2Rx4 PC3-12800R-11, ECC, running at 1333 MHz) |
| Disk Subsystem: | 2 x 600 GB SAS, 10K RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Red Hat Enterprise Linux Server release 6.5 (Santiago) 2.6.32-431.el6.x86_64 |
| Compiler: | C/C++: Version 14.0.0.080 of Intel C++ Studio XE for Linux |
| Auto Parallel: | No |
| File System: | ext4 |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V10.0 |

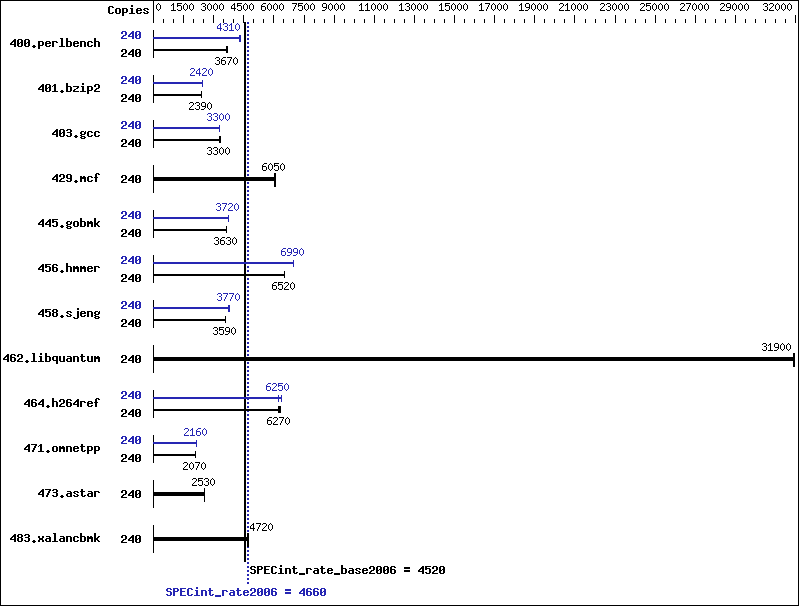

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 240 | 644 | 3640 | 640 | 3670 | 639 | 3670 | 240 | 545 | 4310 | 544 | 4310 | 544 | 4310 |
| 401.bzip2 | 240 | 970 | 2390 | 968 | 2390 | 970 | 2390 | 240 | 957 | 2420 | 957 | 2420 | 956 | 2420 |
| 403.gcc | 240 | 588 | 3290 | 585 | 3300 | 582 | 3320 | 240 | 587 | 3290 | 584 | 3310 | 585 | 3300 |
| 429.mcf | 240 | 362 | 6050 | 361 | 6060 | 362 | 6040 | 240 | 362 | 6050 | 361 | 6060 | 362 | 6040 |
| 445.gobmk | 240 | 694 | 3630 | 695 | 3620 | 694 | 3630 | 240 | 676 | 3720 | 676 | 3720 | 676 | 3730 |
| 456.hmmer | 240 | 344 | 6510 | 344 | 6520 | 343 | 6540 | 240 | 320 | 6990 | 322 | 6950 | 320 | 6990 |
| 458.sjeng | 240 | 809 | 3590 | 809 | 3590 | 808 | 3590 | 240 | 773 | 3760 | 771 | 3770 | 771 | 3770 |
| 462.libquantum | 240 | 156 | 31900 | 156 | 31900 | 156 | 31900 | 240 | 156 | 31900 | 156 | 31900 | 156 | 31900 |
| 464.h264ref | 240 | 850 | 6250 | 843 | 6300 | 847 | 6270 | 240 | 856 | 6210 | 836 | 6360 | 850 | 6250 |
| 471.omnetpp | 240 | 724 | 2070 | 724 | 2070 | 724 | 2070 | 240 | 694 | 2160 | 695 | 2160 | 696 | 2160 |
| 473.astar | 240 | 665 | 2530 | 663 | 2540 | 667 | 2530 | 240 | 665 | 2530 | 663 | 2540 | 667 | 2530 |
| 483.xalancbmk | 240 | 351 | 4720 | 351 | 4720 | 354 | 4670 | 240 | 351 | 4720 | 351 | 4720 | 354 | 4670 |
Submit Notes
The numactl mechanism was used to bind copies to processors. The config file option 'submit' was used to generate numactl commands to bind each copy to a specific processor. For details, please see the config file.
Operating System Notes
Stack size set to unlimited using "ulimit -s unlimited"
Platform Notes
BIOS configuration: Set Power Efficiency Mode to Performance Set Lock_step to disabled Baseboard Management Controller used to adjust the fan speed to 100% Sysinfo program /spec/config/sysinfo.rev6818 $Rev: 6818 $ $Date:: 2012-07-17 #$ e86d102572650a6e4d596a3cee98f191 running on rh8100v3 Sat Jul 26 09:33:32 2014 This section contains SUT (System Under Test) info as seen by some common utilities. To remove or add to this section, see: http://www.spec.org/cpu2006/Docs/config.html#sysinfo From /proc/cpuinfo model name : Intel(R) Xeon(R) CPU E7-8890 v2 @ 2.80GHz 8 "physical id"s (chips) 240 "processors" cores, siblings (Caution: counting these is hw and system dependent. The following excerpts from /proc/cpuinfo might not be reliable. Use with caution.) cpu cores : 15 siblings : 30 physical 0: cores 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 physical 1: cores 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 physical 2: cores 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 physical 3: cores 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 physical 4: cores 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 physical 5: cores 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 physical 6: cores 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 physical 7: cores 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 cache size : 38400 KB From /proc/meminfo MemTotal: 2117574308 kB HugePages_Total: 0 Hugepagesize: 2048 kB /usr/bin/lsb_release -d Red Hat Enterprise Linux Server release 6.5 (Santiago) From /etc/*release* /etc/*version* redhat-release: Red Hat Enterprise Linux Server release 6.5 (Santiago) system-release: Red Hat Enterprise Linux Server release 6.5 (Santiago) system-release-cpe: cpe:/o:redhat:enterprise_linux:6server:ga:server uname -a: Linux rh8100v3 2.6.32-431.el6.x86_64 #1 SMP Sun Nov 10 22:19:54 EST 2013 x86_64 x86_64 x86_64 GNU/Linux run-level 3 Jul 26 06:46 SPEC is set to: /spec Filesystem Type Size Used Avail Use% Mounted on /dev/sdb1 ext4 673G 12G 628G 2% /spec Additional information from dmidecode: BIOS American Megatrends Inc. BLHSV016 06/05/2014 Memory: 128x 16 GB 123x Hynix HMT42GR7AFR4C-PB 16 GB 1333 MHz 2 rank 5x Hynix HMT42GR7MFR4C-PB 16 GB 1333 MHz 2 rank 64x NO DIMM NO DIMM (End of data from sysinfo program) Regarding the sysinfo display about the memory installed, the correct amount of memory is 2 TB and the dmidecode description should have two lines reading as: 123x Hynix HMT42GR7AFR4C-PB 16 GB 1333 MHz 2 rank 5x Hynix HMT42GR7MFR4C-PB 16 GB 1333 MHz 2 rank
General Notes
Environment variables set by runspec before the start of the run: LD_LIBRARY_PATH = "/spec/libs/32:/spec/libs/64:/spec/sh" Binaries compiled on a system with 1x Core i7-860 CPU + 8GB memory using RedHat EL 6.4 Transparent Huge Pages enabled with: echo always > /sys/kernel/mm/redhat_transparent_hugepage/enabled Filesystem page cache cleared with: echo 1> /proc/sys/vm/drop_caches runspec command invoked through numactl i.e.: numactl --interleave=all runspec <etc>
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -opt-mem-layout-trans=3 |
C++ benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -opt-mem-layout-trans=3 -Wl,-z,muldefs -L/sh -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc -m32 | |
| 400.perlbench: | icc -m64 |
| 401.bzip2: | icc -m64 |
| 456.hmmer: | icc -m64 |
| 458.sjeng: | icc -m64 |
C++ benchmarks:
| icpc -m32 |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -auto-ilp32 |
| 401.bzip2: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -opt-prefetch -auto-ilp32 -ansi-alias |
| 403.gcc: | -xSSE4.2 -ipo -O3 -no-prec-div |
| 429.mcf: | basepeak = yes |
| 445.gobmk: | -xSSE4.2(pass 2) -prof-gen(pass 1) -prof-use(pass 2) -ansi-alias -opt-mem-layout-trans=3 |
| 456.hmmer: | -xSSE4.2 -ipo -O3 -no-prec-div -unroll2 -auto-ilp32 |
| 458.sjeng: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll4 -auto-ilp32 |
| 462.libquantum: | basepeak = yes |
| 464.h264ref: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll2 -ansi-alias |
C++ benchmarks:
| 471.omnetpp: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/sh -lsmartheap |
| 473.astar: | basepeak = yes |
| 483.xalancbmk: | basepeak = yes |
