SPEC® CINT2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

ASUSTeK Computer Inc. (Test Sponsor: Intel Corporation)

ASUS F2A85-M PRO Motherboard (AMD A8-5500 APU
with Radeon HD Graphics)

SPECint®2006 = 29.1

CPU2006 license: 13 Test date: Jun-2014
Test sponsor: Intel Corporation Hardware Availability: Aug-2013
Tested by: Intel Corporation Software Availability: Oct-2013

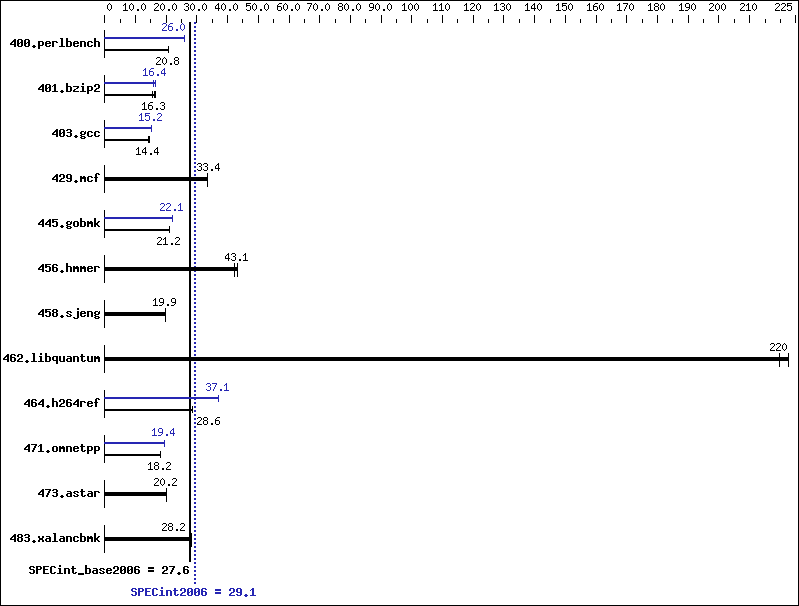

Benchmark results graph
Hardware
CPU Name: AMD A8-5500
CPU Characteristics: AMD Turbo CORE technology up to 3.70 GHz
CPU MHz: 3200
FPU: Integrated
CPU(s) enabled: 4 cores, 1 chip, 4 cores/chip
CPU(s) orderable: 1 chip
Primary Cache: 128 KB I on chip per chip, 64 KB I shared / 2
cores; 16 KB D on chip per core
Secondary Cache: 4 MB I+D on chip per chip, 2 MB shared / 2 cores
L3 Cache: None
Other Cache: None
Memory: 8 GB (2 x 4 GB 2Rx4 PC3-12800U-11)
Disk Subsystem: 1 TB SATA HDD, 7200 RPM
Other Hardware: None
Software
Operating System: Microsoft Windows 8.1 Pro
6.3.9600 N/A Build 9600
Compiler: C/C++: Version 14.0.1.139 of Intel C++ Studio XE
for Windows;
Libraries: Version 16.00.30319.01 of Microsoft
Visual Studio 2010 Professional SP1
Auto Parallel: Yes
File System: NTFS
System State: Default
Base Pointers: 32/64-bit
Peak Pointers: 32/64-bit
Other Software: SmartHeap Library Version 10.0 from
http://www.microquill.com/

Results Table

Benchmark Base Peak
Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 471   20.8 473   20.6 468   20.9 376   26.0 375   26.1 376   26.0
401.bzip2 585   16.5 618   15.6 592   16.3 605   16.0 585   16.5 589   16.4
403.gcc 557   14.5 557   14.4 557   14.4 534   15.1 530   15.2 530   15.2
429.mcf 273   33.4 273   33.4 273   33.5 273   33.4 273   33.4 273   33.5
445.gobmk 496   21.2 496   21.2 496   21.1 475   22.1 473   22.2 474   22.1
456.hmmer 216   43.2 217   43.1 221   42.3 216   43.2 217   43.1 221   42.3
458.sjeng 609   19.9 608   19.9 609   19.9 609   19.9 608   19.9 609   19.9
462.libquantum 94.3 220   93.1 223   94.3 220   94.3 220   93.1 223   94.3 220
464.h264ref 773   28.6 776   28.5 773   28.6 597   37.1 595   37.2 598   37.0
471.omnetpp 344   18.2 343   18.2 343   18.2 321   19.4 321   19.5 321   19.4
473.astar 348   20.2 348   20.2 348   20.2 348   20.2 348   20.2 348   20.2
483.xalancbmk 245   28.1 245   28.2 245   28.2 245   28.1 245   28.2 245   28.2

Compiler Invocation Notes

 To compile these binaries, the Intel Compiler 14.0 was set up to
 generate 64-bit binaries with the command:
 "ipsxe-comp-vars.bat intel64 vs2010" (shortcut provided in the Intel(r)
 Parallel Studio XE 2013 program folder)

Platform Notes

 Sysinfo program C:\SPEC14.0/Docs/sysinfo
 $Rev: 6775 $ $Date:: 2011-08-16 #$ \8787f7622badcf24e01c368b1db4377c
 running on Clt3085A9AEE495 Mon Jun 30 18:38:58 2014

 This section contains SUT (System Under Test) info as seen by
 some common utilities.  To remove or add to this section, see:
   http://www.spec.org/cpu2006/Docs/config.html#sysinfo

 Trying 'systeminfo'
 OS Name       : Microsoft Windows 8.1 Pro
 OS Version    : 6.3.9600 N/A Build 9600
 System Manufacturer: System manufacturer
 System Model  : System Product Name
 Processor(s)  : 1 Processor(s) Installed.
      [01]: AMD64 Family 21 Model 16 Stepping 1 AuthenticAMD ~3200 Mhz
 BIOS Version  : American Megatrends Inc. 6303, 8/13/2013
 Total Physical Memory: 7,366 MB

 Trying 'wmic cpu get /value'
 DeviceID      : CPU0
 L2CacheSize   : 4096
 L3CacheSize   : 0
 MaxClockSpeed : 3200
 Name          : AMD A8-5500 APU with Radeon(tm) HD Graphics
 NumberOfCores : 2
 NumberOfLogicalProcessors: 4

 (End of data from sysinfo program)

Component Notes

 Tested systems can be used with Shin-G ATX case,
 PC Power and Cooling 1200W power supply

General Notes

 OMP_NUM_THREADS set to number of processors cores
 KMP_AFFINITY set to granularity=fine,scatter
 Binaries compiled on a system with 1x Intel Core i7-860 CPU
 + 8GB memory using Windows 7 Enterprise 64-bit

Base Compiler Invocation

C benchmarks:

 icl -Qvc10   -Qstd=c99

C++ benchmarks:

 icl -Qvc10

Base Portability Flags

400.perlbench:  -DSPEC_CPU_P64   -DSPEC_CPU_WIN64_X64   -DSPEC_CPU_NO_NEED_VA_COPY
401.bzip2:  -DSPEC_CPU_P64
403.gcc:  -DSPEC_CPU_P64   -DSPEC_CPU_WIN64
429.mcf:  -DSPEC_CPU_P64
445.gobmk:  -DSPEC_CPU_P64
456.hmmer:  -DSPEC_CPU_P64
458.sjeng:  -DSPEC_CPU_P64
462.libquantum:  -DSPEC_CPU_P64
464.h264ref:  -DSPEC_CPU_P64   -DWIN32   -DSPEC_CPU_NO_INTTYPES
471.omnetpp:  -DSPEC_CPU_P64   -DSPEC_CPU_WIN64
473.astar:  -DSPEC_CPU_P64
483.xalancbmk:  -DSPEC_CPU_P64   -Qoption,cpp,--no_wchar_t_keyword

Base Optimization Flags

C benchmarks:

 /arch:AVX   -Qipo   -O3   -Qprec-div-   -Qopt-prefetch   -Qparallel   -Qauto-ilp32   /F512000000

C++ benchmarks:

 /arch:AVX   -Qipo   -O3   -Qprec-div-   -Qopt-prefetch   -Qcxx-features   -Qauto-ilp32   /F512000000   shlW64M.lib    -link /FORCE:MULTIPLE

Base Other Flags

C benchmarks:

403.gcc:  -Dalloca=_alloca

Peak Compiler Invocation

C benchmarks:

 icl -Qvc10   -Qstd=c99

C++ benchmarks:

 icl -Qvc10

Peak Portability Flags

Same as Base Portability Flags

Peak Optimization Flags

C benchmarks:

400.perlbench:  /arch:AVX(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qansi-alias   -Qopt-prefetch   -Qauto-ilp32   /F512000000   shlW64M.lib    -link /FORCE:MULTIPLE
401.bzip2:  /arch:AVX(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qopt-prefetch   -Qansi-alias   -Qauto-ilp32   /F512000000
403.gcc:  /arch:AVX(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qauto-ilp32   /F512000000
429.mcf:  basepeak = yes
445.gobmk:  /arch:AVX(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O2   -Qprec-div-   -Qansi-alias   -Qauto-ilp32   /F512000000
456.hmmer:  basepeak = yes
458.sjeng:  basepeak = yes
462.libquantum:  basepeak = yes
464.h264ref:  /arch:AVX(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qunroll2   -Qansi-alias   -Qauto-ilp32   /F512000000

C++ benchmarks:

471.omnetpp:  /arch:AVX(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qansi-alias   -Qopt-ra-region-strategy=block   -Qauto-ilp32   /F512000000   shlW64M.lib    -link /FORCE:MULTIPLE
473.astar:  basepeak = yes
483.xalancbmk:  basepeak = yes

Peak Other Flags

C benchmarks:

403.gcc:  -Dalloca=_alloca

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Intel-ic14.0-official-windows.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Intel-ic14.0-official-windows.xml.
