SPEC® CFP2006 Result

Intel Corporation

Intel DH87MC Motherboard (Intel Core i3-4340)

SPECfp®2006 = 64.0

SPECfp_base2006 = 62.8

CPU2006 license:	13	Test date:	Jun-2014
Test sponsor:	Intel Corporation	Hardware Availability:	Sep-2013
Tested by:	Intel Corporation	Software Availability:	Oct-2013

Hardware
CPU Name:	Intel Core i3-4340
CPU Characteristics:
CPU MHz:	3600
FPU:	Integrated
CPU(s) enabled:	2 cores, 1 chip, 2 cores/chip, 2 threads/core
CPU(s) orderable:	1 chip
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	256 KB I+D on chip per core
L3 Cache:	4 MB I+D on chip per chip
Other Cache:	None
Memory:	8 GB (2 x 4 GB 2Rx4 PC3-12800U-11)
Disk Subsystem:	1 TB Seagate SATA HDD, 7200 RPM
Other Hardware:	None

Software
Operating System:	Microsoft Windows 8.1 Pro 6.3.9600 N/A Build 9600
Compiler:	C/C++: Version 14.0.1.139 of Intel C++ Studio XE for Windows; Fortran: Version 14.0.1.139 of Intel Fortran Studio XE for Windows; Libraries: Version 16.00.30319.01 of Microsoft Visual Studio 2010 Professional SP1
Auto Parallel:	Yes
File System:	NTFS
System State:	Default
Base Pointers:	32/64-bit
Peak Pointers:	32/64-bit
Other Software:	SmartHeap Library Version 10.0 from http://www.microquill.com/

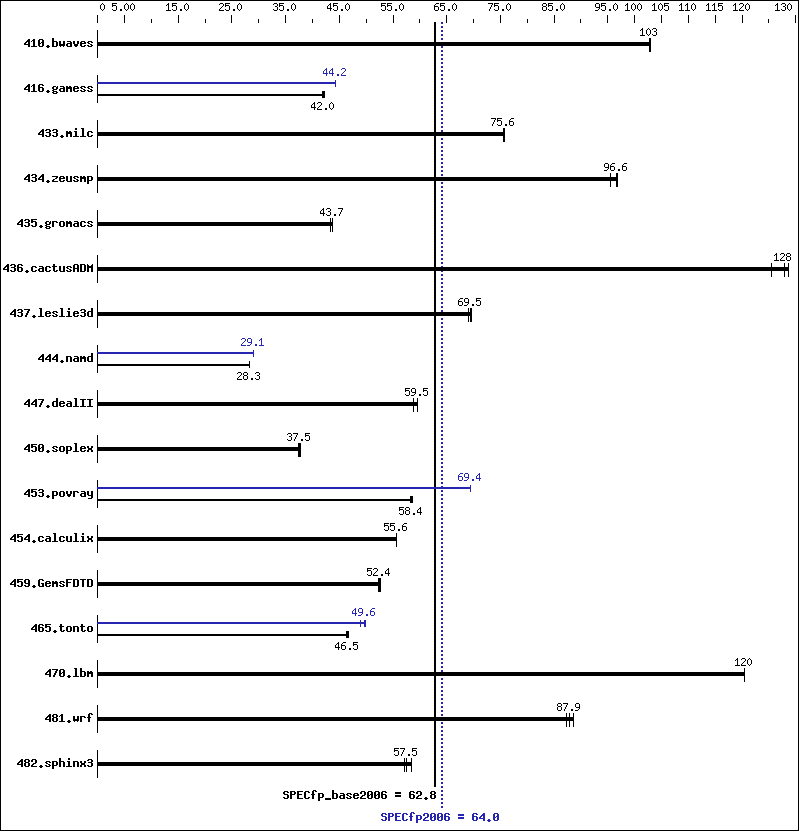

Results Table

Benchmark	Base						Peak
Benchmark	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves	132	103	132	103	132	103	132	103	132	103	132	103
416.gamess	467	41.9	464	42.2	466	42.0	443	44.2	443	44.2	442	44.3
433.milc	121	75.6	121	75.7	122	75.6	121	75.6	121	75.7	122	75.6
434.zeusmp	94.2	96.6	95.3	95.5	94.0	96.8	94.2	96.6	95.3	95.5	94.0	96.8
435.gromacs	163	43.7	165	43.4	163	43.8	163	43.7	165	43.4	163	43.8
436.cactusADM	95.3	125	92.9	129	93.4	128	95.3	125	92.9	129	93.4	128
437.leslie3d	135	69.5	135	69.7	136	69.1	135	69.5	135	69.7	136	69.1
444.namd	283	28.3	283	28.3	283	28.3	276	29.1	276	29.1	276	29.0
447.dealII	194	58.9	192	59.5	192	59.6	194	58.9	192	59.5	192	59.6
450.soplex	221	37.8	223	37.4	223	37.5	221	37.8	223	37.4	223	37.5
453.povray	90.7	58.7	91.1	58.4	91.2	58.3	76.7	69.4	76.7	69.4	76.7	69.4
454.calculix	148	55.6	149	55.6	148	55.6	148	55.6	149	55.6	148	55.6
459.GemsFDTD	202	52.6	202	52.4	203	52.2	202	52.6	202	52.4	203	52.2
465.tonto	212	46.4	211	46.7	212	46.5	198	49.8	198	49.6	201	48.9
470.lbm	114	120	114	120	114	121	114	120	114	120	114	121
481.wrf	127	87.9	128	87.3	126	88.6	127	87.9	128	87.3	126	88.6
482.sphinx3	334	58.4	341	57.1	339	57.5	334	58.4	341	57.1	339	57.5

Compiler Invocation Notes

 To compile these binaries, the Intel Compiler 14.0 was set up to
 generate 64-bit binaries with the command:
 "ipsxe-comp-vars.bat intel64 vs2010" (shortcut provided in the Intel(r)
 Parallel Studio XE 2013 program folder)

Platform Notes

 Sysinfo program C:\SPEC14.0/Docs/sysinfo
 $Rev: 6775 $ $Date:: 2011-08-16 #$ \8787f7622badcf24e01c368b1db4377c
 running on Clt54BEF7090207 Fri Jun 27 20:32:29 2014

 This section contains SUT (System Under Test) info as seen by
 some common utilities.  To remove or add to this section, see:
   http://www.spec.org/cpu2006/Docs/config.html#sysinfo

 Trying 'systeminfo'
 OS Name       : Microsoft Windows 8.1 Pro
 OS Version    : 6.3.9600 N/A Build 9600
 System Manufacturer: INTEL_
 System Model  : DH87MC__
 Processor(s)  : 1 Processor(s) Installed.
      [01]: Intel64 Family 6 Model 60 Stepping 3 GenuineIntel ~3600 Mhz
 BIOS Version  : Intel Corp. MCH8710H.86A.0047.2013.0606.1508, 6/6/2013
 Total Physical Memory: 7,862 MB

 Trying 'wmic cpu get /value'
 DeviceID      : CPU0
 L2CacheSize   : 512
 L3CacheSize   : 4096
 MaxClockSpeed : 3600
 Name          : Intel(R) Core(TM) i3-4340 CPU @ 3.60GHz
 NumberOfCores : 2
 NumberOfLogicalProcessors: 4

 (End of data from sysinfo program)

Component Notes

 Tested systems can be used with Shin-G ATX case,
 PC Power and Cooling 1200W power supply

General Notes

 OMP_NUM_THREADS set to number of processors cores
 KMP_AFFINITY set to granularity=fine,scatter
 Binaries compiled on a system with 1x Intel Core i7-860 CPU
 + 8GB memory using Windows 7 Enterprise 64-bit

Base Compiler Invocation

C benchmarks:

icl -Qvc10 -Qstd=c99

C++ benchmarks:

icl -Qvc10

Fortran benchmarks:

ifort

Benchmarks using both Fortran and C:

icl -Qvc10 -Qstd=c99 ifort

Base Portability Flags

410.bwaves:	-DSPEC_CPU_P64
416.gamess:	-DSPEC_CPU_P64
433.milc:	-DSPEC_CPU_P64
434.zeusmp:	-DSPEC_CPU_P64
435.gromacs:	-DSPEC_CPU_P64
436.cactusADM:	-DSPEC_CPU_P64 -names:lowercase /assume:underscore
437.leslie3d:	-DSPEC_CPU_P64
444.namd:	-DSPEC_CPU_P64 /TP
447.dealII:	-DSPEC_CPU_P64 -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG -Qoption,cpp,--ms_incompat_treatment_of_commas_in_macros
450.soplex:	-DSPEC_CPU_P64
453.povray:	-DSPEC_CPU_P64 -DSPEC_CPU_NEED_INVHYP -DNEED_INVHYP
454.calculix:	-DSPEC_CPU_P64 -DSPEC_CPU_NOZMODIFIER -names:lowercase
459.GemsFDTD:	-DSPEC_CPU_P64
465.tonto:	-DSPEC_CPU_P64
470.lbm:	-DSPEC_CPU_P64
481.wrf:	-DSPEC_CPU_P64 -DSPEC_CPU_WINDOWS_ICL
482.sphinx3:	-DSPEC_CPU_P64

Base Optimization Flags

Peak Compiler Invocation

C benchmarks:

icl -Qvc10 -Qstd=c99

C++ benchmarks:

icl -Qvc10

Fortran benchmarks:

ifort

Benchmarks using both Fortran and C:

icl -Qvc10 -Qstd=c99 ifort

Peak Portability Flags

Same as Base Portability Flags

Peak Optimization Flags

C benchmarks:

433.milc:	basepeak = yes
470.lbm:	basepeak = yes
482.sphinx3:	basepeak = yes

C++ benchmarks:

444.namd:	-QxCORE-AVX2(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Oa -Qauto-ilp32 /F1000000000 shlW64M.lib -link /FORCE:MULTIPLE
447.dealII:	basepeak = yes
450.soplex:	basepeak = yes
453.povray:	-QxCORE-AVX2(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qunroll4 -Qansi-alias -Qauto-ilp32 /F1000000000 shlW64M.lib -link /FORCE:MULTIPLE

Fortran benchmarks:

410.bwaves:	basepeak = yes
416.gamess:	-QxCORE-AVX2(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qunroll2 -Ob0 -Qansi-alias -Qscalar-rep- /F1000000000
434.zeusmp:	basepeak = yes
437.leslie3d:	basepeak = yes
459.GemsFDTD:	basepeak = yes
465.tonto:	-QxCORE-AVX2(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qunroll4 -Qauto -Qinline-calloc /F1000000000

Benchmarks using both Fortran and C:

435.gromacs:	basepeak = yes
436.cactusADM:	basepeak = yes
454.calculix:	basepeak = yes
481.wrf:	basepeak = yes

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Intel-ic14.0-official-windows.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Intel-ic14.0-official-windows.xml.
