| CPU2006 license: | 13 | Test date: | Sep-2013 |
|---|---|---|---|
| Test sponsor: | Intel Corporation | Hardware Availability: | Sep-2013 |
| Tested by: | Intel Corporation | Software Availability: | Apr-2013 |
| Hardware | |
|---|---|
| CPU Name: | Intel Core i3-4130 |
| CPU Characteristics: | |
| CPU MHz: | 3400 |
| FPU: | Integrated |
| CPU(s) enabled: | 2 cores, 1 chip, 2 cores/chip, 2 threads/core |
| CPU(s) orderable: | 1 chip |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 3 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 4 GB (2 x 2 GB 1Rx8 PC3-12800U-11) |
| Disk Subsystem: | 250 GB Seagate SATA HDD, 7200 RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Microsoft Windows 7 Enterprise 6.1.7601 Service Pack 1 Build 7601 |
| Compiler: | C/C++: Version 13.1.1.171 of Intel C++ Studio XE for Windows; Fortran: Version 13.1.1.171 of Intel Fortran Studio XE for Windows; Libraries: Version 16.00.30319.01 of Microsoft Visual Studio 2010 Professional SP1 |
| Auto Parallel: | Yes |
| File System: | NTFS |
| System State: | Default |
| Base Pointers: | 32/64-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | SmartHeap Library Version 10.0 from http://www.microquill.com/ |

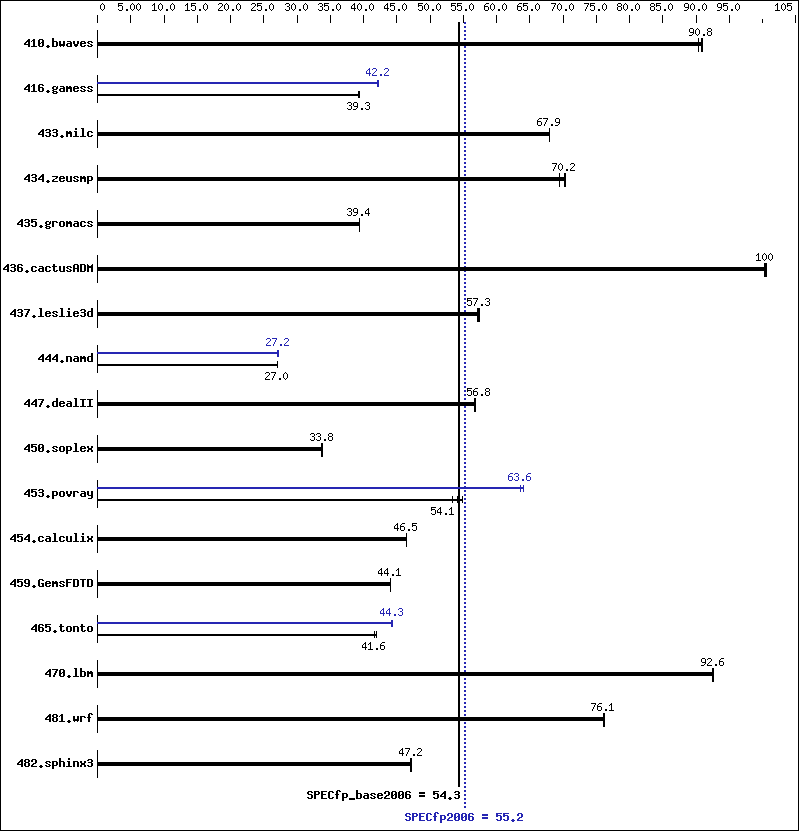

Results Table
| Benchmark | Base | Peak | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
| 410.bwaves | 150 | 90.8 | 150 | 90.4 | 149 | 91.0 | 150 | 90.8 | 150 | 90.4 | 149 | 91.0 |
| 416.gamess | 500 | 39.2 | 498 | 39.3 | 498 | 39.3 | 464 | 42.2 | 466 | 42.1 | 464 | 42.2 |
| 433.milc | 135 | 67.9 | 135 | 67.9 | 135 | 67.9 | 135 | 67.9 | 135 | 67.9 | 135 | 67.9 |
| 434.zeusmp | 130 | 70.2 | 130 | 70.3 | 131 | 69.5 | 130 | 70.2 | 130 | 70.3 | 131 | 69.5 |
| 435.gromacs | 182 | 39.3 | 181 | 39.4 | 181 | 39.4 | 182 | 39.3 | 181 | 39.4 | 181 | 39.4 |
| 436.cactusADM | 119 | 100 | 119 | 100 | 119 | 101 | 119 | 100 | 119 | 100 | 119 | 101 |
| 437.leslie3d | 164 | 57.3 | 164 | 57.2 | 164 | 57.4 | 164 | 57.3 | 164 | 57.2 | 164 | 57.4 |
| 444.namd | 297 | 27.0 | 297 | 27.0 | 297 | 27.0 | 296 | 27.1 | 295 | 27.2 | 295 | 27.2 |
| 447.dealII | 201 | 56.8 | 201 | 56.8 | 202 | 56.7 | 201 | 56.8 | 201 | 56.8 | 202 | 56.7 |
| 450.soplex | 247 | 33.8 | 246 | 33.8 | 248 | 33.6 | 247 | 33.8 | 246 | 33.8 | 248 | 33.6 |
| 453.povray | 96.9 | 54.9 | 99.9 | 53.3 | 98.4 | 54.1 | 83.1 | 64.0 | 83.6 | 63.6 | 83.7 | 63.6 |
| 454.calculix | 177 | 46.5 | 177 | 46.5 | 178 | 46.5 | 177 | 46.5 | 177 | 46.5 | 178 | 46.5 |
| 459.GemsFDTD | 241 | 44.1 | 241 | 44.1 | 241 | 44.1 | 241 | 44.1 | 241 | 44.1 | 241 | 44.1 |
| 465.tonto | 235 | 41.9 | 237 | 41.6 | 236 | 41.6 | 222 | 44.3 | 223 | 44.2 | 222 | 44.3 |
| 470.lbm | 149 | 92.5 | 148 | 92.6 | 148 | 92.6 | 149 | 92.5 | 148 | 92.6 | 148 | 92.6 |
| 481.wrf | 147 | 76.1 | 147 | 76.2 | 147 | 76.1 | 147 | 76.1 | 147 | 76.2 | 147 | 76.1 |
| 482.sphinx3 | 414 | 47.1 | 413 | 47.2 | 413 | 47.2 | 414 | 47.1 | 413 | 47.2 | 413 | 47.2 |
Compiler Invocation Notes
To compile these binaries, the Intel Compiler 13.1 was set up to generate 64-bit binaries with the command: "ipsxe-comp-vars.bat intel64 vs2010" (shortcut provided in the Intel(r) Parallel Studio XE 2013 program folder)
Platform Notes
Sysinfo program C:\SPEC13.1/Docs/sysinfo $Rev: 6775 $ $Date:: 2011-08-16 #$ \8787f7622badcf24e01c368b1db4377c running on Clt00224D4FB715 Sat Sep 28 09:29:27 2013 This section contains SUT (System Under Test) info as seen by some common utilities. To remove or add to this section, see: http://www.spec.org/cpu2006/Docs/config.html#sysinfo Trying 'systeminfo' OS Name : Microsoft Windows 7 Enterprise OS Version : 6.1.7601 Service Pack 1 Build 7601 System Manufacturer: INTEL_ System Model : DQ87PG__ Processor(s) : 1 Processor(s) Installed. [01]: Intel64 Family 6 Model 60 Stepping 3 GenuineIntel ~3400 Mhz BIOS Version : Intel(R) Corp. PGQ8710H.86A.0036.2013.0702.1908, 7/2/2013 Total Physical Memory: 3,749 MB Trying 'wmic cpu get /value' DeviceID : CPU0 L2CacheSize : 512 L3CacheSize : 3072 MaxClockSpeed : 3400 Name : Intel(R) Core(TM) i3-4130 CPU @ 3.40GHz NumberOfCores : 2 NumberOfLogicalProcessors: 4 (End of data from sysinfo program) BIOS: SATA mode set to RAID Windows Disk Driver: Intel Rapid Storage Technology 12.5.0.1066 Windows Chipset Driver: Intel Chipset Driver 9.4.0.1027
Component Notes
Tested systems can be used with Shin-G ATX case, PC Power and Cooling 1200W power supply Micron MT8JTF25664AZ-1G6 Series Memory DIMMs
General Notes
OMP_NUM_THREADS set to number of processors cores KMP_AFFINITY set to granularity=fine,scatter Binaries compiled on a system with 1x Intel Core i7-860 CPU + 8GB memory using Windows 7 Enterprise 64-bit
Base Compiler Invocation
C benchmarks:
| icl -Qvc10 -Qstd=c99 |
C++ benchmarks:
| icl -Qvc10 |
Fortran benchmarks:
| ifort |
Benchmarks using both Fortran and C:
| icl -Qvc10 -Qstd=c99 ifort |
Base Portability Flags
| 410.bwaves: | -DSPEC_CPU_P64 |
| 416.gamess: | -DSPEC_CPU_P64 |
| 433.milc: | -DSPEC_CPU_P64 |
| 434.zeusmp: | -DSPEC_CPU_P64 |
| 435.gromacs: | -DSPEC_CPU_P64 |
| 436.cactusADM: | -DSPEC_CPU_P64 -names:lowercase /assume:underscore |
| 437.leslie3d: | -DSPEC_CPU_P64 |
| 444.namd: | -DSPEC_CPU_P64 /TP |
| 447.dealII: | -DSPEC_CPU_P64 -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG -Qoption,cpp,--ms_incompat_treatment_of_commas_in_macros |
| 450.soplex: | -DSPEC_CPU_P64 |
| 453.povray: | -DSPEC_CPU_P64 -DSPEC_CPU_NEED_INVHYP -DNEED_INVHYP |
| 454.calculix: | -DSPEC_CPU_P64 -DSPEC_CPU_NOZMODIFIER -names:lowercase |
| 459.GemsFDTD: | -DSPEC_CPU_P64 |
| 465.tonto: | -DSPEC_CPU_P64 |
| 470.lbm: | -DSPEC_CPU_P64 |
| 481.wrf: | -DSPEC_CPU_P64 -DSPEC_CPU_WINDOWS_ICL |
| 482.sphinx3: | -DSPEC_CPU_P64 |
Base Optimization Flags
C benchmarks:
| -QxCORE-AVX2 -Qipo -O3 -Qprec-div- -Qparallel -Qansi-alias -Qopt-prefetch -Qauto-ilp32 /F1000000000 |
C++ benchmarks:
| -QxCORE-AVX2 -Qipo -O3 -Qprec-div- -Qparallel -Qansi-alias -Qopt-prefetch -Qcxx-features -Qauto-ilp32 /F1000000000 shlW64M.lib -link /FORCE:MULTIPLE |
Fortran benchmarks:
| -QxCORE-AVX2 -Qipo -O3 -Qprec-div- -Qparallel -Qansi-alias -Qopt-prefetch /F1000000000 |
Benchmarks using both Fortran and C:
| -QxCORE-AVX2 -Qipo -O3 -Qprec-div- -Qparallel -Qansi-alias -Qopt-prefetch -Qauto-ilp32 /F1000000000 |
Peak Compiler Invocation
C benchmarks:
| icl -Qvc10 -Qstd=c99 |
C++ benchmarks:
| icl -Qvc10 |
Fortran benchmarks:
| ifort |
Benchmarks using both Fortran and C:
| icl -Qvc10 -Qstd=c99 ifort |
Peak Portability Flags
Same as Base Portability Flags
Peak Optimization Flags
C benchmarks:
| 433.milc: | basepeak = yes |
| 470.lbm: | basepeak = yes |
| 482.sphinx3: | basepeak = yes |
C++ benchmarks:
| 444.namd: | -QxCORE-AVX2(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Oa -Qauto-ilp32 /F1000000000 shlW64M.lib -link /FORCE:MULTIPLE |
| 447.dealII: | basepeak = yes |
| 450.soplex: | basepeak = yes |
| 453.povray: | -QxCORE-AVX2(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qunroll4 -Qansi-alias -Qauto-ilp32 /F1000000000 shlW64M.lib -link /FORCE:MULTIPLE |
Fortran benchmarks:
| 410.bwaves: | basepeak = yes |
| 416.gamess: | -QxCORE-AVX2(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qunroll2 -Ob0 -Qansi-alias -Qscalar-rep- /F1000000000 |
| 434.zeusmp: | basepeak = yes |
| 437.leslie3d: | basepeak = yes |
| 459.GemsFDTD: | basepeak = yes |
| 465.tonto: | -QxCORE-AVX2(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qunroll4 -Qauto -Qinline-calloc /F1000000000 |
Benchmarks using both Fortran and C:
| 435.gromacs: | basepeak = yes |
| 436.cactusADM: | basepeak = yes |
| 454.calculix: | basepeak = yes |
| 481.wrf: | basepeak = yes |
