| CPU2006 license: | 13 | Test date: | Dec-2013 |
|---|---|---|---|
| Test sponsor: | Intel Corporation | Hardware Availability: | Jun-2013 |
| Tested by: | Intel Corporation | Software Availability: | Apr-2013 |
| Hardware | |
|---|---|
| CPU Name: | Intel Core i3-3245 |
| CPU Characteristics: | |
| CPU MHz: | 3400 |
| FPU: | Integrated |
| CPU(s) enabled: | 2 cores, 1 chip, 2 cores/chip, 2 threads/core |
| CPU(s) orderable: | 1 chip |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 3 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 4 GB (2 x 2 GB 1Rx8 PC3-12800U-11) |
| Disk Subsystem: | 250 GB Seagate SATA HDD, 7200 RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Microsoft Windows 7 Enterprise 6.1.7601 Service Pack 1 Build 7601 |
| Compiler: | C/C++: Version 13.1.1.171 of Intel C++ Studio XE for Windows; Fortran: Version 13.1.1.171 of Intel Fortran Studio XE for Windows; Libraries: Version 16.00.30319.01 of Microsoft Visual Studio 2010 Professional SP1 |
| Auto Parallel: | Yes |
| File System: | NTFS |
| System State: | Default |
| Base Pointers: | 32/64-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | SmartHeap Library Version 10.0 from http://www.microquill.com/ |

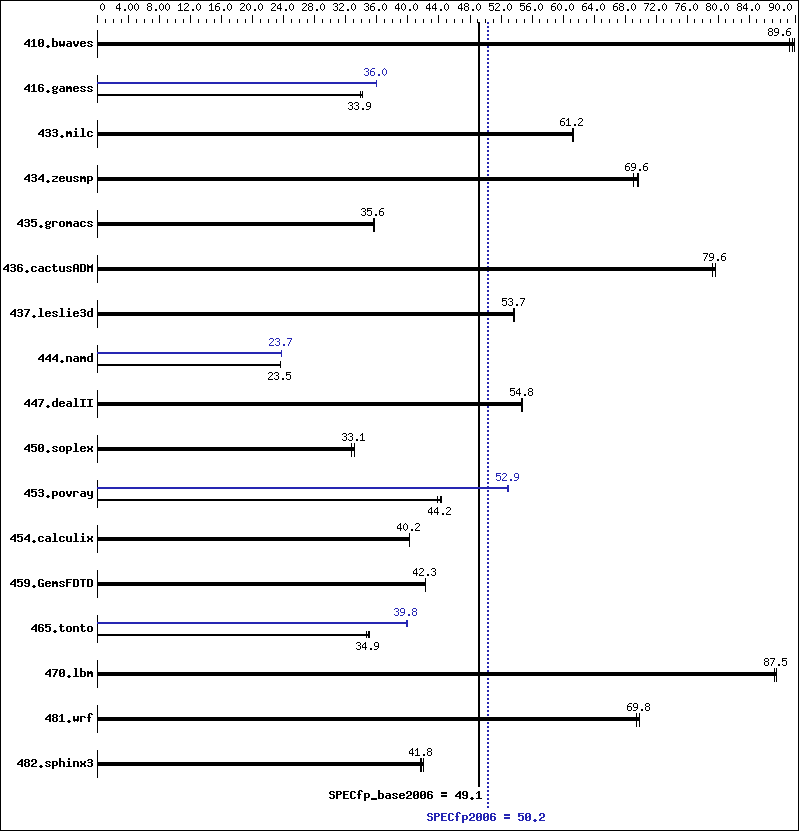

Results Table
| Benchmark | Base | Peak | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
| 410.bwaves | 152 | 89.2 | 152 | 89.6 | 151 | 89.8 | 152 | 89.2 | 152 | 89.6 | 151 | 89.8 |
| 416.gamess | 577 | 33.9 | 577 | 33.9 | 573 | 34.2 | 544 | 36.0 | 544 | 36.0 | 544 | 36.0 |
| 433.milc | 150 | 61.2 | 150 | 61.2 | 150 | 61.3 | 150 | 61.2 | 150 | 61.2 | 150 | 61.3 |
| 434.zeusmp | 132 | 69.1 | 131 | 69.6 | 131 | 69.7 | 132 | 69.1 | 131 | 69.6 | 131 | 69.7 |
| 435.gromacs | 200 | 35.7 | 200 | 35.6 | 200 | 35.6 | 200 | 35.7 | 200 | 35.6 | 200 | 35.6 |
| 436.cactusADM | 150 | 79.6 | 151 | 79.3 | 150 | 79.6 | 150 | 79.6 | 151 | 79.3 | 150 | 79.6 |
| 437.leslie3d | 175 | 53.7 | 176 | 53.6 | 175 | 53.7 | 175 | 53.7 | 176 | 53.6 | 175 | 53.7 |
| 444.namd | 341 | 23.5 | 341 | 23.5 | 341 | 23.5 | 339 | 23.7 | 339 | 23.7 | 339 | 23.7 |
| 447.dealII | 209 | 54.8 | 209 | 54.7 | 209 | 54.8 | 209 | 54.8 | 209 | 54.7 | 209 | 54.8 |
| 450.soplex | 252 | 33.1 | 255 | 32.7 | 252 | 33.1 | 252 | 33.1 | 255 | 32.7 | 252 | 33.1 |
| 453.povray | 120 | 44.2 | 121 | 43.8 | 120 | 44.3 | 101 | 52.9 | 101 | 52.9 | 101 | 52.8 |
| 454.calculix | 205 | 40.2 | 205 | 40.2 | 205 | 40.2 | 205 | 40.2 | 205 | 40.2 | 205 | 40.2 |
| 459.GemsFDTD | 251 | 42.3 | 251 | 42.3 | 251 | 42.2 | 251 | 42.3 | 251 | 42.3 | 251 | 42.2 |
| 465.tonto | 280 | 35.1 | 282 | 34.9 | 283 | 34.7 | 247 | 39.8 | 247 | 39.8 | 247 | 39.9 |
| 470.lbm | 157 | 87.5 | 158 | 87.2 | 157 | 87.5 | 157 | 87.5 | 158 | 87.2 | 157 | 87.5 |
| 481.wrf | 161 | 69.5 | 160 | 69.8 | 160 | 69.8 | 161 | 69.5 | 160 | 69.8 | 160 | 69.8 |
| 482.sphinx3 | 469 | 41.6 | 465 | 42.0 | 466 | 41.8 | 469 | 41.6 | 465 | 42.0 | 466 | 41.8 |
Compiler Invocation Notes
To compile these binaries, the Intel Compiler 13.1 was set up to generate 64-bit binaries with the command: "ipsxe-comp-vars.bat intel64 vs2010" (shortcut provided in the Intel(r) Parallel Studio XE 2013 program folder)
Platform Notes
Sysinfo program C:\SPEC13.1/Docs/sysinfo $Rev: 6775 $ $Date:: 2011-08-16 #$ \8787f7622badcf24e01c368b1db4377c running on Clt7054D2179849 Sat Dec 7 05:02:08 2013 This section contains SUT (System Under Test) info as seen by some common utilities. To remove or add to this section, see: http://www.spec.org/cpu2006/Docs/config.html#sysinfo Trying 'systeminfo' OS Name : Microsoft Windows 7 Enterprise OS Version : 6.1.7601 Service Pack 1 Build 7601 System Manufacturer: INTEL_ System Model : DQ77MK__ Processor(s) : 1 Processor(s) Installed. [01]: Intel64 Family 6 Model 58 Stepping 9 GenuineIntel ~3400 Mhz BIOS Version : Intel Corp. MKQ7710H.86A.0054.2012.1120.1444, 11/20/2012 Total Physical Memory: 3,912 MB Trying 'wmic cpu get /value' DeviceID : CPU0 L2CacheSize : 512 L3CacheSize : 3072 MaxClockSpeed : 3400 Name : Intel(R) Core(TM) i3-3245 CPU @ 3.40GHz NumberOfCores : 2 NumberOfLogicalProcessors: 4 (End of data from sysinfo program) BIOS: SATA mode set to RAID Windows Disk Driver: Intel Rapid Storage Technology 12.5.0.1066 Windows Chipset Driver: Intel Chipset Driver 9.4.0.1027
Component Notes
Tested systems can be used with Shin-G ATX case, PC Power and Cooling 1200W power supply Micron MT8JTF25664AZ-1G6 Series Memory DIMMs
General Notes
OMP_NUM_THREADS set to number of processors cores KMP_AFFINITY set to granularity=fine,scatter Binaries compiled on a system with 1x Intel Core i7-860 CPU + 8GB memory using Windows 7 Enterprise 64-bit
Base Compiler Invocation
C benchmarks:
| icl -Qvc10 -Qstd=c99 |
C++ benchmarks:
| icl -Qvc10 |
Fortran benchmarks:
| ifort |
Benchmarks using both Fortran and C:
| icl -Qvc10 -Qstd=c99 ifort |
Base Portability Flags
| 410.bwaves: | -DSPEC_CPU_P64 |
| 416.gamess: | -DSPEC_CPU_P64 |
| 433.milc: | -DSPEC_CPU_P64 |
| 434.zeusmp: | -DSPEC_CPU_P64 |
| 435.gromacs: | -DSPEC_CPU_P64 |
| 436.cactusADM: | -DSPEC_CPU_P64 -names:lowercase /assume:underscore |
| 437.leslie3d: | -DSPEC_CPU_P64 |
| 444.namd: | -DSPEC_CPU_P64 /TP |
| 447.dealII: | -DSPEC_CPU_P64 -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG -Qoption,cpp,--ms_incompat_treatment_of_commas_in_macros |
| 450.soplex: | -DSPEC_CPU_P64 |
| 453.povray: | -DSPEC_CPU_P64 -DSPEC_CPU_NEED_INVHYP -DNEED_INVHYP |
| 454.calculix: | -DSPEC_CPU_P64 -DSPEC_CPU_NOZMODIFIER -names:lowercase |
| 459.GemsFDTD: | -DSPEC_CPU_P64 |
| 465.tonto: | -DSPEC_CPU_P64 |
| 470.lbm: | -DSPEC_CPU_P64 |
| 481.wrf: | -DSPEC_CPU_P64 -DSPEC_CPU_WINDOWS_ICL |
| 482.sphinx3: | -DSPEC_CPU_P64 |
Base Optimization Flags
C benchmarks:
| -QxAVX -Qipo -O3 -Qprec-div- -Qparallel -Qansi-alias -Qopt-prefetch -Qauto-ilp32 /F1000000000 |
C++ benchmarks:
| -QxAVX -Qipo -O3 -Qprec-div- -Qparallel -Qansi-alias -Qopt-prefetch -Qcxx-features -Qauto-ilp32 /F1000000000 shlW64M.lib -link /FORCE:MULTIPLE |
Fortran benchmarks:
| -QxAVX -Qipo -O3 -Qprec-div- -Qparallel -Qansi-alias -Qopt-prefetch /F1000000000 |
Benchmarks using both Fortran and C:
| -QxAVX -Qipo -O3 -Qprec-div- -Qparallel -Qansi-alias -Qopt-prefetch -Qauto-ilp32 /F1000000000 |
Peak Compiler Invocation
C benchmarks:
| icl -Qvc10 -Qstd=c99 |
C++ benchmarks:
| icl -Qvc10 |
Fortran benchmarks:
| ifort |
Benchmarks using both Fortran and C:
| icl -Qvc10 -Qstd=c99 ifort |
Peak Portability Flags
Same as Base Portability Flags
Peak Optimization Flags
C benchmarks:
| 433.milc: | basepeak = yes |
| 470.lbm: | basepeak = yes |
| 482.sphinx3: | basepeak = yes |
C++ benchmarks:
| 444.namd: | -QxAVX(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Oa -Qauto-ilp32 /F1000000000 shlW64M.lib -link /FORCE:MULTIPLE |
| 447.dealII: | basepeak = yes |
| 450.soplex: | basepeak = yes |
| 453.povray: | -QxAVX(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qunroll4 -Qansi-alias -Qauto-ilp32 /F1000000000 shlW64M.lib -link /FORCE:MULTIPLE |
Fortran benchmarks:
| 410.bwaves: | basepeak = yes |
| 416.gamess: | -QxAVX(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qunroll2 -Ob0 -Qansi-alias -Qscalar-rep- /F1000000000 |
| 434.zeusmp: | basepeak = yes |
| 437.leslie3d: | basepeak = yes |
| 459.GemsFDTD: | basepeak = yes |
| 465.tonto: | -QxAVX(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qunroll4 -Qauto -Qinline-calloc /F1000000000 |
Benchmarks using both Fortran and C:
| 435.gromacs: | basepeak = yes |
| 436.cactusADM: | basepeak = yes |
| 454.calculix: | basepeak = yes |
| 481.wrf: | basepeak = yes |
