| CPU2006 license: | 13 | Test date: | May-2014 |
|---|---|---|---|
| Test sponsor: | Intel Corporation | Hardware Availability: | Jan-2014 |
| Tested by: | Intel Corporation | Software Availability: | Apr-2013 |
| Hardware | |
|---|---|
| CPU Name: | AMD A10-7850K |
| CPU Characteristics: | AMD Turbo CORE technology up to 4.00 GHz |
| CPU MHz: | 3700 |
| FPU: | Integrated |
| CPU(s) enabled: | 4 cores, 1 chip, 4 cores/chip |
| CPU(s) orderable: | 1 chip |
| Primary Cache: | 192 KB I on chip per chip, 96 KB I shared / 2 cores; 16 KB D on chip per core |
| Secondary Cache: | 4 MB I+D on chip per chip, 2 MB shared / 2 cores |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 4 GB (2 x 2 GB 1Rx8 PC3-12800U-11) |
| Disk Subsystem: | 250 GB Seagate SATA HDD, 7200 RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Microsoft Windows 7 Enterprise 6.1.7601 Service Pack 1 Build 7601 |
| Compiler: | C/C++: Version 13.1.1.171 of Intel C++ Studio XE for Windows; Libraries: Version 16.00.30319.01 of Microsoft Visual Studio 2010 Professional SP1 |
| Auto Parallel: | No |
| File System: | NTFS |
| System State: | Default |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | SmartHeap Library Version 10.0 from http://www.microquill.com/ |

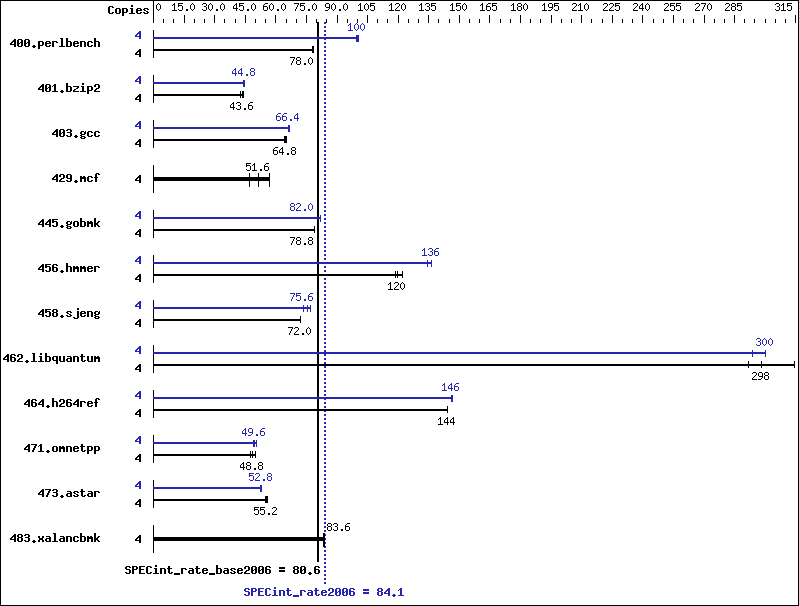

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 4 | 499 | 78.4 | 500 | 78.0 | 501 | 78.0 | 4 | 391 | 100 | 390 | 100 | 393 | 99.6 |
| 401.bzip2 | 4 | 898 | 42.8 | 879 | 44.0 | 889 | 43.6 | 4 | 860 | 44.8 | 865 | 44.8 | 876 | 44.0 |
| 403.gcc | 4 | 495 | 65.2 | 499 | 64.4 | 498 | 64.8 | 4 | 481 | 66.8 | 488 | 66.0 | 484 | 66.4 |
| 429.mcf | 4 | 644 | 56.8 | 775 | 47.2 | 705 | 51.6 | 4 | 644 | 56.8 | 775 | 47.2 | 705 | 51.6 |
| 445.gobmk | 4 | 530 | 79.2 | 532 | 78.8 | 531 | 78.8 | 4 | 512 | 82.0 | 511 | 82.0 | 511 | 82.0 |
| 456.hmmer | 4 | 312 | 120 | 314 | 119 | 306 | 122 | 4 | 274 | 136 | 277 | 134 | 274 | 136 |
| 458.sjeng | 4 | 672 | 72.0 | 674 | 72.0 | 673 | 72.0 | 4 | 639 | 75.6 | 657 | 73.6 | 630 | 76.8 |
| 462.libquantum | 4 | 278 | 298 | 284 | 292 | 264 | 314 | 4 | 276 | 300 | 282 | 294 | 276 | 300 |
| 464.h264ref | 4 | 613 | 144 | 614 | 144 | 615 | 144 | 4 | 602 | 147 | 605 | 146 | 607 | 146 |
| 471.omnetpp | 4 | 514 | 48.8 | 525 | 47.6 | 502 | 50.0 | 4 | 503 | 49.6 | 508 | 49.2 | 498 | 50.4 |
| 473.astar | 4 | 509 | 55.2 | 511 | 54.8 | 501 | 56.0 | 4 | 531 | 52.8 | 537 | 52.4 | 533 | 52.8 |
| 483.xalancbmk | 4 | 330 | 83.6 | 331 | 83.6 | 328 | 84.0 | 4 | 330 | 83.6 | 331 | 83.6 | 328 | 84.0 |
Compiler Invocation Notes
To compile these binaries, the Intel Compiler 13.1 was set up to generate 32-bit binaries with the command: "ipsxe-comp-vars.bat ia32 vs2010" (shortcut provided in the Intel(r) Parallel Studio XE 2013 program folder)
Submit Notes
Processes were bound to specific processors using the start command with the /affinity switch. The config file option 'submit' was used to generate the affinity mask for each process.
Platform Notes
Sysinfo program C:\SPEC13.1/Docs/sysinfo $Rev: 6775 $ $Date:: 2011-08-16 #$ \8787f7622badcf24e01c368b1db4377c running on CltE03F4919E4AE Wed May 7 03:31:13 2014 This section contains SUT (System Under Test) info as seen by some common utilities. To remove or add to this section, see: http://www.spec.org/cpu2006/Docs/config.html#sysinfo Trying 'systeminfo' OS Name : Microsoft Windows 7 Enterprise OS Version : 6.1.7601 Service Pack 1 Build 7601 System Manufacturer: System manufacturer System Model : System Product Name Processor(s) : 1 Processor(s) Installed. [01]: AMD64 Family 21 Model 48 Stepping 1 AuthenticAMD ~3700 Mhz BIOS Version : American Megatrends Inc. 0703, 12/30/2013 Total Physical Memory: 3,522 MB Trying 'wmic cpu get /value' DeviceID : CPU0 L2CacheSize : 4096 L3CacheSize : 0 MaxClockSpeed : 3700 Name : AMD A10-7850K APU with Radeon(TM) R7 Graphics NumberOfCores : 4 NumberOfLogicalProcessors: 4 (End of data from sysinfo program)
Component Notes
Tested systems can be used with Shin-G ATX case, PC Power and Cooling 1200W power supply Micron MT8JTF25664AZ-1G6 Series Memory DIMMs
General Notes
Binaries compiled on a system with 1x Intel Core i7-860 CPU + 8GB memory using Windows 7 Enterprise 64-bit
Base Portability Flags
| 403.gcc: | -DSPEC_CPU_WIN32 |
| 464.h264ref: | -DWIN32 -DSPEC_CPU_NO_INTTYPES |
| 483.xalancbmk: | -Qoption,cpp,--no_wchar_t_keyword |
Base Optimization Flags
C benchmarks:
| /arch:AVX -Qipo -O3 -Qprec-div- -Qopt-prefetch /F512000000 |
C++ benchmarks:
| /arch:AVX -Qipo -O3 -Qprec-div- -Qopt-prefetch -Qcxx-features /F512000000 shlW32M.lib -link /FORCE:MULTIPLE |
Peak Compiler Invocation
C benchmarks (except as noted below):
C++ benchmarks (except as noted below):
| icl -Qvc10 | |
| 473.astar: | C:\Program Files (x86)\Intel\Composer XE 2013.171/bin/intel64/icl.exe |
Peak Portability Flags
| 403.gcc: | -DSPEC_CPU_WIN32 |
| 456.hmmer: | -DSPEC_CPU_P64 |
| 458.sjeng: | -DSPEC_CPU_P64 |
| 462.libquantum: | -DSPEC_CPU_P64 |
| 464.h264ref: | -DWIN32 -DSPEC_CPU_NO_INTTYPES |
| 473.astar: | -DSPEC_CPU_P64 |
| 483.xalancbmk: | -Qoption,cpp,--no_wchar_t_keyword |
Peak Optimization Flags
C benchmarks:
C++ benchmarks:
| 471.omnetpp: | /arch:AVX(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qansi-alias -Qopt-ra-region-strategy=block /F512000000 shlW32M.lib -link /FORCE:MULTIPLE |
| 473.astar: | -Qauto-ilp32 /arch:AVX -Qipo -O3 -Qprec-div- -Qopt-prefetch /F512000000 shlW64M.lib -link /FORCE:MULTIPLE |
| 483.xalancbmk: | basepeak = yes |
